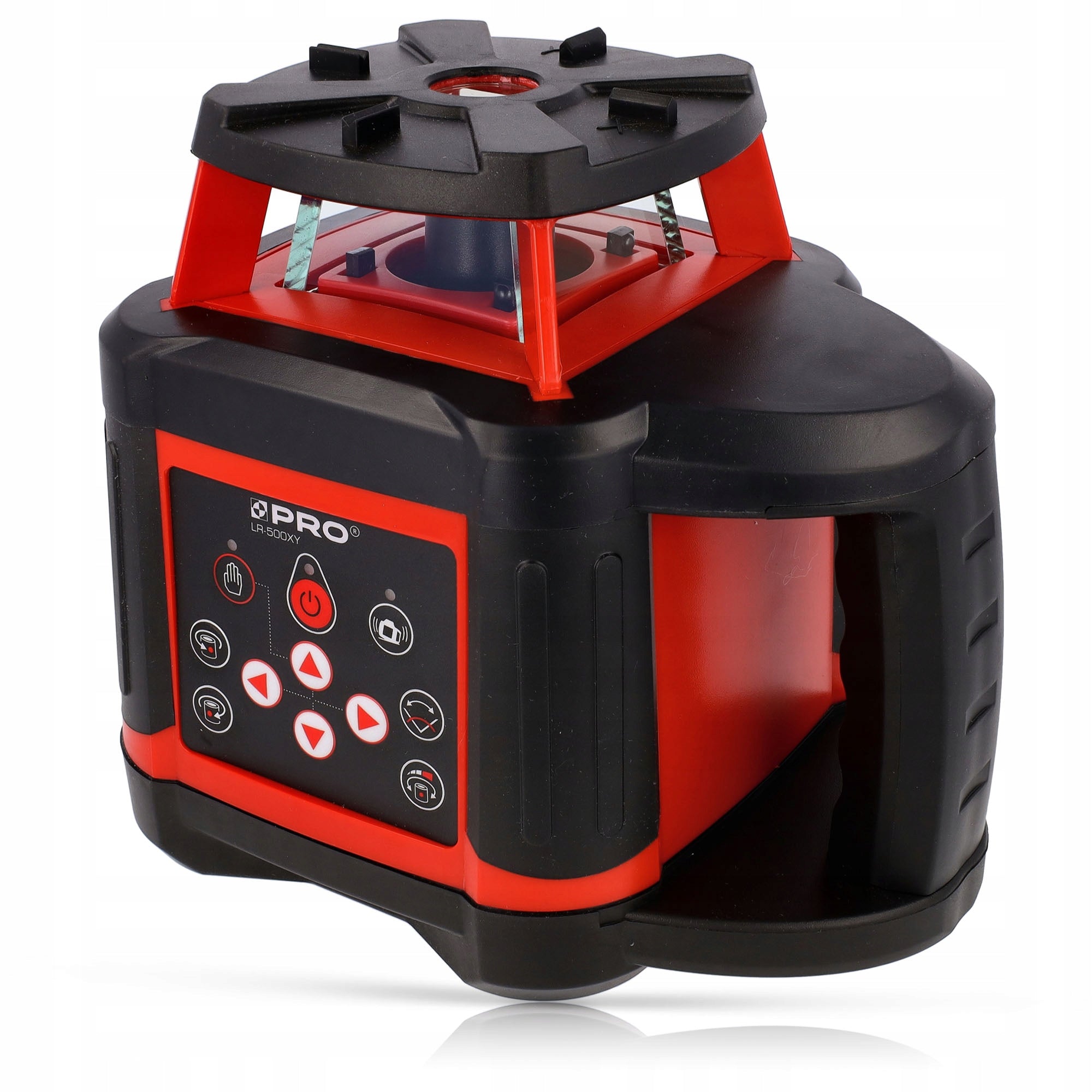

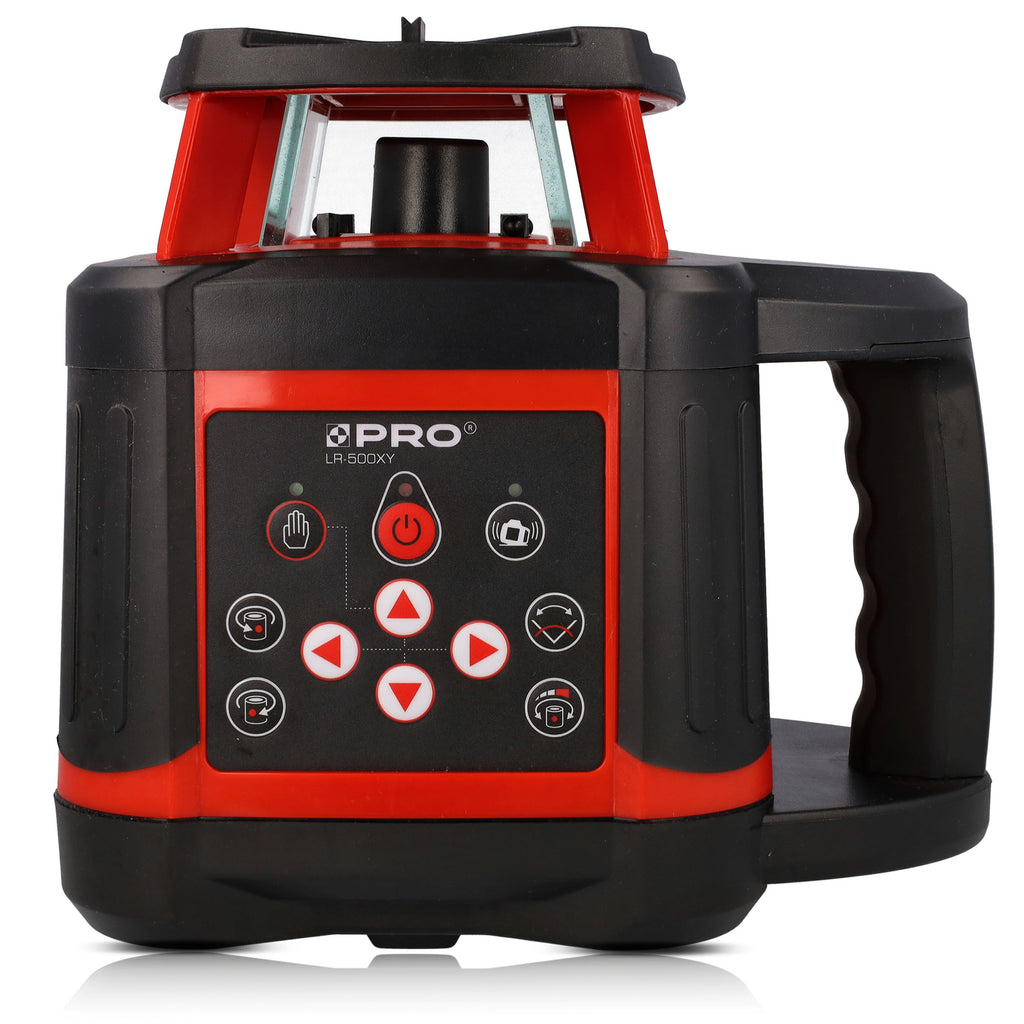

Rotacinis lazerinis nivelyras PRO LR-500XY su DWL-R2 jutikliu

Trumpai apie prekę

Prekė: Rotacinis lazerinis nivelyras PRO LR-500XY su DWL-R2 jutikliu. Kategorija: Lazeriniai gulsčiukai.

• Gamintojas: Pro
• Modelis: LR-500XY

Product Description:

Digital rotary laser PRO is a professional equipment for horizontal and vertical works.

Automatic, motor-controlled setting of both level and vertical, with the possibility of manual tilt setting.

Remote control - remote control included

Using remote control, you can adjust the tilt, rotation speed, scanning angle, as well as rotate the scanning area in both directions.

Leveler designed for operation:

• outside
• indoor

⚙ PRODUCT FEATURES:

✅ Rotary laser LR-500XY with visible radius

✅ For use outdoor and indoor

✅ Protection class IP54, providing protection against dust and rain

✅ Automatic, motor control setting both level and vertical,with the possibility of manually setting the tilt independently in two X and Y axes

✅ Tilt in two X and Y axes, maximum 10% per axle, total on both axes maximum 15% (level difference 10 cm at a distance of 10 m corresponds to 1% deviation)

✅ Scanning function with scanning angle setting

✅ Tilt alarm function, resulting from shock or violation of the original position of the instrument, after which the device must be reset manually

✅ Using remote control, you can adjust the tilt, rotation speed, scanning angle, as well as rotate the scanning area in both directions

✅ Laser receiver (detector) with two backlit displays, acoustic signal adjustment, accuracy connection - accurate or rough

✅ Class 2M laser diode,< 1mW 635 nm

⚙ TECHNICAL DATA:

✅ Laser source: semiconductor diode = 635nm

✅ Power:< 1mW class II M

✅ Instrument Accuracy:

✅ Horizontal and vertical: ± 1mm / 10m (± 0.1mm/1m)

✅ Vertical: ± 1.0mm / 1.5m

⚙ Laser Range:

✅ Radius of the area of action:250 m

✅ Working range (diameter):500 m

✅ Rotation speed: 0 / 60 / 120 / 300 / 600 rpm

✅ Scanning angle: 0° / 10° / 45° / 90° / 180°

✅ Self-leveling range:± 5°

✅ Maximum drops:

✅ Per 1 axis (X or Y): 10%

✅ Total for 2 axes (X and Y):15%

✅ Remote control (range):ok 20 m

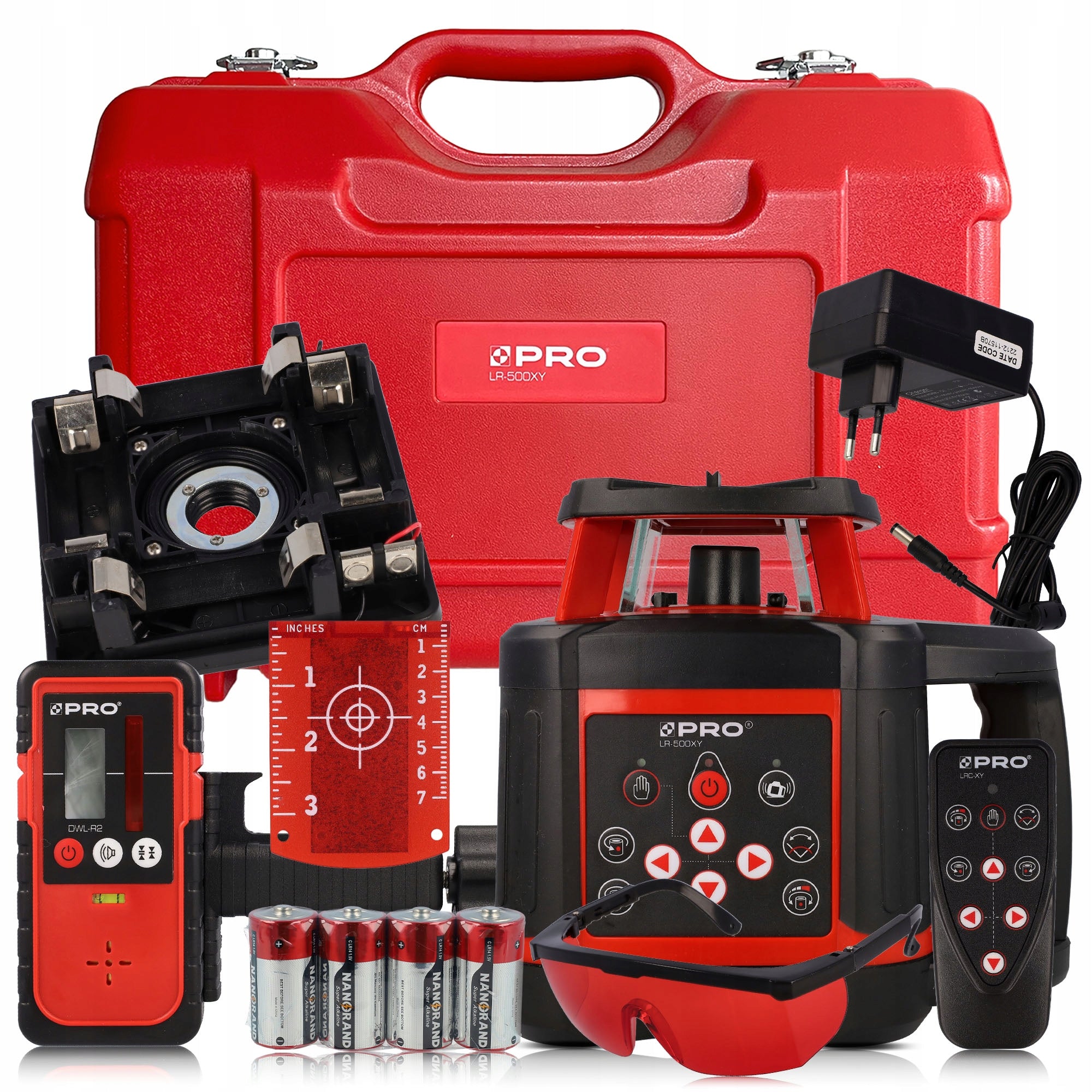

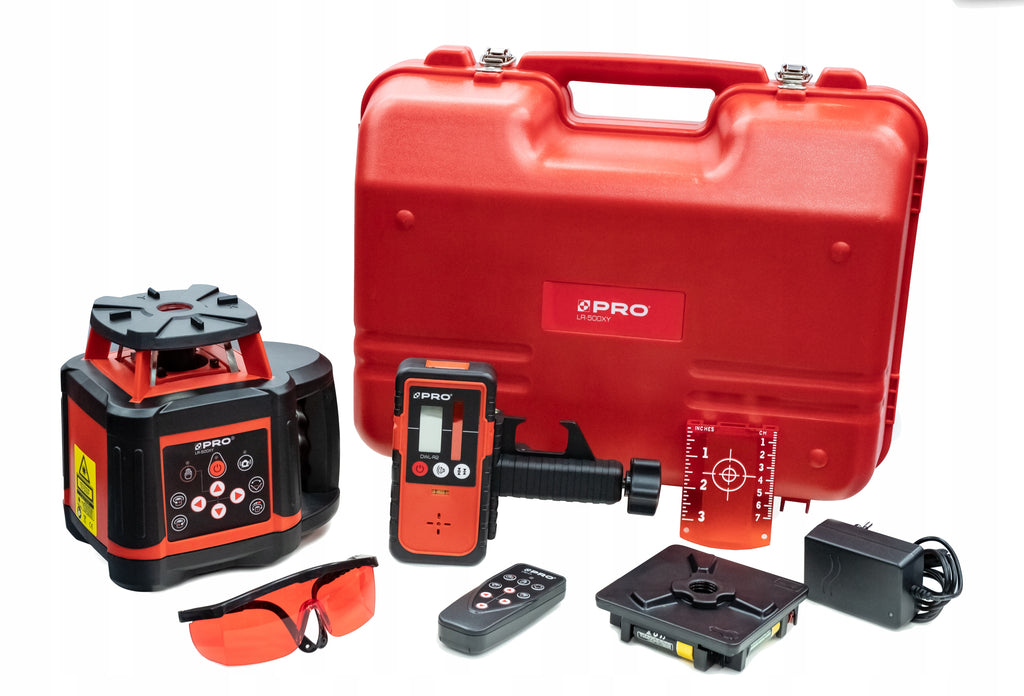

⚙ SET INCLUDES:

✅ Laser LR-500XY

✅ Remote control with 2x AAA batteries (LRC-XY)

✅ Laser receiver (detector) with handle and 9V battery (DWL-R2)

✅ Reflection shield

✅ Polarized glasses

✅ NI-MH battery

✅ 100-240V charger

✅ Package with LR14 batteries

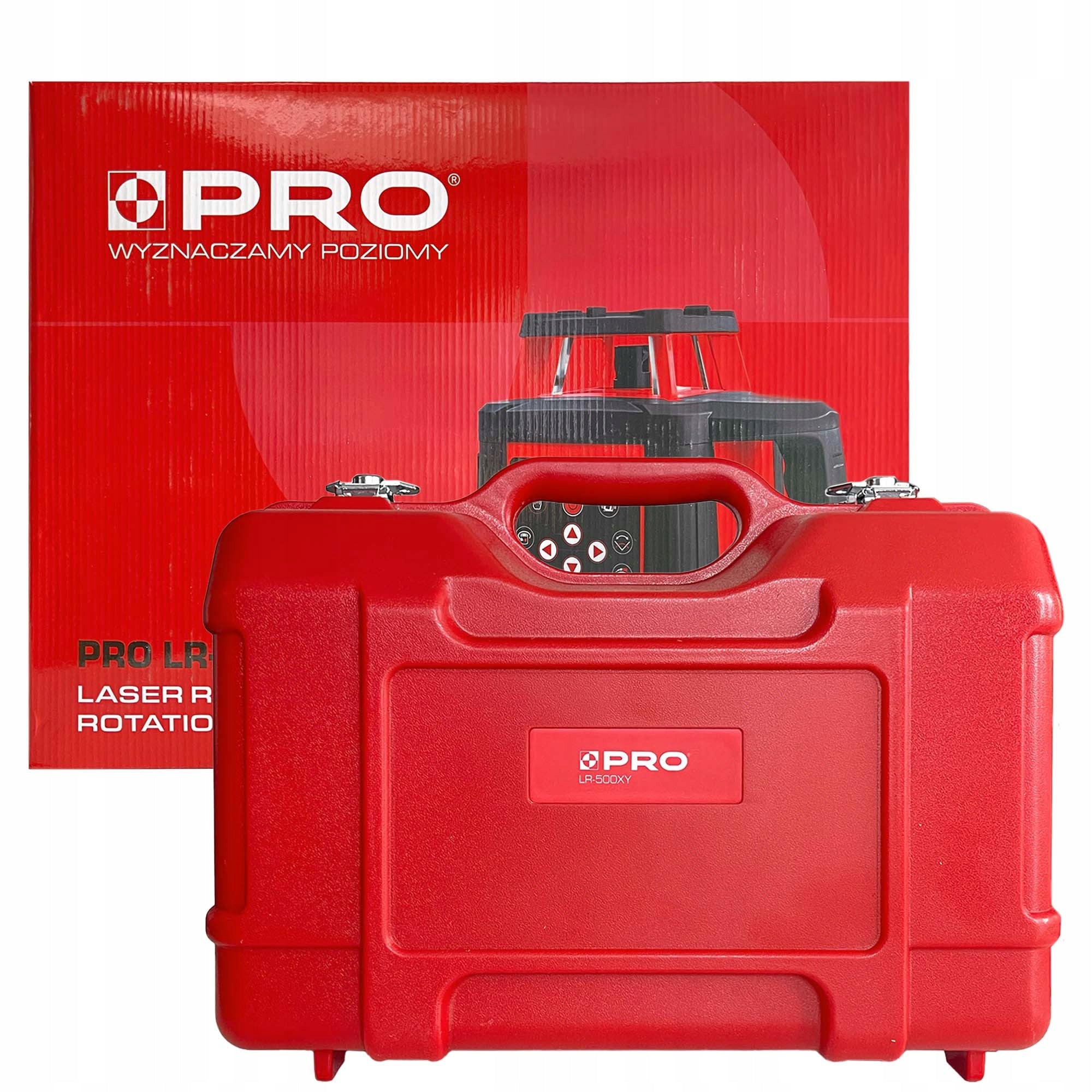

✅ Transport case made of plastic

✅ Polish manual
