RS485 signalo keitiklis Zamel Exta Free RXM-01, baltas, DIN, 230V

Trumpai apie prekę

Prekė: RS485 signalo keitiklis Zamel Exta Free RXM-01, baltas, DIN, 230V. Kategorija: Išoriniai moduliai.

• Gamintojas: Exta Free
• Modelis: RXM-01

Product Description

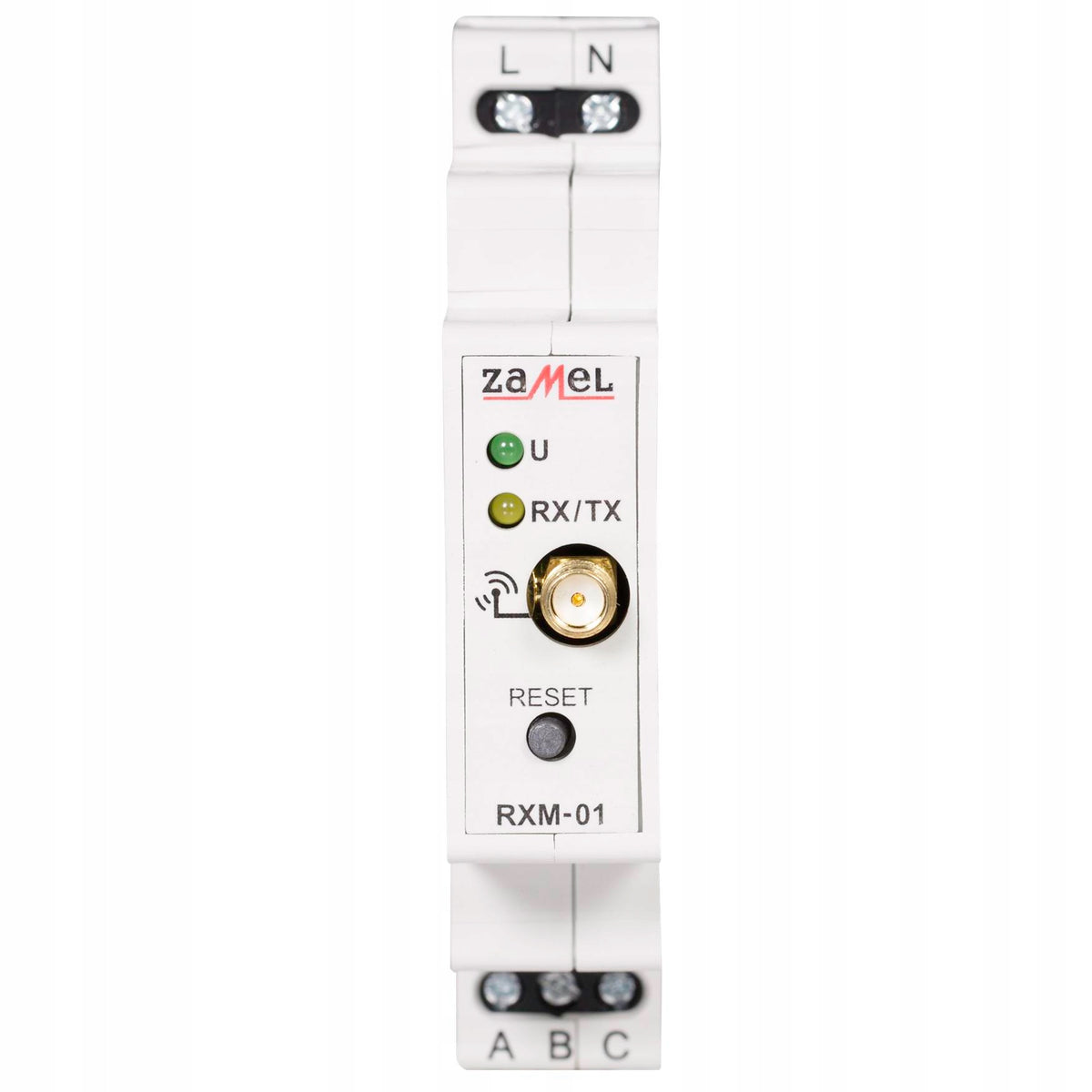

EXTA FREE RXM-01 Translator is a modular RS485 translator designed to integrate the EXTA FREE radio control system with a wired control network based on the RS-485 bus. The device enables independent management of up to 127 receivers of the EXTA FREE system. Installation of the RXM-01 is carried out on a DIN rail in control cabinets, which ensures convenience and safety of use. Powered by 230 V AC, the RXM-01 is characterized by low power consumption, thanks to which it is adapted to continuous live operation. The RXM-01 module significantly increases the flexibility and expandability of the installation without the need for additional wiring. It integrates EXTA FREE radio equipment with existing wired systems. The transmission range is up to 300 meters in open ground, with the possibility of enlargement through the use of RTN-01 retransmitter. It is also possible to connect the ANT-01 antenna. It is recommended to mount the antenna outside the control cabinet for optimal coverage.

Product Features

• Producer: Zamel
• Model: RXM-01
• System: EXTA FREE, RS-485 bus
• Mounting: DIN rail
• Color: White
• Power supply: 230 V AC
• Independent control for up to 127 EXTA FREE receivers
• Maximum range in open ground: up to 300 m (expandable)

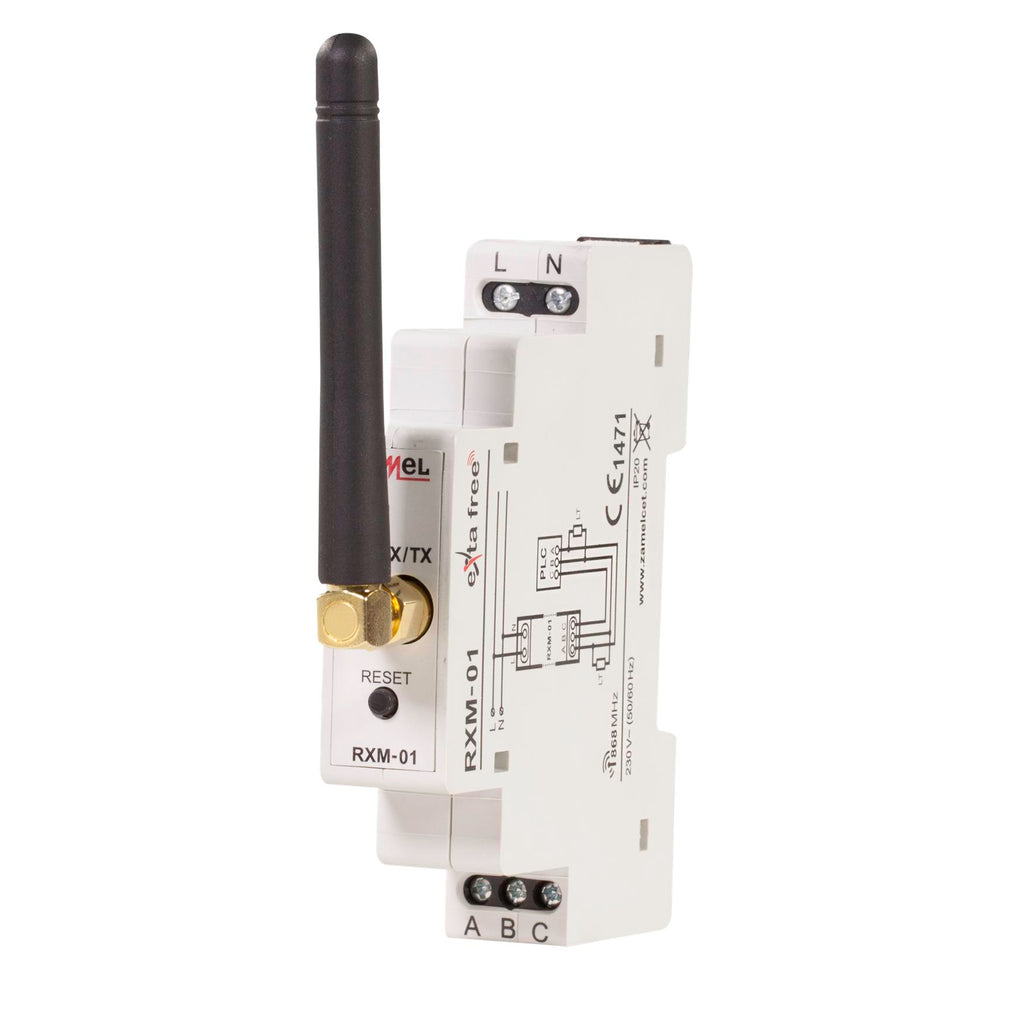

• Possibility to connect an external antenna (ANT-01)
• Dimensions: 6,6 cm (length) x 9 cm (height) x 1,75 cm (width)
• Weight: 0,07 kg

Application

The RXM-01 translator is used in home and industrial automation installations, enabling easy and convenient expansion of existing control systems with new radio equipment without the need for additional cable installation.

Contents of the pack

• RXM-01 RS485/EXTA FREE Translator
