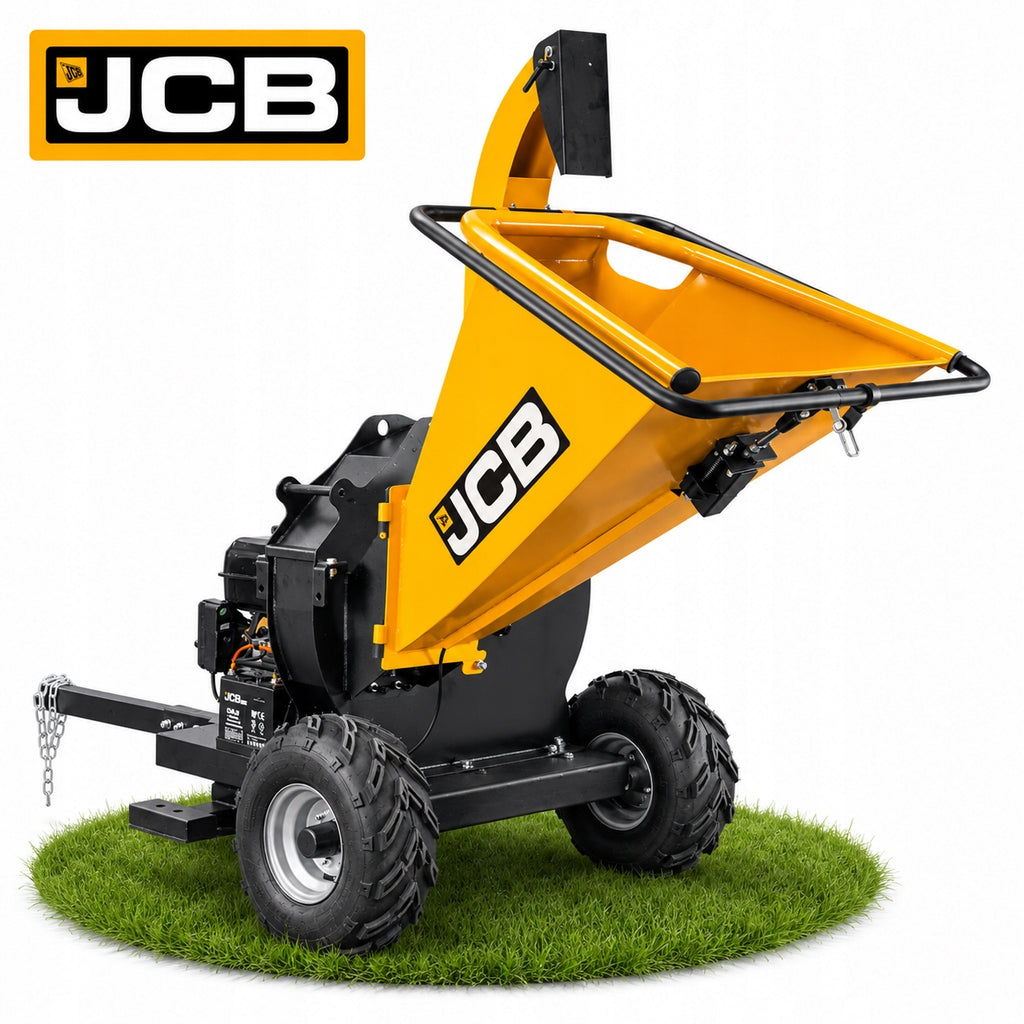

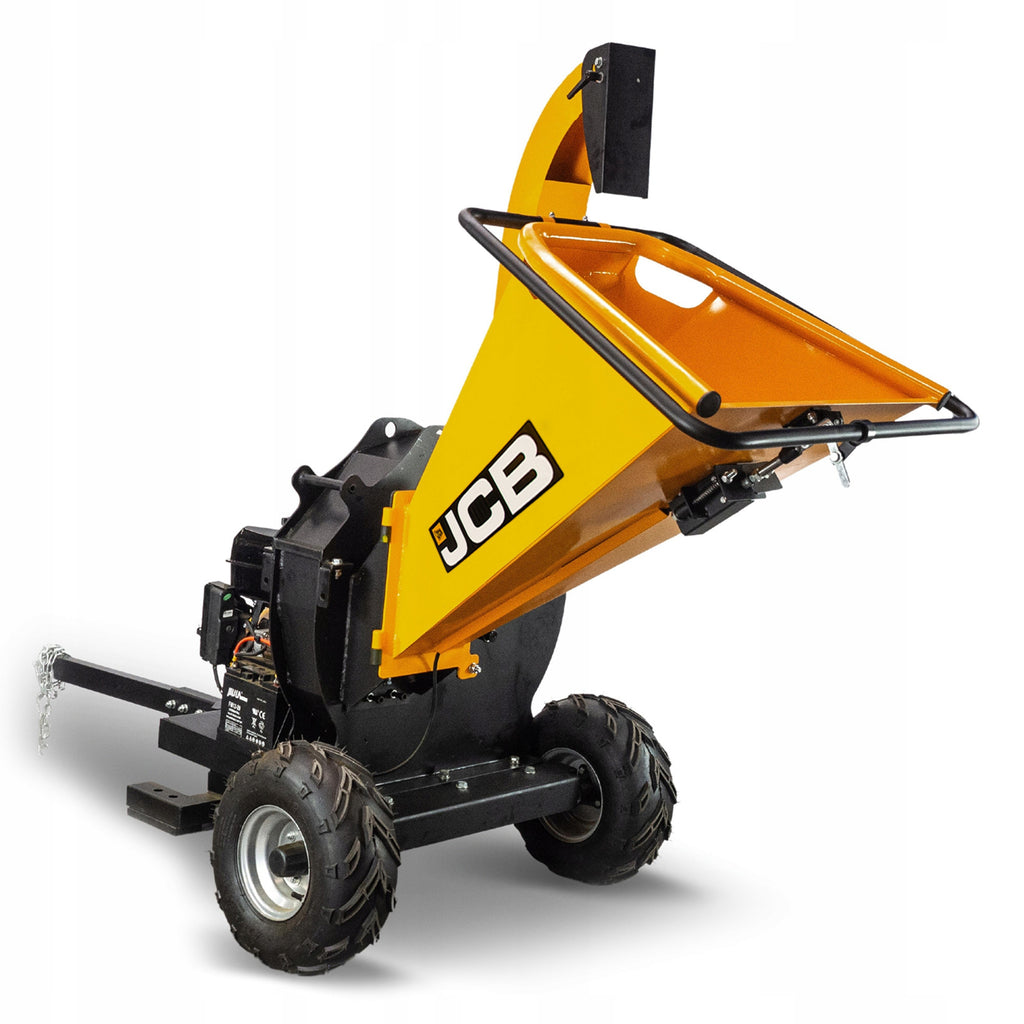

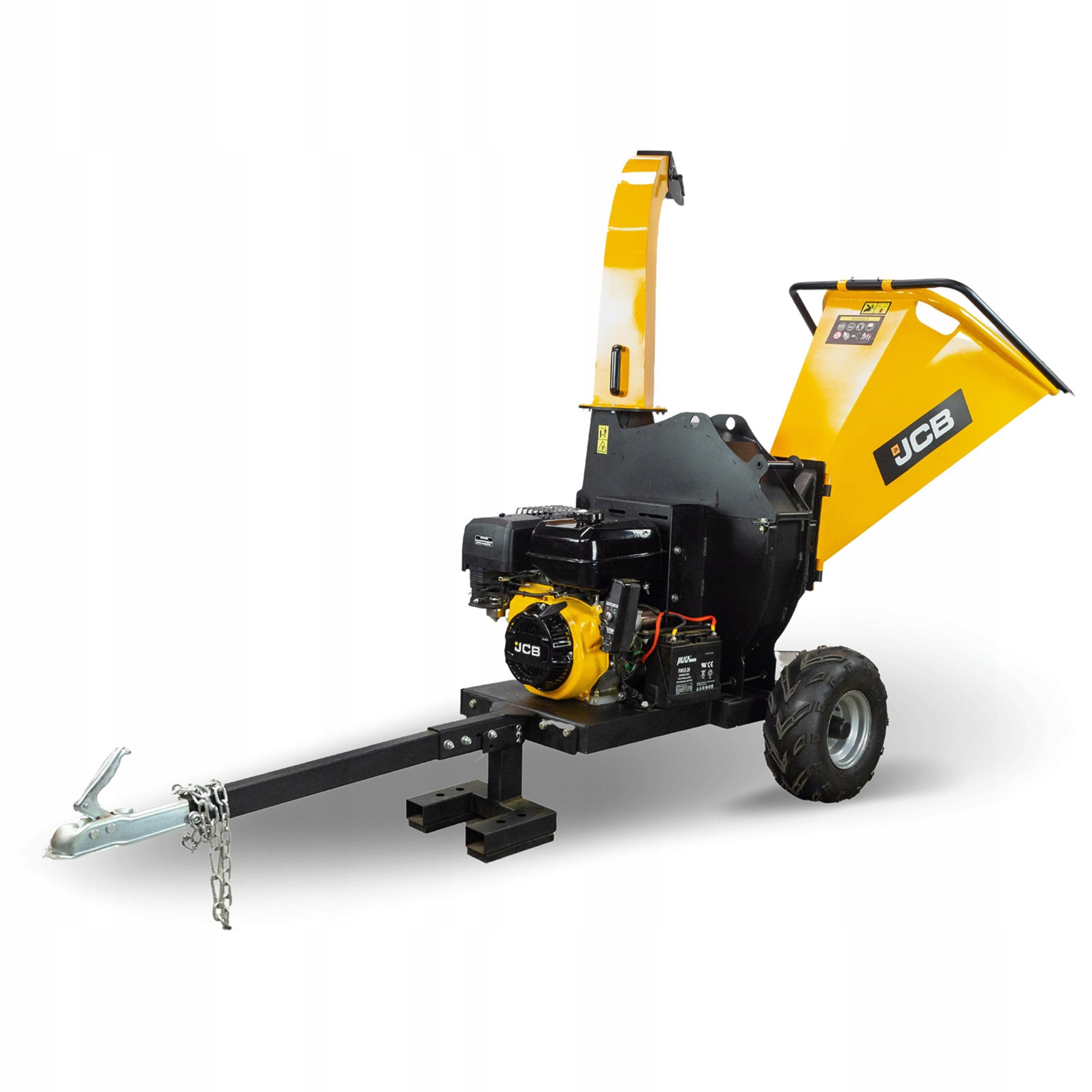

Šakų smulkintuvas SOLID JCB Tools, 15 AG, šakoms iki 120 mm

Trumpai apie prekę

Prekė: Šakų smulkintuvas SOLID JCB Tools, 15 AG, šakoms iki 120 mm. Kategorija: Smulkintuvai, kapoklės.

• Gamintojas: JCB
• Modelis: JCB-CH150120PEP24

JCB 15 HP (457 cm³) Engine | Branch Diameter Up to 120 mm | 8-Element Cutting System

JCB branch chipper is a powerful, professional machine designed for the rapid disposal and processing of wood waste. Powered by an armored 457 cm³ engine, it can easily handle branches up to 120 mm in diameter . Thanks to the advanced hybrid knife system, the machine not only cuts but also precisely shreds the material into fine chips. It is an indispensable tool for arborists, fruit growers, municipal companies and demanding farms.

Included in the set:

• (1x) Oil funnel
• (1x) Candle wrench
• (1x) 1L JCB Oil

⚡ The most important advantages of the machine

• The armoured JCB 15 HP engine: The powerful 4-stroke unit with a capacity of 457 cm³ guarantees enormous torque and unparalleled stability under the highest load.
• Hybrid 8-piece cutting system: The machine has a unique drum equipped with 2 rectangular main blades (for quick cutting of pieces) and 6 triangular shredding blades. The effect? Instant operation and perfectly homogeneous wood chips.
• Container shredding up to 120 mm: The wide throat and powerful cutting force allow you to throw thick, hard branches along with regrowths, without worrying about choking the machine.
• 360° adjustable ejector: The rotating chimney allows you to direct the stream of wood chips in any direction – straight to the van, to the trailer or directly as mulch under the trees.
• Double start and mobility: The chipper is conveniently fired electrically (with key), and in the reserve you have a classic hand jerky. Thanks to the tow trailer and powerful 16-inch pneumatic wheels, you can easily transport the machine by car, tractor or quad directly to the logging site.

📋 Technical Specification

⚙ Engine and Starting System

• Parameter: Value
• Engine type: JCB, 4-stroke, top-semi-sea
• Engine capacity: 457 cm³
• Maximum power: 15 HP
• Start-up system: Electric (battery) + Manual (scarf)
• Capacity of the tank: 6,5 liters

🪓 Cutting System and Efficiency

• Maximum branch diameter: up to 120 mm
• Drum design: 2 main knives (rectangular) + 6 shredding knives (triangular)
• Rotary speed of knives: 1800 rpm. /min
• Ejection adjustment: 360° swivel chimney with adjustable outlet angle canopy
• Safety: Easily accessible, around-throat emergency stop switch (instant stop)

📐 Size and Transport

• Wheels: 16" pneumatic (pumped, off-road)
• Towing attachment: Yes (standard ball hitch)
• Dimensions (H / W. / L ): 2675 × 1050 × 1990 mm
• Net weight: 294 kg (powerful stability during operation)
• Volume: 118 dB

❓ Frequently Asked Questions (FAQ)

What is the use of up to 8 blades in this model? Standard chippers usually only have 2 knives that cut branches into larger slices. The 2+6 layout from JCB ensures that the branch is first cut, and an additional 6 triangular knives immediately shred it into a fine, loose wood chip, which is ideal for dumping on discounts or as biomass.

Can a chipper legally be dragged on public roads? The machine has a tow bar and pneumatic wheels that allow for convenient transport in the field (behind a quad, garden tractor or car on a closed square). However, this design does not have road approval, lighting and a license plate, so it should be transported on a trailer or pace over long distances on public roads.

How does the safety system work in this machine? Safety at 15 hp is essential. The chipper is equipped with a special frame/emergency switch around the loading hopper. In the event of any danger, hitting the frame with your hand or body immediately cuts off the engine ignition and stops the cutting drum.
