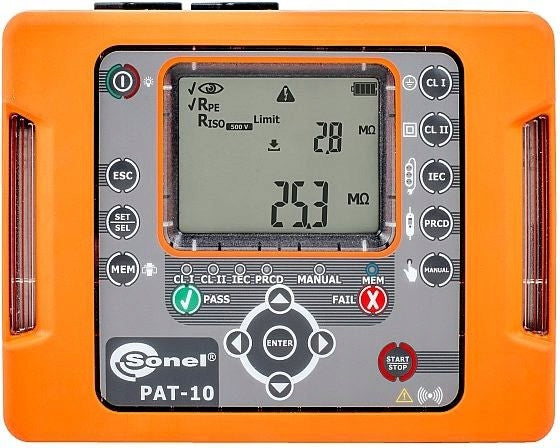

Saugos testeris Sonel PAT-10

Trumpai apie prekę

Prekė: Saugos testeris Sonel PAT-10. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLPAT10

Electrical Equipment Safety Tester Meter Sonel PAT-10 WMPLPAT10

PAT-10 is an innovative combination of small dimensions (and the associated full portability of the device) with advanced measurement systems that allow fully automatic measurements for electrical appliances and IEC cables and extension cords (including those from PRCD). A set of tests performed with one click of the START button. The configuration capabilities of the meter allow you to modify the way the instrument works, and thus, even better adapt it to the needs of the user. In situations where it is necessary to perform unit measurements, without the need to undergo a complex measurement procedure, Sonel PATS allow you to work in the mode of single measurements of a given type (so-called. manual). All meters of this series additionally allow you to perform basic measurements without external power supply, in emergency situations in the absence of mains power, you can easily run simplified sets of tests in battery mode. Small dimensions, weight and a specially designed case for the meter and accessories ensure convenience of use and high mobility of the device. Wireless communication with the printer allows for any organization of the place of measurement without the tangle of unnecessary wires. Recording the results to memory and integrating the results in the PC software further extends the functionality of the instrument.

BASIC FUNCTIONS OF THE PAT-10

• power supply from the battery or mains,
• LED indicating the evaluation of the result,
• quick access to measurement procedures,
• compact housing, ergonomic case,
• automatic selection of measuring ranges,
• measurement of resistance of protective conductor with current: 200 mA, 10 A.
• measurement of insulation resistance.
• measurement of the operating time of PRCD circuit breakers.
• measurement of replacement, differential and tactile leakage current,
• IEC cable test,
• recording the results to memory,
• cooperation with Sonel Reader

The instrument can be used to test equipment, among others, in accordance with the following standards:

• EN 60745 - 1: Electric hand tools. Safety of use. Part 1: General requirements.
• EN 61029: Safety of use of portable electric tools. General requirements.
• EN 60335 - 1: Safety of electrical appliances for household and similar use. General requirements.
• EN 60950: Safety of information technology equipment.
• EN 61557-6 Electrical safety in low-voltage power grids with alternating voltages up to 1000 V and constant voltages up to 1500 V - Equipment designed for checking, measuring or monitoring protective measures - Part 6: Residual current (RCD) devices in TT, TN and IT networks.

SET OF NECESSARY ACCESSORIES INCLUDED

Basic accessories

• WAPRZ1X2REBK - Cable 1,2 m 1 kV (crocodile terminated) red
• WAPRZ1X8REIEC - Power cable 230 V (orange plug IEC C13)
• WAPRZUSB - USB data cable
• WAPOZB16PAT - 2 x fuse 5 x 20 mm, 16 A (PAT-2E, PAT-10)
• WAFUTM12 - Case M-12

Specifications
