Saulės sistemos užpildymo rinkinys su savaiminio įsiurbimo funkcija

Trumpai apie prekę

Prekė: Saulės sistemos užpildymo rinkinys su savaiminio įsiurbimo funkcija. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: Fotton
• Modelis: ZDN223F3/4

Solar system filling kit with pump FOTTON FTL-223F3/8"GZ 4,8 bar connection GW 3/4" and vent valve

The product should be included in the equipment of each user of the solar installation, allows you to independently carry out maintenance work on the installation in order to maintain the correct parameters of its operation, replenishing the pressure to the level of 2,4 bar.

The kit is used to fill and refill the liquid in the solar installation. The device is also helpful for maintenance inspections. The set is designed for customers who have a GZ3/4" filling connection in the pump group.

On our other sets there are also sets designed for customers who in the pump group have a filling connection with a 10mm hose nipple.

The kit is equipped with a fitting that allows you to switch from a hose to 1/2" GZ and 3/4" GW, which will allow you to connect the pump to any installation.

Pump designed by FOTTON as resistant to a wide range of chemicals, special design and materials used to pump glycols in concentrations up to 50%, resistant to acids and bases with low concentration

Due to the wide resistance of the pump and hose to chemicals, the kit can also be used for pumping and refilling in liquids in refrigeration systems, GWC glycol ground exchanger installations, CO installations filled with glycol water solution, etc......

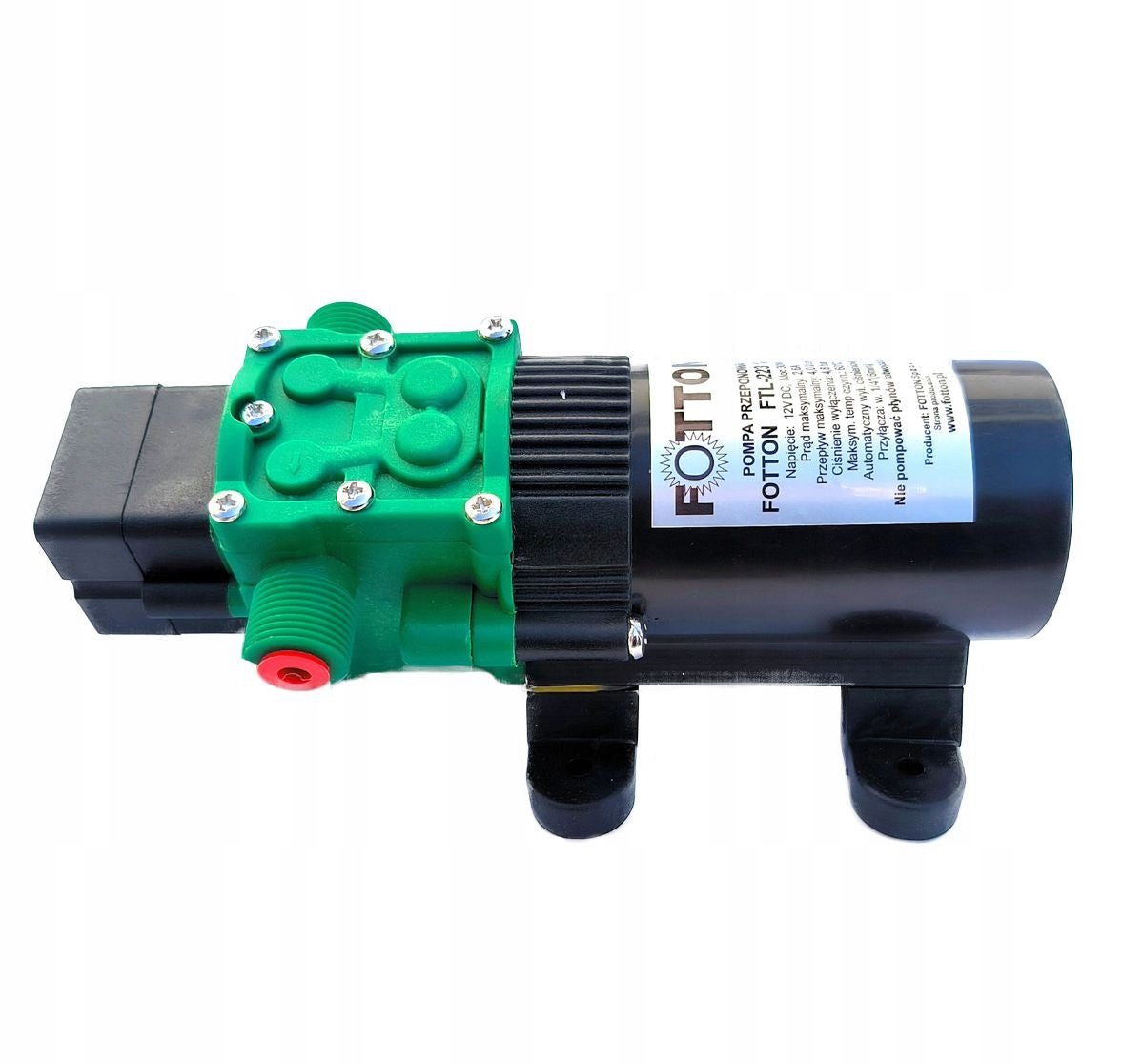

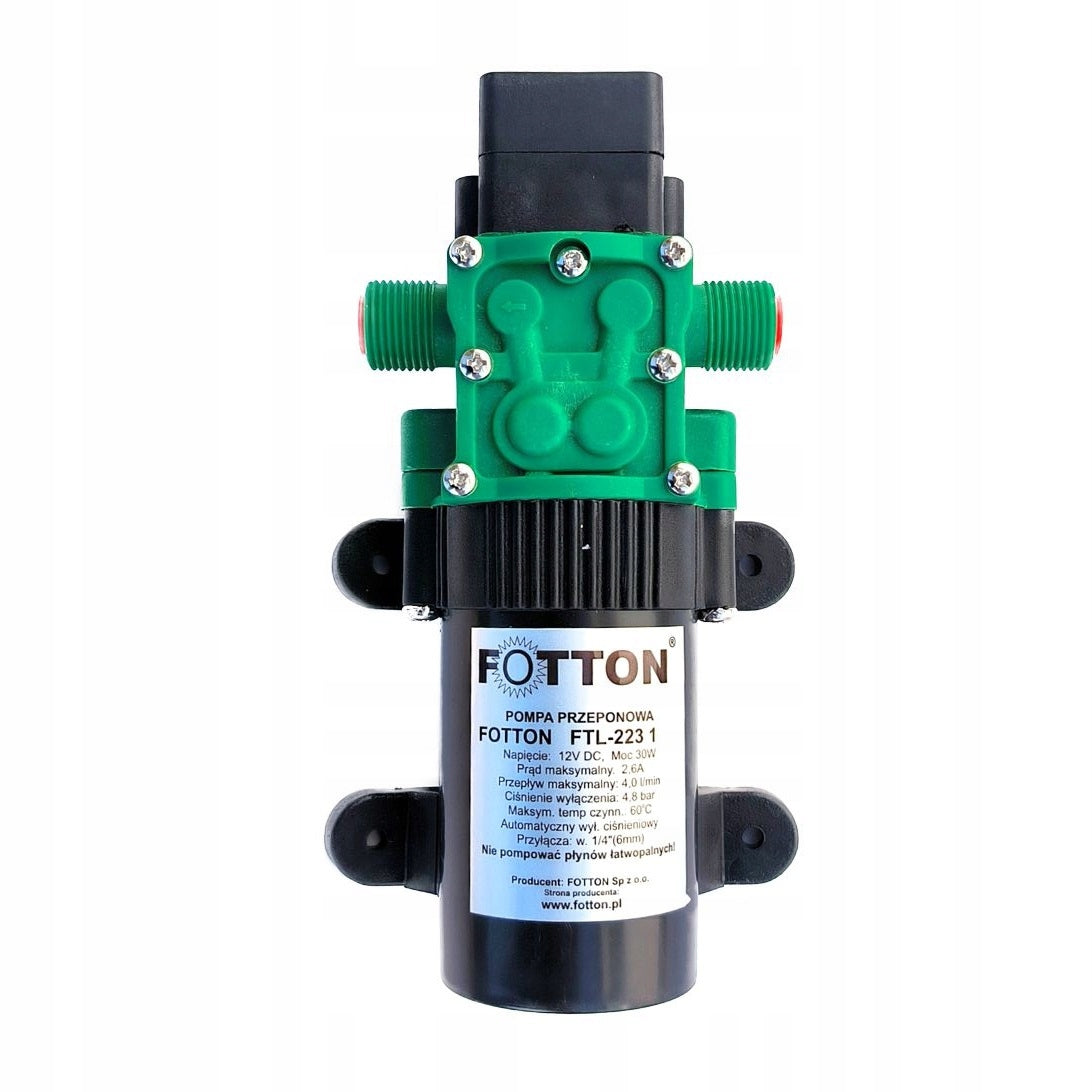

Pump parameters:

* Voltage: 12VDC standard

*Nominal current at 0,7 bar 2,5A

*Slow flow: 4,0l/min

* Net weight 0,68kg

*Off pressure: 4,0 bar

*Maximum pressure 4,8bar

* Connections: under hose GZ 3/8" (suction/pressing)

*Control: built-in automatic pressure switch

*Maximum liquid temperature of 60°C

*H suction capacity up to 1,5m

• IP20 class (The pump should be installed in a sheltered dry place. )
• Mount in a horizontal position on the rubber feet on the equipment of the device, ensuring that the pump drive is not fused. )

In order to ensure a long life of the pump, we recommend using a suction filter that eliminates contaminants that may be present in tanks or other sources from which water/liquid will be drawn - it is available in options to choose from.

Note / Service Hint:

In typical solar installations, e.g. in single-family houses, the working pressure in the system should be about 2-2,4 bar. The set after assembly but before connecting to the solar installation should be vented / poured, i.e. after inserting the suction hose into the liquid tank, turn on the pump for a moment until the liquid flows out of the end of the discharge hose, after which the pump should be turned off and only now connect the discharge pipe to the installation. With such a vented set, you can start supplementing the installation with liquid. Operations should be repeated after each airing of the suction hose, i.e. when there is no liquid in the tank from which we supplement the installation.

Full filling instructions using the customer's paper version kit included with the product or under https://youtu.be/YBtw5_OiLB0

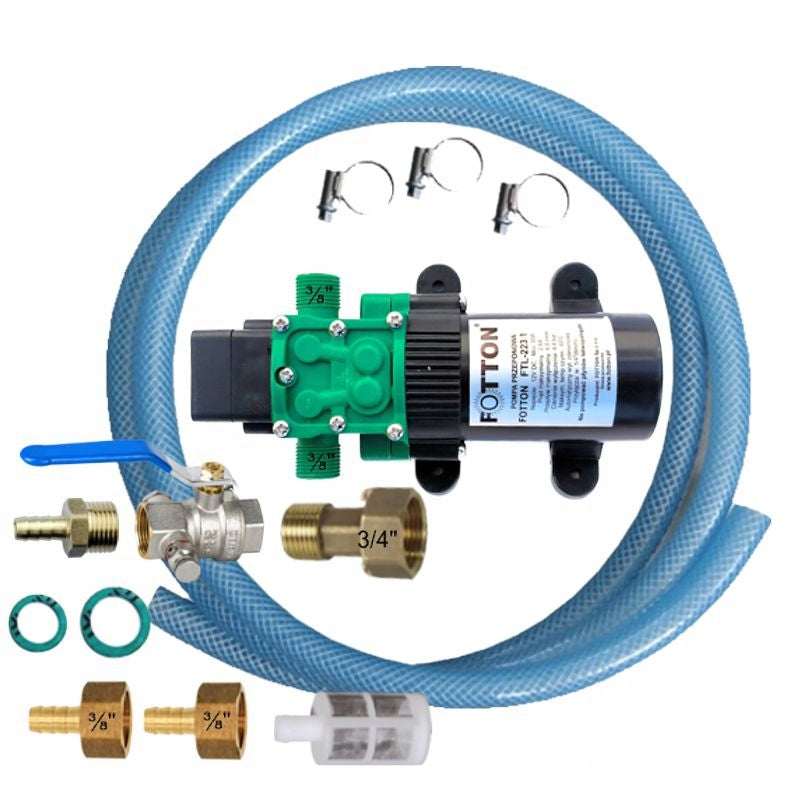

Composition of the set:

- Low-voltage pressure pump FOTTON FTL-223F3/8" 12V DC, capacity approx. 4,0 l/min. free flow, has an automatic pressure switch 4,8 bar 1pcs

- Special pressure hose with high chemical and pressure resistance

(glycols, gasoline, etc...) up to 6 bar - fi10mm 3 mb

- cybant 3 pcs

- filter fi 10mm 1 pc

- 3/8" GW brass fitting for fi10mm hose with 2kpl seal.

- 1/2" GW ball valve with 1pc vent

- Half screw GZ1/2" / GW3/4" with 1kpl seal

- 1/2" GZ brass connector for hose fi 10mm 1 pc

The kit contains all the necessary elements, which after self-assembly are ready for immediate use.

The pump can be powered from any 12 V DC source - battery, power supply, rectifier, etc... if you have a 230V AC installation, the corresponding 230V AC / 12V DC 5A power supply is available at our other auctions.

The pump is covered by full warranty and post-warranty service, we also offer spare parts.

FOTTON is the most famous Polish brand of high quality products related to renewable energy, a leader in the field of low-voltage pump systems.

WELCOME

Specifications
