Saulės vandens šildytuvas XXL kolektorius, našumas 10000 l/val.

Trumpai apie prekę

Prekė: Saulės vandens šildytuvas XXL kolektorius, našumas 10000 l/val.. Kategorija: Baseinų šildytuvai.

• Gamintojas: T.I.P.
• Modelis: SPH 10000S

T.I.P. Technische Industrie Produkte GmbH

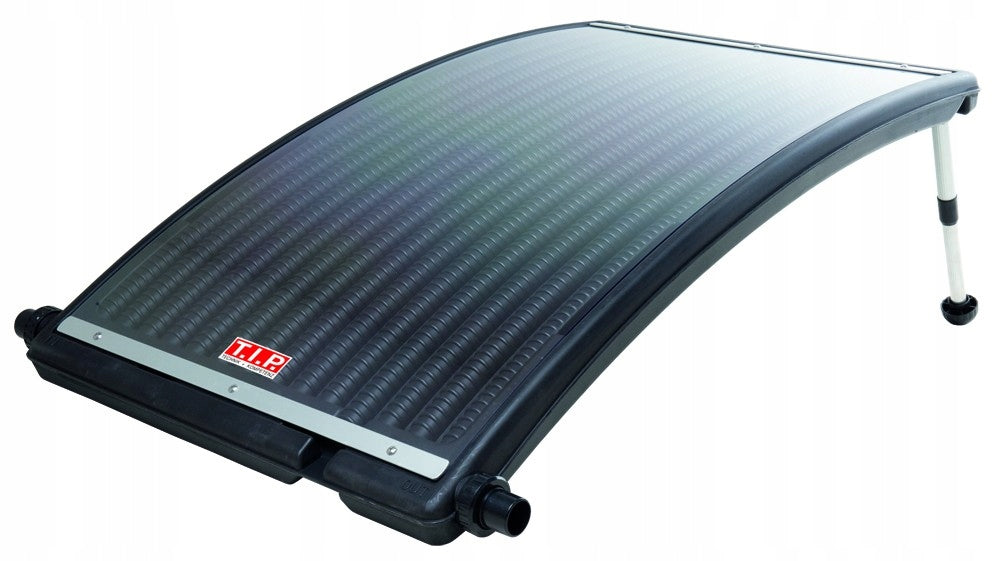

T.I.P. SPH 10000 S is an efficient solar water heater for swimming pools with a capacity of up to 20 000 liters.

☀ Effectively uses solar energy for ecological and cost-free heating of water in the pool - in one day up to 11°C (at 1 m³).

Made of high quality materials resistant to regular exposure to the sun and other atmospheric factors in modular construction with the possibility of serial connection to increase heating power and perfectly match the system to larger volumes of swimming pools.

📦 Equipped with all accessories for immediate use:

• 2 x hose connections
• 2 x telescopic feet.

Parameters of SPH 10000 S:

• Material: HDPE, plastic, aluminium
• Maximum flow rate: 10 000 l/h
• Water content collector: 16 l
• Maximum pressure: 1,0 bar
• Daily temperature rise: to +11°C (at 1 m³)
• Connection size: Ø 32 / 38 mm
• Dimensions of the folded collector: 112 x 55 x 16 cm
• Dimensions of the unfolded collector: 112 x 55 x 31-40 cm
• Net weight: 9 kg
• Equipment: 2 × hose connectors Ø 32 / 38 mm, 2 × telescopic feet.

Advanced heating technology in your garden

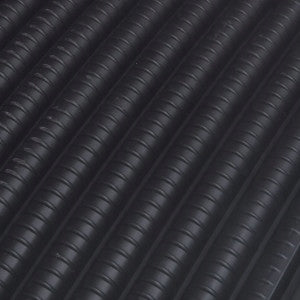

✅ Modern premium materials - collector made of high quality HDPE plastic, protected by a durable coating made of polycarbonate. This design effectively reduces heat loss and ensures maximum efficiency in absorbing sunlight.

✅ Impressive flow (up to 10 000 l/h) - thanks to its high throughput, the solar heater works perfectly with standard, even very powerful pool filtration systems.

✅ Durability for years - resistance to weather conditions and pool chemistry guarantees trouble-free use for many seasons.

Maximum efficiency thanks to thoughtful design

✅ Unique, arched panel shape – the design allows for much more effective capture of sunlight than in the case of traditional flat panels.

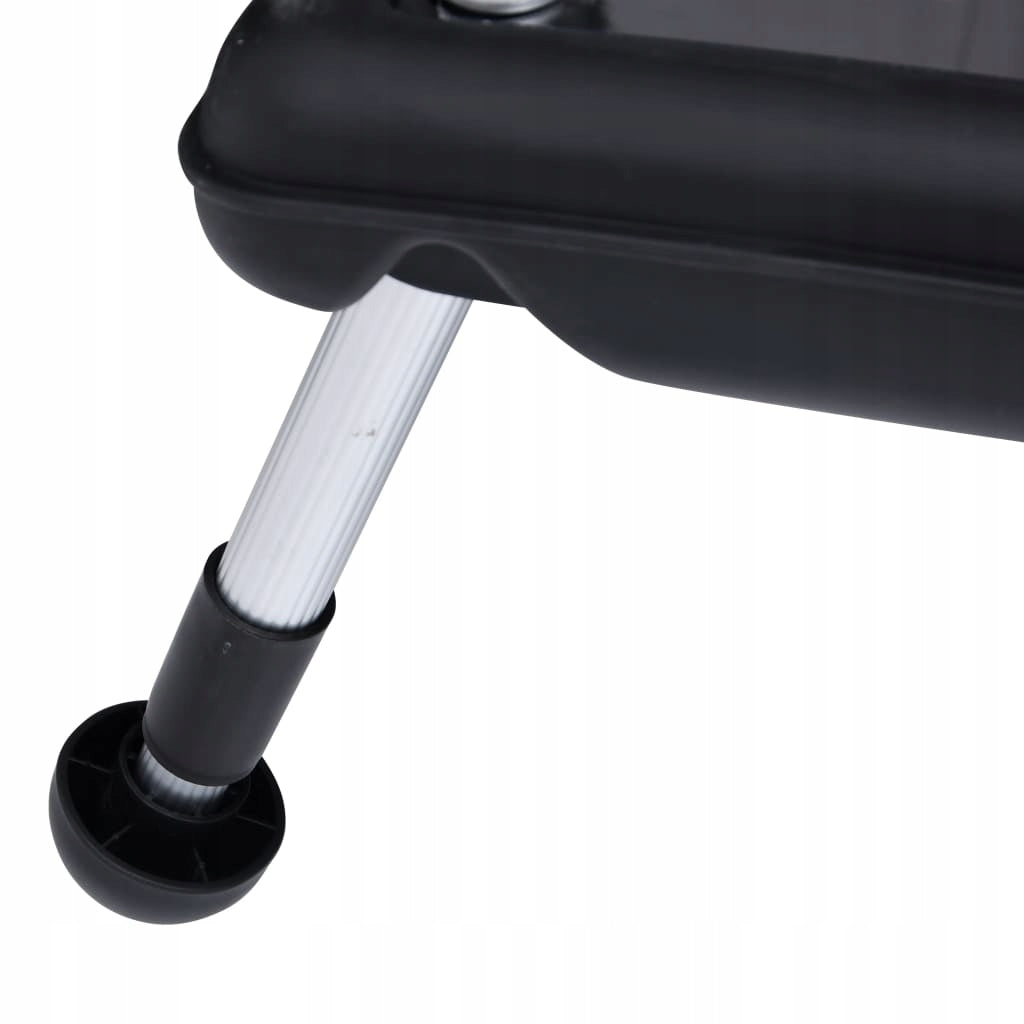

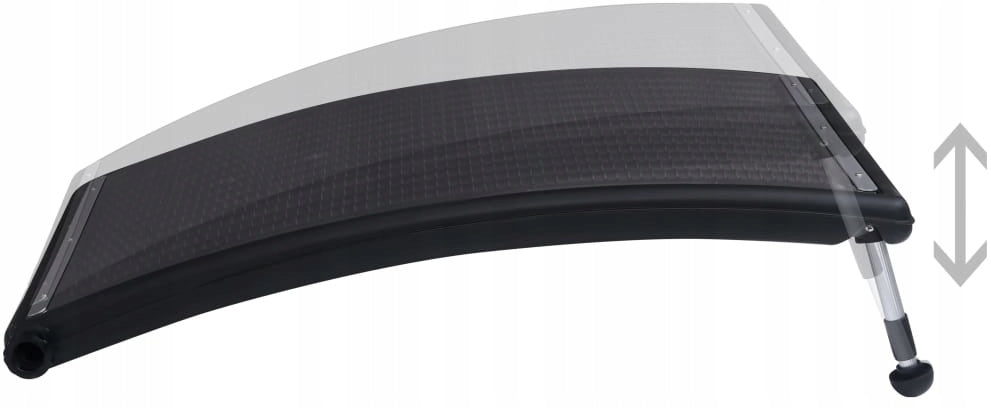

✅ Adjustable feet – allow you to perfectly adjust the angle of inclination of the device relative to the sun. Thanks to this, you can easily optimize the position of the panel and squeeze maximum heating power at any time of the day!

Instant and simple installation

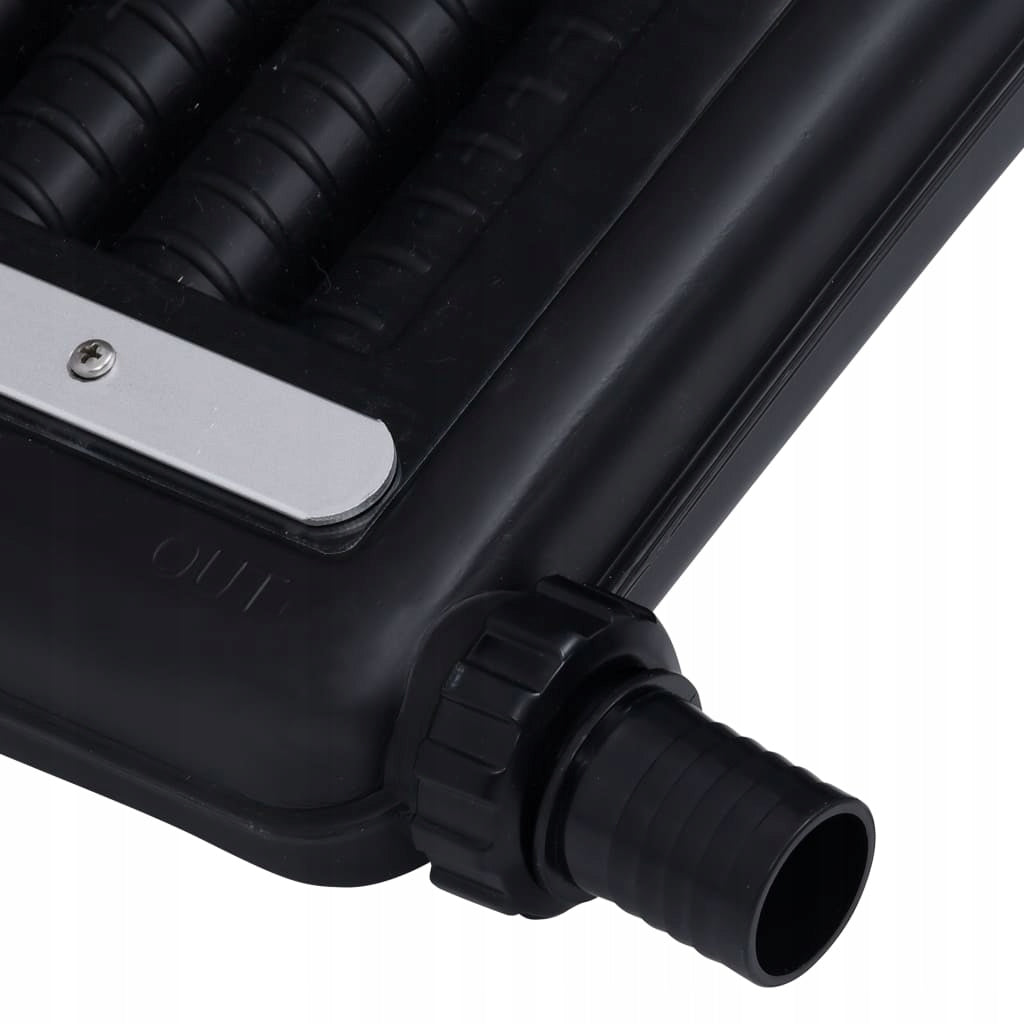

✅ Universal connection - adapted to standard pool hoses with a diameter of 32 mm and 38 mm.

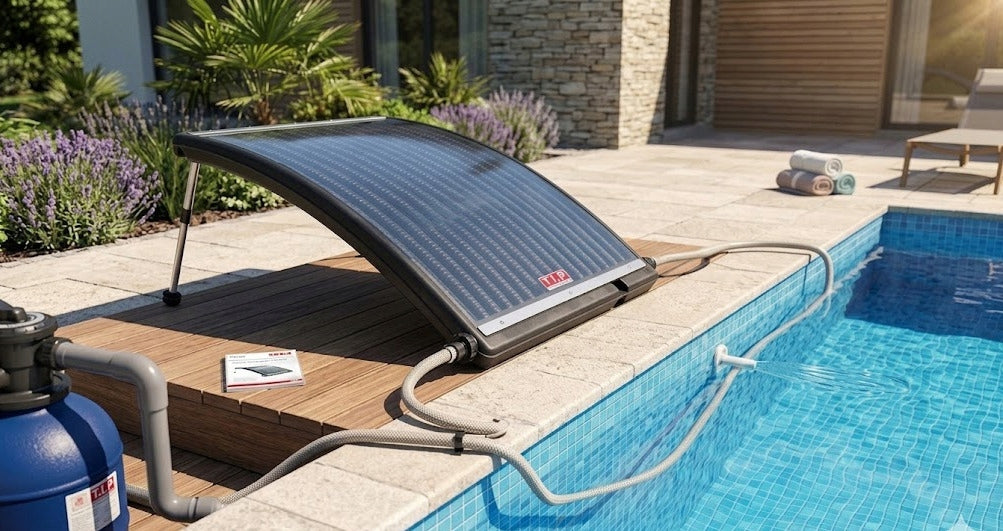

✅ Full compatibility - you can easily connect it to your existing system with your pump or pool filter.

✅ Ready to work - simple installation makes the system begin to heat water almost immediately after removing from the carton.

Expandable – connect panels and get more power!

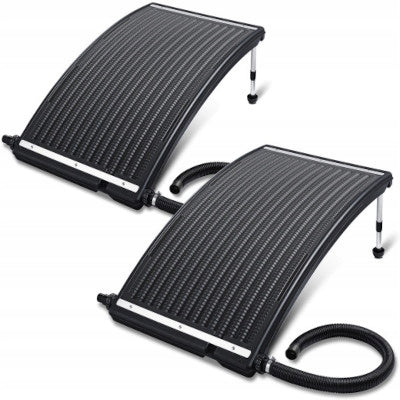

✅ Modular system - do you have a larger pool or want to heat water even faster? Solar modules are designed so that they can be easily combined.

✅ Increased heating power - by combining several panels into one series, you significantly increase the efficiency of the system and maximize heating efficiency, matching it perfectly to the volume of your pool.

◆ Over 40 years of experience: You choose a brand with traditions that has specialized in pumping technology for decades.

◆ Own, supervised production: We are not only a distributor – we create our own devices, taking care of every design detail.

◆ Durability confirmed by the quality of components: We use only proven, high-quality materials, which guarantees exceptional service life and efficiency for many seasons even under intensive use.

◆ Intelligent savings and safety: Our pumps are designed to maximize efficiency with minimal power consumption, protecting your wallet and home installation.

◆ Support that does not expire: We ensure the availability of spare parts for 10 years after purchase, making your purchase a safe investment for years to come.

◆ Authorized service: Access to the manufacturer’s authorized service workshop reduces the time of possible repairs and provides direct technical support.
