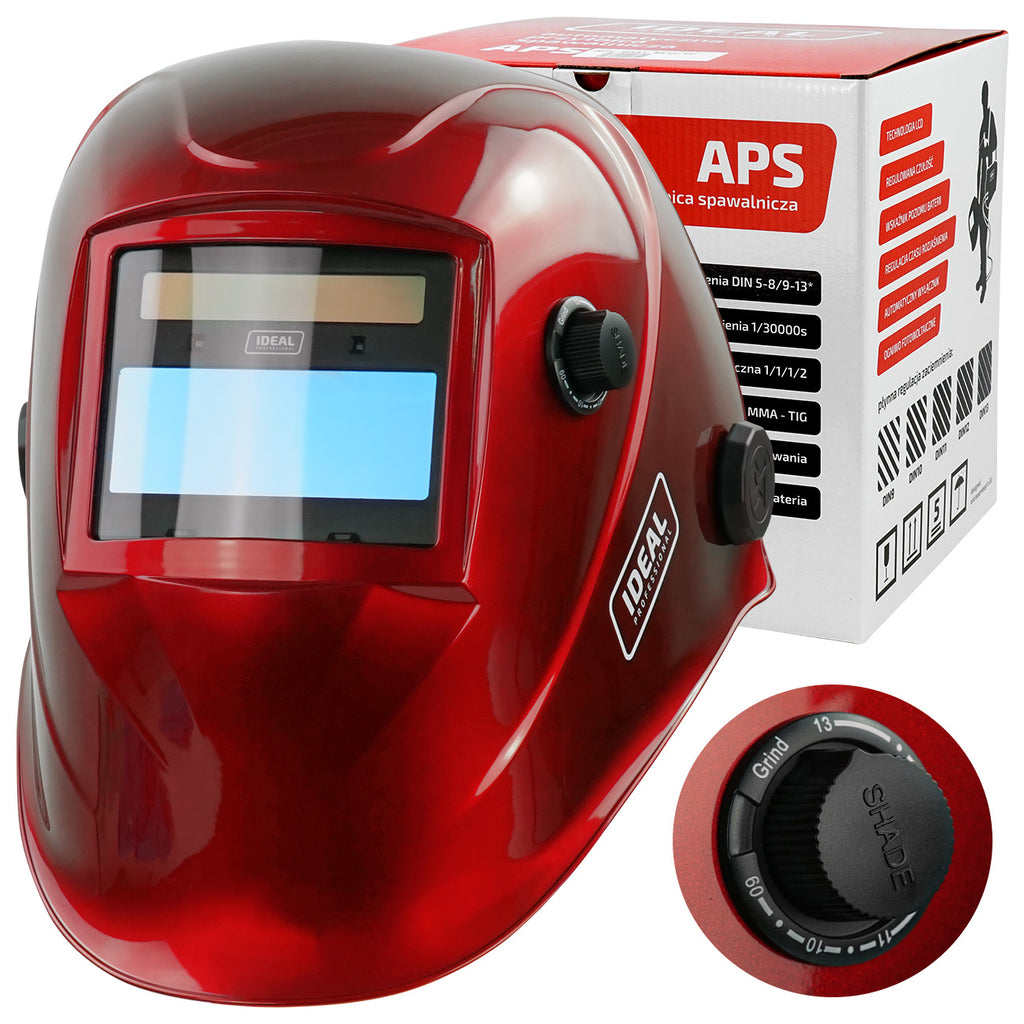

Savaime tamsėjantis suvirinimo skydelis LCD Ideal

Trumpai apie prekę

Prekė: Savaime tamsėjantis suvirinimo skydelis LCD Ideal. Kategorija: Kaukės.

• Gamintojas: IDEAL
• Modelis: Przyłbica Ideal APS 510 Red HRS

PURPOSE: WELDING MIG, MMA, TIG, PLASMA CUTTING, GRINDING || DEGREE OF PROTECTION: 4/9-13 DIN || FIELD OF VIEW: 96x39mm

▶ APS 510 - One of the best choices in its class

Professional self-tinting welding mask / visor designed to work during welding with methods such as MMA (SMAW), MIG, MAG/CO2, TIG, submerged arc welding (SAW), plasma welding (PAW), plasma cutting (PAC), TIG welding (low current) possible from ≥10A (DC) / ≥10A (AC)

Self-tinting function – the sensor placed in the filter cartridge automatically identifies the start of welding giving a signal of self-tinting of the filter, after welding the filter returns to the brightening state.

WELDING METHODS: arc welding: e.g. MMA, MIG/MAG, TIG, etc.

• Field of view: 96x39mm
• Number of sensors: 2
• DIN 9-13
• Filter optical class: 1/1/1/2

PROVEN SOLUTIONS

The visor is powered by batteries that charge during operation using a photovoltaic cell (batteries do not need to be replaced).

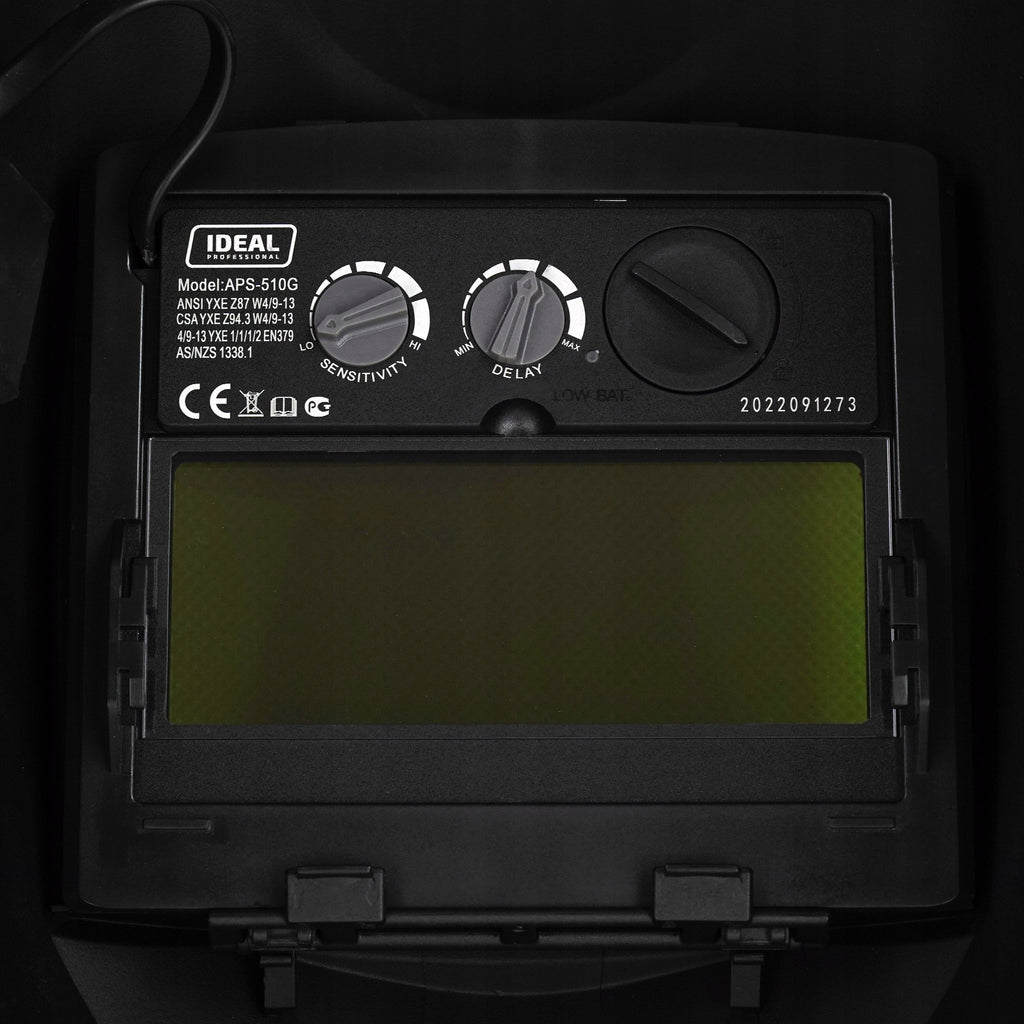

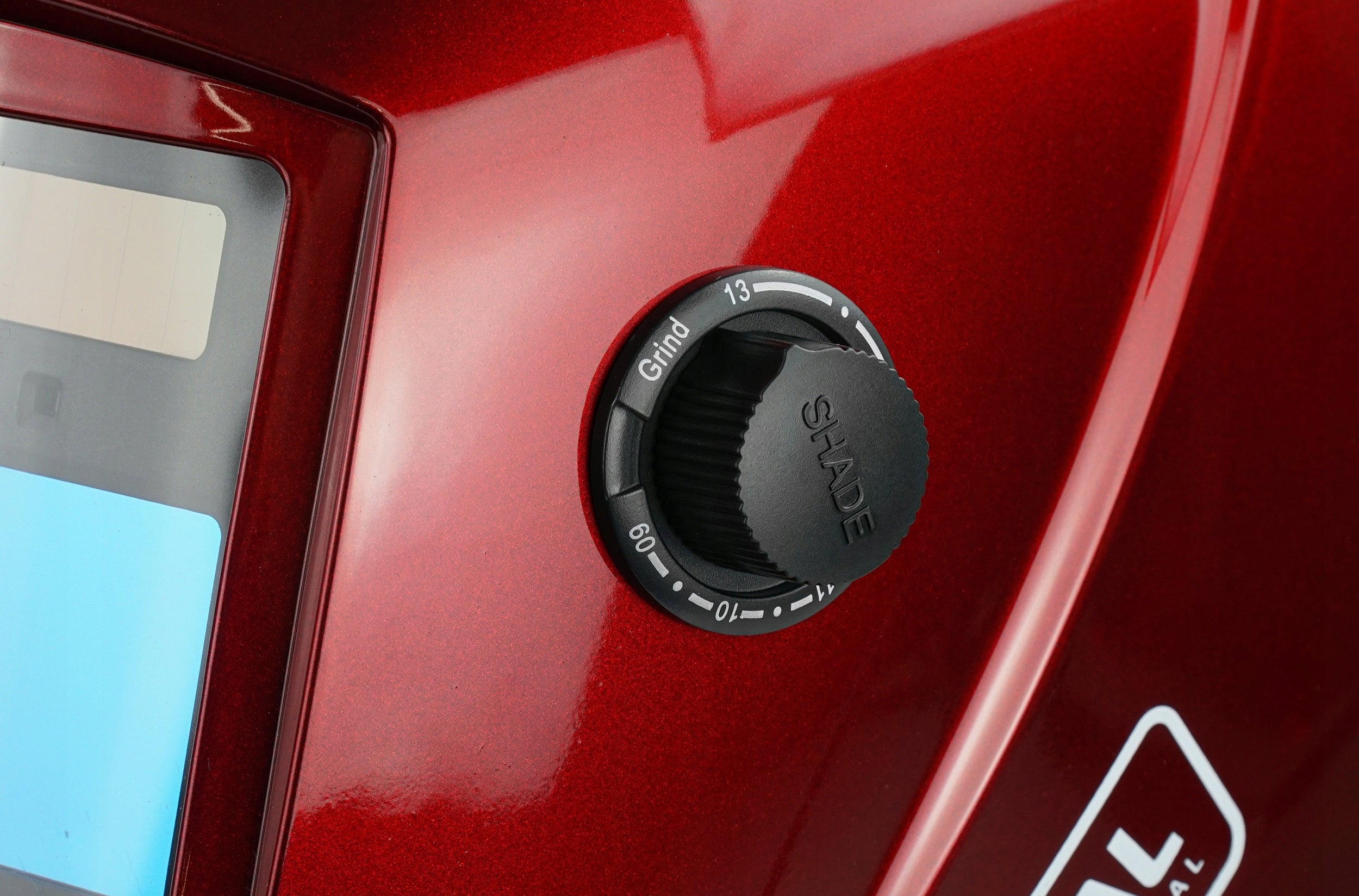

The visor has a darkening adjustment, as well as sensor sensitivity and lightening delay adjustment.

COMFORT AND SAFETY AT WORK

Durable shell with a properly contoured shape, effectively protects the welder's head and neck from harmful radiation and welding chipping. The visor head provides adequate comfort while working.

Comfortable fit

The mask has a large field of view and an advanced, comfortable and ergonomic header for a perfect fit and full adjustment of the visor position. A special tilting system changes the centre of gravity of the visor relative to the welder’s head.

ADVANTAGES OF THE VISOR

• high quality LCD filters in optical class 1/1/1/2
• power source: photovoltaic cell + replaceable CR2032 battery
• 4-spoke adjustable headrest for great comfort
• shell compliant with EN175B for greater impact resistance
• variable degree of protection DIN 4/9-13
• variable lightening time
• Possibility to set sensor sensitivity

▶ SPECIFICATION:

• Type of welding filter: APS-510G
• Weight: 475g
• Filter dimension: 96x39mm

TECHNICAL PARAMETERS

• Response time: <1/30000s
• Number of sensors: 2
• Optical class: 1/1/1/2
• UV/IR protection: up to 16 DIN
• Dimming adjustment: 4/9-13 DIN
• Adjustable Sensitivity: YES
• Adjustable Latency: Gradually 0.1-1.0s
• Standard: CE, EN175B, EN379, EN166
• Power supply: Photovoltaic cell + battery 1xCR2032

Honda Dio Fit 50 AIR 2T 1990-1993 (vertical cylinder)

• Plasma cutting: yes
• MIG/MAG ; MMA: yes
• Grinding: YES
• TIG minimum current value: >10A

• Self-tinting visor Ideal APS 510
• Spare protective polycarbonates
• User manual

Photo gallery:

Specifications
