Savaiminio įsiurbimo slėgio siurblys FOTTON FTL-223 WCH 2x1/4", 12V DC

Trumpai apie prekę

Prekė: Savaiminio įsiurbimo slėgio siurblys FOTTON FTL-223 WCH 2x1/4", 12V DC. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: Fotton
• Modelis: 223-2x1/4WCH

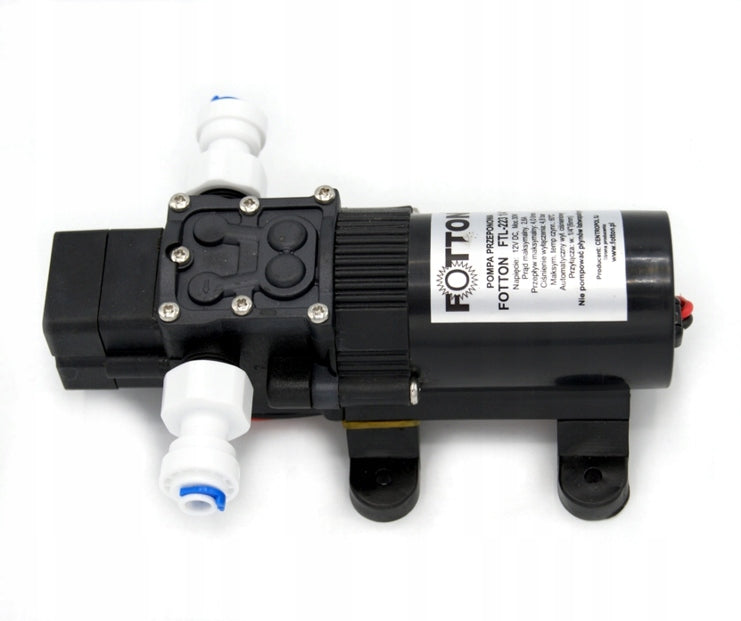

Diaphragm pump - self-priming FOTTON FTL-223 2x1/4" 12V DC

Water pump equipped with Honeywell 4,3 bar automatic pressure switch.

Pump with a very wide range of application. Two 1/4" connections mean that it is used in various types of water filtration systems. The pump is equipped with a pressure switch so it is possible to control the pump by opening the valve - then a diaphragm vessel should be found in the system! - available in our store. Convenient connections for 1/4" hoses

Main areas of application:

• filtration systems - filter sets, reverse osmosis, etc.... The pump has the ability to suck water so it can draw it from tanks, containers, etc...
• agriculture - spraying, treatment ....
• fluid replenishment, dosage of pressurized installations

The most important advantages:

- Compact design,

- easy and quick installation of 1/4" hoses by inserting connectors into the sockets and protecting with pins against accidental ejection

- Built-in automatic switch - the ability to control the opening of the tap (with diaphragm vessel)

- It has the ability to suck liquid so it can be mounted over the tank up to 1,5m

- Engine and circuit breaker seal (but cannot work as a submersible pump! ) It should be protected against splashing water and excessive humidity.

- Possibility of dry start,

- Built-in thermal protection,

- Pumped liquid has no contact with metal

Designed by FOTTON as resistant to a wide range of chemicals, special design and materials used to pump glycols at concentrations up to 50%, resistant to acids and bases with low concentration.

Parameters:

* Voltage: 12VDC standard

*Nominal current at 0,7 bar 2,5A

*Slow flow: 4,0l/min

* Net weight 0,68kg

*Off pressure: 4,0 bar

*Maximum pressure 4,8bar

* Connections: under hose 2x1/4"

*Control: built-in automatic pressure switch

*Maximum liquid temperature of 60°C

*Suction capacity H up to 1,5m

* Protection/insulation class IP22

Main areas of application:

- pumping water and liquids

- water filtration systems

- sprinkler systems, spraying in agriculture and horticulture

- irrigation

- cooperation with autonomous power supply,

- cleaning equipment, cooling systems

- filling devices

The set includes two 1/4" quick couplers!

Pump for cyclic operation! *(Working cycles depending on ambient temperature and load should not exceed 45 min of operation, then a minimum break of 15-20 min is required. Constantly ongoing and repeated too short cycles of work can lead to overheating of the contacts of the pressure switch and as a result of its damage. With this type of work, the minimum cycles should not be less than 0,5-1 minutes )

Clean water pump, if there may be contaminants in the pumped water, a 10mm suction filter should be used. We recommend using a filter whenever the pump draws water from tanks or an open source.

The suction filter can be purchased at another of our auctions.

Important note!

Membrane:

Special membrane material used exclusively in FOTTON - TPV58A cross-linked elastomer pumps is a unique material characterized by very good thermal resistance, resistance to UV, chemicals, oils, solvents and ozone in a long time interval. Resistance to a specific chemical compound should be checked on your own knowing the materials from which the pump is made before its application! .

Pump head:

PA66 - Polyamide 66 has very high mechanical strength, rigidity, heat resistance, chemical resistance, this material can also work at durable operating temperatures up to 100°C. (whole pump up to 60°C)

- High strength properties in a wide range of temperatures

- good mechanical strength

- physiological indifference (can be used in direct contact with food products)

- high chemical resistance to oils and fats

- poor chemical resistance to concentrated acids, good resistance to low-concentrated acids and bases.

The pump is covered by full warranty and post-warranty service.
