Septiko lygio jutiklis su WiFi ir SMS, valdymas telefonu

Trumpai apie prekę

Prekė: Septiko lygio jutiklis su WiFi ir SMS, valdymas telefonu. Kategorija: Jutikliai.

• Gamintojas: no brand
• Modelis: SZ-02

We are a manufacturer of innovative and patented wireless septic tank sensor. The device can also be used to measure the level of rainwater and other liquids in tanks.

• No drilling or screwing required for the ultrasonic sensor inside the tank.
• No need for a sensor viewing cone with a wide 50-degree angle.
• Simply drop our probe into the tank.
• Measures the entire tank height, eliminating the need to consider minimum distance from the liquid surface.
• The probe does not need to be removed when emptying the tank.
• The probe is made exclusively from materials resistant to septic tank conditions and contains no metal parts.
• Maximum tank depth is up to 6 meters.
• Unlike competitor solutions where an overflow (e.g., due to a hydraulic failure) would flood and damage the sensor, our innovative solution prevents this because the tank only contains a probe completely resistant to flooding.
• Batteries last up to 4 years, not 6 months like competitors.

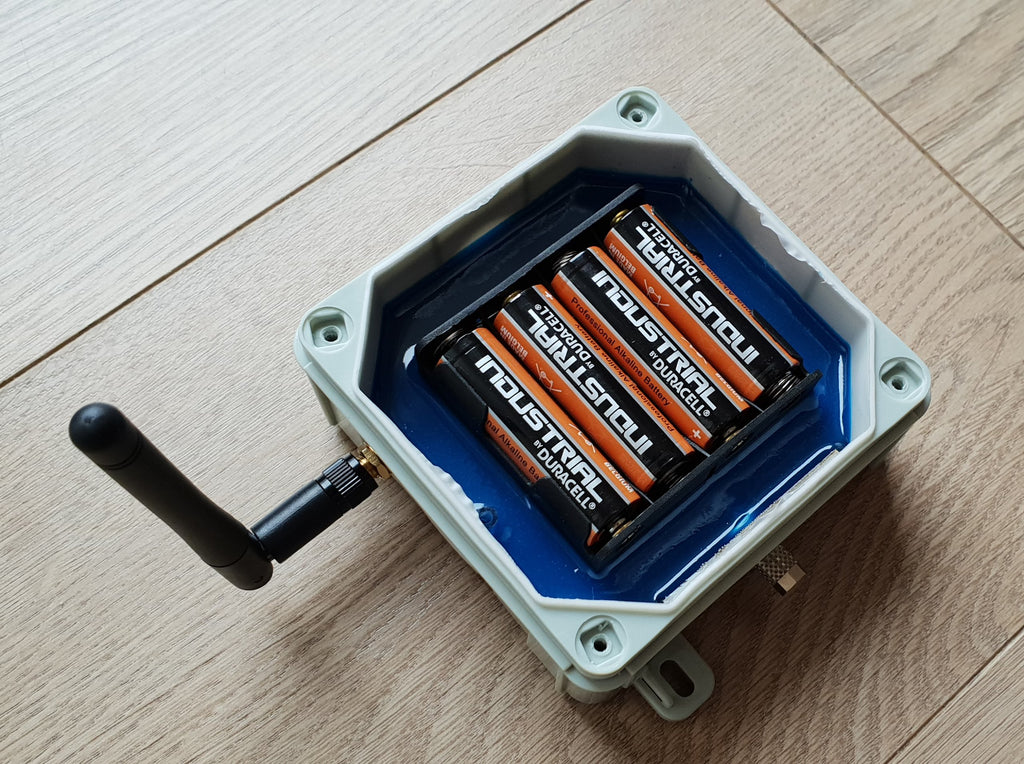

• No need to access the tank to replace batteries; they are easily accessible in the external controller.
• No 230V power supply needed.
• Works in sub-zero temperatures.
• Operates in temperatures from -30°C to +50°C.
• The shape and material of the tank do not matter.
• We are not limited by range between the transmitter and receiver.
• In case of weak WiFi signal, you can switch to a stronger antenna or use signal boosters, making the device more versatile.
• The probe rests on the bottom and does not interfere with tank emptying, nor will it be sucked in due to its size and weight.
• The server sends notifications.
• We have over 3500 satisfied users and 8 years of experience.

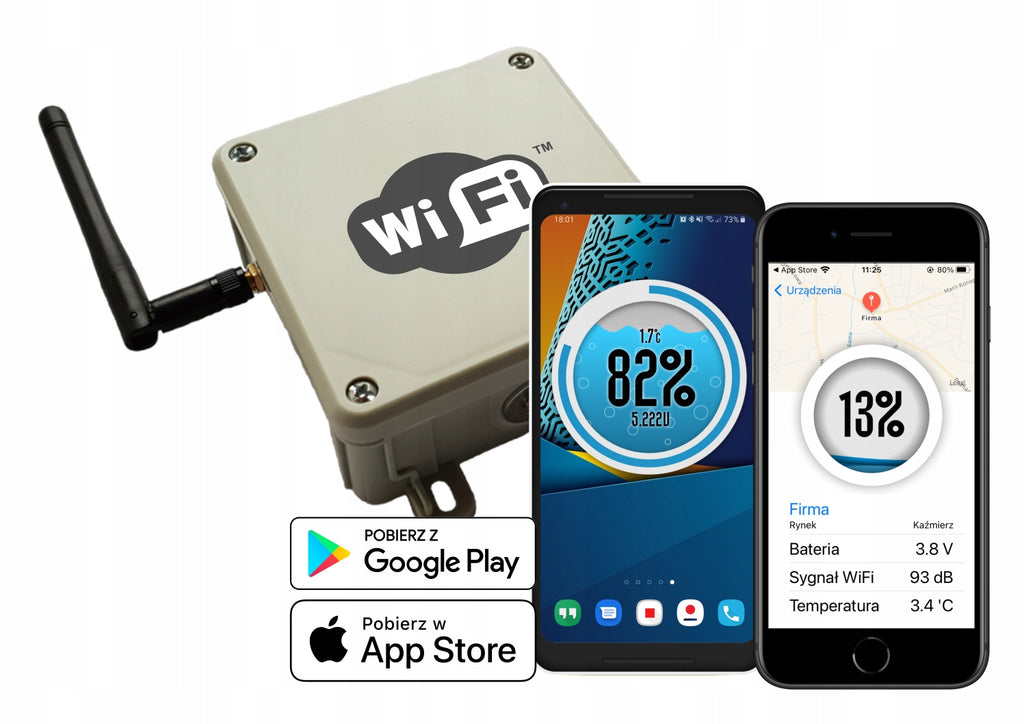

The device provides continuous and accurate measurement of liquid levels. It is completely wireless and maintenance free. Powered by four batteries "fingers", on which it lasts up to four years. Being within range of the WiFi network allows you to read the measurement on your laptop, phone, tablet, as well as on some TVs.

In addition, our system sends notifications (free Liquid Sensor application) to any number of recipients informing about the liquid level, as well as the upcoming filling time at no additional charge.

ADVANTAGES:

• polish product and unique on a global scale
• unlike other devices available on the market, no telephone subscription is needed
• reading the liquid level at any time and anywhere in the world via phone, tablet, computer
• possibility of automatic ordering of waste export by SMS
• Poland illustrated instruction manual

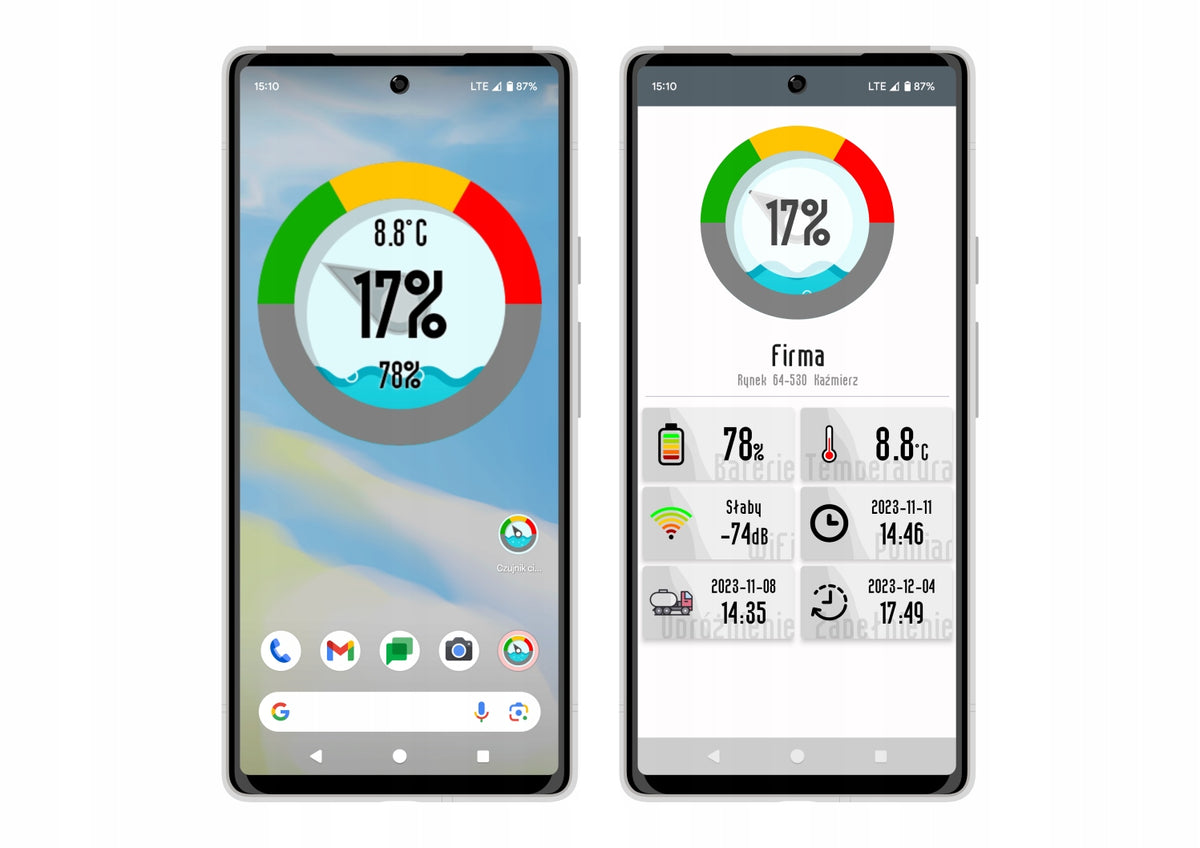

• Visualization on your Android or iOS phone or tablet
• standard SMA antenna connector for changing antennas with longer range or directional
• Simple configuration of settings using a phone, tablet or laptop (via WiFi)
• easy installation (depending on tank availability - can only take 5 minutes)
• measurement accuracy 1 cm
• corrosion resistant (no metal elements immersed in liquid)

• battery power (no electrical wires, batteries included)
• long battery life (alkaline up to four years)
• notifications included in the cost of the device
• depth measurement up to 6 m
• access to the configuration panel available through the web browser
• new system features and capabilities do not require device software updates
• no additional and hidden costs
• IP55 housing
• for external or internal use
• The ability to connect smart home systems via the JSON API

Notifications (from the Liquid Sensor app) are sent in the case of:

• with each increase in liquid level by another 10%
• daily 5 days before the expected filling of the tank
• in case of loss of Internet connection
• with the upcoming battery replacement
• about the order for the septic tank export service

REQUIREMENTS:

The need to have a WiFi network (wireless internet connection)

The set includes a probe with a length of 8 meters. For longer lengths, please inform the seller in the message. The maximum length is 15m.

Too long hose can have a negative impact on the accuracy of measurement, so it is recommended that it be as short as possible to install it.

The Liquid Sensor app for Android can be downloaded from the Google Play store at the following link:

https://play.google.com/store/apps/details?id=pl.onebyte.czujnikcieczy&hl=pl

The Liquid Sensor app for iOS can be downloaded from the App Store at the following link:

https://apps.apple.com/pl/app/czujnik-cieczy/id1544670361?l=pl

Brief description of the operation of the system:

The SZ-02 microprocessor device is ready for operation after installation and configuration. Every specified time, it measures the level of liquid in the tank and sends data to the central server. All measurements are stored on our server and processed here. This solution allows access to current and historical data at any time and place in the world.

Example of location:

At this link: https://mojdomek.eu/charts/show.php you can see how our system works in the sample location. Measurements are online, which represents the current state of filling the tank.

Brief description of the installation:

The first step is to register your device on our website mojdomek.eu.

Then insert the batteries into the device, which will put them into configuration mode.

With your smartphone (or laptop) you need to connect to the WiFi network "myjdomek" and enter the name of the wireless home network D and the password to it.

The device consists of a microprocessor controller A and a probe B. The controller should be mounted outside the E tank and connect the end of its C hose to the end of the probe hose. The probe should be placed in the tank so that it settles at its bottom.

From that moment on, the tank level is recorded and presented in the application and on the customer profile.

Specifications
