Sieninis kompaktiškas rekuperatorius Awenta HRV 125

Trumpai apie prekę

Prekė: Sieninis kompaktiškas rekuperatorius Awenta HRV 125. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Awenta
• Modelis: HRV125

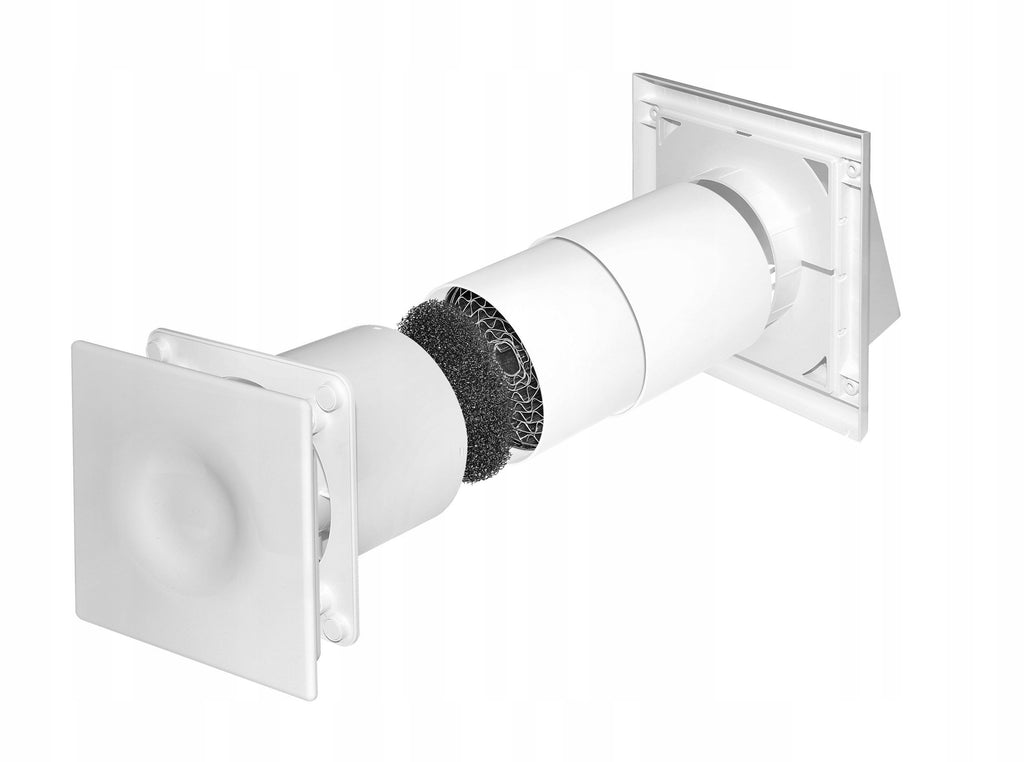

Compact Wall-Mounted Recuperator

The compact recuperator HRV from Awenta is designed for decentralized ventilation with heat recovery using for one room in residential, service and office buildings.

It is equipped with an accumulative heat exchanger, whose task is to collect and render (recuperation) of thermal energy in the process of exhaust and air supply from the room in which it is installed.

The recuperator is designed for continuous operation, controlled by a string switch located directly next to the device.

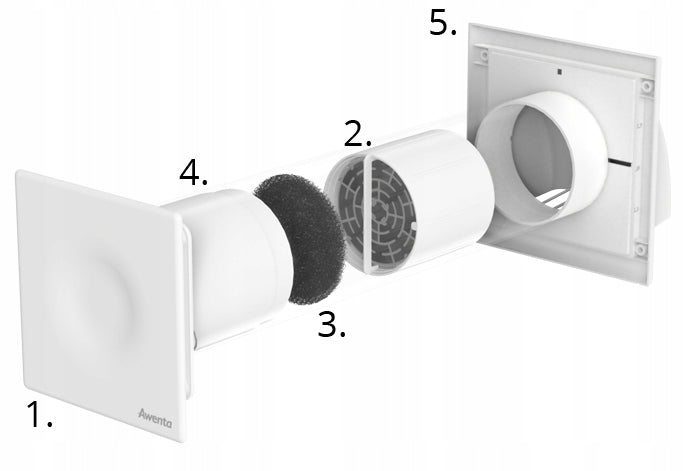

The set includes:

1 Two-speed supply-exhaust fan

2 Aluminum heat exchanger

3 Air filter built into the heat exchanger

4 Adjustable ventilation duct

5 Air intake-outlet

Advantages of the Awenta HRV recuperator:

✅ Quiet operation of the recuperator, only 39 dB(A) at first gear.

✅ Low eclectic power consumption, only 3W at first gear.

✅ Motor on ball bearings, which ensures a long service life of the device.

✅ Accumulation heat exchanger, which provides heat savings.

✅ High quality, plastic resistant to mechanical damage and UV radiation.

✅ Polish reputable manufacturer, product from the official distribution.

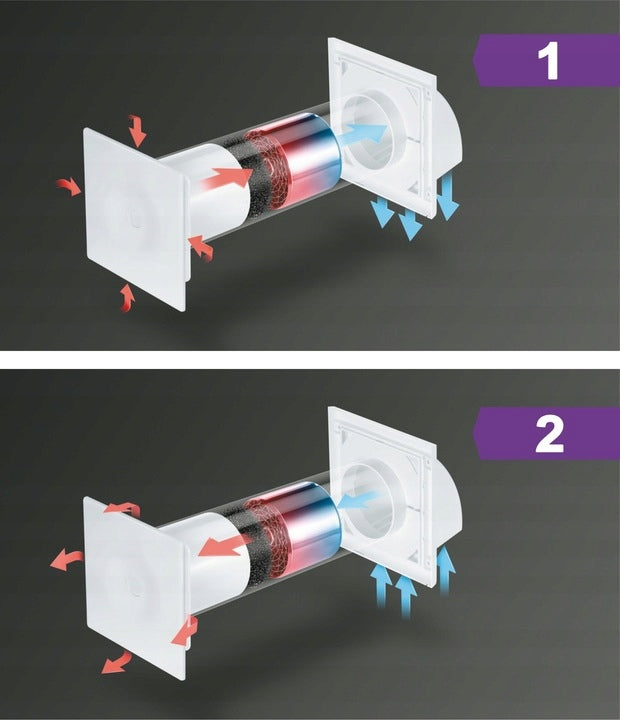

The principle of operation of the HRV recuperator:

The system operates in two modes:

1 Exhaust mode

2 Air supply mode

Each mode can operate two-way:

⏩ Free exhaust - free air supply

⏩ Quick exhaust - fast air supply

The duration of each mode is 60 seconds.

Changing the gear is done by means of a two-position switch, changing the position of the switch (fan operation course) occurs by pulling the chain located on the front of the fan.

1 Exhaust mode

The HRV recuperator is always started in exhaust mode.

The air coming out of the room after turning it on gives heat energy to the aluminum exchanger.

After sixty seconds, the fan automatically switches to airflow mode.

2 Air supply mode

The air supplied from the outside - before it reaches the room - is heated by the accumulated heat of the exchanger.

Thanks to this action, the heat loss is not felt.

Technical parameters:

• Diameter: 125 mm
• Bearings: Ball
• Degree of protection IP: IPX4
• Telescopic ventilation duct: adjustable from 33,5 - 54 cm

Run I:

• Volume: 39 [dB]
• Capacity: 50 [m3/h]
• Power: 3 [W]

Run II:

• Volume: 42 [dB]
• Capacity: 70 [m3/h]
• Power: 4,5 [W]

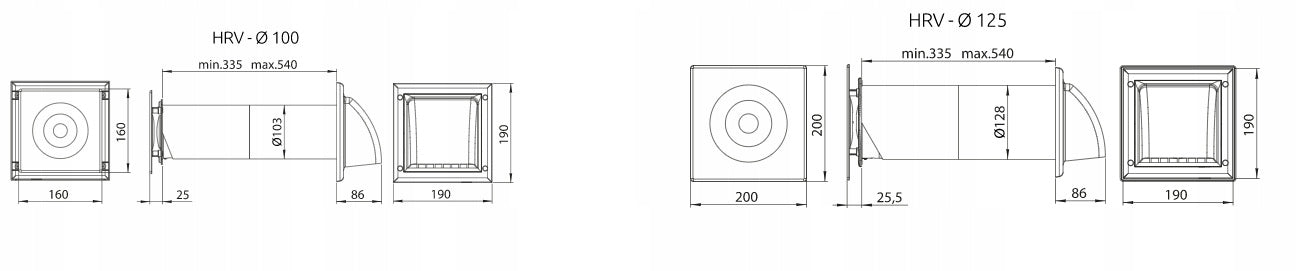

Dimensions of the recuperator Awenta HRV 100, 125:

• At other auctions, a remote controlled model HRV 100P, 125P is available.
