Sieninis oro kondicionierius MONOBLOK, 2,93 kW, inverteris, WiFi, šildymas, drėgmės surinkimas 24 l/24 h

Trumpai apie prekę

Prekė: Sieninis oro kondicionierius MONOBLOK, 2,93 kW, inverteris, WiFi, šildymas, drėgmės surinkimas 24 l/24 h. Kategorija: Oro kondicionieriai.

• Gamintojas: EBERG
• Modelis: Monoblok MONOBOX MB10S1 Pompa ciepła

A unique device that does not have an external unit as a monoblock. The entire refrigeration system is built inside the unit in the room.

✔ INNOVATIVE SOLUTION | ✔ MODERN DESIGN | ✔ ELEGANT DESIGN | ✔ WiFi CONTROL

OFFICIAL DISTRIBUTION OF THE EBERG BRAND

✔ COOLING ✔ HEATING ✔ DEHUMIDIFICATION ✔ VENTILATION

• ☑ Multifunctional 4in1 device combining efficient cooling, heating, circulation and dehumidification
• ☑ High air flow 520m3/h
• ☑ Electric heater PTC
• ☑ Automatic restart
• ☑ Vertical oscillation
• ☑ Night mode
• ☑ Timer 24h
• ☑ LED Display

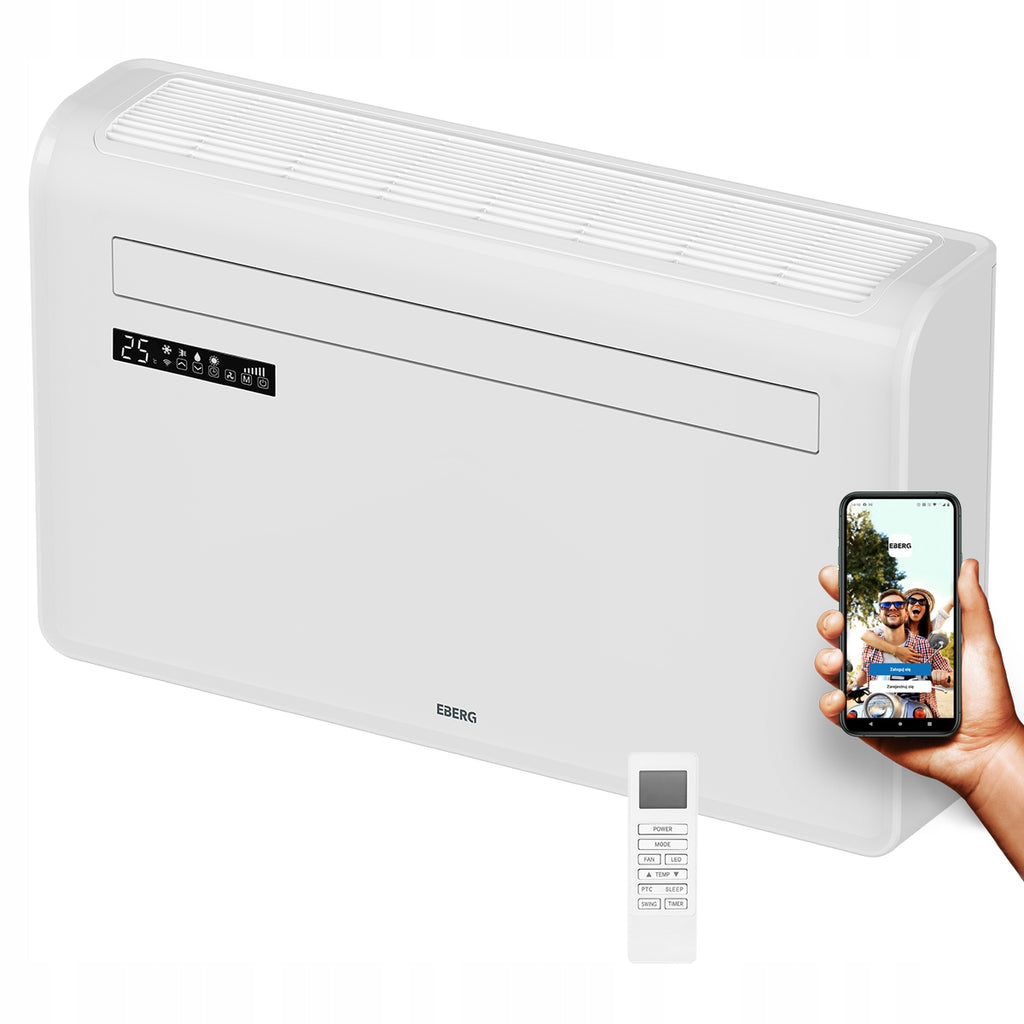

• ☑ Convenient remote control or via WiFi app
• ☑ Extremely quiet, only 39dB (minimum volume)
• ☑ 3 fan speed levels
• ☑ Eeffective dehumidification
• ☑ Antibacterial air filter
• ☑ Small size, only 20,5 cm deep

• ☑ Air conditioner type: Monoblock
• ☑ Functions: Cooling, heating, ventilation, dehumidification
• ☑ Type of compressor: Inverter DC
• ☑ Refrigeration power: 2,93kW (10000 BTU)
• ☑ Heating power: 2,36kW + 0,8kW (9000+2700 BTU)
• ☑ Dehumidification capacity: 24l/24h
• ☑ Number of fan levels: 3
• ☑ Control: Pilot, WiFi module
• ☑ Energy class cooling /heating : A/A+
• ☑ Diameter of drainage holes: 180mm
• ☑ Refrigerant: R290
• ☑ Nominal voltage: 230V
• ☑ Manufacturer: EBERG

EBERG MONOBOX is ideal for places where it is impossible to place a condensing unit outside the building.

It can be mounted on any type of wall and requires only two holes with a diameter of 180 mm, which allows discreet installation.

The inverter technology used ensures high efficiency and reduces energy consumption by up to 30%.

An innovative solution that combines the advantages of stationary wall air conditioning with the simplicity of installation thanks to the ALL IN ONE solution.

MONOBOX wall air conditioner combines up to 4 functions:

• ✔ cooling,
• ✔ heating,
• ✔ drying,
• ✔ ventilation.

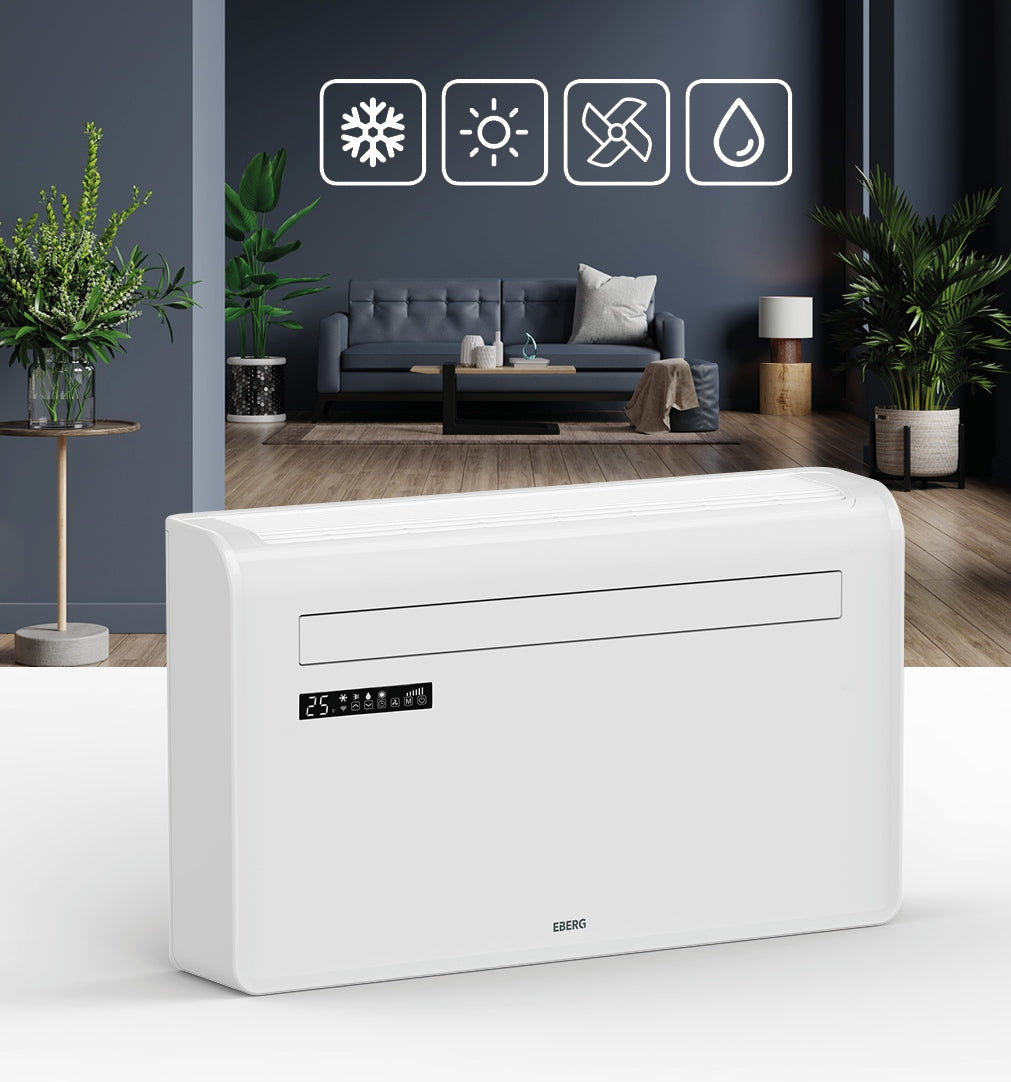

The air conditioner will work in rooms up to 30m2, providing effective cooling in the summer, and in the winter it can be an additional source of heat.

Ideal solution wherever the installation of traditional air conditioning is difficult or impossible

• No need to open the window through which warm air flows
• Lower noise level compared to portable air conditioner
• No need for periodic reviews
• The operation of the device does not cause vacuum in the room, as is the case with the operation of a portable air conditioner
• Device type combining the functions of two units-external and internal
• Year-round work
• The refrigeration system is built inside the unit located in the room
• Possible self-assembly
• No need for expensive installation by authorized F-gas installers.
• Without unnecessary formalities
• No need to install the unit on the facade, and thus without the need for the consent of the community / cooperative for assembly
• Easy installation in hard-to-reach areas (high buildings or with limited driveway, e.g. lift)
• Ideal for installation wherever there is a risk of damage to the outdoor unit
• Low operating cost
• Convenient maintenance of the set temperature
• Possibility of heating rooms constantly or periodically
• Easy control thanks to WiFi function

Thanks to DC Inverter technology, MONOBOX guarantees maximum comfort at any time of the year with low energy consumption, with particular emphasis on silence.

Inverter compressors continuously adjust the compressor speed to the actual energy demand. They are less energy-intensive (up to 30%) and regulate their work more stably.

The device is equipped with a smart PTC electric heater with a power of 800W. It provides both an increase in the heating power of the device and an increase in the efficiency of the heat pump at low temperatures, preventing the device from entering defrost mode. It helps to reach the desired temperature in the room as soon as possible.

Optimal conditions for night rest are ensured by the night work function. In cooling mode, during the first two operating hours, the temperature set by the user is raised by 1 o C per hour (in heating mode reduced) then it is maintained at a constant level

Install the EBERG app and manage all device functions from anywhere with internet access. When you have several EBERG devices (equipped with a WiFi module), they are controlled from a single application, which makes programming their operation much easier and makes everyday use more enjoyable.

The application is available for download in the Google Play Store and AppStore for Android and iOS devices.

✔ No refrigeration installation required!

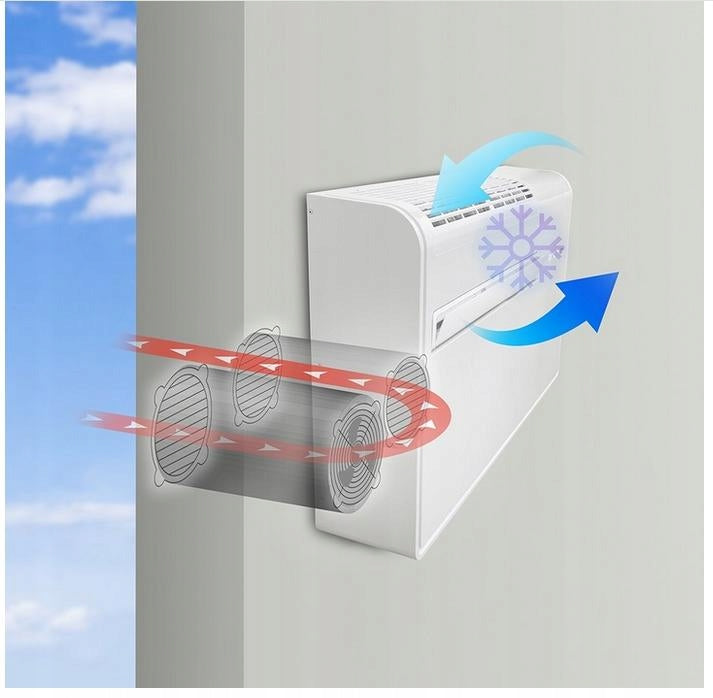

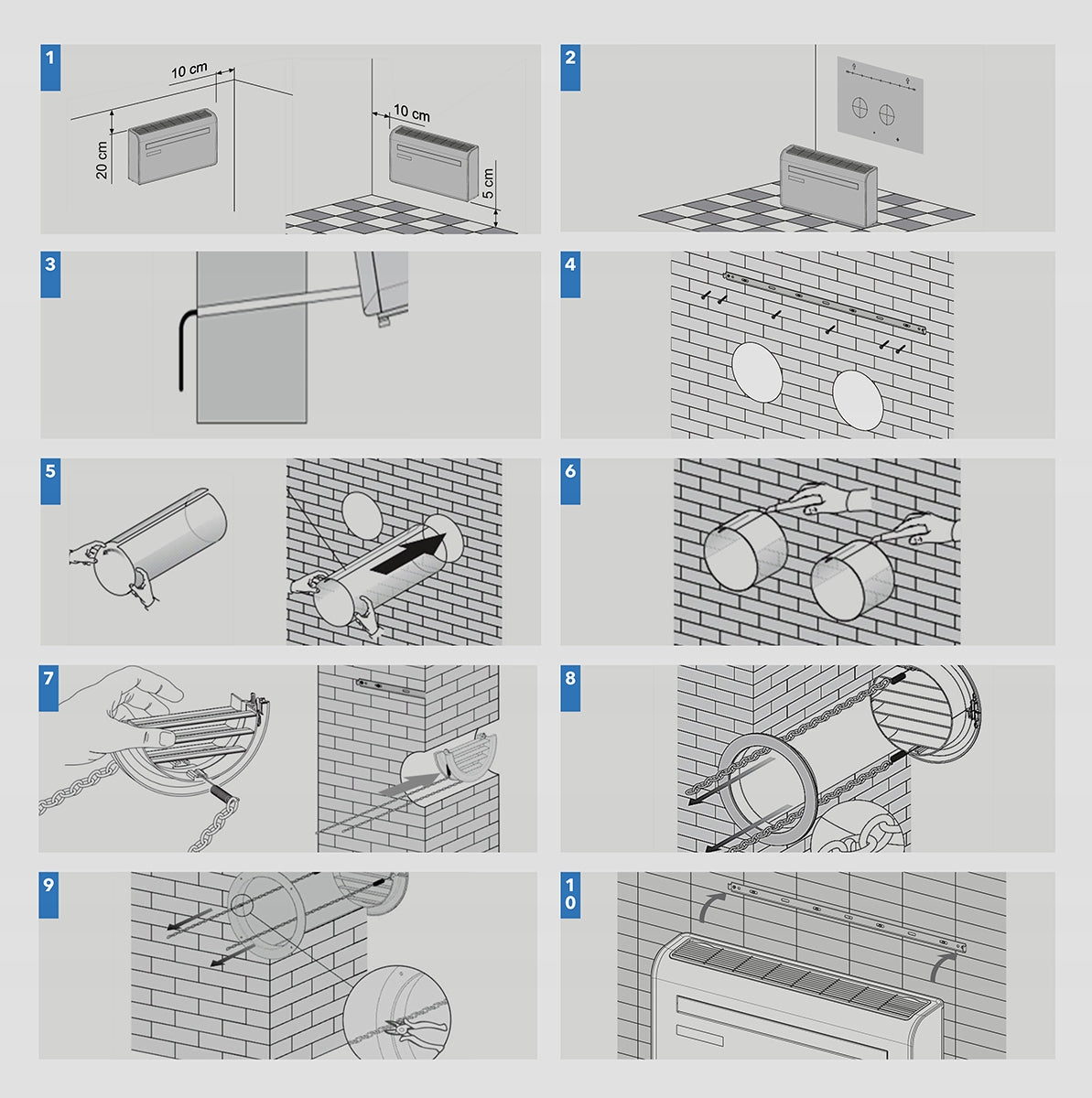

It is only necessary to fix the air conditioner on the wall, in which two mounting holes with a diameter of 180 mm for exhaust and inlet air must be made in advance, and a hole with a diameter of 25 mm for the condensate drain

A special template is supplied with the air conditioner which, when glued on the wall, makes it easier to make holes at the right distance

No work is needed, nor specialized professionals with F-gas privileges.

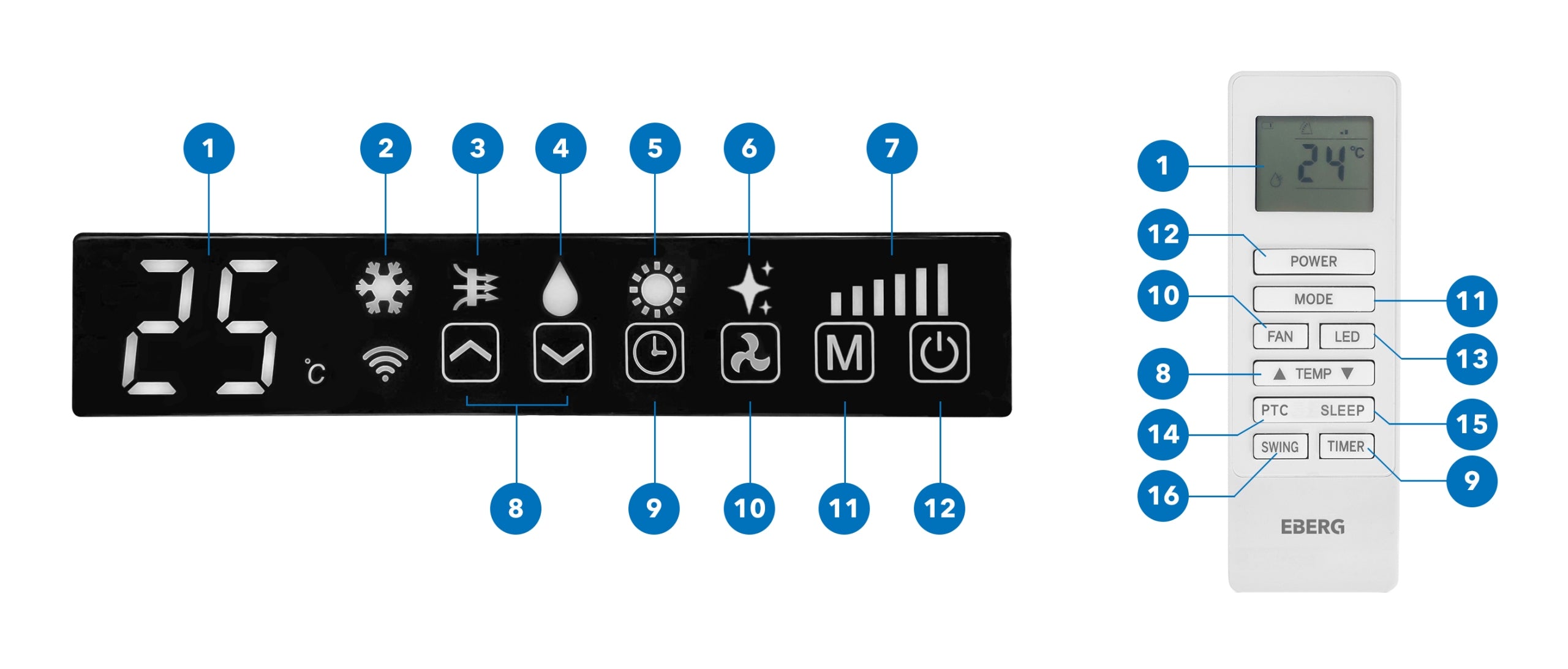

• 8 - Increase the desired value
• 9 - Time programmer
• 10 - Selection of fan speed
• 11 - Selection of operating mode
• 12 - Enable/Disable
• 13 - LED display
• 14 - PTC electric heater
• 15 - Night Mode
• 16 - Oscillation function
• 16 - Oscillation function

MONOBOX has been equipped with refrigerant R290, which is an environmentally friendly solution. It does not destroy the ozone layer and has a very low global warming potential. It is an ecological substance derived from natural sources. More favorable operating parameters than with R410a cause m.in. reduction of noise emissions.

The MONOBOX air conditioner will be used wherever the installation of traditional split air conditioning is impossible.

• In buildings with a protected facade (e.g. monuments)- no external aggregate
• In hotel rooms- allows you to maintain perfect comfort
• In cottages and plots- no external aggregate, provides coolness and warmth
• In high buildings - no external aggregate (no need for height work)

• Model : MONOBOX MB10S1
• Functions: cooling, heating, dehumidification, ventilation
• Cooling power: 2,93 kW (10000 BTU)
• Heating power : 2,63kW +0,8 kW (9000 + 2700 BTU)
• Rated power consumption - cooling: 1120W
• Rated power consumption - heating: 730 +800W (PTC)
• Nominal power consumption : 5A
• Thermal efficiency coefficient : 3,6 COP
• Energy efficiency index : 2,6 EER
• Sound Pressure Level: 47 dB(A)
• Sound pressure level - night mode : 39 dB (A)
• Dimensions of the device - 585x205x1000 mm
• Net/gross weight : 42,5 /48,5 kg

Includes mounting accessories :

• Wall Mount
• Set of screws, dowels
• Wall Template
• External ventilation hole cover
• Plastic sheet
• Support rail

* The bottom cover is not part of the set. It is possible to order separately

Air conditioner operating temperature range:

– minimum external temperature in cooling mode: 10°C

– minimum external temperature in heating mode: 7°C

– maximum external temperature in cooling mode: 35°C

– maximum external temperature in heating mode: 35°C

– minimum temperature inside the room in cooling mode: 16°C

– minimum temperature inside the room in heating mode: 7°C

– maximum temperature inside the room in cooling mode: 35°C

– maximum temperature inside the room in heating mode: 30°C
