Sieninis oro kondicionierius TCL SaveIN AI 5,1 kW, su WiFi

Trumpai apie prekę

Prekė: Sieninis oro kondicionierius TCL SaveIN AI 5,1 kW, su WiFi. Kategorija: Oro kondicionieriai.

• Gamintojas: no brand
• Modelis: TCL TAC-18CHSD/ZG

Cooling / heating power 5,1kW - for rooms up to 60m2

TCL SaveIN inverter air conditioner designed for efficient cooling and heating of rooms throughout the year. The interior unit is made in a matte white color, which gives the device a subdued and versatile look. The presence of generator mode allows for stable operation even with unstable electrical power supply. Thanks to Wi-Fi control and BMS compatibility, the air conditioner easily integrates with “smart home” and central building management systems, ensuring maximum convenience of use. The units are distinguished by stylish design and high energy class A++/A+. The devices are equipped with a number of modern functions that improve the comfort of users in an air-conditioned room.

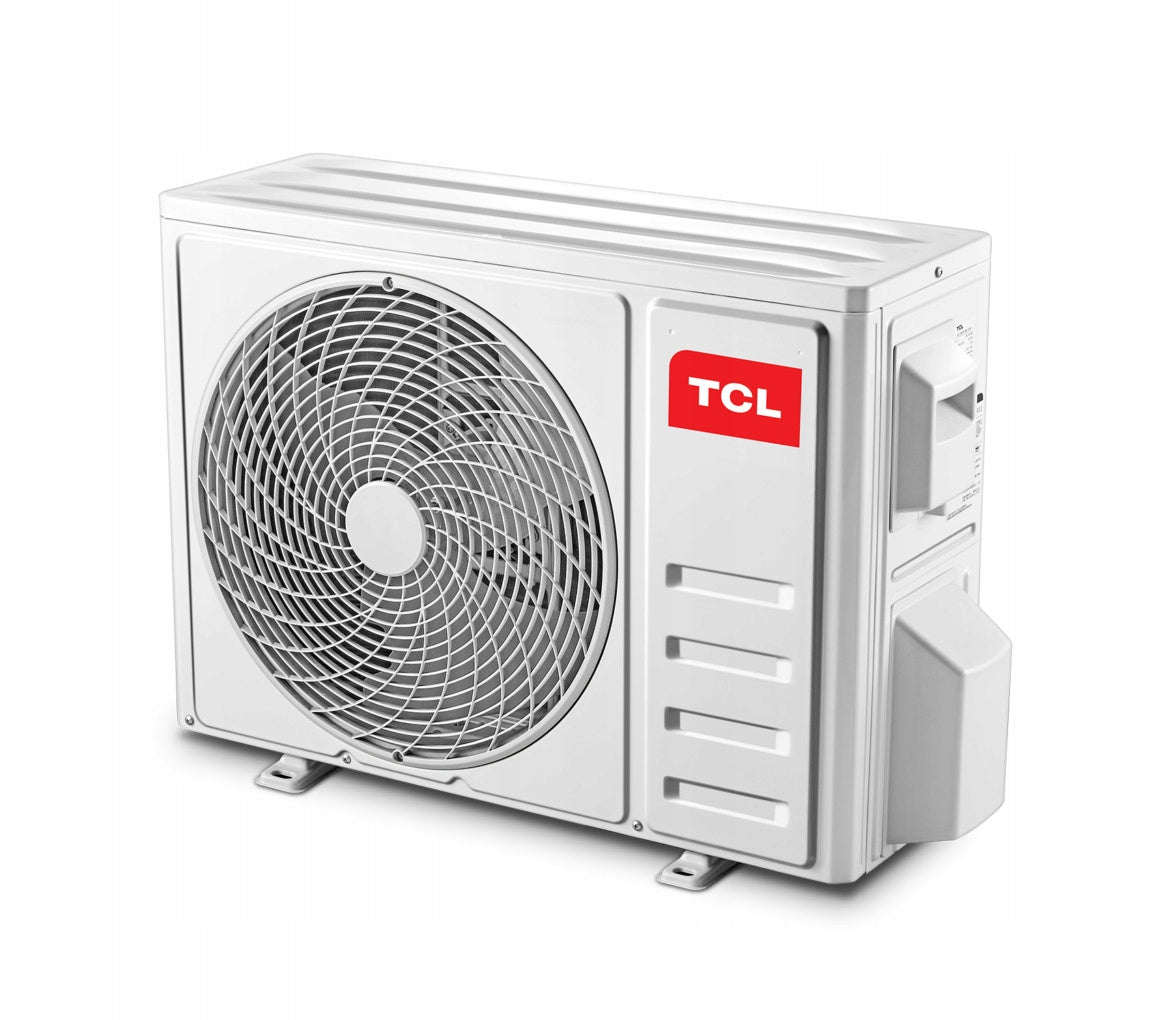

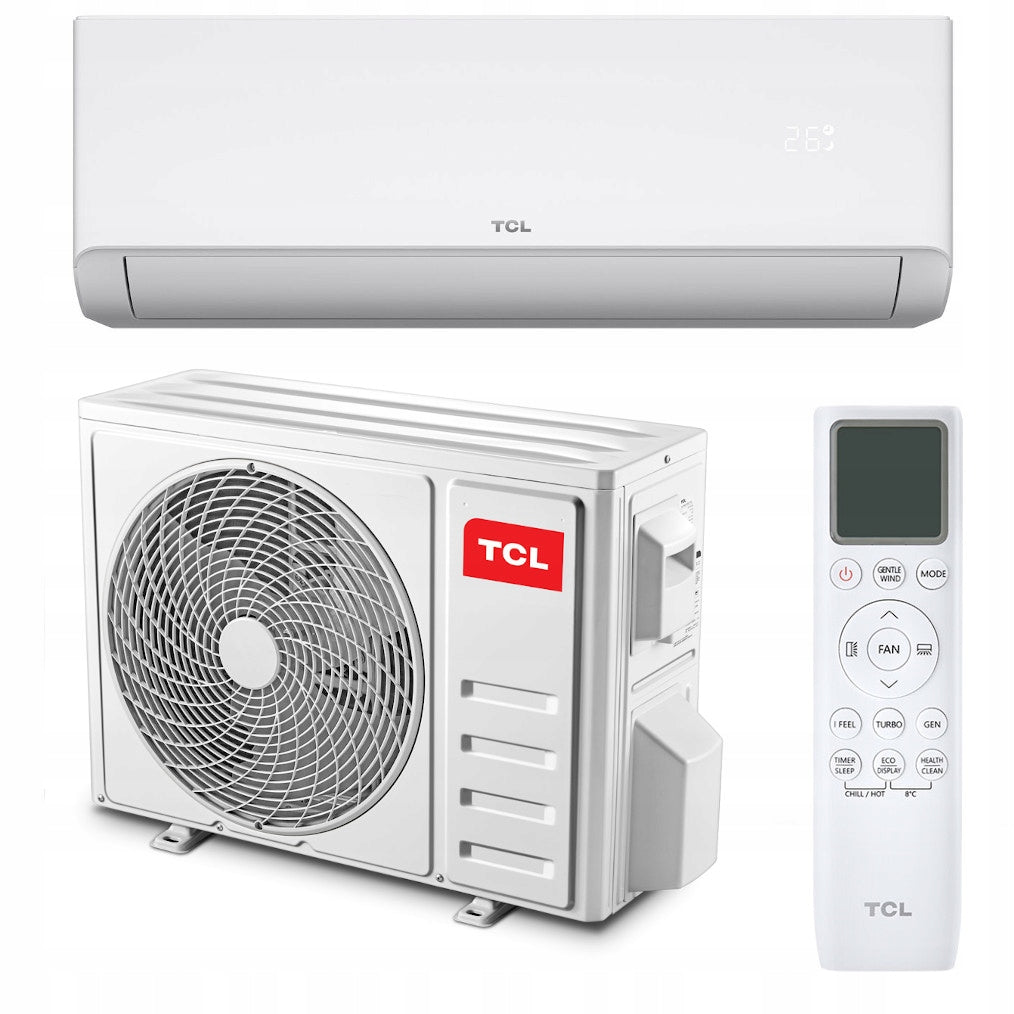

• External unit TCL TAC-18CHSD/ZG

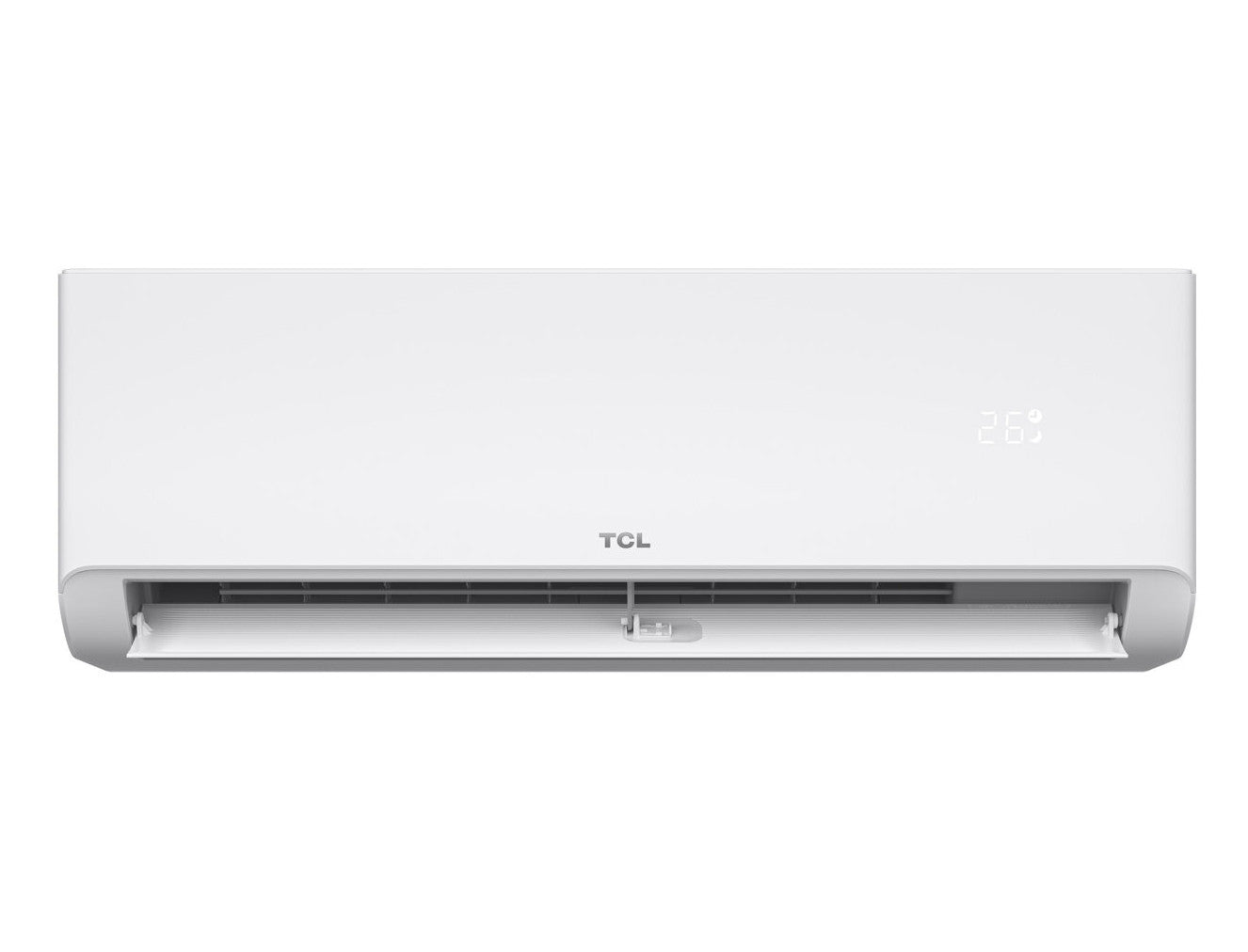

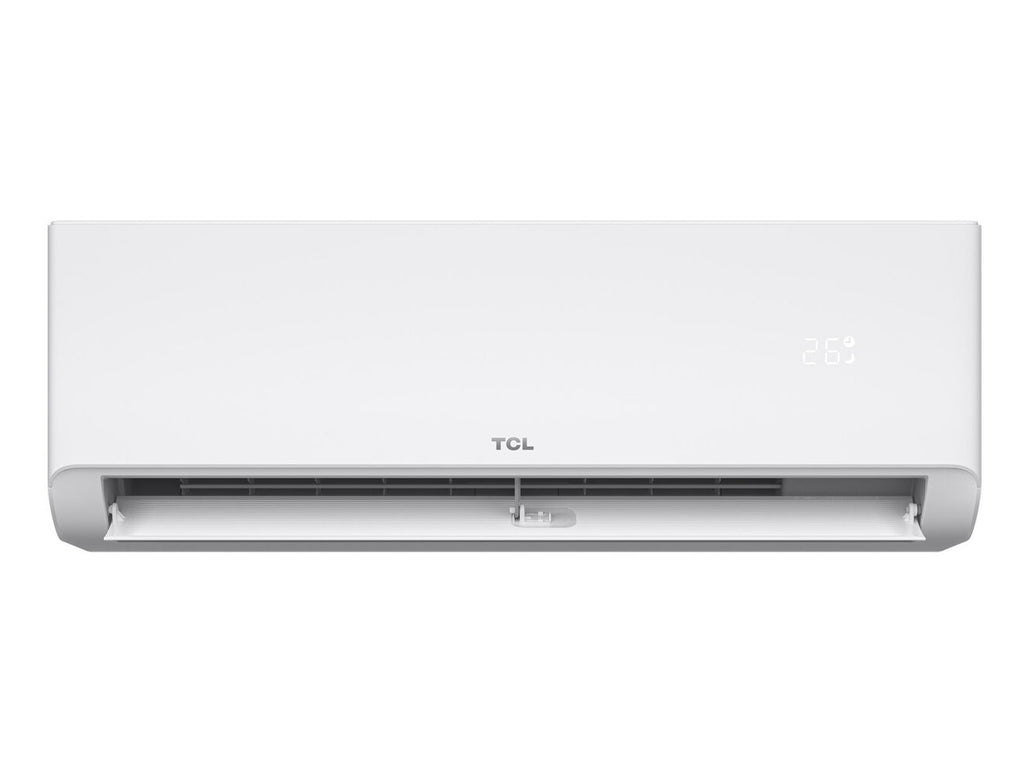

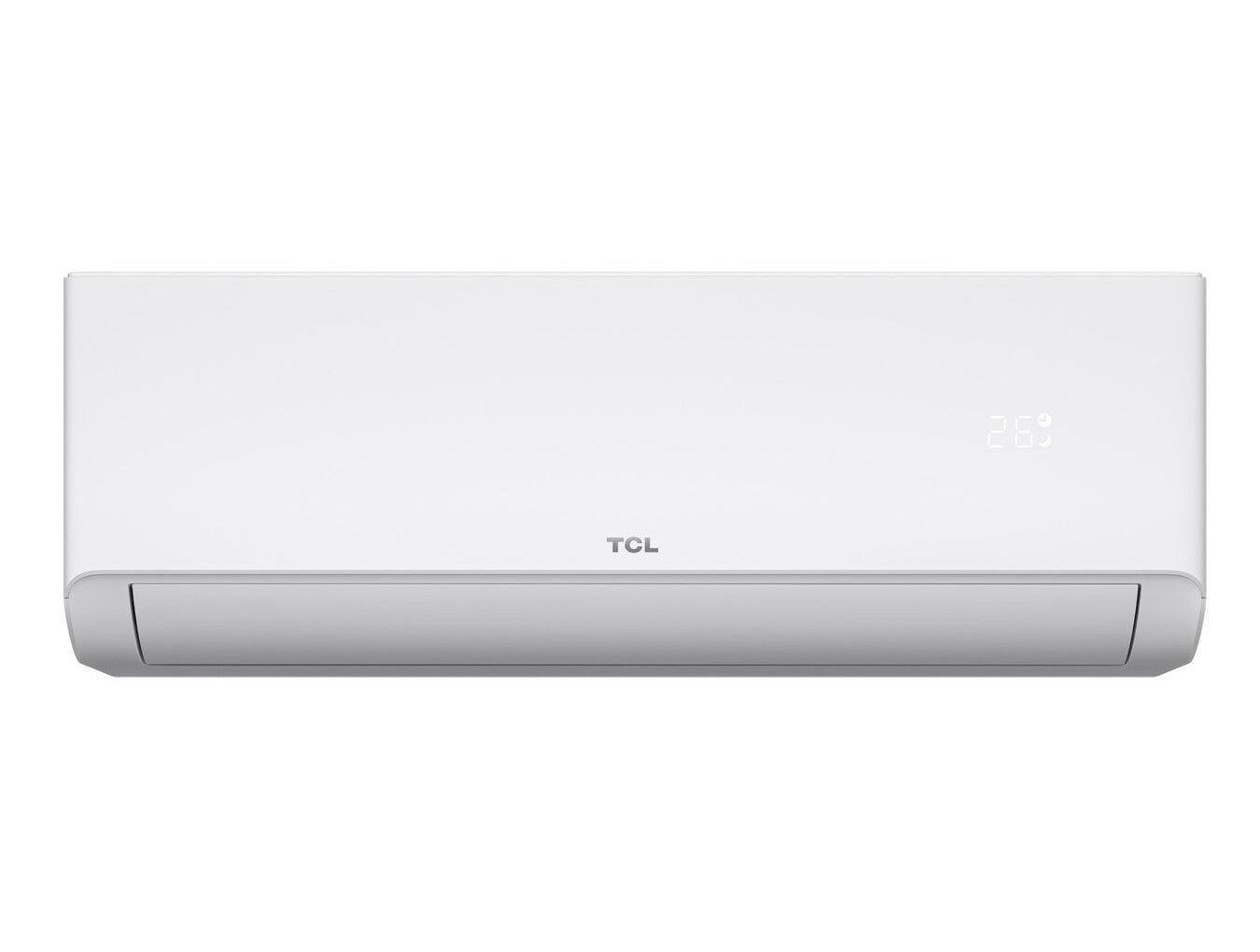

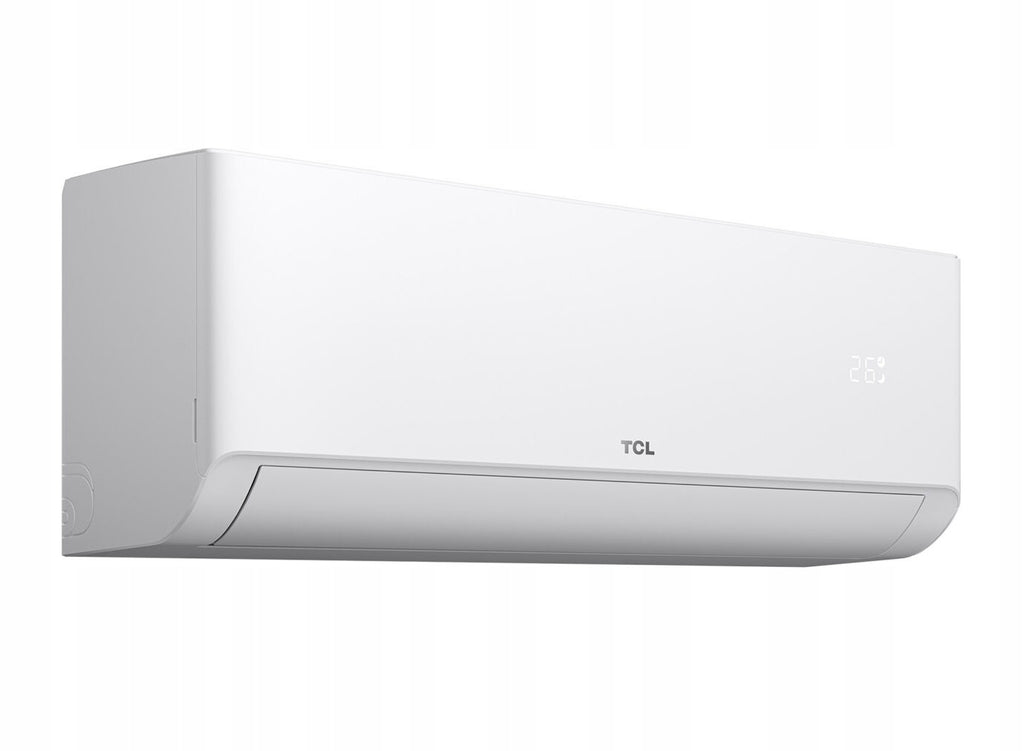

• Internal unit TCL TAC-18CHSD/ZG

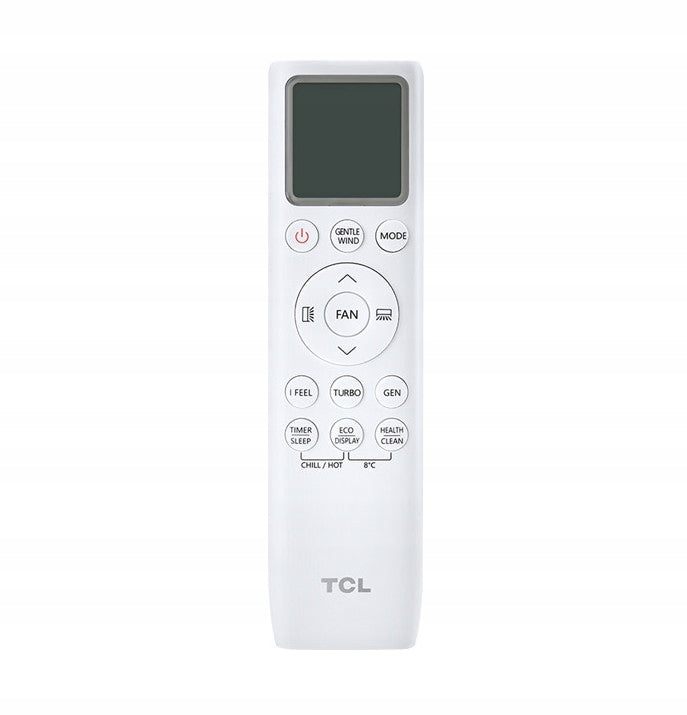

• Wireless remote control
• Wifi module
• User manual

Аautomatic restart - After restoring power, the device will automatically turn on again with the settings that were at the time of power failure.

Daily timer - The function of the timer allows you to set the device to automatically turn on and off within 24 hours.

Emergency button - Allows you to turn on/off the air conditioner in case of failure or loss of the control panel both at previous settings, as well as in the previously set operating mode (cooling or heating) and switching the operating mode to the user's request.

Sleep mode - Night mode is activated by pressing the SLEEP button on the control panel. Turning on the cooling/heating mode during operation of the device will raise/lower the temperature by 1°C every hour, after 2 hours the air temperature will stabilize, and after 7 hours after activation the mode will be automatically turned off.

Remembering the position of the blinds - When the air conditioner is turned on again, the automatic air vents will return to the position before turning it off. If continuous oscillation mode is set, it will also be turned on.

Anti-corrosion coating - Special coating to prevent corrosion and extend the life of metal components of the outer unit housing that are not protected in

Independent dehumidification - When the dehumidification mode is turned on, the air is effectively dried without a noticeable temperature change in the operated room.

Self-diagnostic function - The device controller in static mode monitors the operating parameters, if they do not meet the standard, the system will turn off, and an error code will appear on the LED display.

Low temperature mode (heating) - The air conditioner can work effectively in heating mode at outdoor temperatures below 0°C.

Low temperature mode (cooling) - The air conditioner can work efficiently in cooling mode at outdoor temperatures lower than or equal to 0°C.

Super Turbo Start - Thanks to this function in cooling mode, it is possible to quickly lower the temperature at the outlet of the indoor unit from 27°C to 18°C within 30 seconds. In heating mode, the temperature rises from 20°C to 40°C within 60 seconds. To activate, press the Turbo button on the remote control.

Double drainage - The construction of the drip tray allows you to connect the drain to the right or left side of the device, as needed.

Safe design - Brak connection between condensate and electricity. The condensate flow is optimized and there is no direct contact with the electric control unit, which increases its safety.

Intelligent defrosting mode - In automatic mode, the number and duration of defrosting cycles is reduced to prevent heat exchangers from freezing (frost formation), ensuring stable operation of the device in the set mode.

Strong cooling at high ambient temperature - There is no decrease in the efficiency of the air conditioner in cooling mode at an ambient temperature of +50°C. The air conditioner will operate continuously up to an ambient temperature of +60°C.

Warm start - When using the heating mode, the fan of the indoor unit will be turned on only after sufficient heating of the indoor unit exchanger, which will prevent the release of cold air into the room.

Self-cleaning outdoor unit - Innovative Reverse Clean technology effectively removes dust and debris from the outdoor unit, ensuring that the air conditioner is not clogged.

Light-sensitive sleep mode - The light sensor intelligently detects changes in lighting in the room and automatically adjusts the brightness of the display to ensure a restful night's sleep.

Intelligent airflow - In cooling mode, cool air is fed upwards to avoid direct airflow to the user's head. In heating mode, warm air is directed downwards and inflated on the feet.

7 fan gears - The air conditioner has the ability to multi-stage adjust the air supply speed. There are 7 fan gears available, from the quietest and most suitable for the night – Sleep, to Turbo – for the hottest days and high heat load.

USB Wi-Fi adapter - Wi-Fi module in the form of a USB adapter (provides easy installation).

IoT Wi-Fi control - IoT Wi-Fi control of TCL home devices with one application, support voice control based on deep neural network.

Coanda effect - Achieving the effect thanks to elevated horizontal lamellas. The air flow becomes longer and wider.,

3Ł Design - 3 easy - Optimized design saves time for air conditioner installation and maintenance.

Low noise - The device belongs to models with increased acoustic comfort and is recommended for installation in bedrooms and children's rooms, as well as for people with increased perception of external noise.

Smart Vector Airflow -Smart Vector Airflow - you can choose from 72 options for air flow regulation.

Maintenance +8°C - Heating function of an unused room up to +8°C in winter.

I Feel - W wireless remote control is built-in temperature sensor, after passing the command to the internal unit, the measurement data is transmitted to the controller, which allows for more accurate temperature maintenance directly in the room where people are staying.

Large fan diameter - Thanks to the use of a fan with a diameter of 108 mm, air circulation has been improved, as well as the volume of the indoor unit and the energy efficiency of its operation have been reduced.

Double blind design - Thanks to the wide operating range of double blinds, the deflector optimizes both cooling and heating, ensuring efficient air circulation in every corner of the room.

Pilot backlight - When you press any button, the screen backlight turns on, which allows you to comfortably use the remote control even at night.

T-AI Energy Saving - Automatically optimizes system operation, reducing electricity consumption by up to 37%+

High Quality Filter - The indoor unit uses a reusable, washable filter, using elements with high filtration density compared to a standard filter. The filter captures up to 2,5 times smaller dust particles and not only prevents contamination of the heat exchanger, but also effectively purifies the air in the room.

Factor R32 - Environmentally friendly. Low GWP (Global Warming Potential). High energy efficiency ratio. Full compliance with European environmental standards.

Titan Gold coating - An exclusive protective coating of the exchanger was used, which blocks the oxidation process of aluminum. It makes the surface more “slippery”, which does not allow moisture to accumulate on the exchanger, maintaining better performance and improving energy efficiency. The coating keeps the heat exchanger in its original form for many years.

Inverter compressor - Inverter compressor, up to 50% more economical than conventional systems, precisely maintains the set temperature and has a smooth performance regulation.,

LED display - The air conditioner is equipped with an LED display of temperature and operating modes, located on the front panel of the indoor unit. The display activates when the air conditioner is turned on and can be turned off by the user if necessary.

Unique appearance of the indoor unit - The unique appearance of the air conditioner with a stylish front panel creates a unique look for your home.

Artificial Intelligence Inverter Algorithm - Artificial Intelligence Inverter Algorithm allows you to reach the set temperature faster and works more accurately. Increases energy saving efficiency.

Self Clean - Removal of impurities by freezing and sterilization at high temperature. The process takes place in four stages: freezing, defrosting, high temperature drying and sterilization. The total cleaning time is 30 minutes.

B.I.G. Care - A bipolar ion generator built into the diffuser emits charged electrons to ionize the air and generates a large volume of plasma, atoms and a powerful oxidizing substance that destroys bacteria and viruses.

Hotel mode - The air conditioner can be programmed to turn off automatically in case the guest leaves the room, opens a window or in case of starting a fire alarm.

Specifications

Manufacturer: TCL

Series/Model: SaveIN

Indoor Unit Designation: TAC-18CHSD/ZG

Outdoor Unit Designation: TAC-18CHSD/ZG

Type: Wall-mounted

Set Includes: Complete Set (Indoor + Outdoor Unit)

Version: Single-Split

Warranty Type: Manufacturer's

Extended Warranty Available: No

Cooling Capacity (kW): 5.14kW

Heating Capacity (kW): 5.21kW

Power Supply (Phase/V/Hz): 1/220-240V/50Hz

Current Consumption Cooling (A): 6.9A

Current Consumption Heating (A): 6.2A

Max. Current Draw: 13A

Fuse (A): 16

Electrical Power Cooling (W): 1567W

Electrical Power Heating (W): 1376W

Power Supply Wires (qty x mm2): 3 x 2.5mm2

Power and Communication Cables [between units] (qty x mm2): 4 x 1.0mm2

Energy Efficiency Class (cooling): A++

E.E.R / S.E.E.R. Rating: - / 6.8

Energy Efficiency Class (heating): A+

C.O.P. / S.C.O.P. Rating: - / 4.0

Net Dimensions Indoor Unit [W x H x D]: 910 x 305 x 192mm

Net Dimensions Outdoor Unit [W x H x D]: 853 x 602 x 349mm

Net Weight (Indoor Unit): 9kg

Gross/Shipping Weight (Indoor Unit): 11kg

Net Weight (Outdoor Unit): 30kg

Gross/Shipping Weight (Outdoor Unit): 32.5kg

Number of Connection Ports: 1 pc.

Connection Diameter (liquid): 6.35 / 1/4 mm / inches

Connection Diameter (gas): 9.52 / 3/8 mm / inches

Installation Length (max): 25m

Maximum Height Difference: 10m

Installation Length with Factory Refrigerant Charge: 5m

Additional Refrigerant Charge (g/m): 15g/m

Refrigerant: R32

Operating Temperature Range: -20 ~ +53°C

Heating Down to: -20°C

Cooling: Yes

Heating: Yes

Standard Control: Wireless Remote, Wifi App

Filters: Pre-filter (anti-pollen)

Temperature Display: On Remote Control

Horizontal Louver Control: Automatic (via remote control)

Vertical Louver Control: Automatic (via remote control)

Inverter Technology: Yes

Energy Consumption Reading: No

Motion Sensor: No

The air conditioner is a pre-filled refrigerant that is a fluorinated greenhouse gas (FGC). In accordance with the current legislation, the sale of FGC-containing devices to end-users (without F-gas certificates) can only take place on the basis of the presented contract for the installation of the purchased air conditioner with an installation company with an appropriate certificate (F-gas).

Purchase for the company:

• Statement of intended use for further resale
• installation agreement with an installation company or installer with FGAZ privileges

Purchase for an individual:

• installation agreement with an installation company or installer with FGAZ privileges.

Before buying, please read the regulations (included in the tab) regarding the sale of wall air conditioners with mounting kits. The buyer placing the order declares that he has read the regulations.
