Sieninis oro rekuperatorius Weber, nuotolinis valdymas, ø 160 mm, 64 m³/val.

Trumpai apie prekę

Prekė: Sieninis oro rekuperatorius Weber, nuotolinis valdymas, ø 160 mm, 64 m³/val.. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Weber
• Modelis: 04010248

Index: 04010248

RELEVANT INFORMATION

Remember that the larger the channel diameter, the slower the airflow through the exchanger and thus the greater the efficiency of heat recovery. Our device has a channel with a diameter of up to 160 mm!!!

Wall recuperator is a ventilation device for individual enclosed spaces for air exchange. The function of the product is to bring fresh air from the outside of the building and to drain the air used from the rooms with simultaneous recovery of thermal energy. It is a compact mechanical ventilation system with heat recovery in the basic version.

Recuperation is a system of mechanical supply and exhaust ventilation with heat recovery from exhaust air. The use of such a ventilation system provides the user with the expected comfort through the right amount of air in the house without allergens, excess carbon dioxide, water vapor, dust and dust, even very small ones, thanks to the use of filters that effectively clean the air.

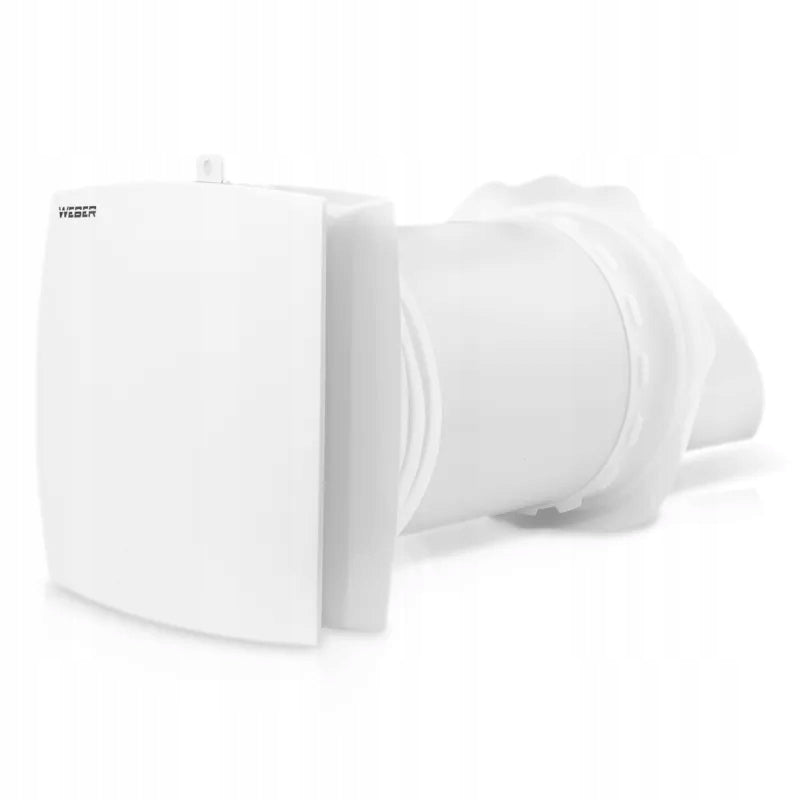

The WEBBER AV-TTW6 electric wall-mounted air recuperator is a ventilation device for indoor installation, it ensures the exchange of used air saturated with carbon dioxide for fresh air taken from the outside of the building while heating it. This small device can be installed in houses, apartments, cottages and public buildings, hotels, cafes, small shops and other such facilities.

Wall recuperators are a modern solution for proper air exchange. Their task is to bring fresh air from the outside while draining the air used from the rooms with simultaneous recovery of thermal energy. The mechanical ventilation system enabling the recovery of heat from the ventilation air becomes an element of a healthy and warm home with parallel energy saving.

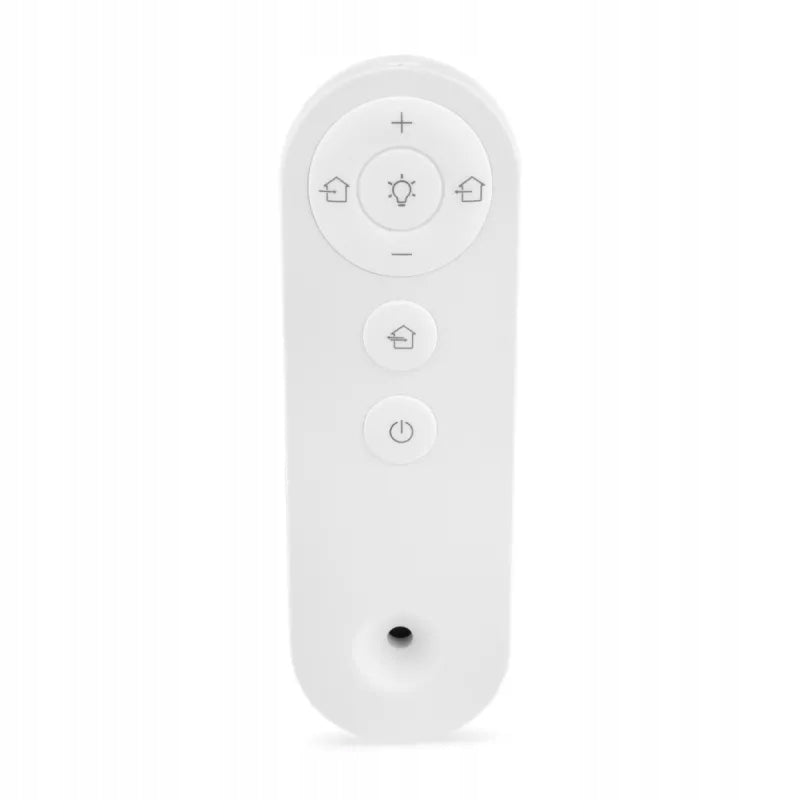

The compact recuperator with energy class A is accompanied by a small remote control (without batteries), thanks to which we can easily and conveniently control the device. The remote control has the ability to switch the operating modes of the device from three available modes and the ability to choose three gears with the setting of higher, medium or lower fan speed.

TYPES OF WALL RECUPERATOR OPERATING MODES

• Supply mode (the device supplies external air for an appropriate amount of time, then begins to work in recuperation mode with heat recovery).
• Recovery mode (the device works in two cycles of 75 seconds to ensure heat and moisture regeneration).
• Exhaust mode (the device removes the air for an appropriate amount of time, then begins to work in recuperation mode with heat recovery.

PRINCIPLE OF ACTION

Each cycle is 75 seconds, the device operates in two cycles:

I cycle

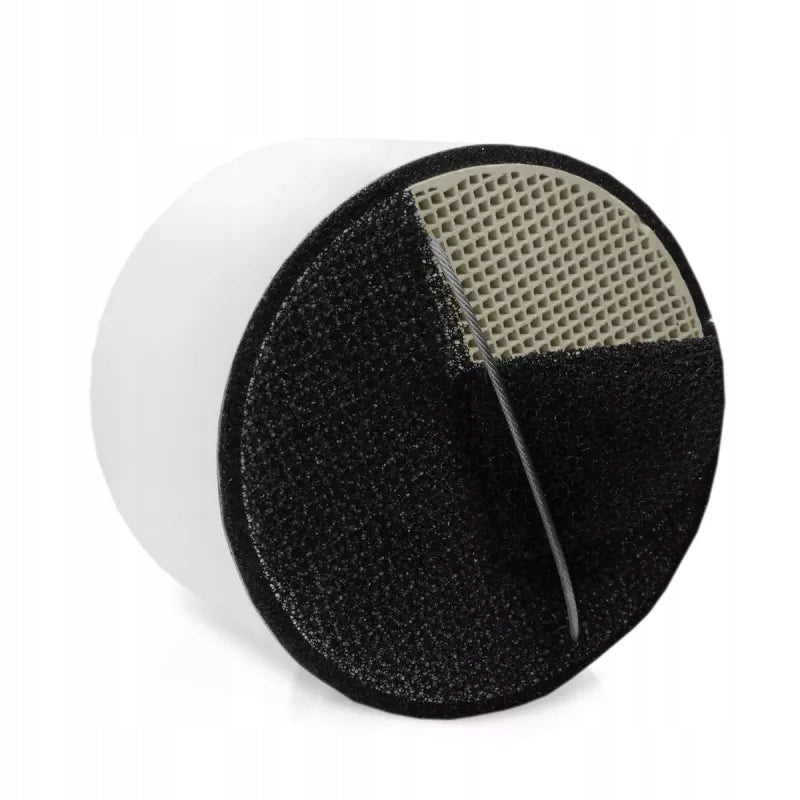

Warm, polluted and used air is removed from the room by flowing through a ceramic heat exchanger. Ceramic regenerator transfers heat, absorbing moisture. After 75 seconds from the start of heating, the respirator switches to airflow mode.

II cycle

Fresh, cool outdoor air flows through the heating device and heat exchanger. The heat previously stored in the exchanger humidifies and heats the exchanged air. The regenerator and heating device absorbs the accumulated moisture and heat, thanks to which the supply air flow has a room temperature.

After 75 seconds, the fan switches back to exhaust mode and the cycle repeats.

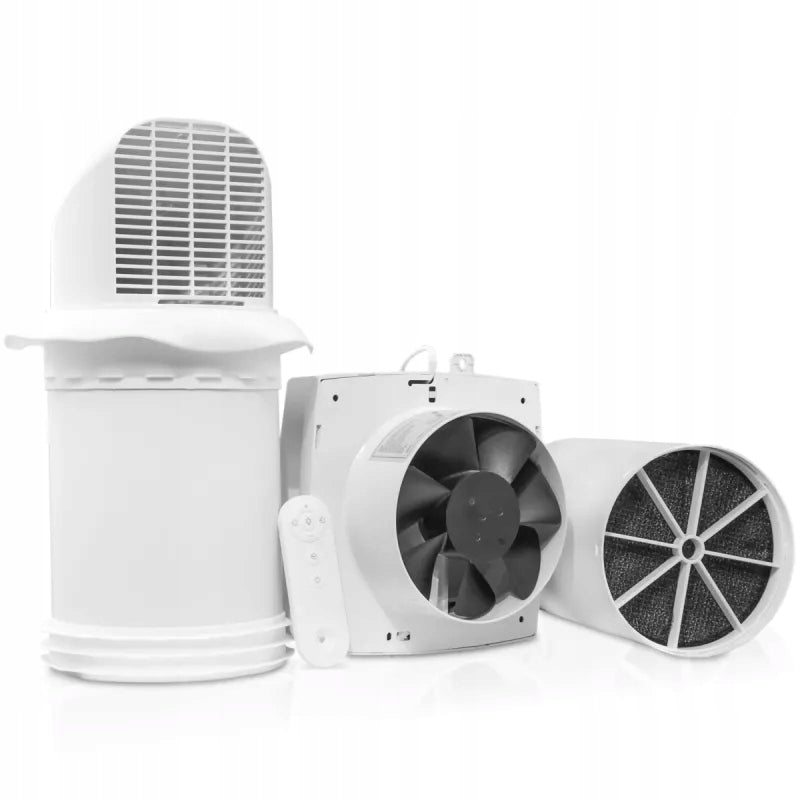

COMPONENTS OF WEBER AV-TTW6

• Waterproof Silicone Wheel
• External ventilation hood
• Adjustment bracket (allows adjustment of channel inlet and outlet)
• Internal air duct
• Bracket (for fixing ceramic heat exchanger)
• Pre-filter
• Ceramic heat exchanger
• Pre-filter
• Bracket (for fixing ceramic heat exchanger)
• External air duct
• Fan with automatic shutter in white

PRODUCT ADVANTAGES

• Alternating air exchange
• Prevents mold
• Prevents rain and bird inlets
• Lower energy costs
• High efficiency
• Fan with automatically closed shutter
• Easy installation
• Quiet operation of the device
• Decorative front panel
• Alternatives to channel recuperation

TECHNICAL PARAMETERS

• Product: Wall recuperator
• Product model: WEBER AV-TTW6
• Package contents: Pilot
• Maximum airflow: 64 m³ / h
• Rated voltage (nominal): 230 V
• Rated Power: 11,3 W (nominal)
• Frequency: 50 / 60 Hz
• Maximum efficiency: 97%
• Noise level: 36.7 dB(A)
• Ambient temperature: from - 20ºC to + 50ºC
• Relative humidity: up to 80%
• Channel diameter: 160 mm
• IP Class: IPX2
• Energy class: A
• Dimensions: 205 x 205 x 440 mm

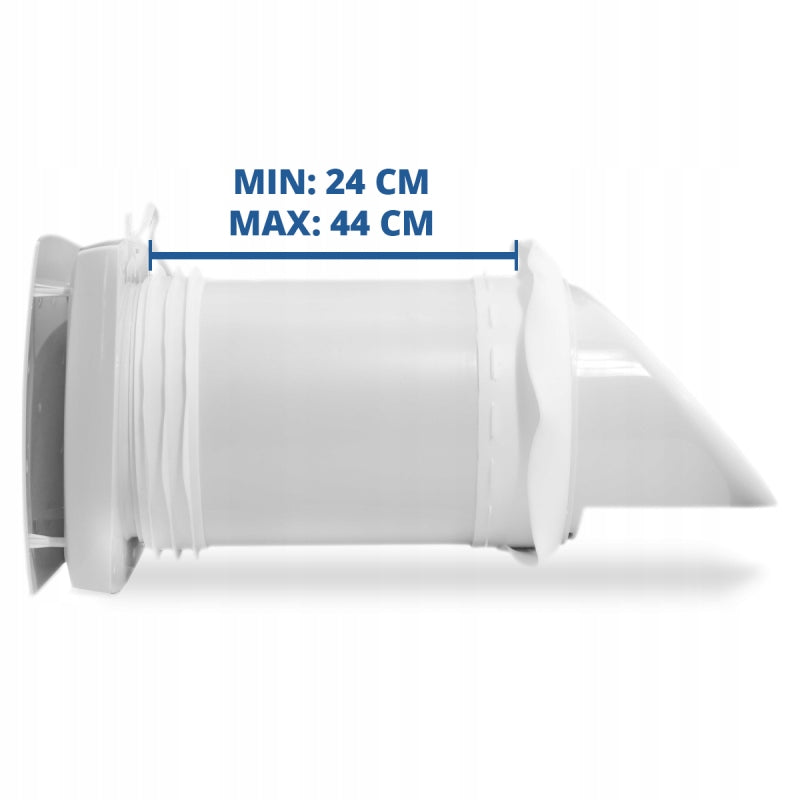

• Minimum length: 24 cm
• Weight: 3,4 kg
