Sieninis rekuperatorius AIR SAVER Fi 160 su WiFi

Trumpai apie prekę

Prekė: Sieninis rekuperatorius AIR SAVER Fi 160 su WiFi. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Prodmax
• Modelis: VT501-MS

ATTENTION NOVELTY!!!

WE MEET YOUR EXPECTATIONS!!!

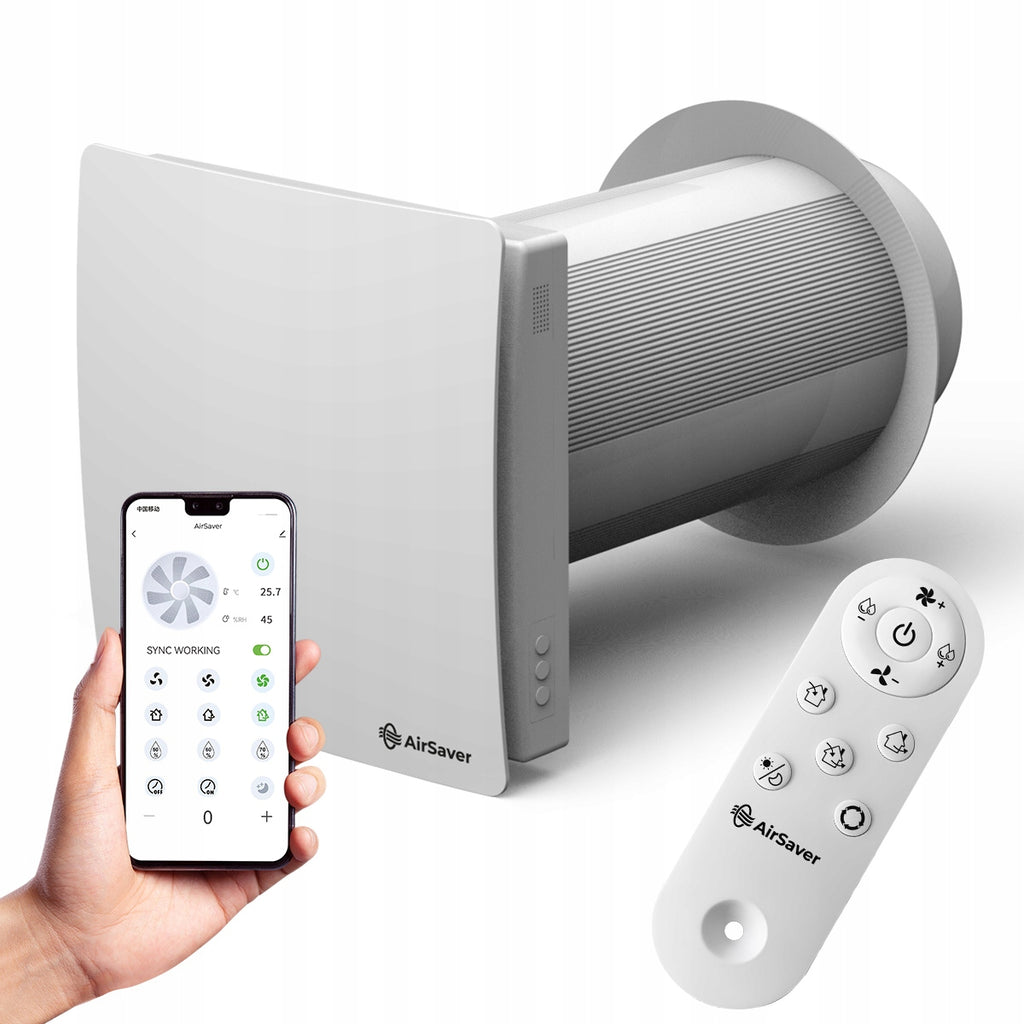

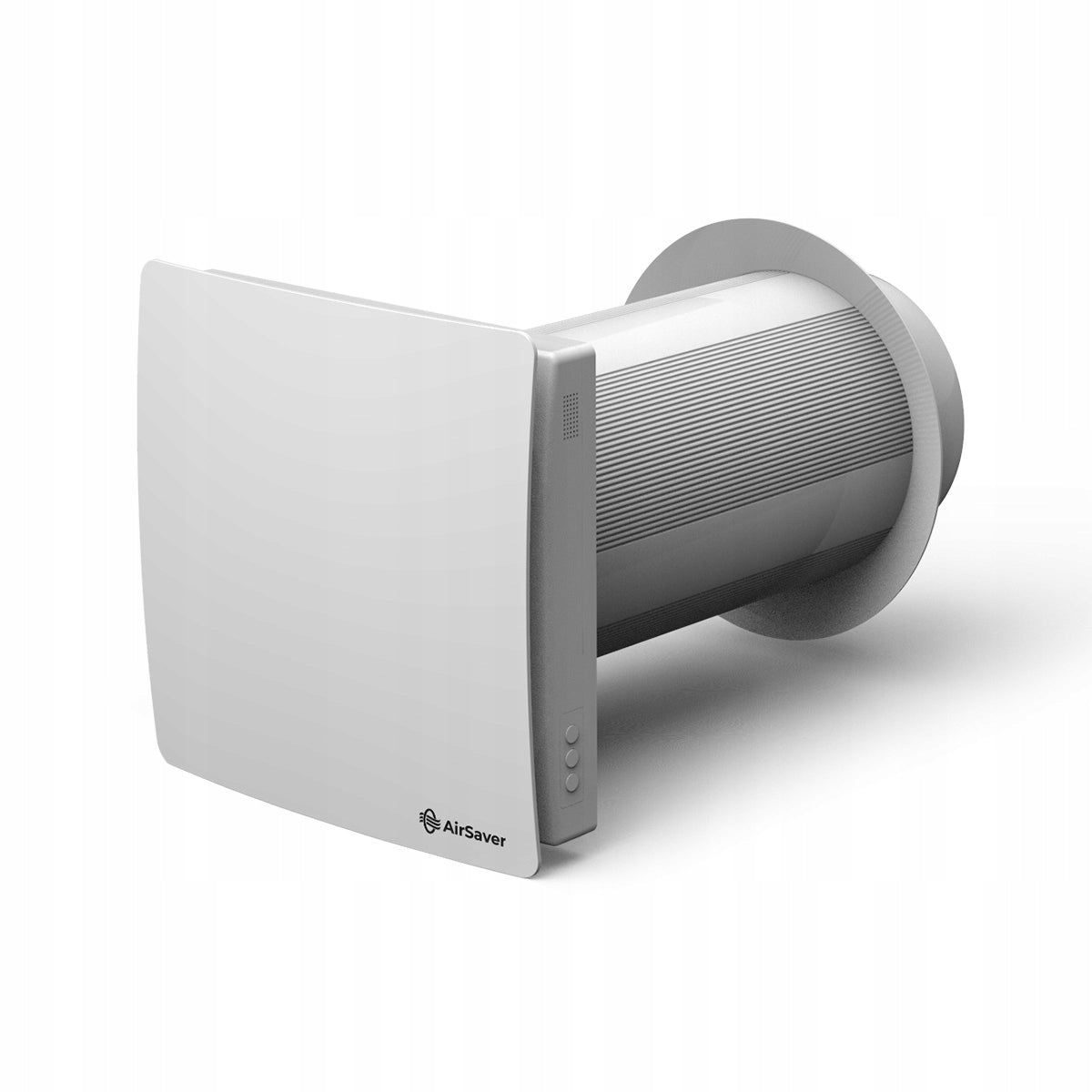

The subject of our auction is the Modern Wall Recuperator AIR SAVER Fi 160

Air Saver is a compact ventilation unit with heat recovery mounted in the wall of the building. The unit is equipped with a ceramic exchanger, fan and filters. The accumulation exchanger retains heat energy from the exhaust air, and then heats the air supplied to the room.

This system ensures that air streams do not mix. The advantage of the system is the ability to synchronize several wirelessly controlled devices (remote control, smartphone application).

Air Saver devices are perfect for single-family and multi-family residential buildings, when there is no space in your building for the installation of centralized recuperation or when we rent a room in the building and want to ensure clean and healthy air, while reducing heating expenses.

Below is a short information video about the device to which we cordially invite you ;)

https://youtube.com/shorts/JT-yk3_l_D4

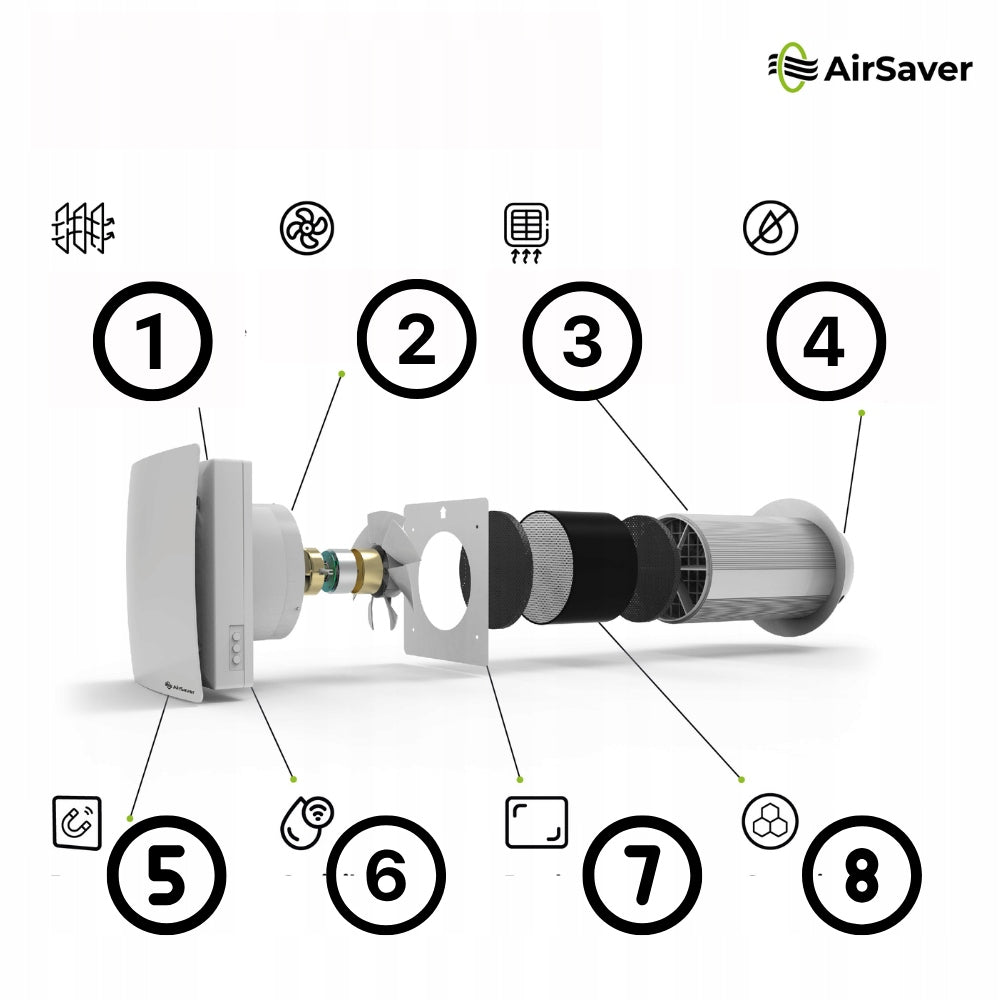

CONSTRUCTION SCHEME

1. Housing with G4 filter (Cleaning the air and preventing contamination of the exchanger),
2. EC fan (Energy-efficient reverse EC engine),
3. Telescopic ventilation channel,
4. External intake/launch (preventing water from entering the building),
5. Magnetic panel (Decorative internal magnetic panel with easy assembly and disassembly function),
6. Humidity sensor (allowing automatic operation of fans),
7. Mounting frame (for easy installation of the device),
8. Ceramic heat exchanger (Providing heat recovery up to 90 %).

ADDITIONAL FUNCTIONS

1. Power plug - facilitates self-connection of the device to the electrical network,
2. Application - control via the application on your smartphone,
3. Pilot - control via remote control.

PRINCIPLE OF ACTION

I. - EXHAUST CYCLE (CYCLE DURATION IS 65s) - removal of used air - during this cycle lasting 65 seconds, the device draws used air from the room inside the building, which flows through the ceramic exchanger leaves part of the thermal energy in it,

II. - AIR SUPPLY CYCLE (CYCLE DURATION IS65s) - fresh air blowing - during this cycle lasting 65 seconds, the device draws fresh air from the outside of the building, which, flowing through the ceramic exchanger, recovers part of the thermal energy left by the result of the exhaust cycle.

MEGA ADVANTAGE!!!

Can be paired and configured up to 8 devices

The device can work in 4 modes. Below are 4 modes with specific parameters:

1. NIGHT MODE

• capacity - 20 m3/h
• noise level - 13 dB(A)/3m
• Fan power - 1,6 W
• fan speed - 800 rpm /min.

2. RUN AND

• capacity - 48 m3/h
• noise level - 22 dB(A)/3m
• Fan power - 1,8 W
• fan speed - 1000 rpm /min.

3. RUNNING II

• capacity - 54 m3/h
• noise level - 25 dB(A)/3m
• Fan power - 3,9 W
• fan speed - 1600 rpm /min.

4. RUN III

• capacity - 60 m3/h
• noise level - 33 dB(A)/3m
• Fan power - 7 W
• fan speed - 2200 rpm /min.

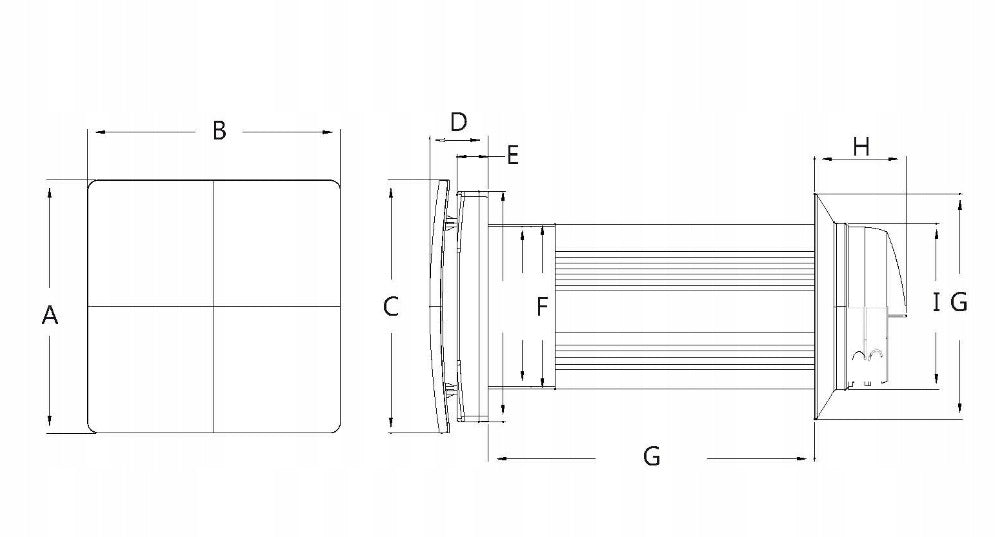

SPECIFICATIONS (Device dimensions [mm])

• A - 242
• B - 242
• C - 242
• D - 56
• E - 30,1
• F - 157,6
• G - 215,5
• H - 87
• I - 159
• J - 250 ÷ 500

REMOTE CONTROL FUNCTIONS:

1. Reduced HUMIDITY MODE
2. Venting mode
3. Night mode (quiet)
4. Increasing fan speed
5. Increasing HUMIDITY MODE
6. ON/OFF switch
7. Reducing fan speed
8. Exhaust mode
9. 65s / 65s - on/off cycle mode
10. SYNC mode - on/off

APPLICATION CONTROL

1. Reducing fan speed
2. Venting mode
3. Reduced HUMIDITY MODE
4. Disabling according to programmer
5. Device number
6. Exhaust mode
7. ON/OFF switch
8. Temp reading. inside the room
9. Reading the humidity level inside the room
10. SYNC mode - on/off
11. Increasing fan speed
12. 65s / 65s - on/off cycle mode
13. Night mode (quiet)
14. Enabling by programmer
