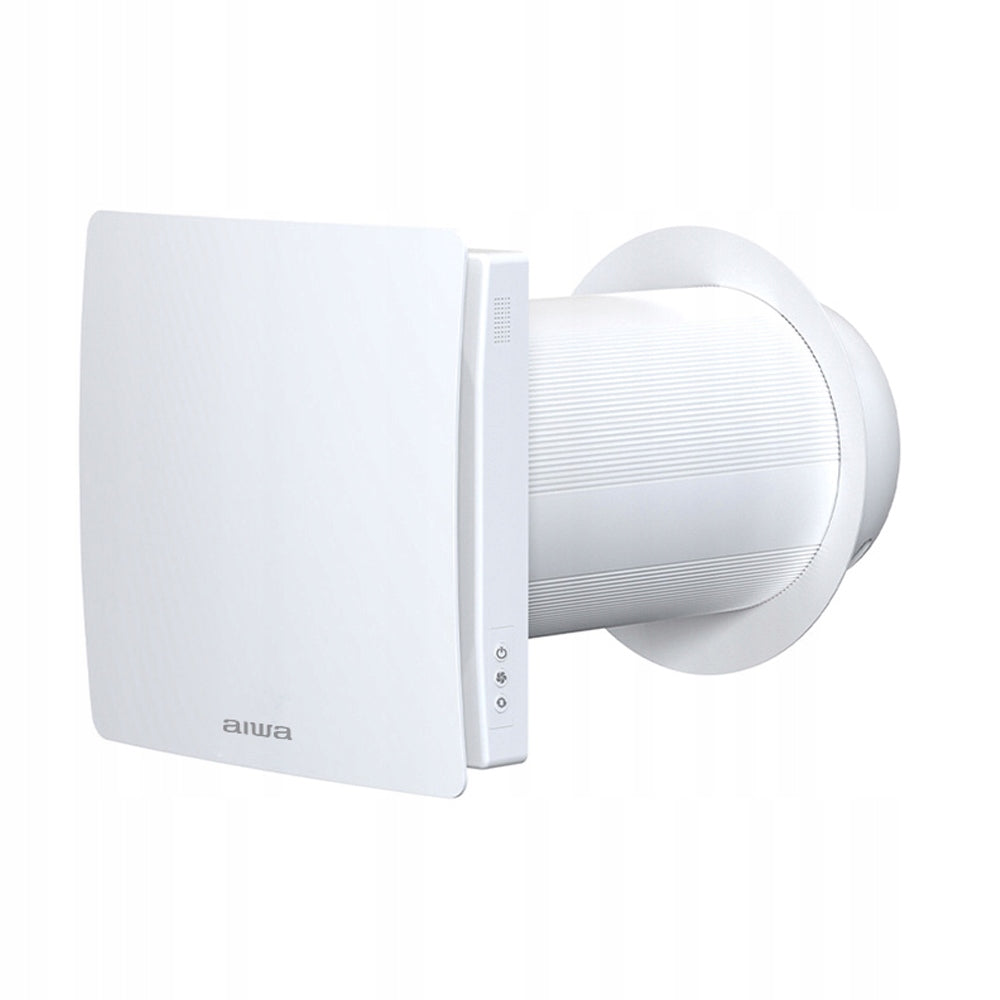

Sieninis rekuperatorius AIWA ERV10YA

Trumpai apie prekę

Prekė: Sieninis rekuperatorius AIWA ERV10YA. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Aiwa
• Modelis: ERV10YA

☑ AIWA ERV10YA is an advanced recuperation device that not only improves indoor air quality, but also contributes to significant energy savings. Thanks to efficient heat recovery of up to 90%, this recuperator is an ideal solution for energy-efficient houses and those that participate in the “Clean Air” program. The use of intelligent control functions and high-quality filters ensures that the device meets the requirements of the most demanding users.

1. Modern design

AIWA recuperators are characterized by an elegant, carefully designed look that fits perfectly into both modern and classic interiors. They are perfect for projects where aesthetics and quality are crucial.

2. Improving the comfort of life

AIWA recuperators effectively eliminate moisture and unpleasant odors, while ensuring the influx of fresh air from the outside, without the need to open windows and without sudden temperature fluctuations.

3. Health and wellbeing

Continuous air exchange allows you to maintain healthy conditions in the room, preventing the growth of mold. Breathing fresh air with low CO2 content helps to improve the quality of sleep and the overall condition of the body, as well as removes excess moisture that promotes the growth of mites and bacteria.

4. Energy efficiency and ecology

AIWA recuperators recover heat from the air removed from the interior of the building and transfer it to the supplied air. Thanks to this, the energy used to heat the air is not wasted, and heat recovery reaches up to 90%, which significantly improves energy efficiency.

5. Savings

Thanks to the use of AIWA recuperators, the energy performance of the building is improved. Recovery of heat from exhaust air reduces energy losses, which translates into real savings.

I. EXHAUST CYCLE (cycle duration 65 seconds) – removal of used air. During this cycle, the device drains used air from inside the building. This air flows through the ceramic exchanger, transferring part of the stored heat energy to it.

II. AIR SUPPLY CYCLE (cycle duration 65 seconds) – fresh air supply. In this cycle, the device draws fresh air from outside the building. By passing through the ceramic exchanger, the air recovers some of the heat energy transmitted by the air removed during the exhaust cycle.

The product complies with the “Clean Air” program

Our device meets all the technical requirements specified in the “Clean Air” and program has been placed on the Green Equipment and Materials List (UTI).

The UTI list provides support to the beneficiaries of the program, facilitating the selection of devices and materials eligible for funding.

Recuperation with high heat recovery efficiency – up to 90%

Heat recovery efficiency of up to 90% means that the recuperator can recover and transfer back to the rooms as much as 90% of the heat from the air removed from the building. Thanks to this, the ventilation system not only improves air quality, but also significantly reduces energy losses, which leads to savings in heating and more efficient use of energy.

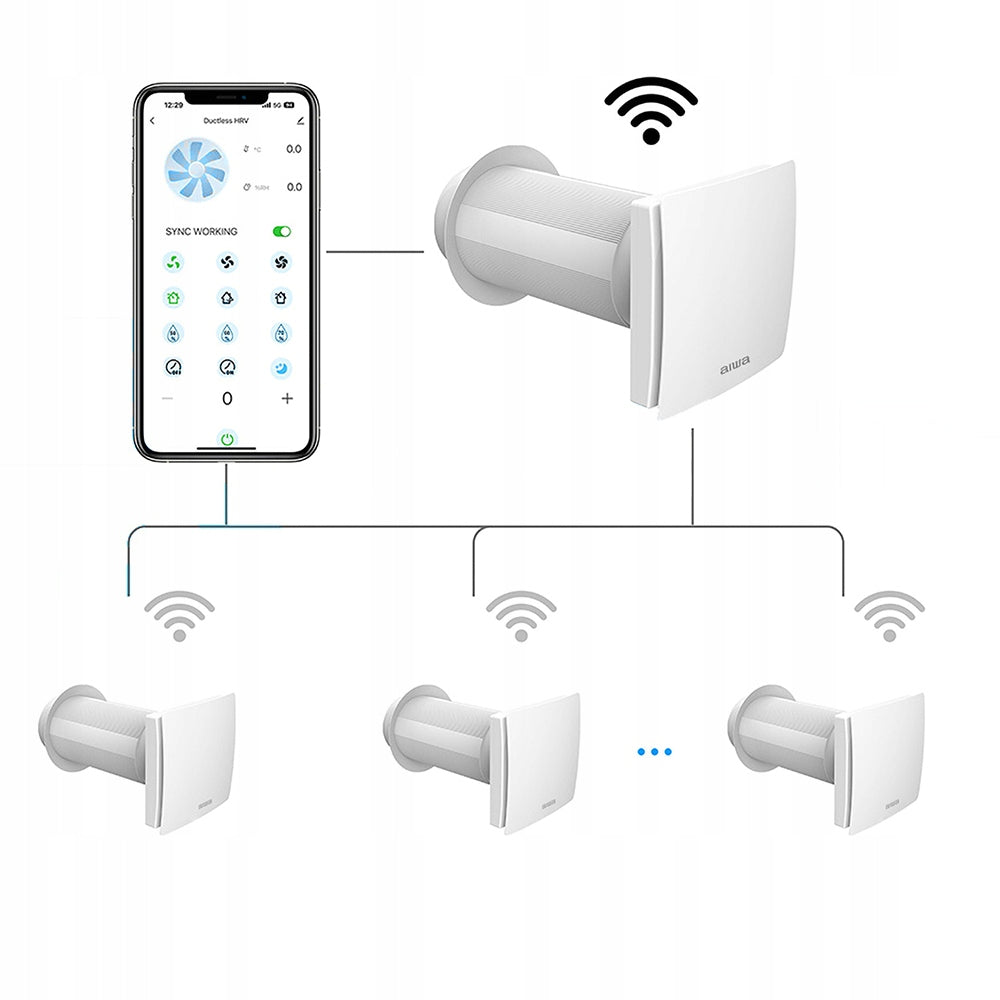

Intelligent synchronization of devices in recuperation systems

Integrate your recuperation devices and enjoy excellent synchronization of ventilation systems. Optimization of air flow, energy saving and full control – all thanks to intelligent cooperation between devices. Check how recuperation tailored to your needs can improve your comfort of life!

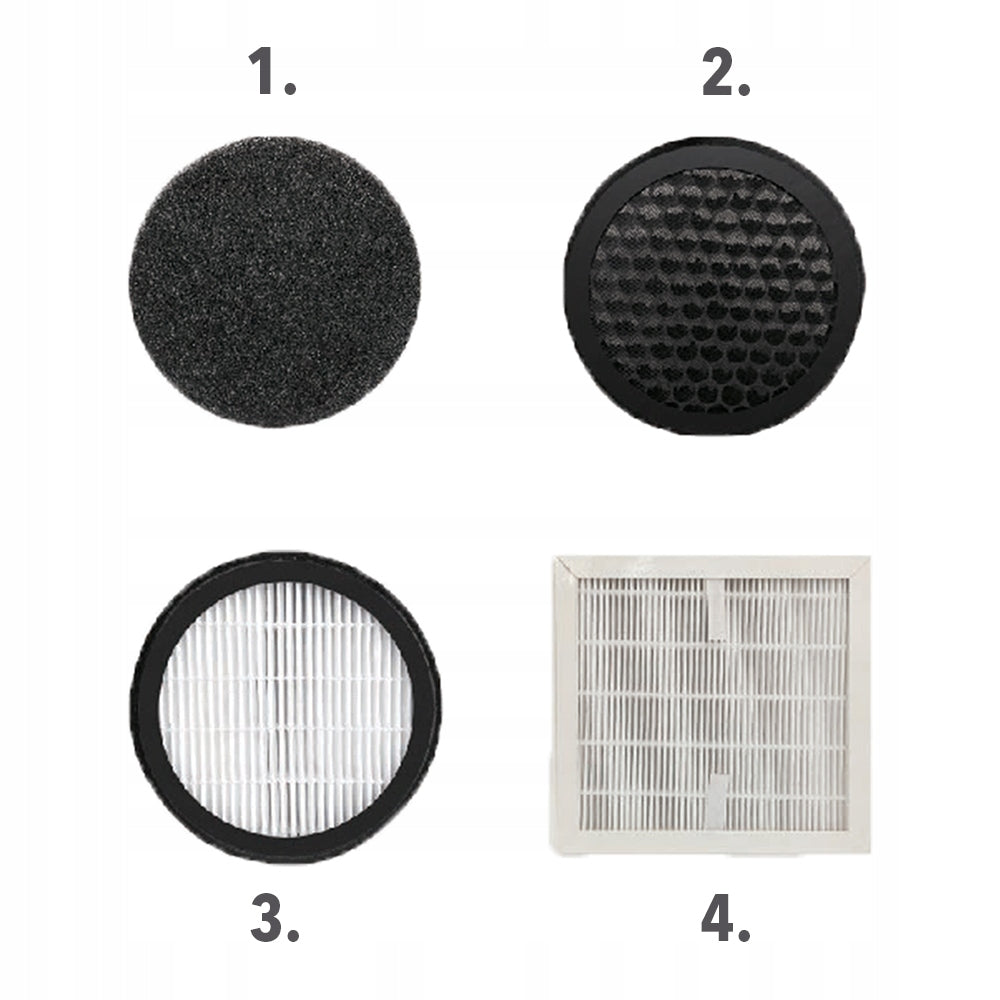

1. Pre-filter

This is the basic protective element that stops larger contaminants such as dust, pollen, hair or hair. Thanks to it, the remaining filters last longer and more efficiently.

2. Carbon filter

It uses active carbon to absorb odors, gases and volatile organic compounds (VOCs). Ideal in areas exposed to intense odors, e.g. in kitchens or near busy roads. However, it is worth remembering that the use of a carbon filter can reduce the air flow in the system.

3. HEPA filter H13

Provides the highest level of air purification, removing 99.97% of particles as small as 0.3 microns, including PM2.5 dust, allergens, bacteria and viruses. It is an excellent choice for allergy sufferers and health-conscious individuals.

4. Filter H7

It offers good efficiency in removing fine dust and allergens, retaining about 85% of particles ranging in size from 0,3 microns. It is suitable for rooms with moderate levels of pollution.

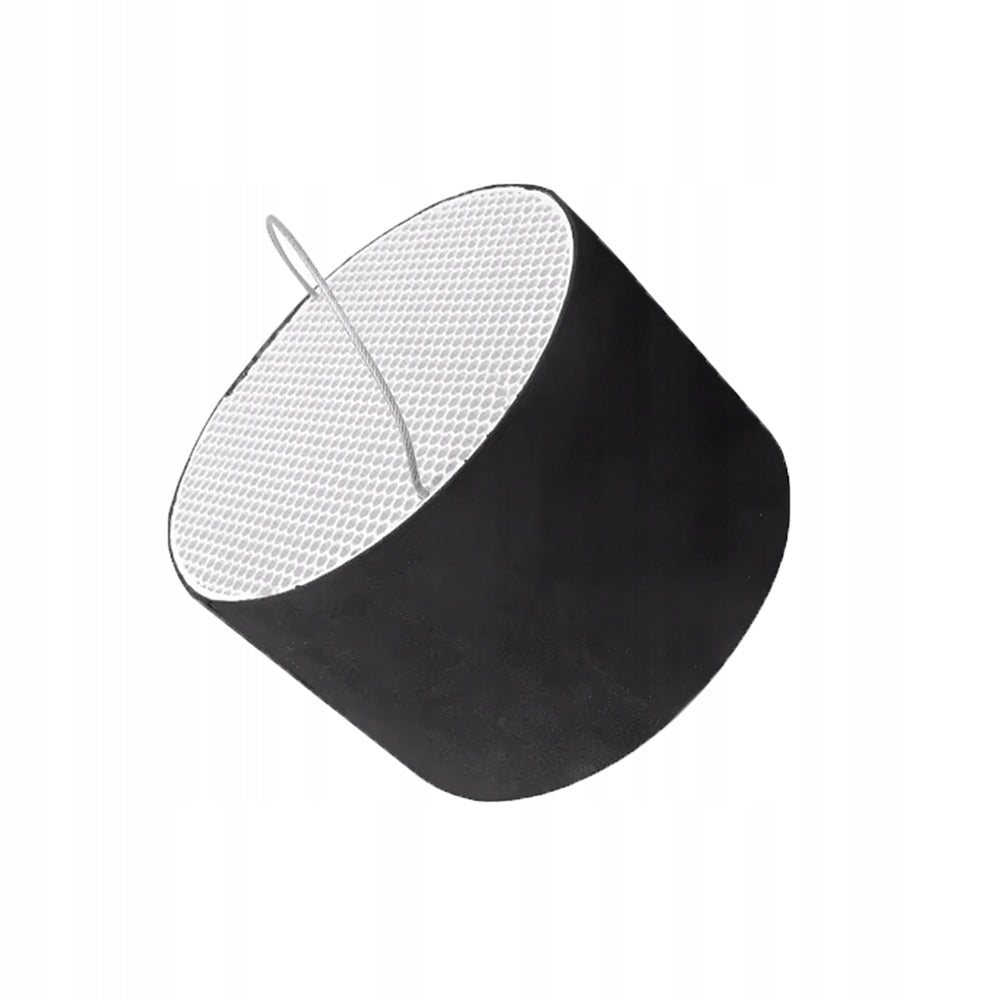

Ceramic core - efficiency and durability

The ceramic core in AIWA recuperators is an innovative technology that significantly increases the efficiency of heat recovery. Thanks to the unique structure of the material, the ceramic core collects heat from the air removed from the rooms and transfers it to the supplied air, which allows for the optimization of air exchange processes.

Control the recuperator with the Tuya app

The Tuya app allows you to conveniently control the recuperator remotely, so you can customize the operation of the device to your needs, optimizing comfort and energy consumption. Thanks to the integration with Tuya you have full control over recuperation, even when you are not at home.

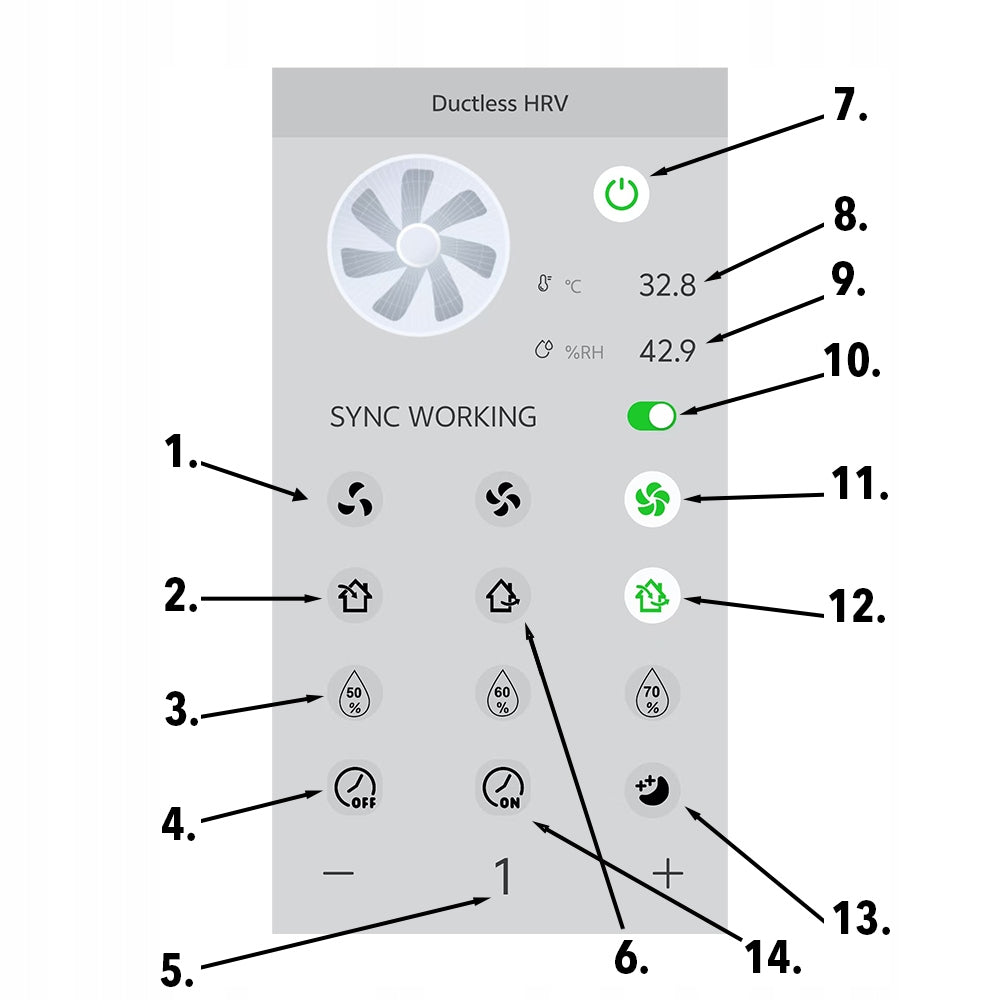

Application control - description of functions

1. Reducing fan speed

2. Venting mode

3. Reduced HUMIDITY MODE

4. Disabling according to programmer

5. Device number

6. Exhaust mode

7. ON/OFF switch

8. Temp reading. inside the room

9. Reading the humidity level inside the room

10. SYNC mode - on/off

11. Increasing fan speed

12. Exhaust/VENTILATION cycle mode - on/off

13. Night mode (quiet)

14. Enabling by programmer

Remote control - description of functions

1. Reduced HUMIDITY MODE

2. Venting mode

3. Night mode (quiet)

4. Increasing fan speed

5. Increasing HUMIDITY MODE

6. ON/OFF switch

7. Reducing fan speed

8. Exhaust mode

9. 65s / 65s - on/off cycle mode

11. SYNC mode - on/off

1. GEAR AND

• capacity - 30 m3/h

• noise level - 19 dB(A)/3m

• fan power – 1,8 W

• fan speed - 651 rpm /min.

2. GEAR II

• capacity - 54 m3/h

• noise level - 22 dB(A)/3m

• fan power – 3,9 W

• fan speed - 956 rpm /min.

3. GEAR III

• capacity - 60 m3/h

• noise level - 30 dB(A)/3m

• fan power – 7 W

• fan speed - 1261 rpm /min

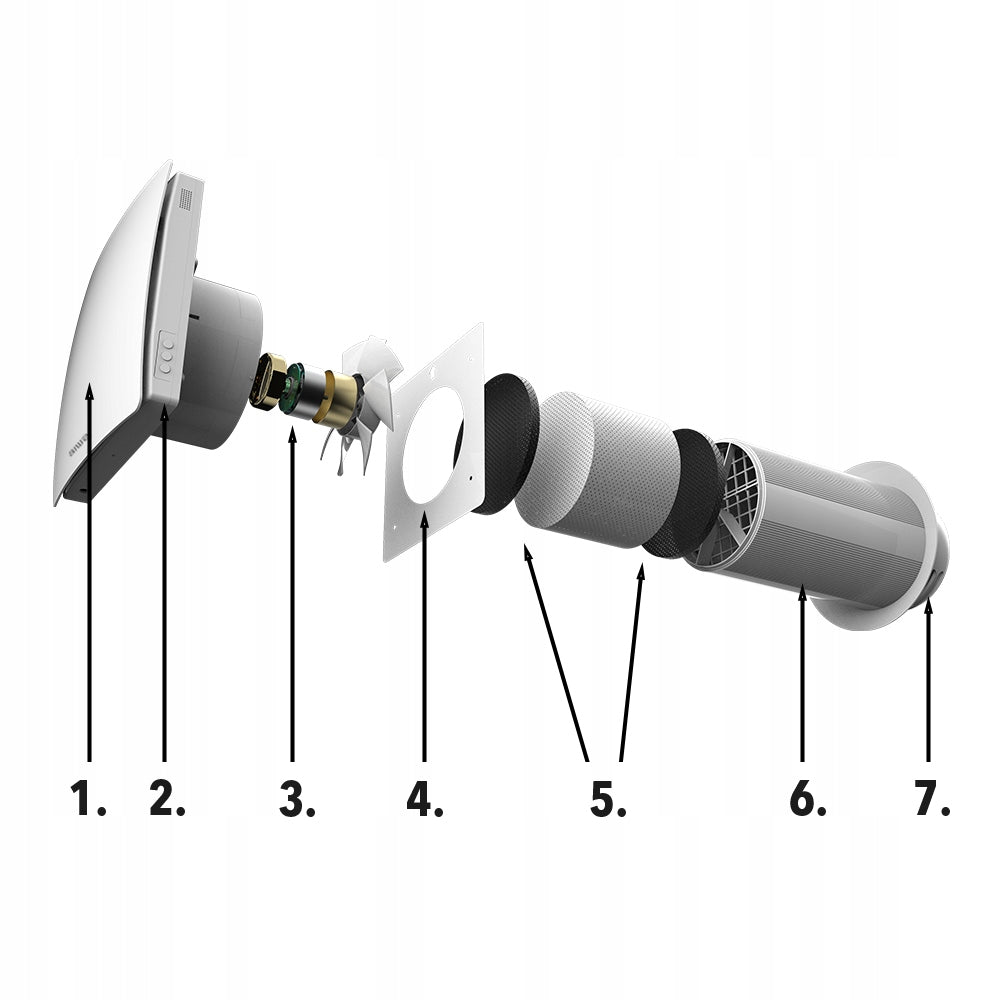

Scheme of construction

1. Magnetic panel

2. Humidity sensor (allowing automatic operation of fans)

3. Motor with fan

4. Mounting frame (for easy installation of the device),

5. Filter set (including ceramic cartridge)

6. Telescopic ventilation duct

7.

Dimensions:

A = 242 mm

B = 242 mm

C = 242 mm

D = 56 mm

E = 30,1 mm

F = 157,6 mm

G = 250-500 mm

H = 87,87 mm

I = 159 mm

J = 215,5 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Aiwa
Parametry	Kind	heat recovery ventilator
Parametry	Manufacturer code	ERV10YA
Parametry	Packaging status	original
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A
Parametry	Certificates of conformity	CE
