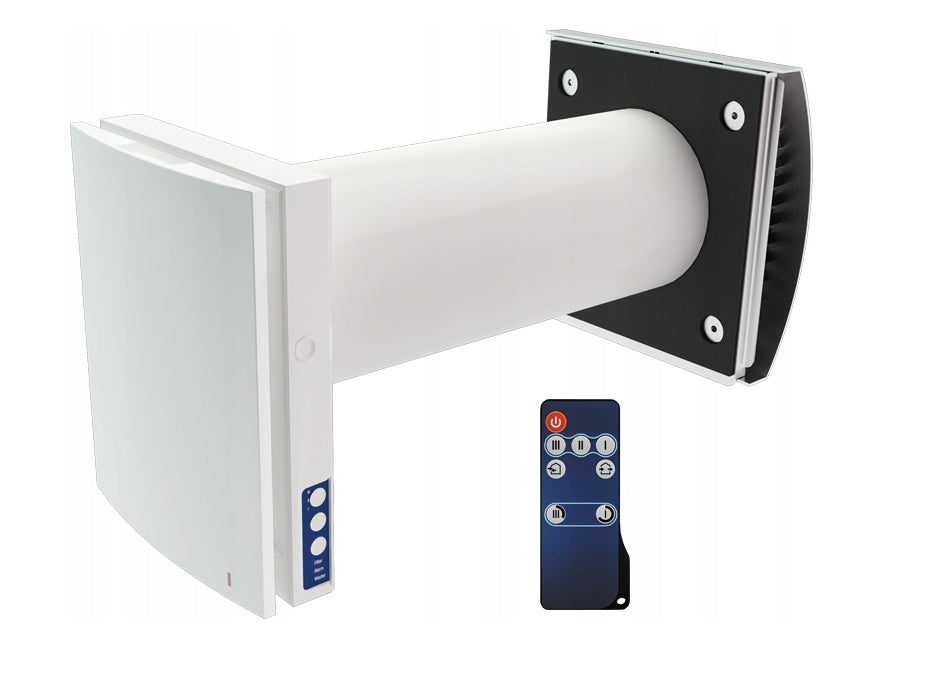

Sieninis rekuperatorius BLAUBERG VENTO EXPERT A50-1 S10 PRO

Trumpai apie prekę

Prekė: Sieninis rekuperatorius BLAUBERG VENTO EXPERT A50-1 S10 PRO. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Blauberg
• Modelis: A50-1 S10 PRO

It is a compact wall recuperator used for ventilation (recuperation) of single-family houses or service facilities.

• Model: Vento Expert A50-1 S10 PRO
• Channel diameter: 160mm
• Speed control: Yes (3-speed)
• Performance: 50m3/h (max)
• Efficiency: up to 93% heat recovery
• Power: up to 5,20 W
• Maximum rotational speed:1900
• Energy class: A
• Color: White
• Included remote control: Yes
• Noise level [dB]: from 11dB
• Smoke noise attenuation according to PN-EN 20140: 42 dB(A)
• Weight: 75kg
• Application: Mechanical ventilation, recuperation
• Condition: New

It is characterized by very low energy consumption, quiet operation, high thermal efficiency and easy operation.

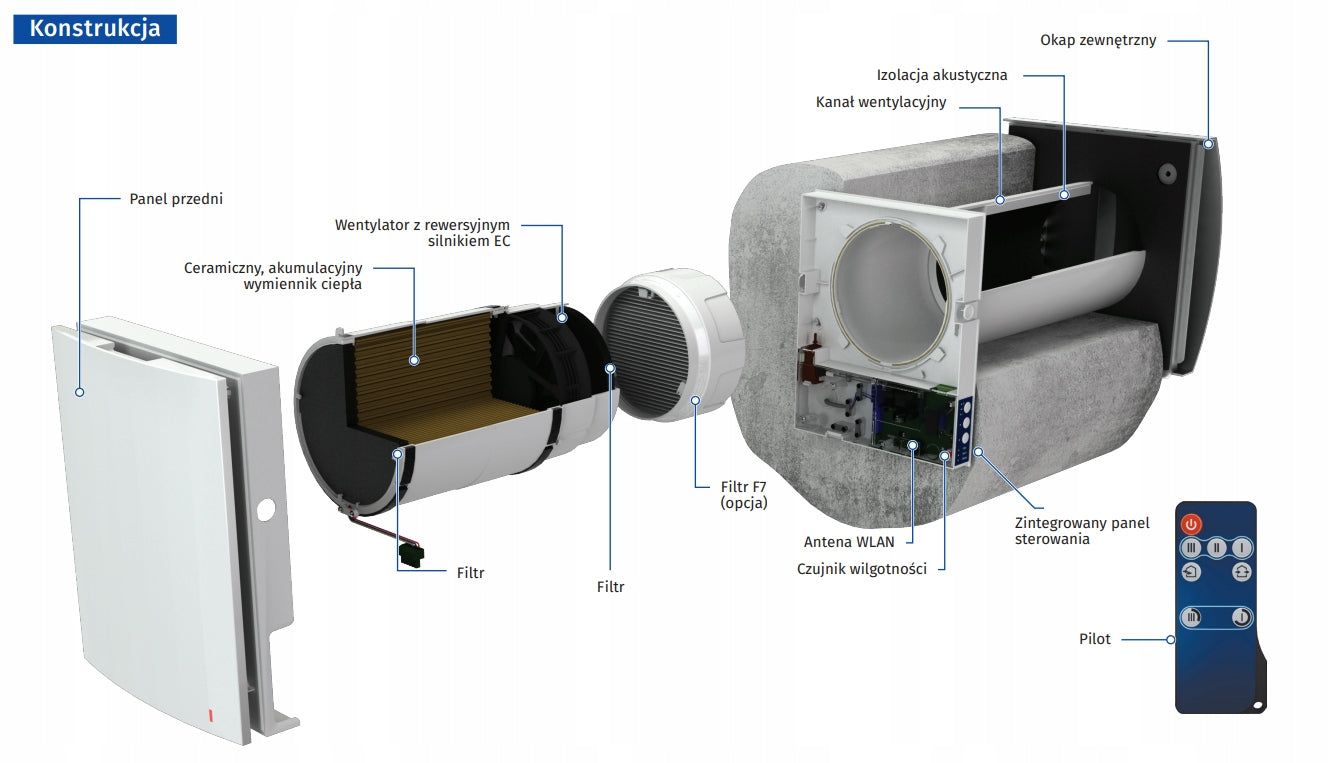

Construction of the device:

STOCK NUMBER: PL071358

The use of wall recuperator is aimed at obtaining ventilation in a given room, through mechanical air exchange. It is an extremely effective solution that works regardless of weather conditions. Most often used in the absence of gravity ventilation.

Efficient energy-efficient air-exhaust ventilation of apartments, cottages, villas, social and utility rooms. Significant reduction of heat loss during room ventilation, thanks to effective heat recovery.

Ensuring moisture balance and regulated air exchange to create an individual microclimate. Creation of a supply and exhaust ventilation system based on several centrally controlled units.

The device consists of a room-mounted internal panel with a decorative front panel, a compact internal module with an exchanger, a ventilation duct with acoustic insulation and an external ventilation outlet. The basic functional part of the device is a compact internal module with a heat exchanger.

The compact internal module includes a fan, heat exchanger and two filters, providing pre-filtration of air and preventing dust and foreign bodies from entering the heat exchanger and fan. The internal panel is equipped with protective blinds that close when the device is turned off and protect against reverse thrust, eliminating the risk of drafts.

- Contrasting colors

✔ High efficiency

✔ Built-in moisture sensor

✔ Large heat recovery

✔ Simple operation

✔ Protective blinds

✔ Remote control remote control

HEAT RECOVERY

• 1 - Phase one (70 seconds) - removing air from the room - polluted, warm air removed from the room outside passes through the heat exchanger, gradually heating it and giving away some of the moisture. After the ceramic exchanger heats up, the device automatically switches to air intake mode.
• 2 - Phase two (70 seconds) - bringing air into the room - Fresh, cool outside air passes through the exchanger, absorbing the moisture and heat accumulated in it. After 70 seconds, the heat exchanger cools down, the device switches to mode I - internal air exhaust
• Z - External temperature
• W - Internal temperature

INSTALLATION

• The device is designed to be installed in the internal wall, through a pre-prepared hole in the external wall of the building.
• The optimal solution is the installation of an even number of units working cyclically and in the counterphase. This means that some devices simultaneously provide fresh air from the outside, and some - remove polluted air from the room. This allows for high-efficiency, balanced ventilation.
• During the construction of new buildings, the installation of devices takes place in two stages:

  • Pre-assembly: during the execution of internal and external facades (installation of ventilation duct and external outlet with hood, cable routing).

  • Final assembly: before putting the house into use. Installation of a container with an exchanger, fan and filters, installation and connection of an internal block with control and blinds.

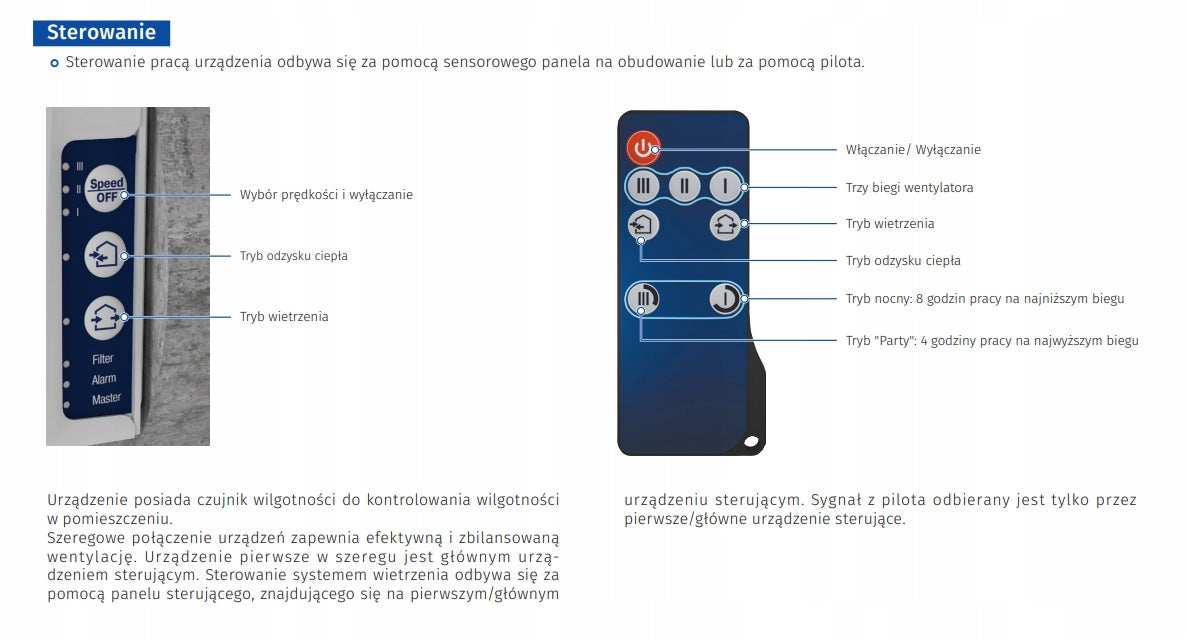

CONTROL

Specifications
