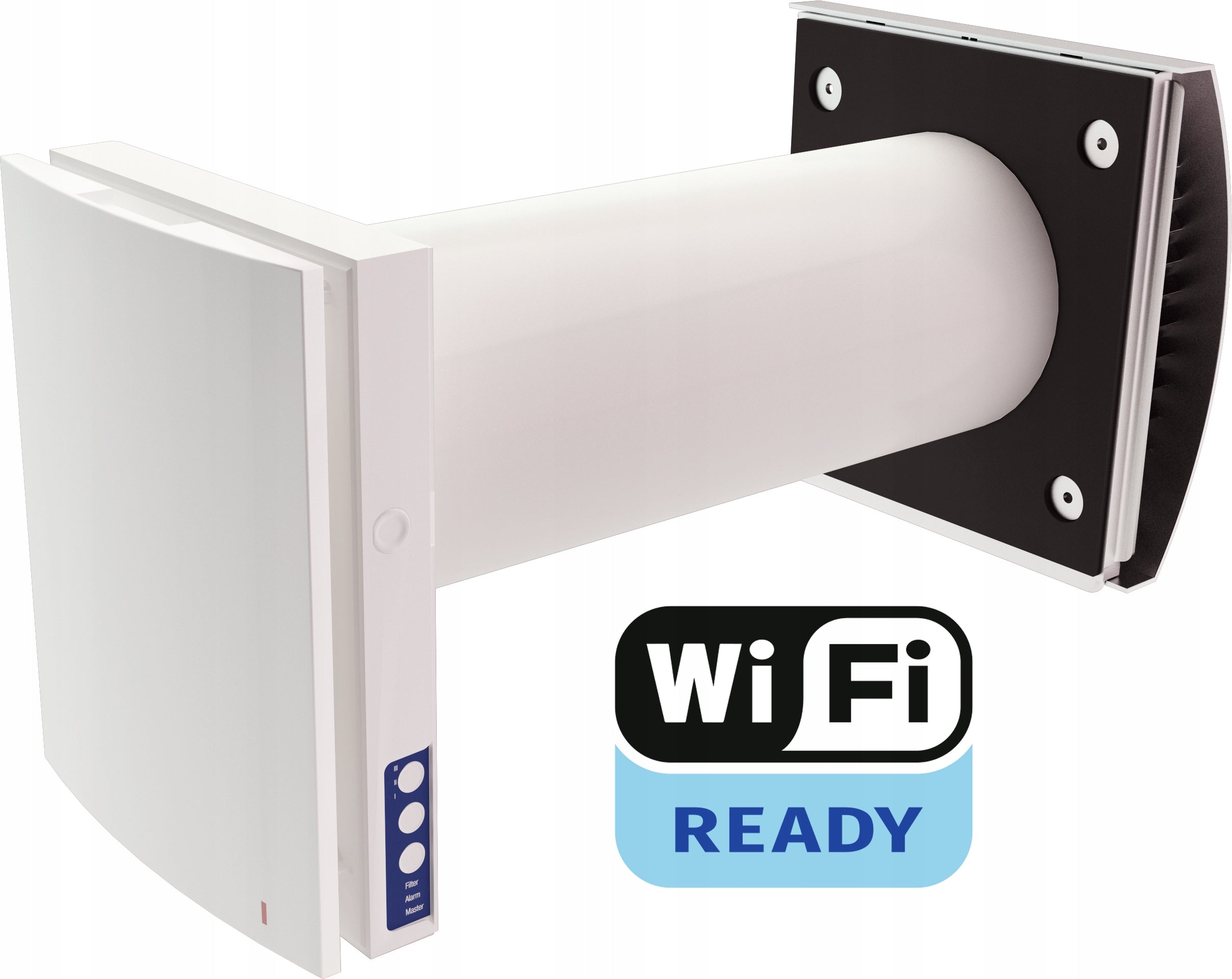

Sieninis rekuperatorius Blauberg VENTO Expert Duo A30-1 S10 W V.2 su Wi-Fi

Trumpai apie prekę

Prekė: Sieninis rekuperatorius Blauberg VENTO Expert Duo A30-1 S10 W V.2 su Wi-Fi. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Blauberg
• Modelis: Vento Expert Duo A30-1 S10 W V.2

Product Features:

• producer: Blauberg
• Ventilation device for single rooms
• included with remote control
• designed for installation in rooms with increased humidity such as the kitchen or bathroom
• simultaneous air supply and exhaust
• reduces heat loss when ventilation of rooms, thanks to effective heat recovery
• provides moisture balance and regulates air exchange
• easy to install - no need to run a network of channels in a decentralized system makes the device easy to install and does not generate high operating costs
• easy to use - control via buttons on the internal panel or remote control
• does not cause drafts - during fan downtime, closed dampers prevent drafts
• control via mobile application for Android or iOS smartphone or tablet

Technical data:

• Performance: up to 30 m3/h
• heat recovery efficiency: up to 85%
• power consumption: from 2,17 W
• noise level: from 24dB (~3m)

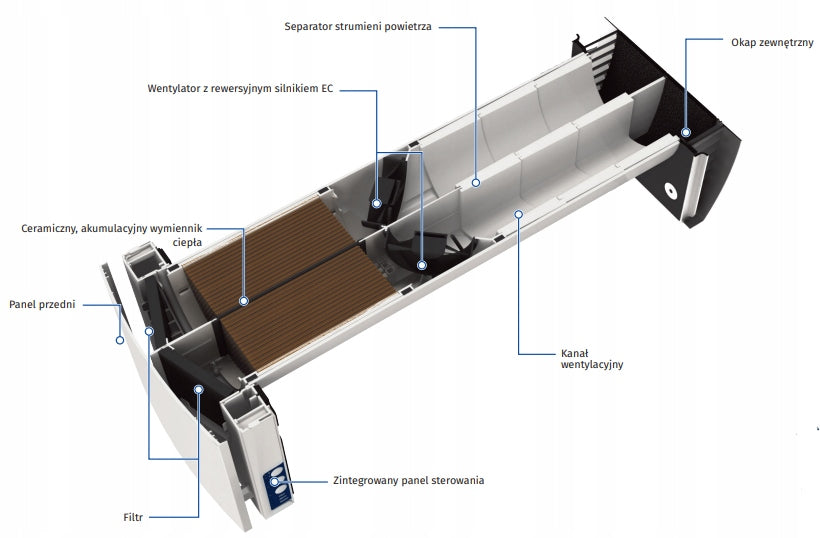

Device design

Advantages:

• Instant assembly
• Assembly in the wall in a prepared hole with a diameter of 180 mm
• Eliminate drafts with throttles when the fan is off
• Ventilation of rooms with an area of about 30 m2
• High efficiency - up to 85%
• Easy control
• Noise level comparable to whisper (24-43 dBA)
• Remote connection of all units into a network without the need for wiring
• Integrated humidity sensor.
• Possibility to connect an external CO2 relay or other external sensors

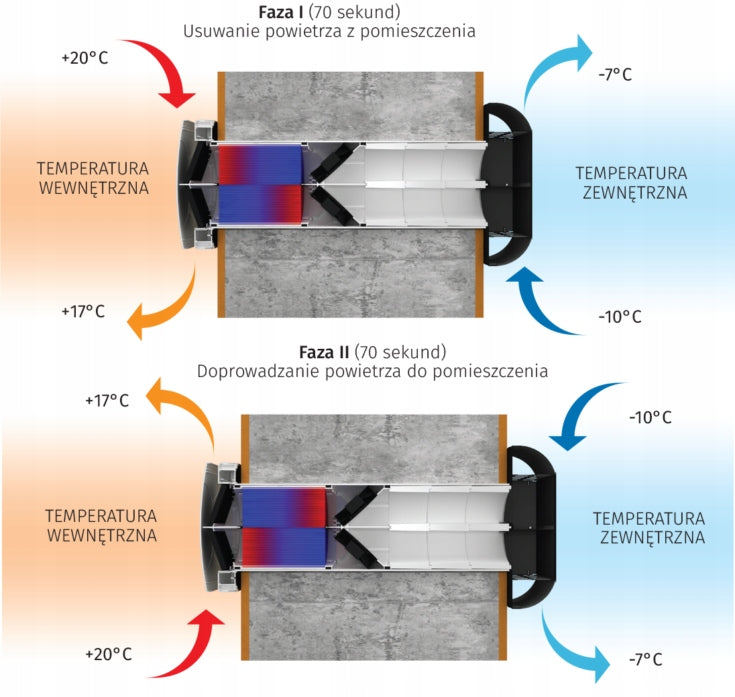

Principle of operation

• thanks to two ventilation ducts in the device, air supply and exhaust are simultaneously
• one fan delivers fresh and cold air from the outside, which flows through the appropriate part of the ceramic exchanger, receiving accumulated heat and moisture from it
• At the same time, the second fan blows warm air out of the room, which flows through the second part of the regenerator gradually heating it and giving away some of the moisture
• After 70 seconds of operation, the fans change directions of rotation and the opposite processes begin

Dimensions of the device

Tips for assembly:

• intended for installation in rooms with increased humidity, such as the kitchen or bathroom
• the device is intended for installation in the internal wall, through a pre-prepared hole in the external wall of the building

Control via mobile application

• Control via mobile application
• Control the operation of the device using a mobile application for a smartphone or tablet
• Synchronized operation of devices, thanks to Wi-Fi connection
• Control your ventilation system with a cloud service from anywhere in the world
• Blauberg Vento V.2 is available on Google Play and the App Store
• Possibility to connect to a smart building system or to a building management system (BMS) via Wi-Fi

• The recuperator can operate as a standalone unit or can be connected to other devices in the house controlled from the main unit. In this case, only one main unit receives the signal from the remote control. VENTO Expert DUO is equipped with a hygrostat for indoor humidity control. If the air humidity exceeds the set size, the device will switch to the highest revolutions independently of other units in the system.

Control via buttons on the panel or remote control

Specifications
