Sieninis rekuperatorius HRV-C 125 su temperatūros jutikliu, 63 m³ našumas, nuotolinio valdymo pultas, 6 greičiai

Trumpai apie prekę

Prekė: Sieninis rekuperatorius HRV-C 125 su temperatūros jutikliu, 63 m³ našumas, nuotolinio valdymo pultas, 6 greičiai. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: REKUPERATOR ŚCIENNY HRV-C 125

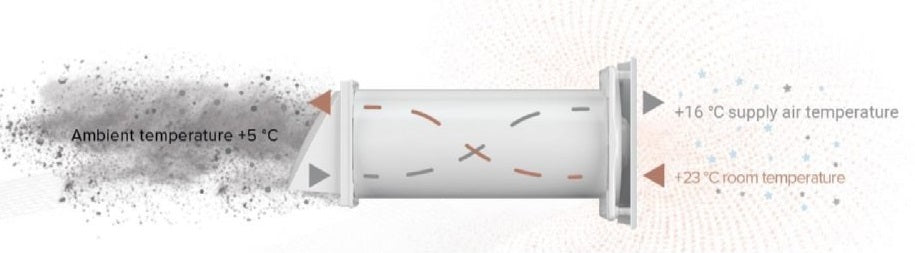

✅Recuperation is mechanical ventilation with heat recovery, which exchanges used air for fresh. The air supplied to the rooms is additionally cleaned of dust and smog.

✅Wall recuperator HRV-C 125 with heat recovery in energy efficiency class "A". It is a ventilation solution designed for rooms without existing ventilation infrastructure.

✅This is an innovative system designed to improve thermal comfort and air quality in residential environments.

Key advantages of wall recuperators

✅Simple and renovation-free installation: They only require one drilling through the exterior wall of the building.

✅No duct installation: They do not need to distribute pipes, which saves space and avoids suspending ceilings.

✅Low investment costs: The purchase of the device itself and its installation are several times cheaper than in the case of central recuperation.

✅Energy and heat savings: Reduce energy losses resulting from traditional window ventilation by reducing heating bills.

✅Clean and filtered air: Built-in filters effectively retain dust, pollen and smog, which is crucial for allergy sufferers.

✅Indoor moisture control: They help maintain optimal humidity levels by preventing mold and fungus from forming on walls.

✅Low power consumption: The average device consumes between 2 and 25 W, which is less than a traditional incandescent bulb.

✅Comfort in summer: On hot days, the exchanger cools the supply air, and at night allows you to let in crisp air without making drafts.

✅Independent control: The work of each wall recuperator can be managed separately, adapting the gear to the needs of the room.

TECHNICAL DATA:

✅Wall recuperator with ceramic exchanger with heat recovery efficiency up to 82%, high heat recovery efficiency reduces energy consumption.

✅Ambient operating temperature: -30 / 50°C

✅Switching delays: 60, 70, 80, 90 seconds

✅Regulation of work in the range of 9-63 m3/h

✅Power consumption: 1-9,4 W

✅Automatic closing throttle

✅ RGB LED on housing

✅Recuperator work:

✅Up to 10 devices can be synchronized

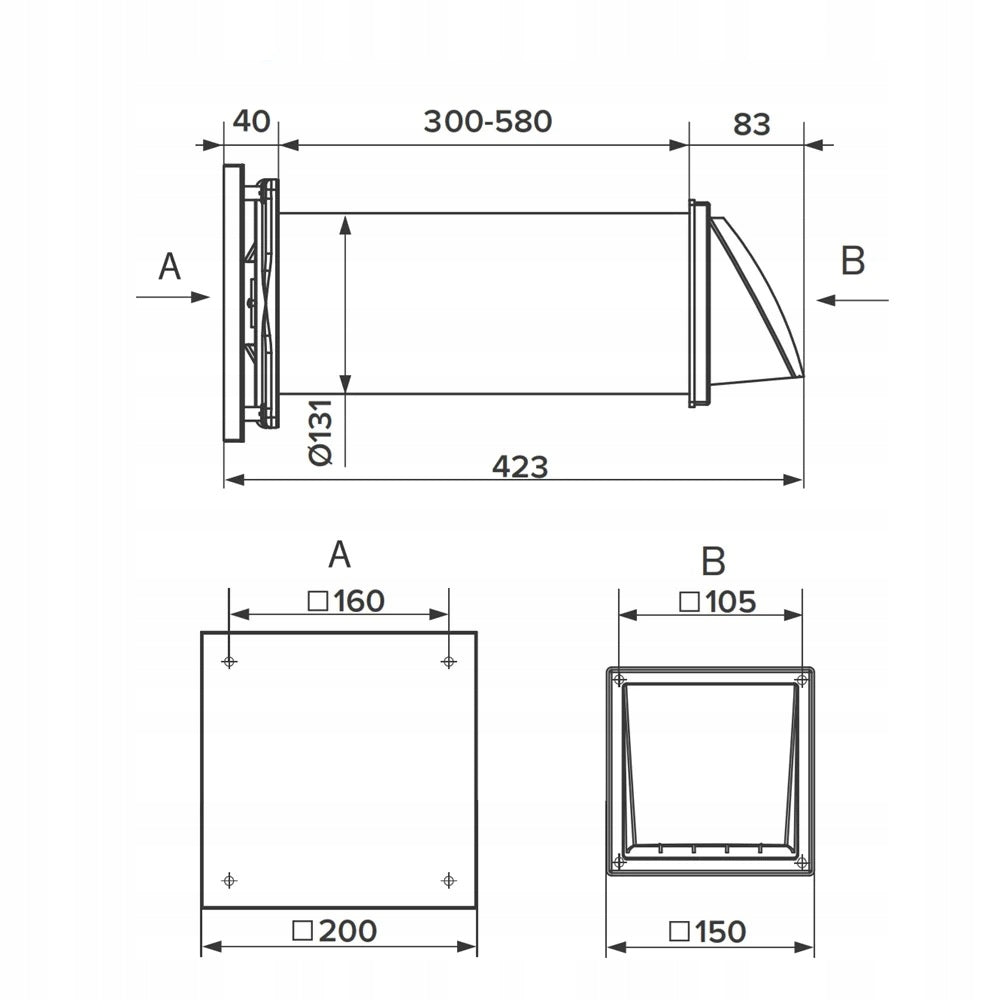

✅Adjustable thickness/length in the range of 300-580 mm

✅Minimum mounting wall thickness: 270 mm

✅Mounting hole Ø128

✅6 speed levels

✅4 modes

✅Acoustic power level: 25-36

✅Air flow: 9-63 m³

✅Control: remote control (included)

✅Equipped with a protective grille (against dust).

✅Automatic freezing protection to prevent frost buildup on the heat exchanger.

✅Unique rotor blade design provides improved aerodynamic properties, low noise and increased efficiency.

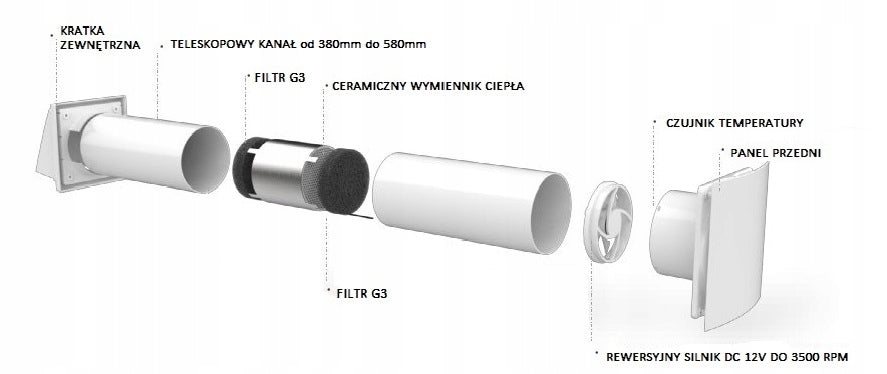

✅Regenerative heat exchanger with ceramic core with high thermal efficiency, equipped with dust filter, reusable.

✅Outdoor grille made of high quality material to protect against strong wind gusts

✅Built-in G3 class filters

✅The device has double insulation - no ground connection is required.

✅Wall mount: Simple and quick installation

✅ Power supply 230 V

✅MODES - DESCRIPTION

1. CONSTANT INFLUX.

2. CONTINUOUS EXHAUST.

3. ALTERNATIVE NWEIW-EXHAUST, RECOVERY - switching between air supply and exhaust every 60/70/80/90 seconds (adjustable by means of a switch located on the control board under the cover of the recuperator housing).

4. INTELLIGENT MODE

Operation in intelligent mode depends on the temperature outside: the colder or warmer the air outside compared to the room, the less the device will work on the inflow. . Regulation of supply and exhaust is carried out using temperature sensors. Switching from air supply to exhaust (and vice versa) occurs when the temperature difference between the environment and the room reaches 3ºC

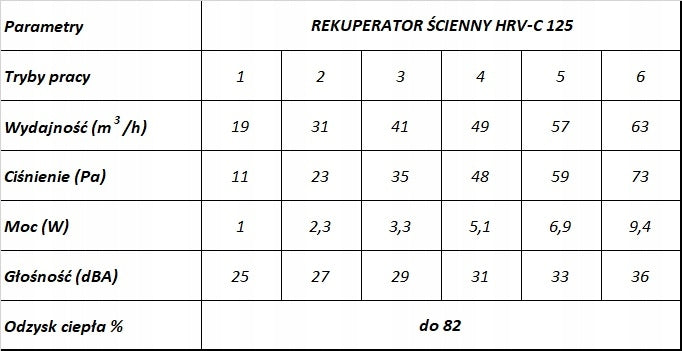

✅Working Mode 1:

Capacity m3/h: 19

Pressure Pa: 11

Power (W): 1

Volume (dBa): 25

✅Working Mode 2:

Capacity m3/h: 31

Pressure Pa: 23

Power (W): 2,3

Volume (dBa): 27

✅Working Mode 3:

Capacity m3/h: 41

Pressure Pa: 35

Power (W): 3,3

Volume (dBa): 29

✅Working Mode 4:

Capacity m3/h: 49

Pressure Pa: 48

Power (W): 5,1

Volume (dBa): 31

✅Working Mode 5:

Capacity m3/h: 57

Pressure Pa: 59

Power (W): 6,9

Volume (dBa): 33

✅Working Mode 6:

Capacity m3/h: 63

Pressure Pa: 73

Power (W): 9,4

Volume (dBa): 36

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Kind	heat recovery ventilator
Parametry	Product weight with unit packaging	2.7 kg
Parametry	Manufacturer code	REKUPERATOR ŚCIENNY HRV-C 125
Parametry	Packaging status	original
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A
Parametry	Certificates of conformity	CE
