Sieninis rekuperatorius PICO PRO+45 su drėgmės, CO2 ir WIFI jutikliais

Trumpai apie prekę

Prekė: Sieninis rekuperatorius PICO PRO+45 su drėgmės, CO2 ir WIFI jutikliais. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: Rekuperator PICO PRO+czujnik wilgoci 45 m3/h

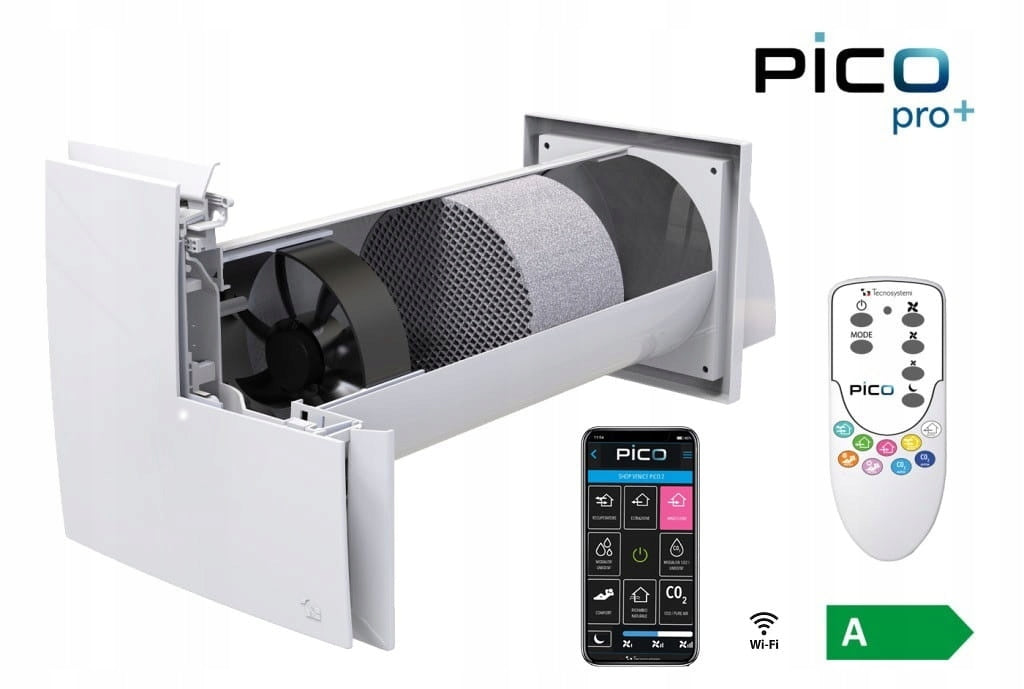

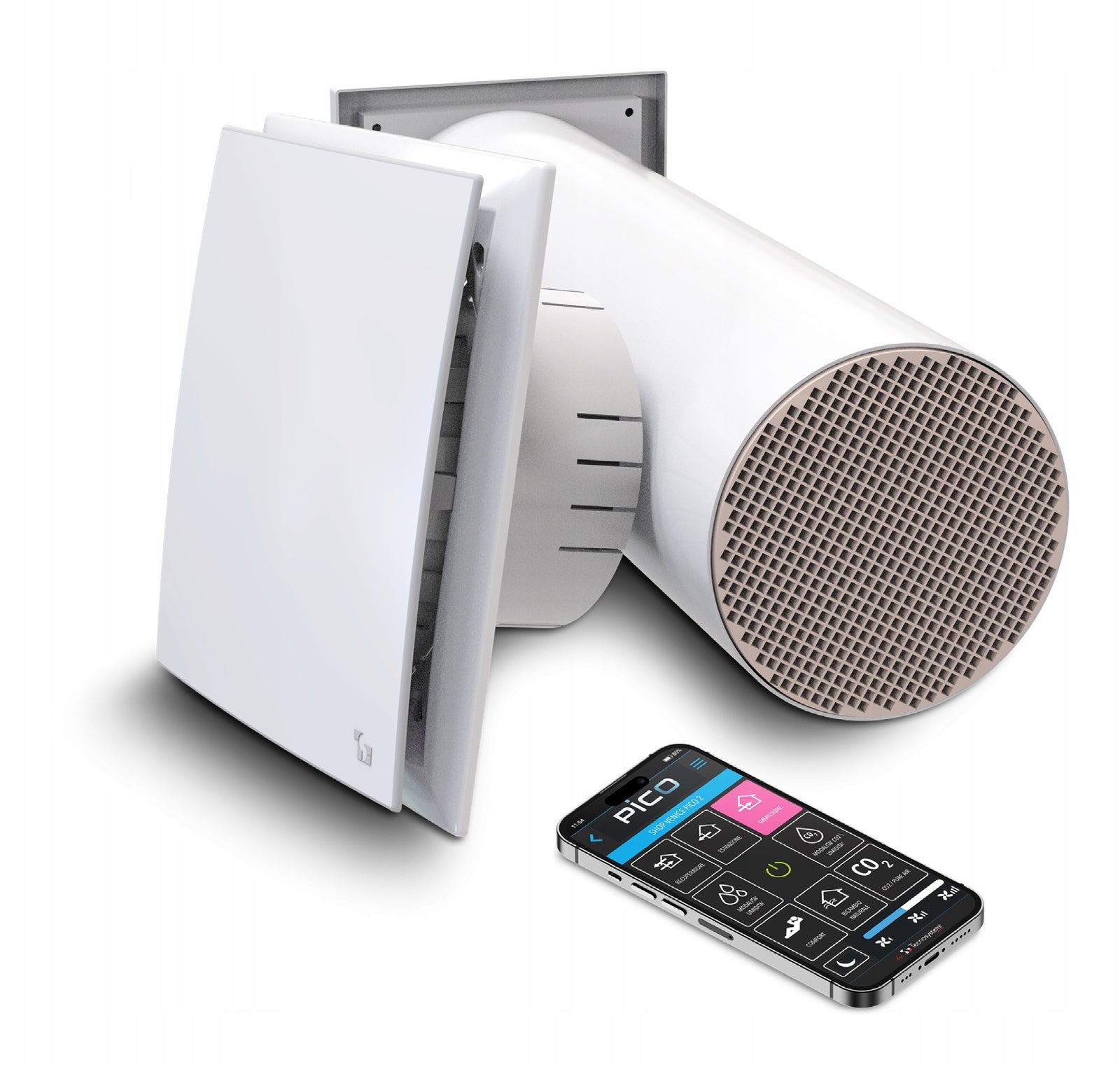

PICO PRO+45 wall recuperator with humidity sensor and CO2+ WiFi sensor

Recuperation is mechanical ventilation with heat recovery, which exchanges used air for fresh. The air supplied to the rooms is additionally cleaned of dust and smog.

PICO PRO+ Wall recuperator with heat recovery in energy efficiency class "A". It is a ventilation solution designed for rooms without existing ventilation infrastructure. The recuperator is designed for apartments, houses, cottages and modular houses, small shops, service premises, offices, educational institutions, etc.

This is an innovative system designed to improve thermal comfort and air quality in residential environments.

TECHNICAL DATA:

✅Wall recuperator with ceramic exchanger with heat recovery efficiency up to 90 %

✅Integrated humidity sensor. Choose from: 40%, 50%, 60%

✅Ambient operating temperature: -20 / 50°C

✅Working adjustment in the range of 8-45 m3/h

✅Consumption: NOC-1,5 W/ 1 SPEED-2 W/ 2 SPEED-3W/ 3 SPEED-4,5 W

✅Automatic closing throttle

✅Recuperator work:

✅Wireless communication between units – the ability to connect up to 4 devices

✅Adjustable size in the range of 350-500 mm

✅Minimum mounting wall thickness: 270 mm

✅Mounting hole Ø128

✅4 speed levels: minimum, medium, max and night mode, adjustable via app

✅10 modes: Heat recovery - extractor - air supply - CO2 mode - humidity mode - natural ventilation - free cooling - free heating - night mode - humidity and CO2 mode

✅Acoustic power level: 20-24-28-35 dB(A)

✅Air flow: 8-20-30-45 m³

✅Control: via app without WIFI, remote via WIFI or remote control (included)

✅Equipped with a protective grille (against dust).

✅Automatic freezing protection to prevent frost buildup on the heat exchanger.

✅Unique rotor blade design provides improved aerodynamic properties, low noise and increased efficiency.

✅High-performance, brushless, energy-saving motor high efficiency, low power consumption, with built-in thermal protection, mounted on sealed, durable high-quality ball bearings. Designed for continuous, alternating operation.

✅Regenerative heat exchanger with ceramic core with high thermal efficiency, equipped with dust filter, reusable.

✅External grille made of high quality material to protect against strong gusts of wind

✅Built-in G2 class filters

✅ RGB LED on the control panel for viewing settings

✅The device has double insulation - no ground connection is required.

✅ Power supply 230 V

FUNCTIONS:

✅Heat recovery - extractor - air supply - CO2 mode - humidity mode - natural ventilation - free cooling - free heating - night mode - humidity and CO2 mode

✅MASTER/SLAVE function: the ability to connect up to 4 sub-devices in the cascade via Wi-Fi

✅Sub-devices configurable in synchronous or asynchronous mode

Thanks to its specification, the PICO PRO+ wall recuperator is ideal for rooms up to 45 m². Equipped with brushless motor with very low power consumption, controlled fan operation using a SMARTPHONE. The recuperator with integrated automatic humidity control and heat recovery will ensure efficient ventilation of the room reducing the need for our interference with the device.

PICO PRO+ WALL RECUPERATOR with humidity sensor:

✅MODE: HEAT RECOVERY (RECUPERATION)

The wall recuperator works with heat recovery.

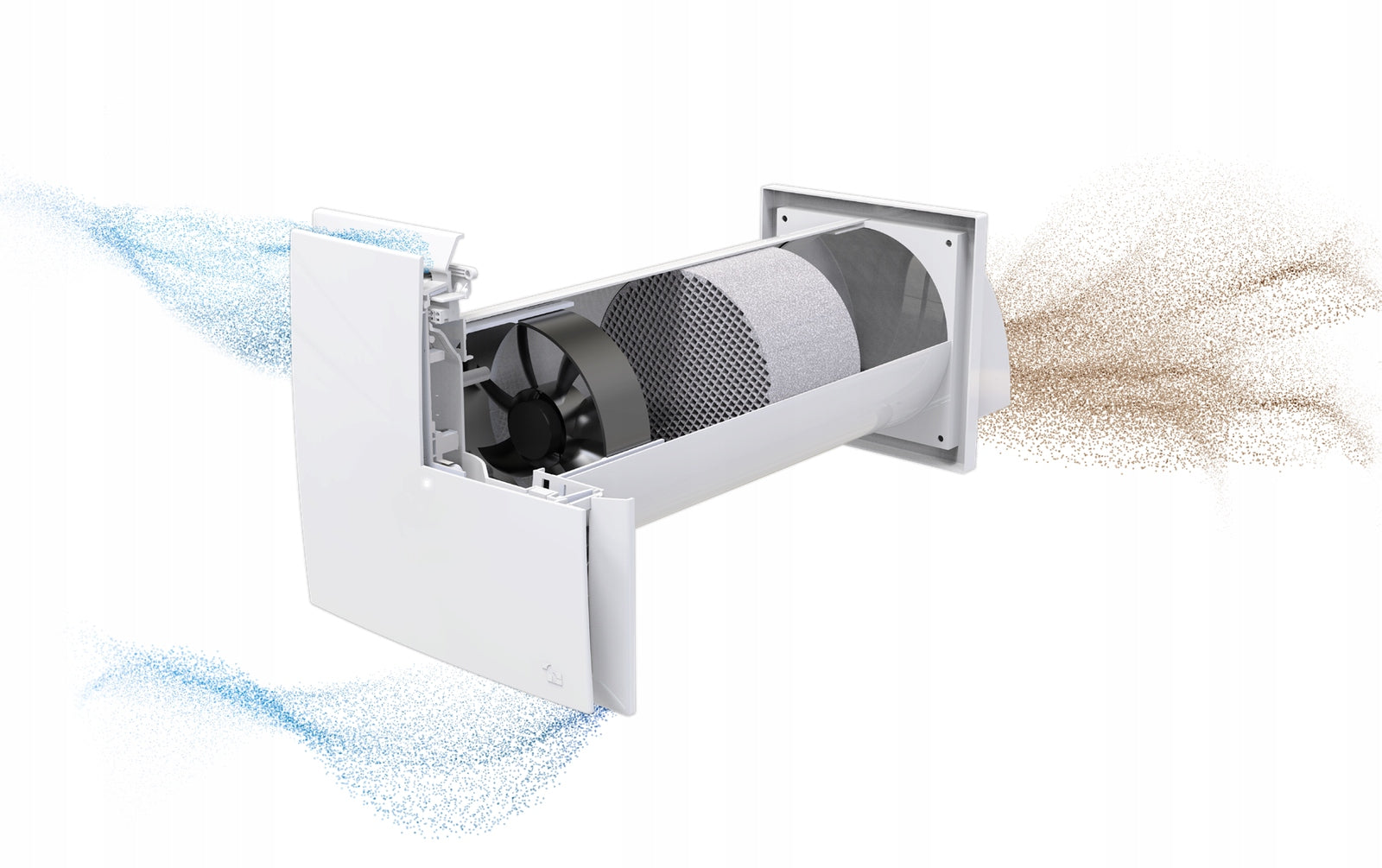

The used air is sucked in by the exhaust fan and delivered to one side of the heat exchanger. On the other hand, fresh outside air goes to the other side of the heat exchanger. Air streams do not mix with each other. This means that the used air removed from the building does not enter the fresh supply air. Intense heat exchange takes place between streams. The heat exchanger ensures high efficiency of heat recovery, even with intensive ventilation.

Recuperation is not only heating the air supplied to the building, it is also air filtration.

✅MODE: AIR SUPPLY

The device blows external air into the room.

In this mode, the humidity sensor is not active.

✅MODE: EXTRACT

The device removes air from the room.

In this mode, the humidity sensor is not active.

✅MODE: MOISTURE SENSOR

The device constantly controls the level of relative humidity in the room. It is possible to set 1 of 3 maximum humidity thresholds for the hygrostat (40%, 50%, 60%) to adapt it to the room in which it works. When the set humidity level is exceeded, the device will operate in the set mode at the maximum fan speed.

✅MODE: NIGHT

If this mode is active, the device operates at the lowest fan speed.

✅MODE: FREE COOLING

After activating the FREE COOLING function, the device starts the cycle of checking the temperature inside and outside. If, after completing the inspection, the device detects a difference between the external and internal temperature of more than 3°C, it automatically activates the FREE COOLING mode.

✅MODE: FREE HEATING

After activating the FREE HEATING function, the device starts the cycle of checking the temperature inside and outside. If, after completing the inspection, the device detects a difference between the outside and inside temperature of more than 3°C, it automatically activates the FREE HEATING mode.

✅MODE: RECUPERATION WITH CO2

The system monitors the concentration of CO2 in the internal environment. When the concentration exceeds the 800 ppm threshold, the device activates the RECOVERY function at MAXIMUM speed. After restoring the correct CO2 value, the device returns to RECOVERY mode at MINIMUM speed.

✅MODE: RECUPERATION with humidity and CO2 threshold

The system monitors humidity and CO2 concentrations in the indoor environment. RECOVERY mode is activated after exceeding at least one of the thresholds: humidity or CO2

Very easy, intuitive control of the wall recuperator using the application (the phone is a remote control) - beige use of WiFi or using WiFi or remote control (the remote control is included).
