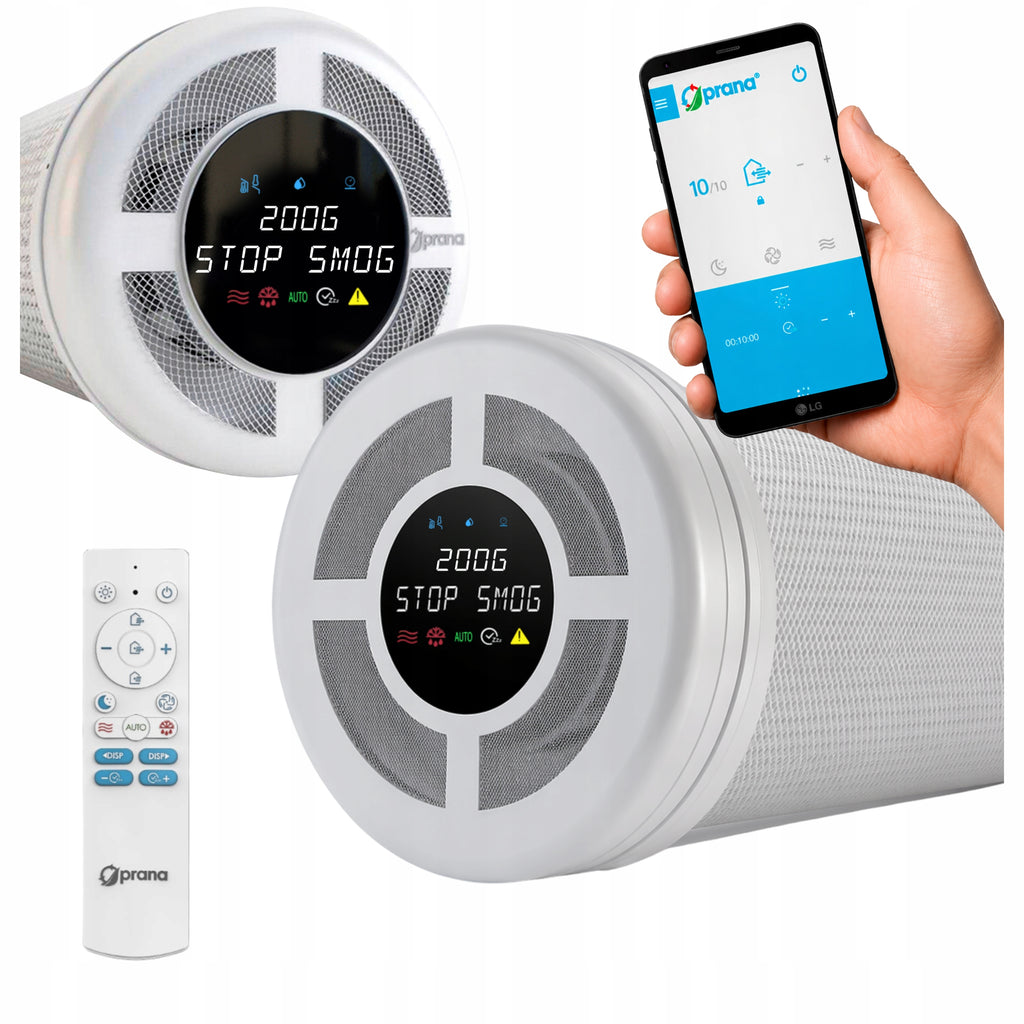

Sieninis rekuperatorius PRANA ORIGAMI 200G su "Stop Smog" filtru ir drėgmės jutikliu

Trumpai apie prekę

Prekė: Sieninis rekuperatorius PRANA ORIGAMI 200G su "Stop Smog" filtru ir drėgmės jutikliu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Prana
• Modelis: PRANA ORIGAMI 200G STOP SMOG

MAIN FEATURES:

• Air exchange m3/h: 5/20/28/38/65/85
• Air inlet and outlet simultaneously: Yes
• Efficiency: up to 97%
• Energy consumption: 3,2 – 74 W/h
• Mini-heating: Yes
• Working module length: from 440 mm
• Working diameter: 200 mm
• Diameter of mounting hole: from 210 mm
• Recommended installation location: up to 60 m2
• Housing insulation: Yes
• Management system: Remote control, mobile application Prana Remote Control
• Copper heat exchanger: Yes
• Certificate: European CE quality certificate
• Certificate: National Institute of Hygiene: B-BK-60212-0086/203
• Certified TUV fans: YES
• Thermomodernization relief: YES
• Clean air relief: YES

✳ PRANA ORIGAMI 200G Stop Smog recuperator with heat recovery ✳

is a supply-exhaust countercurrent ventilation system (inflow and exhaust occur simultaneously without mixing air streams). The housing of the ventilation system is made of food grade ABC plastic. As an air recuperator, a high-performance copper heat exchanger was used. PRANA ORIGAMI STOP SMOG recuperators are innovative ventilation systems for healthy, comfortable and safe living.

☑ Thanks to intelligent smart-control and the “AUTO” function, the ventilation system adapts to the individual needs of a specific room and automatically selects the best mode of operation of the system at any time.

☑ The system monitors the state of air in the room on an ongoing basis – guided by information from sensors, the recuperator in the AUTO mode implements automatic control without human intervention. This is the optimal option for operating the recuperator, because the system in this mode is the most efficient, energy-saving and autonomous.

Modern wall recuperators by PRANA® are innovative devices that are installed by our customers in:

✔ apartments/houses

✔ offices

✔ universities/ schools/ kindergartens

✔ hospitals/clinics

✔ gyms / warehouses

In short:

✔ PRANA ORIGAMI STOP SMOG recuperators are used to organize ventilation and optimize energy distribution in buildings.

✔ This model creates a comfortable microclimate in the rooms and is easy to use.

✔ The minimal power consumption of the recuperator (from 3.2 to 74 W/h) allows users to save energy (from 30% of heat during heating and up to 70% of electricity for additional air conditioning in the summer).

✔ Easy control with the remote control (included with each model! )

✔ The recuperators are synchronized with a mobile application for tablets and smartphones (Android, IOS), so you can control what is happening with the air in your home regardless of where you are!

❇ What is most important? ❇

✔ Preserve the natural properties of air

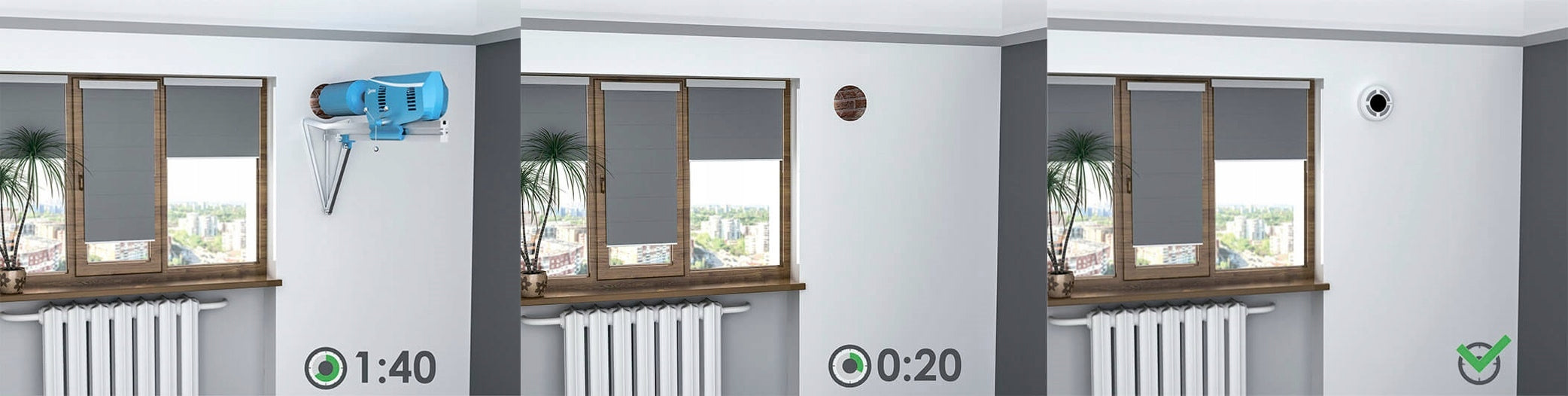

✔ Ease of installation - Specialists install the recuperator on average within 2 hours, without damage and the need to renovate the entire apartment / facility.

✔ High energy efficiency

✔ Easy control via remote control or app.

✔ Ergonomics and ease of use.

✔ For existing facilities installation is simple and does not require a major overhaul.

✔ The autonomy of the PRANA decentralised system eliminates the risk of failure of the central recuperation system (resulting in the elimination of recuperation of the entire facility), and more importantly, reduces the risk of carbon dioxide poisoning and polluting (which may occur in the case of central recuperation systems).

✔ Multifunctionality of the Prana hybrid recuperation system – easy adaptation to all types of premises and existing gravity channels.

✔ Compact size. Only ventilation grilles are noticeable, the recuperator remains masked in the wall.

❤ Heat exchanger – recuperator heart ❤

✔ Air streams run through the system of copper heat exchangers, located inside the operating module, but are divided between each other both inside the operating module, as well as at the "inlet - outlet" and are not mixed.

✔ Thanks to the innovative design of the PRANA® recuperators, the efficiency factor reaches 97%. One of the significant achievements of the process of obtaining fresh air by the PRANA® recuperator is the lack of filters.

✔ Thanks to the abandonment of filters, the energy quality factor of air ranges from to 97%. So high efficiency is achieved by passing air streams through a copper heat exchanger. This raw material is characterized by very good thermal conductivity, as well as antisepticity at a level similar to silver.

✔ The system removes air contaminated with microparticles of dust and smoke from the room, provides fresh and clean air from the outside.

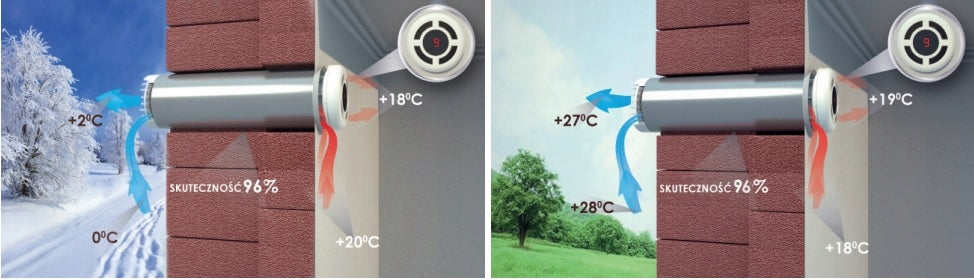

✔ Additionally, in the ventilation system PRANA® "developed" warm air, which moves out of the room, heats cold air coming from the outside, and in the summer vice versa - cools down.

1. Copper heat exchanger.

2. The air supply and exhaust work simultaneously without mixing with each other.

3. 100-150mm distance from the ceiling.

4. Heated air from outside.

5. Removing warm air from the room.

6. Air removed from the room.

7. Air from the outside

8. Inclination of the installation at an angle of 2-3 degrees.

THE MAIN ADVANTAGES OF PRANA RECUPERATORS

. PRANA is the author and manufacturer of a number of modern technologies in the field of energy savings. After more than 15 years of operation in the renewable energy and comfort of living industry, we have made an almost impossible, we have created an excellent and economically justified system of bioenergy comfort in rooms.

• COMPACT DIMENSIONS: housing diameter of the operating module - 150, 200, 250, 340 mm. Adjustable length - depending on the thickness of the walls.
• COPPER HEAT EXCHANGER: The basic feature of copper is excellent thermal conductivity, moreover, copper is an antiseptic (maximum similar to silver). An environment is created in the recuperator, ensuring air decontamination, viruses and bacteria lose their ability to develop and live.
• EFFICIENCY IS UP TO 97% : is achieved by passing exhaust and inlet air streams, heading in the opposite direction and not crossing each other, through the copper heat exchanger system.
• SPEED AND EASE OF INSTALLATION: In order to install the recuperator in a distributed system, a hole must be made in the outer wall of the building, in which an operating module is mounted using mounting foam or other sealant.
• ELECTRICITY CONSUMPTION FROM 3,2W/h.

Ventilation systems from our company are simple, quiet and energy efficient!

A wide range of models allows you to easily adjust the product to the individual needs of the customer and the size of the room. The manufacturer of recuperators used a combination of materials and technologies that restore the natural properties of air. As a result of these solutions, clean air was obtained, actively disinfected, while maintaining all the desired energy components (ion composition).

As a result of encapsulation (as a result of the use of the latest, airtight windows and doors), the indoor climate has deteriorated significantly. Not only the fungus, but also moisture very adversely affect the health of people, leading in extreme situations to a direct threat.

For existing facilities, the best solution is to use PRANA® distributed recuperation systems.

At your request, we will adjust the recuperator to the thickness of the wall.

The great advantage of Prana recuperators is their very simple installation!

Equipment Prana 200 Prana 200 Prana 200

Standard Stop Smog Premium+ recuperator model

Separate motor control ✅ ✅ ✅

Control via smartphone ✅ ✅ ✅

Time switch ✅ ✅ ✅

Filter contamination indicator ❌ ✅ ✅

Atmospheric pressure sensor ❌ ✅ ✅

Humidity sensor ❌ ✅ ✅

"AUTO" mode ❌ ✅ ✅

Temperature sensor 1 ✅ ✅ ✅

Temperature sensor 2 ❌ ✅ ✅

Temperature sensor 3 ❌ ❌ ✅

Performance indicator ❌ ❌ ✅

Air quality sensor, VOC ❌ ❌ ✅

CO2 sensor ❌ ❌ ✅

NOTE

Buy only proven certified wall recuperators PRANA which are the only ones on the market that have the technical parameters of the ventilation system tested and confirmed by an independent testing laboratory - IMQ S.p.A., in accordance with the international standard EN 13141-8:2014

FAN are tested and certified by TÜV SÜD ProductService GmbH

HYGIENE CERTIFICATE - National Institute of Hygiene - B-BK-60212-0086/20

Specifications
