Sieninis rekuperatorius PRZYBYSZ su jungikliu, Ø125 mm

Trumpai apie prekę

Prekė: Sieninis rekuperatorius PRZYBYSZ su jungikliu, Ø125 mm. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Przybysz
• Modelis: EER125S

EER125S

E-Extra EER recuperators are designed for constant air exchange in rooms. The device is equipped with a regenerator (ceramic heat exchanger), which stores heat energy from the air leaving the room and heats fresh air entering the room, thus ensuring minimal heat loss. The device is designed for continuous operation.

The device is designed for constant air exchange in rooms.

The device is equipped with a ceramic exchanger that collects heat energy from the air exhausted from the room and heats the fresh air entering the room, thus ensuring minimal heat loss. The device is designed for continuous operation.

The device cycle is divided into the following stages:

• In pull-in mode, polluted warm air is discharged from the room. The air heats up as it flows through the exchanger. After 70 seconds, when it has already accumulated heat, the fan will switch to the room air supply mode.

• In airflow mode, fresh, cold air from the outside, flowing through the regenerator, heats up to room temperature. After 70 seconds, when the exchanger cools down, the fan will switch to pull-in mode.

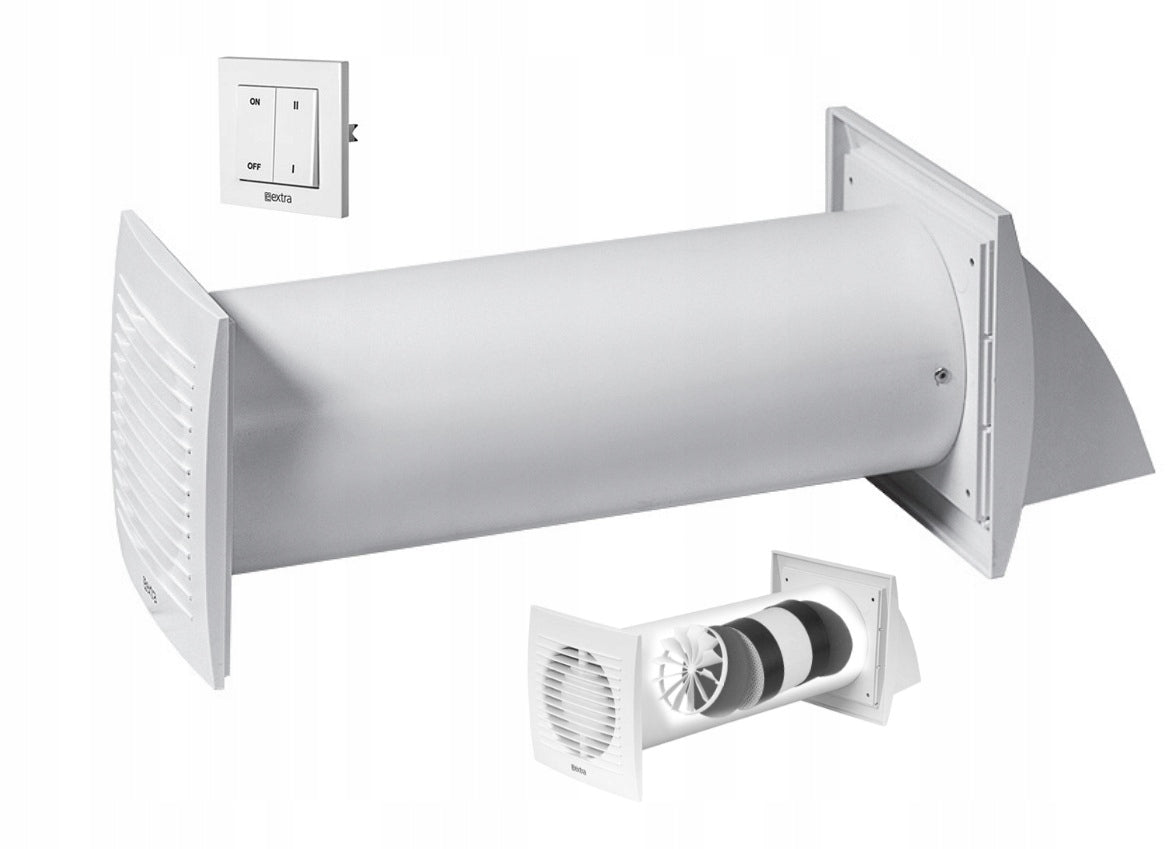

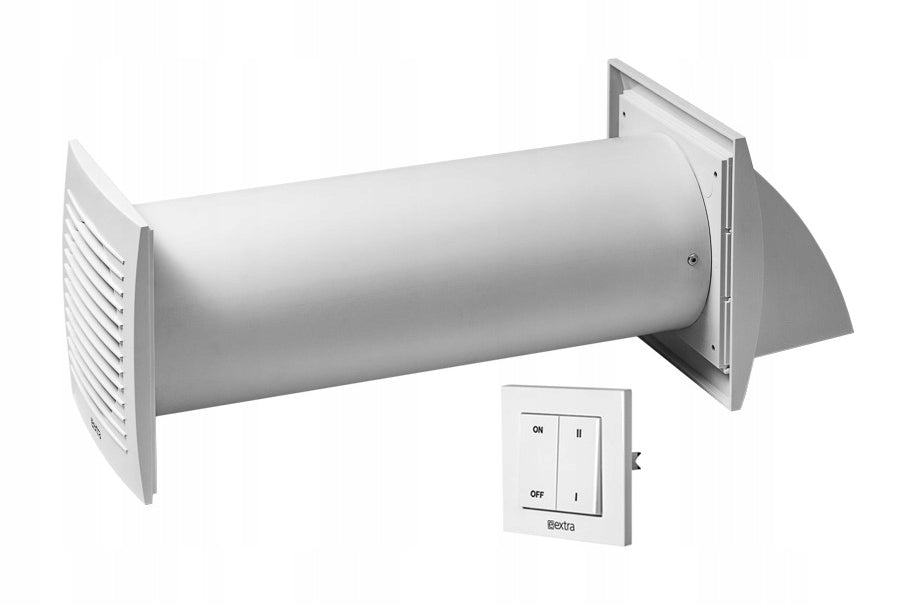

The set includes a wall-mounted control switch, allowing you to turn the device on and off and change the speed of its operation. The device is designed for direct connection to the electrical network 230 V.

Technical parameters of EER125

Speed I / II

• Voltage (V): 220 – 240
• Frequency (Hz): 50
• Power (W): 1,8 / 3,4
• Capacity (m3/h): 20 / 30
• Air flow in energy recovery mode (m3/h): 10 / 15
• Sound level at a distance of 3 m, Lp A dB(A): 22 / 31
• Environmental Protection: IPX4
• Obr. /min: 1100 / 1700
• Environmental temperature: −30 °C ... +50 °C
• Filters: EU1
• Recuperation efficiency: ≤ 90%
• Energy Efficiency Class: A
• Weight (kg): 1,90
