Sieninis rekuperatorius SOLO 100+ su nuotolinio valdymo pultu, 100 mm, CLEAN AIR ZUM

Trumpai apie prekę

Prekė: Sieninis rekuperatorius SOLO 100+ su nuotolinio valdymo pultu, 100 mm, CLEAN AIR ZUM. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Vents
• Modelis: solo+so

SOLO 100+ Series

THE DEVICE MEETS THE REQUIREMENTS OF THE CLEAN AIR PROGRAM AND IS ON THE ZUM LIST!!! PRODUCT NO.: WE-800457

Ventilation device for single rooms

MAIN FEATURES:

• High efficiency - max. 46 m3/h (13 l/s)
• Diameter of ventilation duct - 100 mm
• noise level: from 27 dB(A) / 3m
• heat recovery efficiency - up to 85%
• supply voltage - 230V / 50Hz

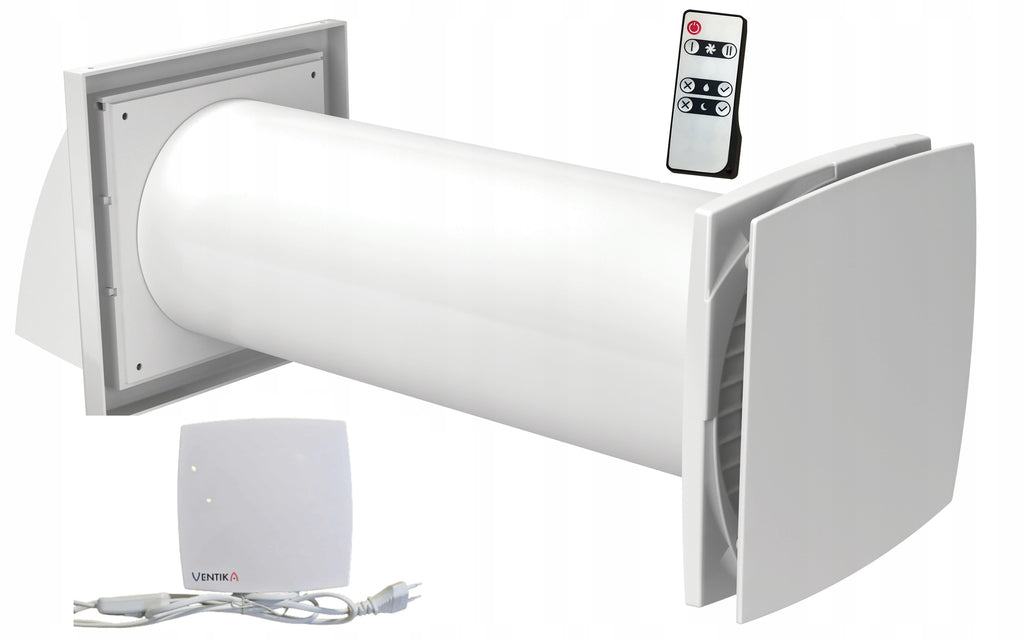

• Includes remote control
• Temperature of transported air - -15...+40[°C]
• ceramic, hygroscopic (capable of absorbing water vapour and water - no condensation effect), accumulative heat exchanger
• Humidity sensor - regulation in the range 60÷90 %
• Energy efficiency class - A
• Possibility of extension of the channel in the case of a thicker wall (wall) than 380mm - using a half-meter channel with the symbol 150-4 (see above on BUY TOGETHER -> EXPAND) or a dedicated, cutable meter extension: 1010/2 (in the absence of displaying the set, search for the product 1010/2 from our offer). We recommend a second solution, i.e. product 1010/2.
• reputable manufacturer - VENTS (VENTIKA brand)
• On our other auctions there are EXTERNAL outlets (MW AZPK) in brown and gray - IMPORTANT!!! When installing the MW series intakes in brown or gray (additional equipment), to ensure the proper operation of the ventilation system, the check valve located in the intake should be removed. This recommendation does not apply to intakes in standard equipment supplied with the device in the package.

APPLICATION

• Efficient, energy-efficient constant ventilation of individual rooms, while minimizing heat loss.
• Filtration of incoming air.
• Assisting in maintaining proper air humidity.
• For mounting directly in the exterior wall.

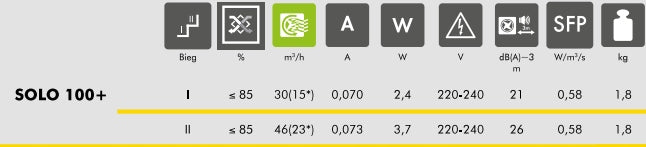

TECHNICAL DATA

• Rated voltage - 100÷230 [V/50(60)Hz]
• Power consumption - 2,4÷3,7 [W]
• Current consumption - 0,070÷0,073 [A]
• Efficiency of the device - 30÷46 [m3/h]
• Temp. transported air - -15...+40 [°C]
• Sound pressure level ~3m - 21÷26 [dB(A)]
• Heat recovery efficiency - up to 85 [%]
• Safety class - IP24
• Energy efficiency class - A

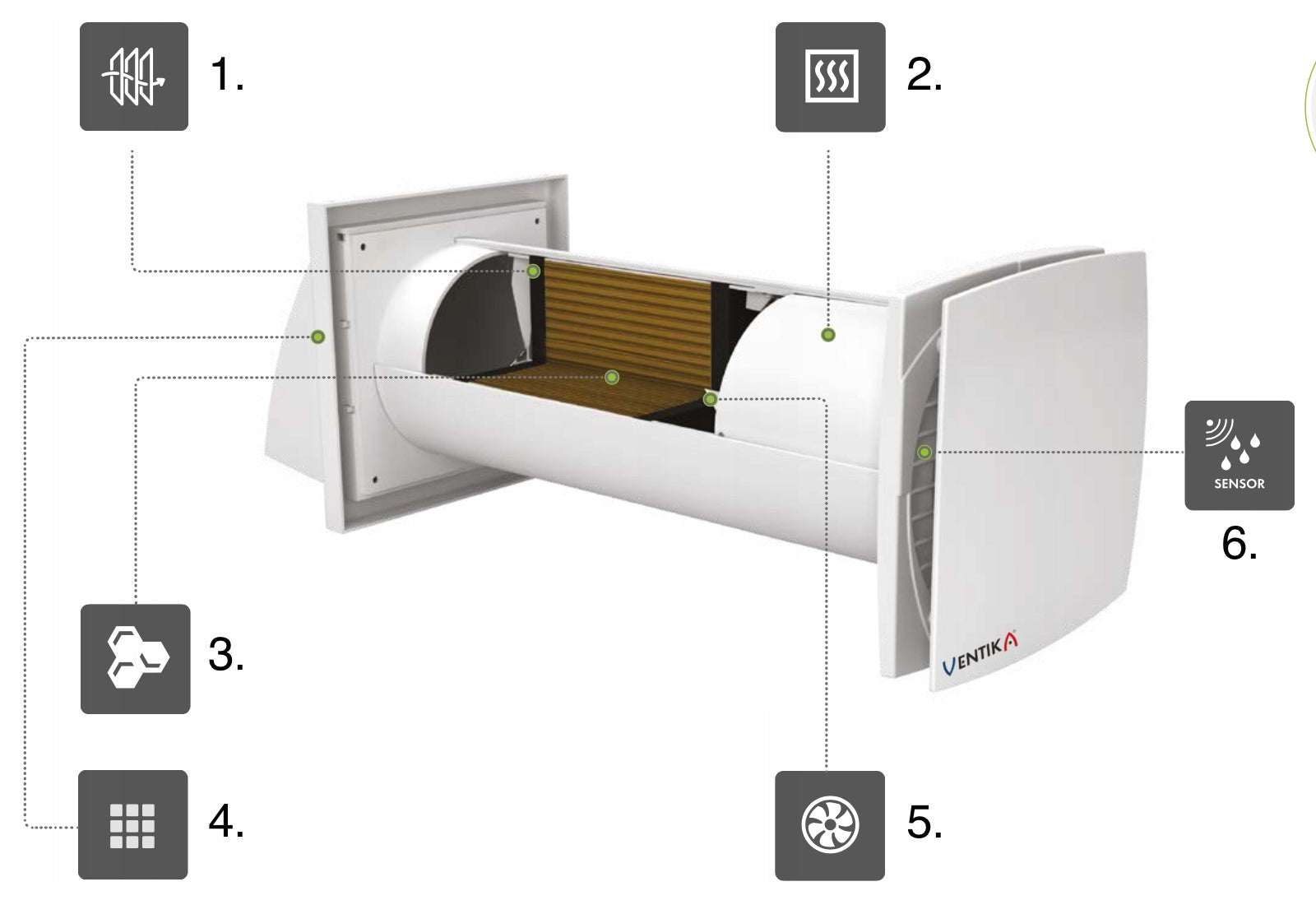

DEVICE CONSTRUCTION

1. Replaceable air filter (2 pieces) - purifies the air from dust and foreign objects. Prevents contamination of the heat exchanger.
2. Ventilation channel with spacer ring - to ensure the required distance between the fan and the heat exchanger
3. Ceramic heat exchanger - uses thermal energy from the exhaust air to heat the supply air
4. External ventilation hood - prevents water and foreign bodies from entering the device
5. Reverse fan - a fan that generates a stream of exhaust or supply air
6. Decorative front panel of a fan equipped with a cable with a plug (length. cable approx. 170 cm) and adjustable humidity sensor (under front decorative panel)

TECHNICAL DATA

CONTROL

REMOTE CONTROL

Working modes:

• choice of gear
• Enabling the humidity sensor
• night mode

You can control the operation of the device using a humidity sensor. With the help of the attached plastic screwdriver, set the required humidity level in the range of 60-90% on the potentiometer. If the humidity in the room exceeds the set value, the device automatically turns on and works until the humidity returns to normal.

CONTROLLING THE SOLO+ DEVICE WITH THE REMOTE CONTROL

The device is connected to the electrical network using a cable with a plug.

The functions of the remote control buttons are shown in the figure below.

The current fan speed is indicated by a color LED on the internal panel. The first (lower) speed is indicated by a green diode, the second (higher) speed is indicated by a blue diode.

Confirmation of receiving the command from the remote control is indicated by a short-term decrease in the brightness of the LED on the internal panel.

When turned on with the On button. He's out. On the remote control, the fan starts working at the speed at which it was switched off.

When switched on with buttons I or II, the fan starts working at the right speed.

If the humidity sensor is switched on, then after exceeding the set humidity level, the fan switches to the second (higher) speed. When the outdoor air humidity is high, the fan can switch to a second (higher) speed as a result of the humidity sensor. If such switching is undesirable, the humidity sensor shall be temporarily switched off by means of a remote control.

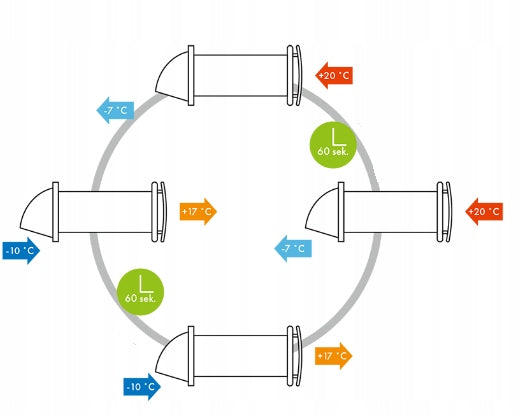

The device operates in two 60-second cycles:

• I cycle

Warm, used air removed from the room flows through the heat exchanger, transferring heat and moisture. After 60 seconds of heating the heat exchanger, the ventilation unit switches to airflow mode.

• II cycle

Fresh, cool air from the outside flows through the heat exchanger. The air is humidified and heated by the heat previously stored in the exchanger. After 60 seconds, the fan switches back to exhaust mode and the cycle repeats.

ASSEMBLY

Wall mounting in the external wall - it is a quick and simple installation of the ventilation unit.
