Sieninis rekuperatorius VANTUBO ECOCOMFORT 100 PLUS su 4 jutikliais

Trumpai apie prekę

Prekė: Sieninis rekuperatorius VANTUBO ECOCOMFORT 100 PLUS su 4 jutikliais. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Vantubo
• Modelis: VANTUBO ECOCOMFORT 100RF

◀ Local ventilation system with heat recovery ▶

⭐⭐⭐⭐⭐

✅ Recovery efficiency up to 90%. Save on heating by recovering energy from the air.

✅ Insulation class: IPX4 allows for safe installation even in the bathroom, effectively removing excess water vapor.

✅ Small and discreet panel: Thanks to the small dimensions of the internal panel, the device does not disturb the aesthetics of the room.

✅ Sensors: Temperature, Humidity (hygrostat), Lighting, Air Pollution

Automatically adjusts the operation of the device, protecting your home from mold and mildew. Thanks to the light sensor, the device automatically goes into quieter mode when the light in the room is turned off, ensuring you a peaceful sleep. You do not have to remember to manually switch!

✅ LED informing about the current operating mode or the need to clean the filter

✅ Does not require the use of a shut-off throttle, designed for continuous operation 24/24h.

✅ Air flow sleep/min/medium/max: 7 / 16 / 26 / 30 m3/h.

✅ Power consumption min / Wed / max: 2 / 3,5 / 5,5W.

✅ Noise level min/medium/max: 18 / 23 / 31 dB ( A ) ( 1,5 m )

✅ Power supply 230 V.

✅ 50/60 Hz voltage.

✅ Diameter 100mm.

✅ Filtration G3.

Option: protection against intense wind / noise.

◀️ Integrated Sensors for Optimized Performance in AUTO mode, adapting to changing conditions. ▶️

1. Temperature Sensor: Unlike other devices on the market, the ECOCOMFORT not only checks the temperature but also automatically adjusts the length of the intake/exhaust cycles to minimize heat loss.

2. Humidity Sensor: Monitors the air and activates "exhaust only" mode, maximizing fan speed when elevated humidity levels are detected in the room.

3. Light Sensor: Automatically switches the device to NIGHT mode (super quiet) after dark, ensuring maximum comfort for occupants.

4. Pollution Sensor: Automatically starts removing pollutants when air quality deteriorates.

The device operates in a self-regulating manner, without the need for constant user intervention.

◀ Functions of the VANTUBO ECOCOMFORT 100 PLUS device. ▶

✅ 5 fan speeds.

✅ Manual mode that draws air from outside .

✅ Manual mode that expels air outside .

✅ Automatic mode inlet 45 seconds / outlet 45 seconds .

✅ Ceramic honeycomb recuperation system recovering up to 90% of heat from exhaust air. It draws air from outside the building, introduces it into the room and then discharges the used air outside.

✅ Capacity up to 30 m³/h is sufficient to ensure adequate air exchange in rooms. This device is a suitable solution for living rooms and office spaces.

✅ Washable dust filters (no need to purchase consumables).

✅ Automatically returns to last settings upon power recovery.

✅ Microprocessor-controlled , brushless DC motor ensures very quiet operation .

✅ Does not require the construction of expensive ventilation ducts.

✅ Exchanges air in an optimal way .

✅ There is no need to drain condensate.

✅ Humidity, temperature, light and pollution sensors that adapt the device's operation to changing conditions.

✅ Low energy consumption confirmed by an excellent energy class.

✅ Easy cleaning and maintenance.

These compact devices ensure constant air exchange in the room, while recovering heat from the exhaust air. This allows you to enjoy fresh air in your home, regardless of weather conditions, while reducing heating costs.

How does the Vantubo wall recuperator work?

The recuperator works on the principle of heat exchange between the air coming from the outside and the air removed from the room. Fresh air drawn from the outside passes through a ceramic heat exchanger, which is heated from the exhaust air. Thanks to this, already heated air enters the room, which allows you to maintain a comfortable temperature.

Advantages of Vantubo wall recuperators:

✅ High efficiency: They provide high efficiency of heat recovery, which translates into energy savings.

✅ Easy installation: Vantubo recuperators are easy to install and require no complicated installations.

✅ Silent operation: They work quietly without disturbing the comfort of use.

✅ Improve air quality: Remove pollutants, allergens and moisture from the air, improving indoor air quality.

Different models: Vantubo offers a wide range of models that differ in performance and features, so you can tailor your device to your individual needs.

Remember: Wall recuperator is an investment for years, so it is worth choosing a device from a reliable manufacturer.

The Vantubo wall recuperator is the perfect solution for:

✅ Small and medium-sized rooms: Works well in both single-family houses and apartments.

✅ People who value healthy air: By removing pollutants, the recuperator improves air quality, which is especially important for allergy sufferers and asthmatics.

✅ People who want to reduce heating costs: Thanks to heat recovery, the recuperator allows you to reduce energy consumption

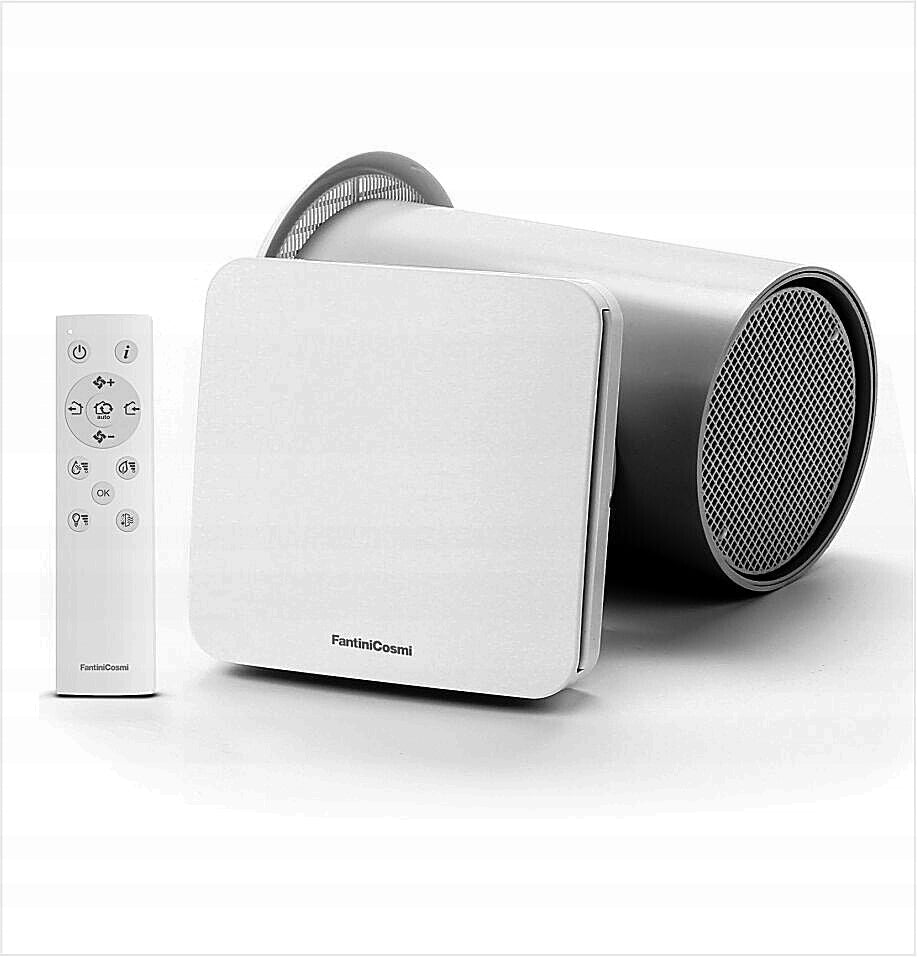

◀ Construction of the device ▶

1. Sensors: Temperature, Humidity, Lighting.

2. Fan with brushless motor.

3. Ceramic heat exchanger.

4. Grille mounted from the inside.

5. Matte white fan cover made of high quality plastic.

6. Washable air purifying filter.

7. Adjustable telescopic channel for wall mounting.

1. Air blown into the room 20°C.

2. Ceramic recuperator, honeycomb heat exchanger.

3. Air in the room 23°C.

4. Air taken from outside the building 10°C.

◀ VANTUBO ECOCOMFORT ▶

✅ Low cost compared to duct ventilation.

✅ Provides oxygen-rich fresh air.

✅ Hardens the spread of viruses and bacteria.

✅ Removes excess moisture preventing m.in. mold.

✅ Removes the amount of CO2 and pollutants in the air.

✅ Removes allergens and mites.

✅ Reduces smoke and bad odors.

✅ Minimizes heat loss.

The device meets the requirements of for mechanical ventilation systems with heat recovery.

Possibility of financing up to 60% from the Clean air program.

More information in the GUIDE download below.

◀️ INSTALLATION ▶️

✅ No need to install ducts throughout the building.

✅ The device is mounted on the exterior wall from the inside.

✅ Requires only one 10 cm diameter hole and a power connection.

✅ Telescopic Pipe allows you to adjust its length to the thickness of the wall.

✅ Special design of the ventilation grille allows it to be mounted from the inside.
