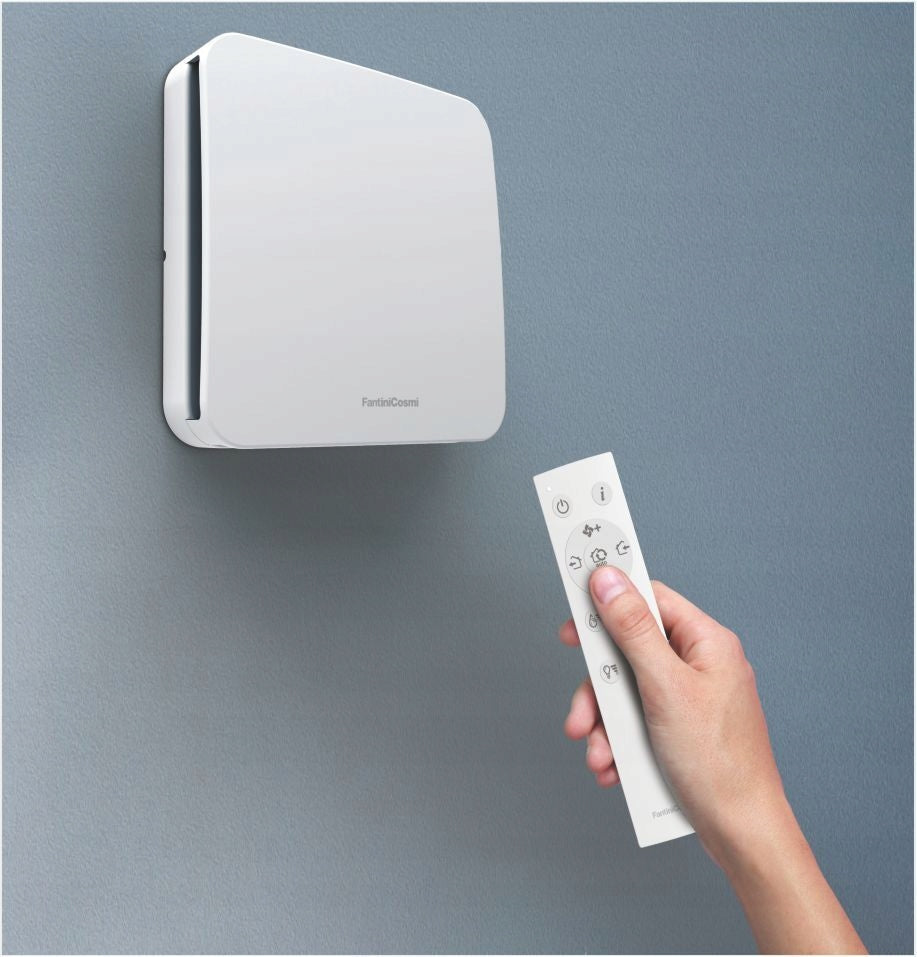

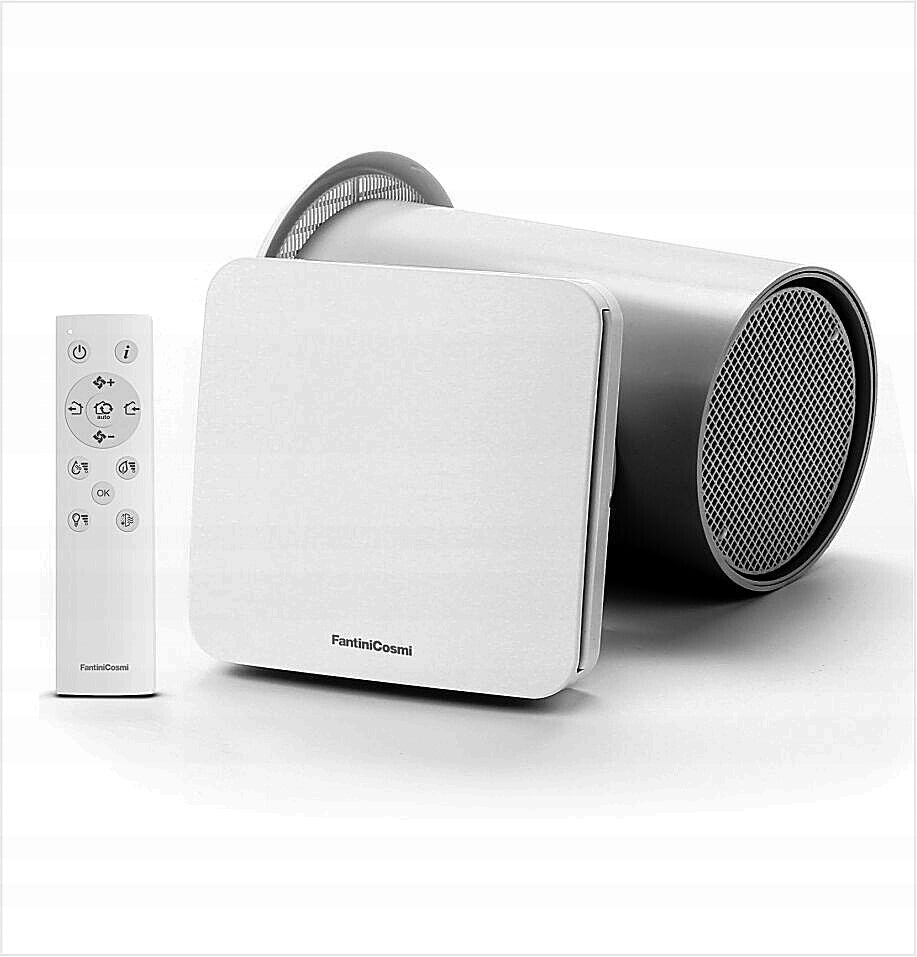

Sieninis rekuperatorius VANTUBO ECOCOMFORT 100 PLUS su nuotolinio valdymo pultu

Trumpai apie prekę

Prekė: Sieninis rekuperatorius VANTUBO ECOCOMFORT 100 PLUS su nuotolinio valdymo pultu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: VANTUBO ECOCOMFORT 100RF

◀ Local ventilation system with heat recovery ▶

⭐⭐⭐⭐⭐

✅ Recovery efficiency up to 90%. Save on heating by recovering energy from the air.

✅ Insulation class: IPX4 allows for safe installation even in the bathroom, effectively removing excess water vapor.

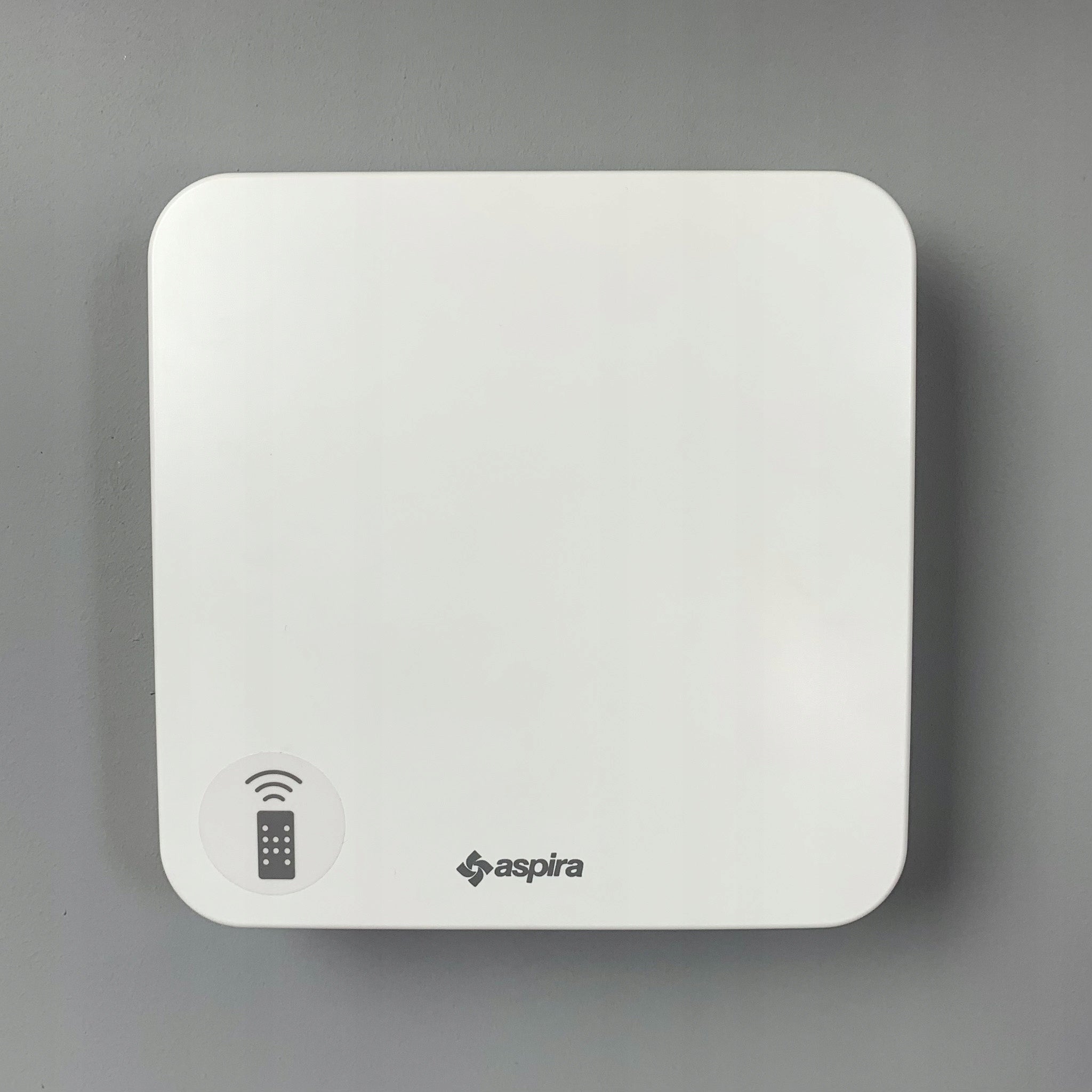

✅ Small and discreet panel: Thanks to the small dimensions of the internal panel, the device does not disturb the aesthetics of the room.

✅ Sensors: Temperature, Humidity (hygrostat), Lighting, Air Pollution

Automatically adjusts the operation of the device, protecting your home from mold and mildew. Thanks to the light sensor, the device automatically goes into quieter mode when the light in the room is turned off, ensuring you a peaceful sleep. You do not have to remember to manually switch!

✅ LED informing about the current operating mode or the need to clean the filter

✅ Does not require the use of a shut-off throttle, designed for continuous operation 24/24h.

✅ Air flow sleep/min/medium/max: 7 / 16 / 26 / 30 m3/h.

✅ Power consumption min / Wed / max: 2 / 3,5 / 5,5W.

✅ Noise level min/medium/max: 18 / 23 / 28 dB ( A ) ( 1,5 m )

✅ 230 V power supply

✅ 50/60 Hz voltage

✅ Diameter 100mm

✅ Filtration G3

Option: protection against intense wind / noise.

◀ Integrated sensors optimizing in AUTO mode operation of the device depending on changing conditions ▶

1. Temperature sensor unlike other devices available on the market ECOCOMFORT not only checks the temperature value, but on its basis I automatically adjust the length of the inlet/outlet cycles to minimize heat loss.

2. The humidity sensor controls the air by triggering the "outlet only" mode and increasing the maximum fan speed in the event of an increased level of humidity in the room.

3. Slight sensor automatically switches the device to NOC mode (super quiet) after dark. Providing the household with maximum comfort.

4. The pollution sensor automatically starts removing pollutants when the air quality deteriorates.

The device operates in a self-regulating manner, without the need for constant user intervention.

◀ Functions of the VANTUBO ECOCOMFORT 100 PLUS ▶

✅ 5 fan speeds

✅ Manual mode taking air from outside.

✅ Manual mode throwing air outside.

✅ Mode automatic inlet 45 seconds / outlet 45 seconds.

✅ Ceramic recuperation system "honeycomb" recovering up to 90% of heat from the ejected air. It draws air from outside the building, introduces it into the room and then ejects the used air outside.

✅ Capacity up to 30 m³/h, is sufficient to ensure adequate indoor air exchange. This device is suitable for living rooms and office spaces.

✅ Washable dust filters (no need to purchase consumables)

✅ Automatically return to the last settings after power resume

✅ Microprocessor controlled, brushless DC motor provides very quiet operation.

✅ Does not require expensive ventilation ducts.

✅ Changes the air in an optimal way.

✅ There is no need to drain the condensate.

✅ Humidity, temperature, lighting, pollution sensors adapting the operation of the device to changing conditions.

✅ Low energy consumption which is confirmed by the excellent energy class.

✅ Easy to clean and maintain

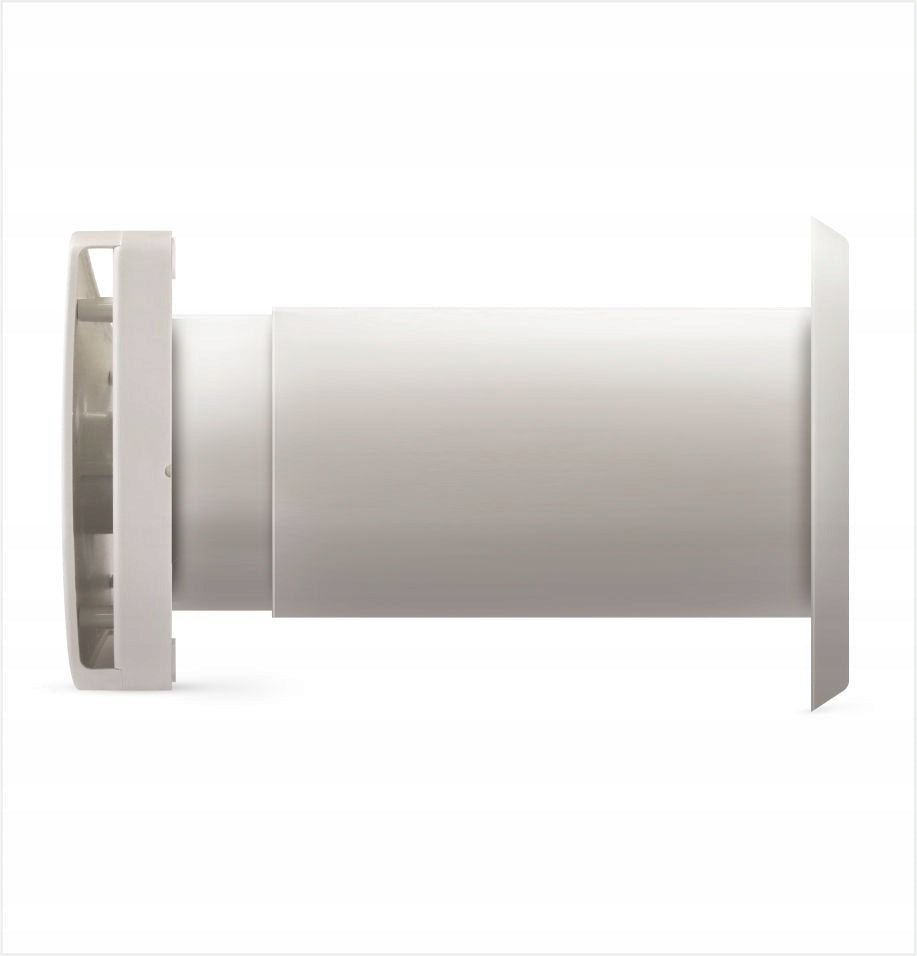

◀ Construction of the device ▶

1. Sensors: Temperature, Humidity, Lighting

2. Fan with brushless motor

3. Ceramic heat exchanger

4. Grille mounted from the inside

5. Matte white high quality plastic fan cover

6. Washable air purifying filter

7. Adjustable telescopic channel for wall mounting

1. Air blown into the room 20°C

2. Ceramic recuperator, honeycomb heat exchanger

3. Air in the room 23°C

4. Air taken from outside the building 10°C

◀ VANTUBO ECOCOMFORT ▶

✅ Low cost compared to duct ventilation

✅ Provides oxygen-rich fresh air

✅ Hardens the spread of viruses and bacteria

✅ Removes excess moisture preventing m.in. mold

✅ Removes amount of CO2 and pollutants in the air

✅ Removes allergens and mites

✅ Reduces smoke and bad odors

✅ Minimizes heat loss

The device meets the requirements of for mechanical ventilation systems with heat recovery.

Possibility of financing up to 60% from the Clean air program.

More information in the GUIDE download below.

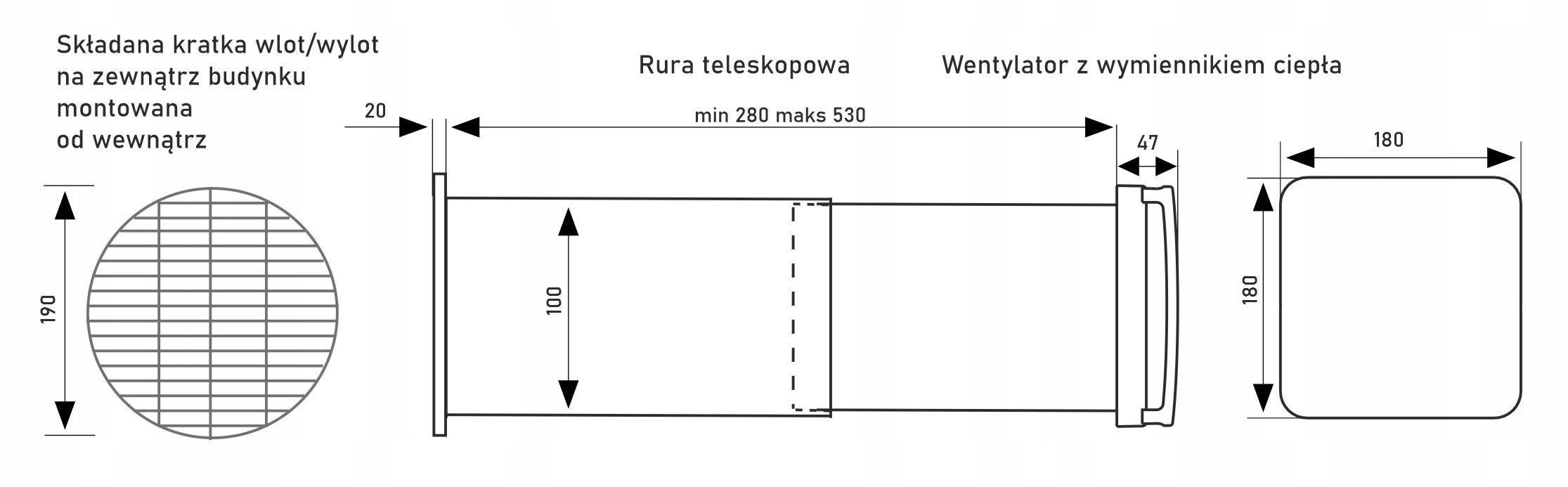

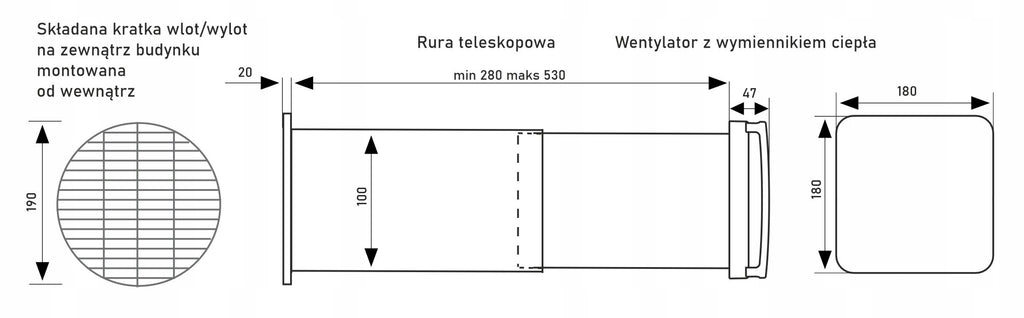

◀️ INSTALLATION ▶️

✅ No ductwork needed! You don't need to install ventilation ducts throughout the building.

✅ The unit is mounted on the exterior wall from the inside.

✅ All you need is one 10 cm (approx. 4 inch) diameter hole and a power connection.

✅ The telescopic pipe allows you to adjust its length to match the wall thickness.

✅ The special design of the vent cover allows it to be installed from the inside.
