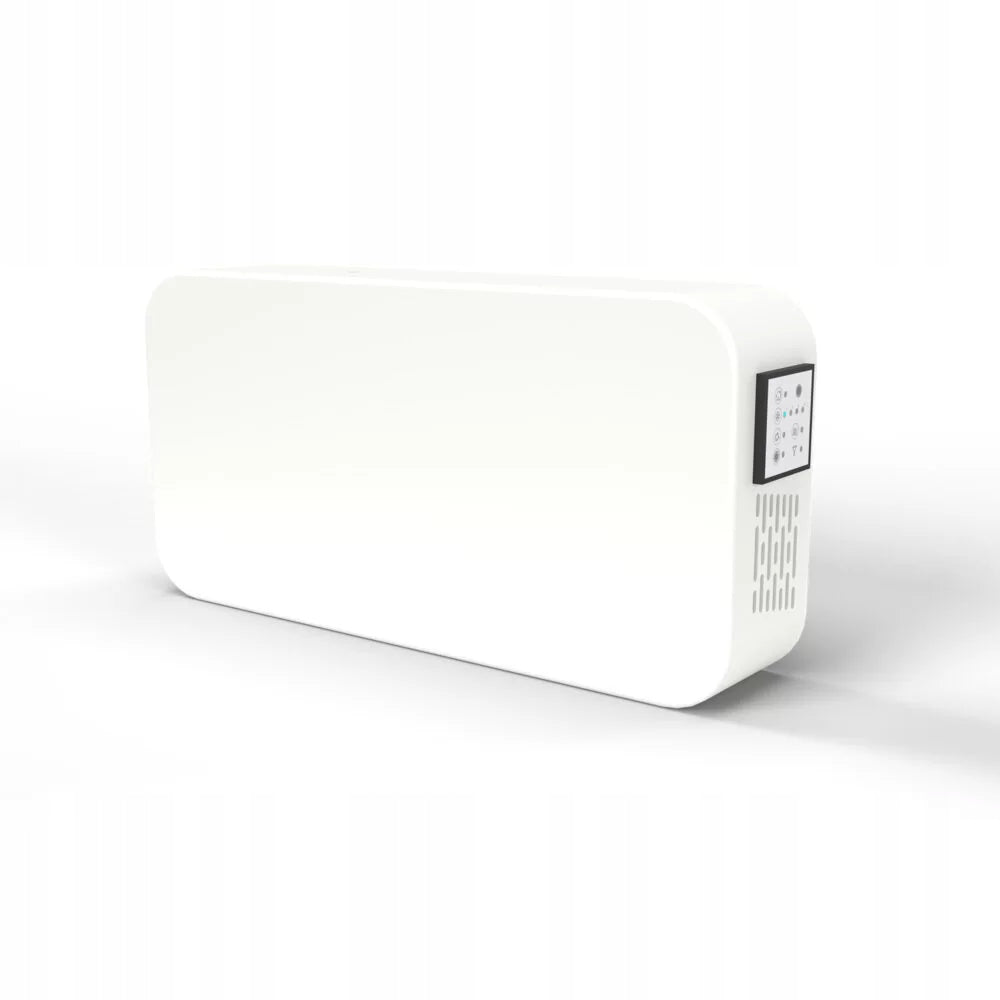

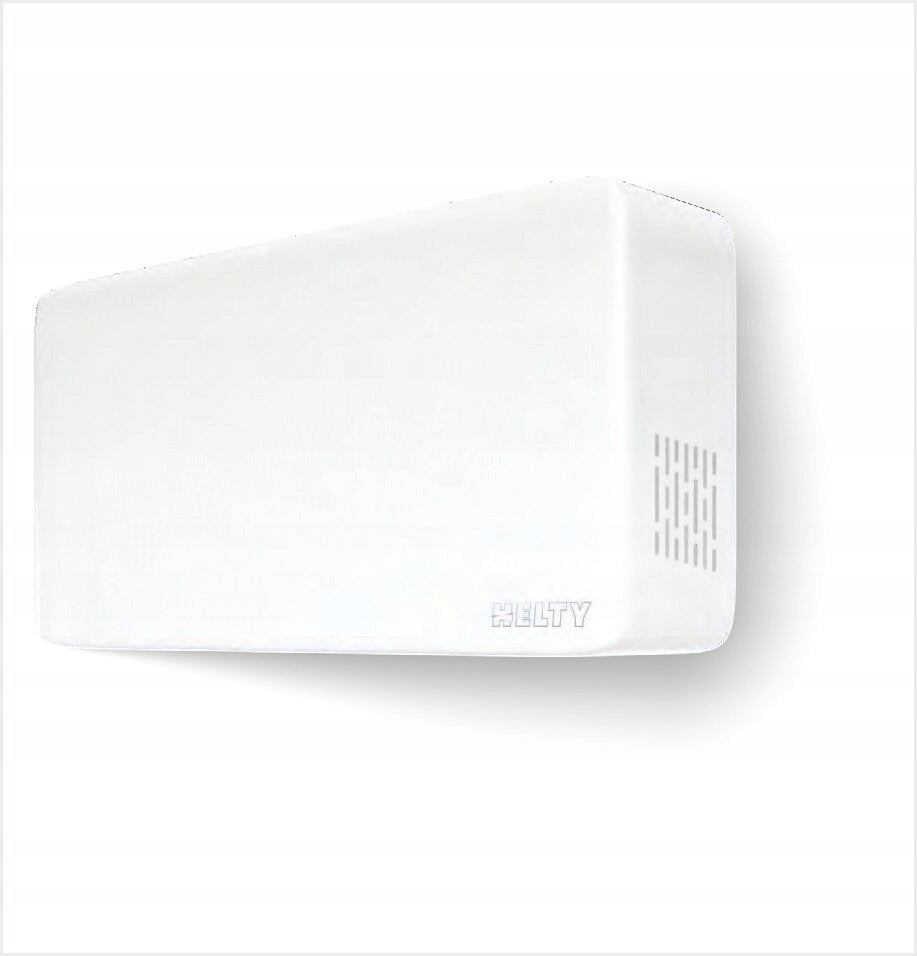

Sieninis rekuperatorius VANTUBO FLOW EASY, G2/G4/F7 filtrai, pagaminta Italijoje

Trumpai apie prekę

Prekė: Sieninis rekuperatorius VANTUBO FLOW EASY, G2/G4/F7 filtrai, pagaminta Italijoje. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Vantubo
• Modelis: Flow Easy

+ Continuously balanced air exchange and filtration in the room.

+ Two independent, non-mixing air streams.

+ Enthalpic recuperator, which is the most effective heat recovery technology.

+ Excellent sound insulation of outside noise and very low fan noise.

FLOW EASY

Decentral fan with heat recuperation.

Filtration: G2, G4, F7 ( PM10, PM2,5 )

Heat recovery efficiency: up to 91%

Air flow sleep/min/medium/max.: 10/17/26/37/42 m3/h

Power consumption min/average/max: 3,6/5,5/9,0/17,5/20 W

Noise level min/medium/max: 18/23/30/39 db(A) ( distance 3 m )

Controlled by pilot or panel built into the body

The advanced F7 filtration system cleans the PM10 and PM2,5 microdust before introducing external air into the room. These include bacteria, pollen, dust, smog and other external substances harmful to health.

Does not require distribution of ventilation ducts of the building.

Installation requires only two holes with a diameter of 80 mm in the external wall.

Devices/devices mounted on the external wall in each room create an effective thermal system ventilation.

+ Two air streams

One with which clean flows, the other with which dirty is thrown outside.

This technology ensures its balanced non-stop replacement.

Used, containing CO2 does not mix with fresh air introduced into the interior.

The device meets the requirements of for mechanical ventilation systems with heat recovery.

Possibility of financing up to 60% from the Clean air program.

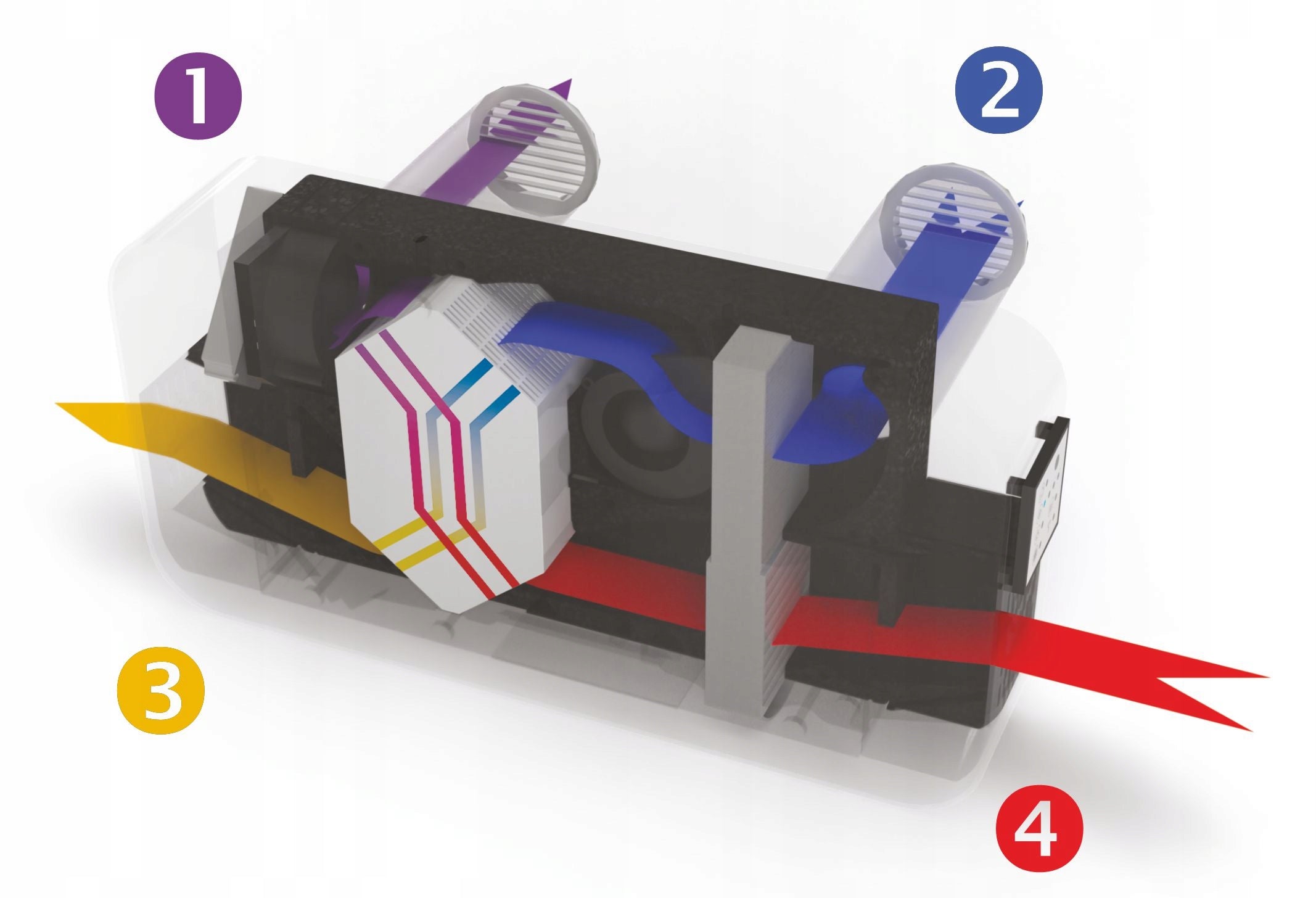

1. Used air thrown out.
2. Fresh air drawn from outside.
3. Fresh, filtered, heated air entering the room.
4. Used air ejected from the room

Specifications
