Sieninis rekuperatorius VENTO Expert A100, 108 m³/val.

Trumpai apie prekę

Prekė: Sieninis rekuperatorius VENTO Expert A100, 108 m³/val.. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Blauberg
• Modelis: VENTO Expert A100-1 S10 W V.2

CAPACITY UP TO 108m3/h!!!

Vento Expert A100-1 S10 W V.2 is an easy-to-use ventilation unit that provides good air quality to rooms – fresh, clean and with the right level of humidity.

UNIVERSAL - Possibility of connecting several ventilation units into one network.

EFFECTIVE - The device operates in passive mode: while the throttles are open, fresh air flows into the room.

EASY TO USE - The design of the device allows for easy maintenance.

ADVANTAGES

• Easy installation - mount, plug in, and use!
• Operating temperature up to -20˚C (-30˚C with appropriate accessories, i.e. external hood AH-8).
• Connecting a large number of units to the network using Wi-Fi.
• Eliminate drafts with throttles when the fan is off.
• Ventilation of rooms with an area of about 50 m2.
• High efficiency - up to 87%.
• Built-in humidity sensor.
• Control via, mobile application, remote control or buttons on the housing.
• Noise level comparable to a whisper.
• The filter (F8) provides additional, high-end air filtration.

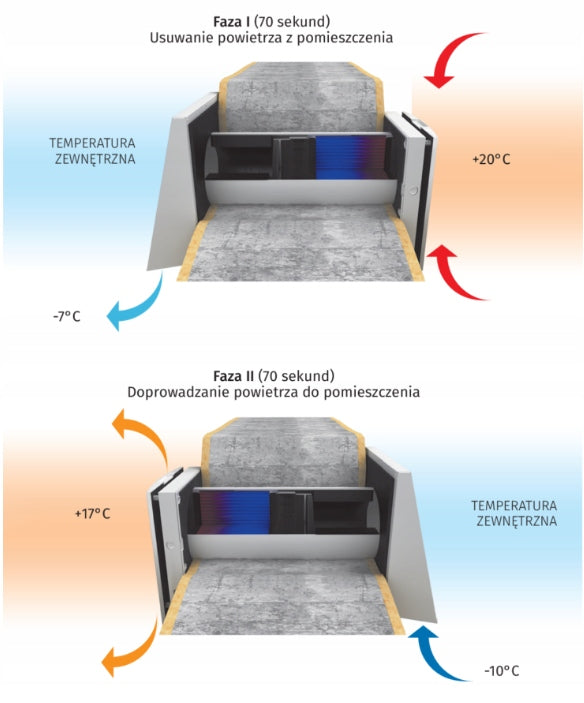

Principle of operation

1. Polluted, warm air removed from the room to the street passes through the heat exchanger, gradually heating it up and giving away some of the moisture.
2. After the ceramic exchanger heats up, the device automatically switches to air intake mode.
3. Fresh, cool air from the outside flows through the heat exchanger, absorbing the heat and moisture accumulated in it.
4. After 70 seconds, the heat exchanger cools down, the device switches to mode I – internal air exhaust.

Technical data:

• Performance: up to 108 m3/h
• heat recovery efficiency: up to 83%
• power consumption: from 3,2 W
• noise level: from 13dB (~3m)

CHARACTERISTICS:

• Instant assembly
• The operating temperature of the device is up to -20°C (-30˚C using appropriate accessories, i.e. external hood AH-8)
• Assembly in the wall in a prepared hole with a diameter of 180 mm
• Remotely connect all units into a network without the need for wiring.
• Eliminate drafts with throttles when the fan is off
• Ventilation of rooms with an area of about 50 m2
• High efficiency - up to 83%
• Integrated humidity sensor
• Easy control
• Noise level comparable to whisper (11-21 dBA).
• Built-in Wi-Fi wireless communication module for controlling the unit using an Android or iOS device
• Possibility to connect an external CO2 relay or other external sensors

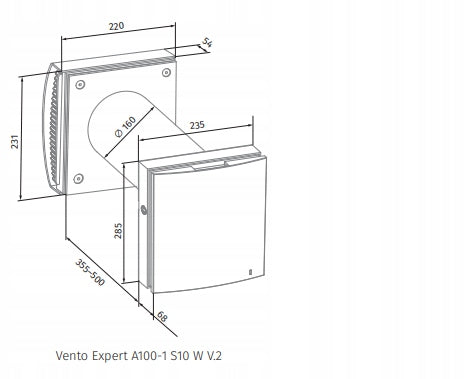

Dimensions of the device

Tips for assembly:

• The device is designed for installation in the internal wall, through a pre-prepared hole in the external wall of the building
• The optimal solution is the installation of an even number of units working cyclically and in the counterphase. This means that some devices simultaneously provide fresh air from the outside, and some - remove polluted air from the room. This allows for high-efficiency, balanced ventilation
• • During the construction of new buildings, the installation of devices takes place in two stages:

  - Preliminary assembly: during the execution of internal and external facades (installation of ventilation duct and external outlet with hood)

  - Final assembly: before putting the house into use. Installation of a container with an exchanger, fan and filters, installation and connection of an internal block with control and blinds.

Control via mobile application

• Control the operation of the device using a mobile application for a smartphone or tablet
• Synchronized operation of devices, thanks to Wi-Fi connection
• Control your ventilation system with a cloud service from anywhere in the world
• Blauberg Vento V.2 is available on Google Play and the App Store
• Possibility to connect to a smart building system or to a building management system (BMS) via Wi-Fi

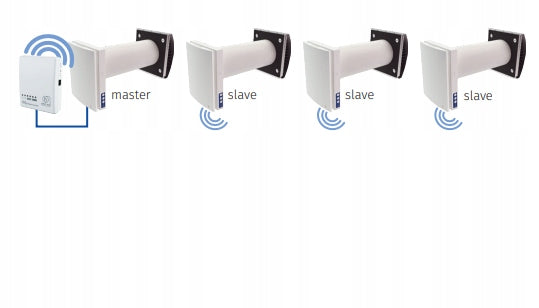

• The recuperator can operate as an independent ventilation unit or can be connected to other units and be controlled by a main unit (Master). In this case, only one unit receives a signal from the remote control

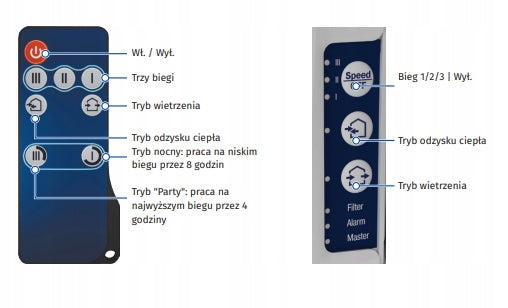

Control via buttons on the panel or remote control

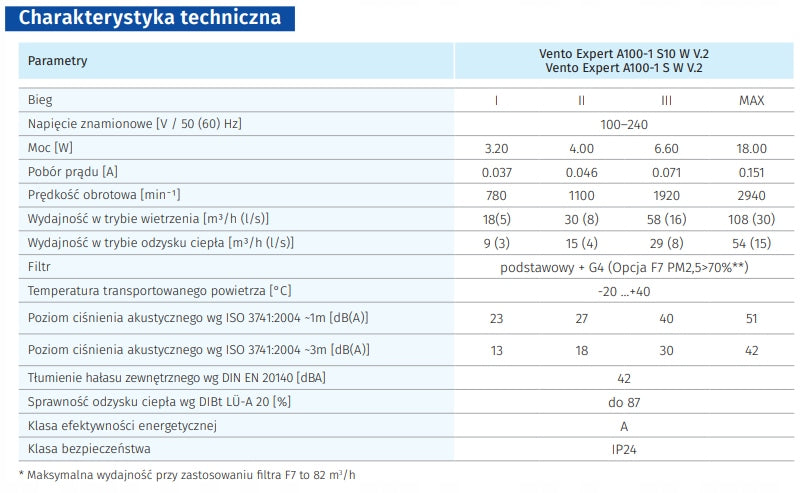

Specifications
