Sieninis rekuperatorius VENTS VENTIKA SOLO 100 PILOT su higrostatu

Trumpai apie prekę

Prekė: Sieninis rekuperatorius VENTS VENTIKA SOLO 100 PILOT su higrostatu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Vents
• Modelis: VENTIKASOLO100PLUS

for installation in rooms such as rooms, living rooms and bedrooms

THE DEVICE MEETS THE REQUIREMENTS OF THE CLEAN AIR PROGRAM AND IS ON THE ZUM LIST!!! PRODUCT NO.: WE-800457

MAIN FEATURES:

• High efficiency - max. 46 m3/h (13 l/s)
• Diameter of ventilation duct - 100 mm
• noise level: from 27 dB(A) / 3m
• heat recovery efficiency - up to 85%
• supply voltage - 230V / 50Hz
• Includes remote control
• Connection cable with plug - length wire approx. 150 cm
• Temperature of transported air - -15...+40[°C]
• ceramic, hygroscopic (capable of absorbing water vapour and water - no condensation effect), accumulative heat exchanger
• Humidity sensor - regulation in the range 60÷90 %
• Energy efficiency class - A
• The device is designed to work indoors under the following conditions: outdoor air temperature from -15 °C to +40 °C and relative humidity in the room up to 50 %;
• Possibility of extension of the channel in case of thicker wall (wall) than 380mm - using a channel with the symbol 150-4 (see above on the link BUY INCLUDED)
• reputable manufacturer - VENTS (VENTIKA brand)

PURPOSE:

• Efficient energy-efficient supply and exhaust ventilation of apartments, cottages, villas, social and utility rooms. Significant reduction of heat loss during room ventilation, thanks to effective heat recovery.
• Ensuring the balance of humidity and regulated air exchange to create an individual microclimate.

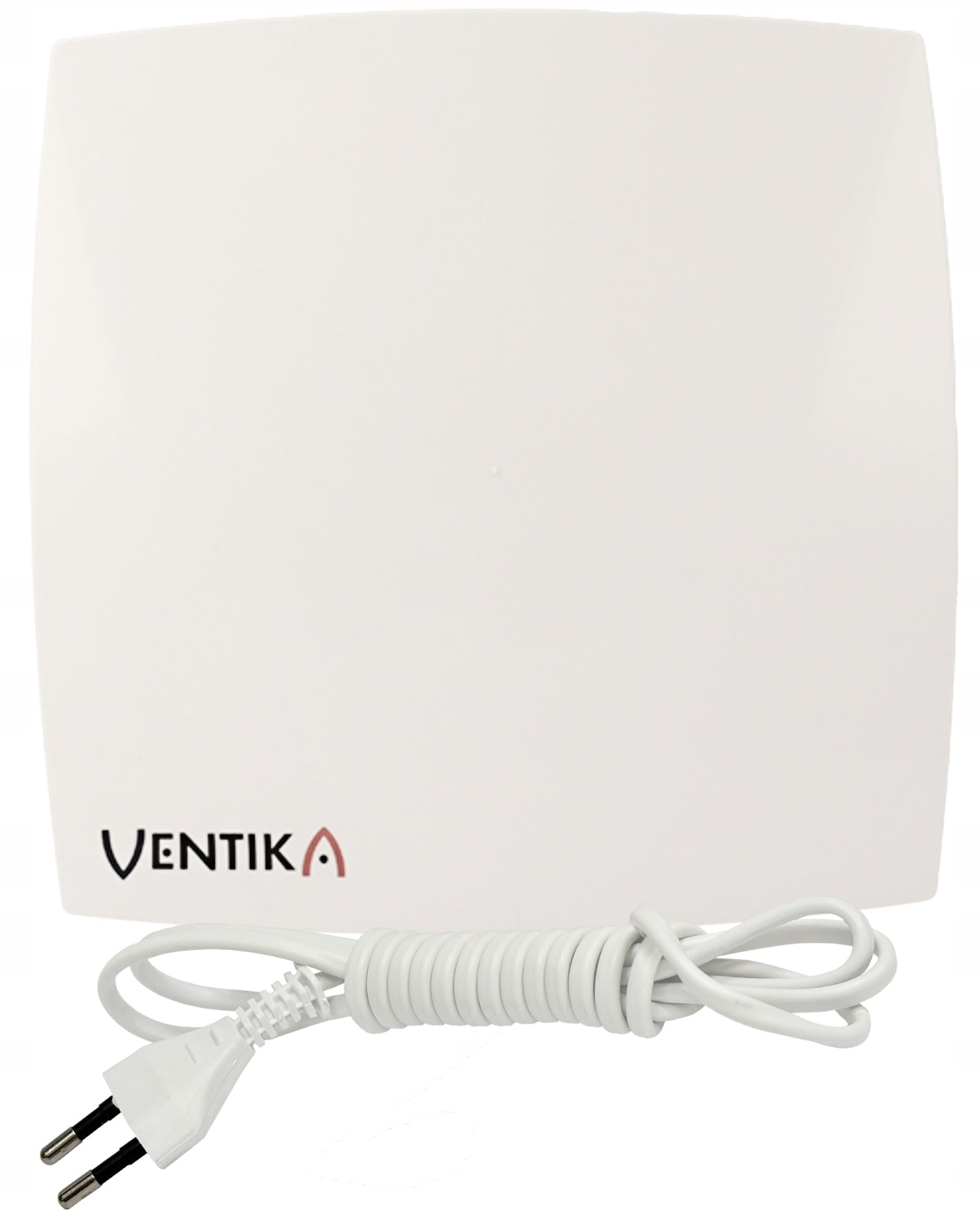

The device consists of a room-mounted interior panel with a decorative front panel, a compact internal module with an exchanger, a ventilation duct and an external ventilation outlet with a visor. The basic functional part of the device is a compact internal module with a heat exchanger. The compact internal module includes a fan, heat exchanger and two filters, providing preliminary air filtration and preventing dust and foreign bodies from entering the heat exchanger and fan. The internal panel is equipped with a connection cable (approx. 150 cm) with plug.

DEVICE ADVANTAGES

1. Efficient, energy-efficient constant ventilation of individual rooms, while minimizing heat loss.
2. Filtration of incoming air.
3. Assisting in maintaining proper air humidity.
4. For mounting directly in the exterior wall.
5. Touchless operation thanks to the included remote control ensuring support for all settings and adjustments.

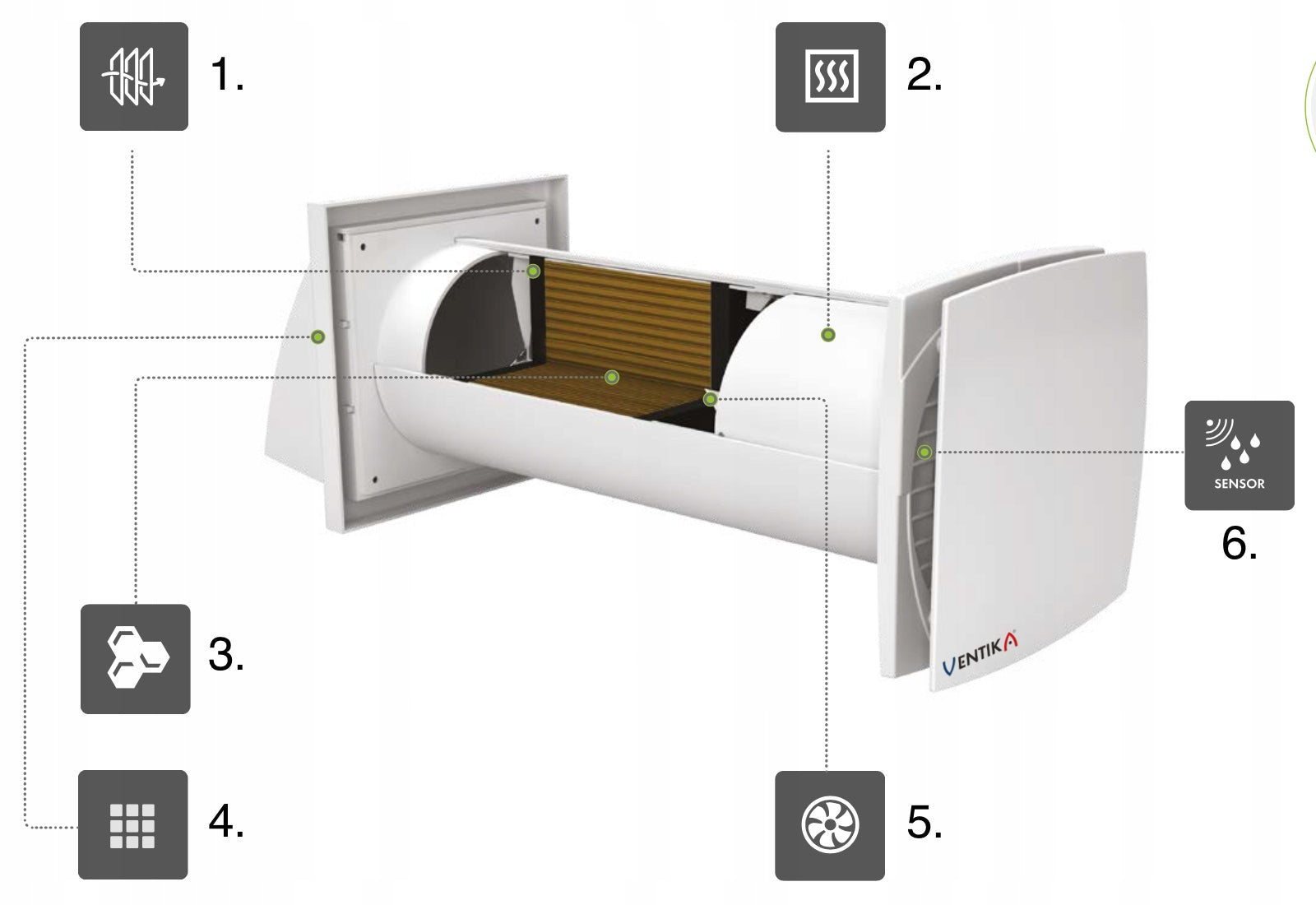

DEVICE CONSTRUCTION

1. Replaceable air filter (2 pieces) - purifies the air from dust and foreign objects. Prevents contamination of the heat exchanger.
2. Ventilation channel with spacer ring - to ensure the required distance between the fan and the heat exchanger
3. Ceramic heat exchanger - uses thermal energy from the exhaust air to heat the supply air
4. External ventilation hood - prevents water and foreign bodies from entering the device
5. Reverse fan - a fan that generates a stream of exhaust or supply air
6. Decorative front panel of the fan equipped with a cable with plug and switch (length. cable approx. 170 cm) and adjustable humidity sensor (under front decorative panel)

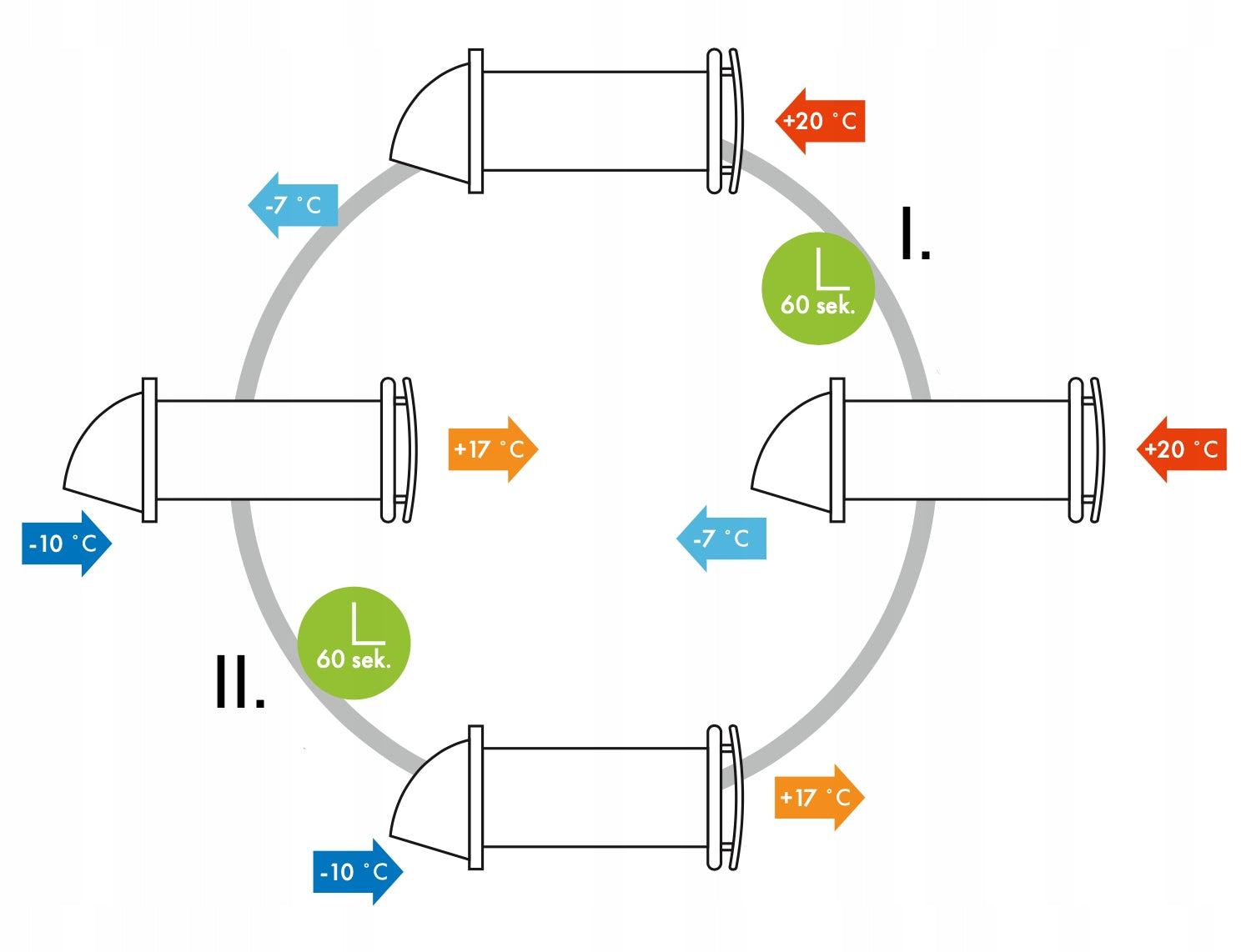

DEVICE OPERATING MODES

The device works in two cycles (marks in the diagram below):

• I. - First cycle (60 seconds) - Warm, used air removed from the room flows through the heat exchanger, transferring heat and moisture. After 60 seconds of heating the heat exchanger, the ventilation unit switches to airflow mode.
• II. - Cycle two (60 seconds) - Fresh, cool air from the outside flows through the heat exchanger. The air is humidified and heated by the heat previously stored in the exchanger. After 60 seconds, the fan switches back to exhaust mode and the cycle repeats.

CONTROLLING THE SOLO+ DEVICE WITH THE REMOTE CONTROL

The device is connected to the electrical network using a cable with a plug.

The functions of the remote control buttons are shown in the figure below.

The current fan speed is indicated by a color LED on the internal panel. The first (lower) speed is indicated by a green diode, the second (higher) speed is indicated by a blue diode.

Confirmation of receiving the command from the remote control is indicated by a short-term decrease in the brightness of the LED on the internal panel.

When turned on with the On button. He's out. On the remote control, the fan starts working at the speed at which it was switched off.

When switched on with buttons I or II, the fan starts working at the right speed.

If the humidity sensor is switched on, then after exceeding the set humidity level, the fan switches to the second (higher) speed. When the outdoor air humidity is high, the fan can switch to a second (higher) speed as a result of the humidity sensor. If such switching is undesirable, the humidity sensor shall be temporarily switched off by means of a remote control.

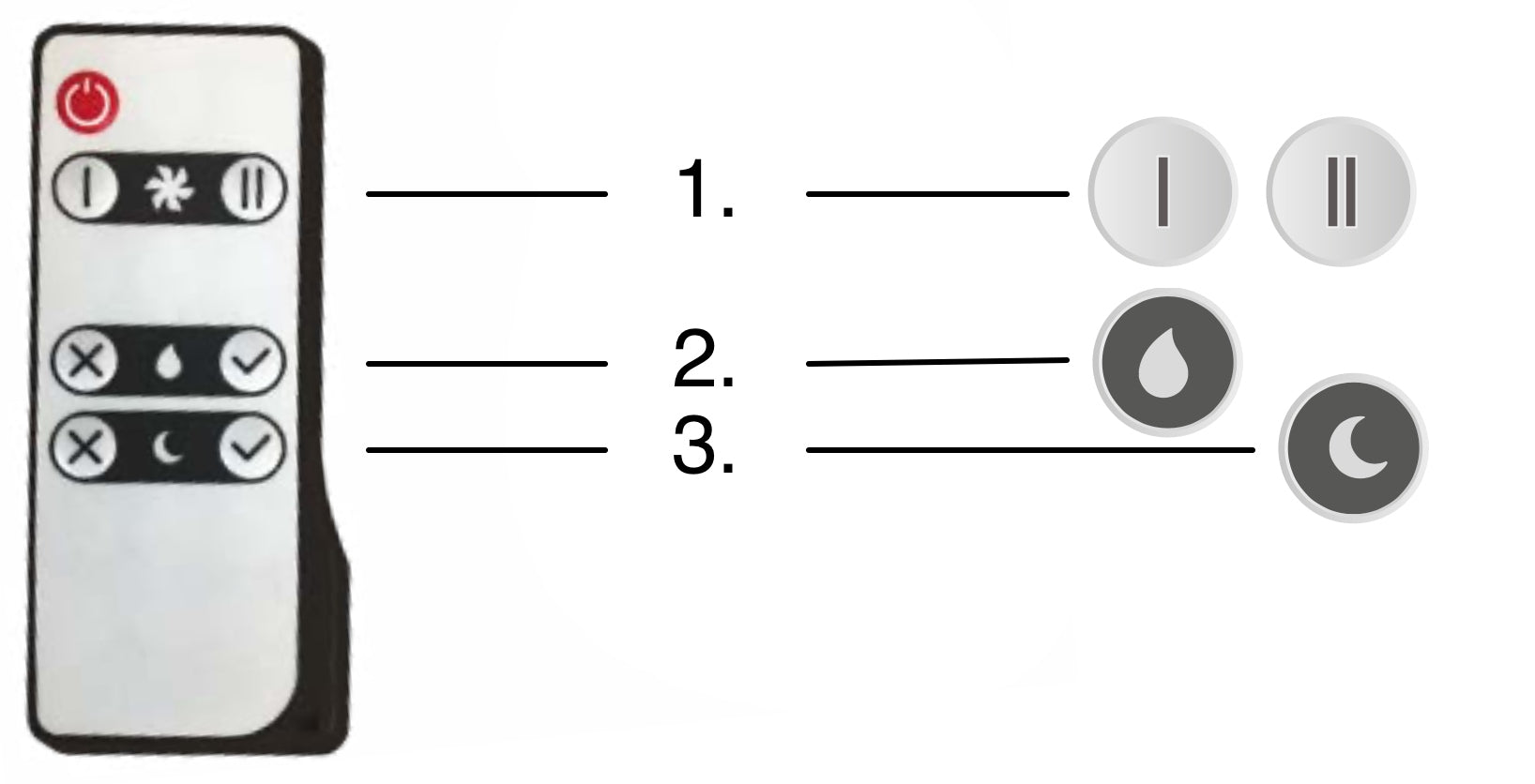

Remote control

1. Setting first (lower) or second (higher) fan speed
2. Enabling or disabling the humidity sensor
3. Enabling or disabling night mode

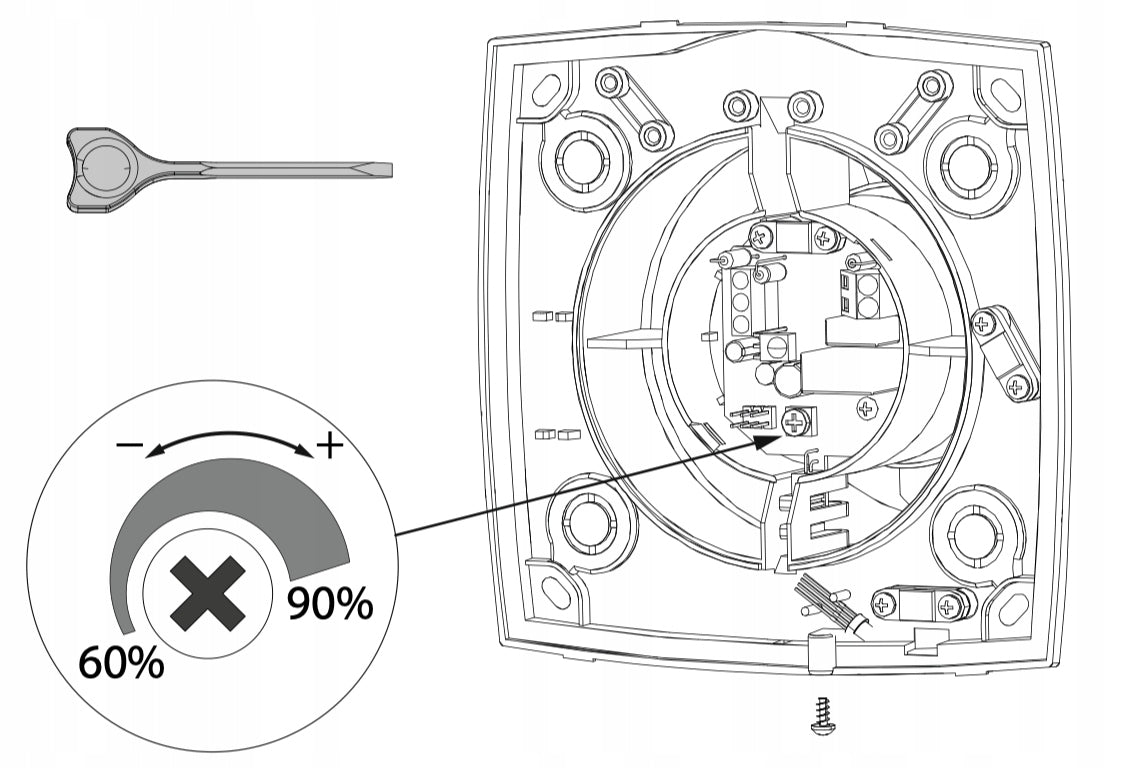

ADJUSTABLE HUMIDITY SENSOR LEVEL

Adjusting the threshold of the humidity sensor is made by rotating the potentiometer knob with a special plastic screwdriver.

When night mode is turned on, the device operates at the first (lower) speed for 8 hours. During this time, the brightness of the LED is reduced and the device does not respond to the change in speed and operation of the humidity sensor.

After this time, the device will return to its previous operating mode. Night mode can be turned off at any time with the appropriate button on the remote control.

TECHNICAL DATA

• Rated voltage - 100÷230 [V/50(60)Hz]
• Power consumption - 1,5÷2,3 [W]
• Current consumption - 0,046÷0,047 [A]
• Efficiency of the device - 30÷46 [m3/h]
• Temp. transported air - -15...+40 [°C]
• Sound pressure level ~3m - 21÷26 [dB(A)]
• Heat recovery efficiency - up to 85 [%]
• Safety class - IP24
• Energy efficiency class - A

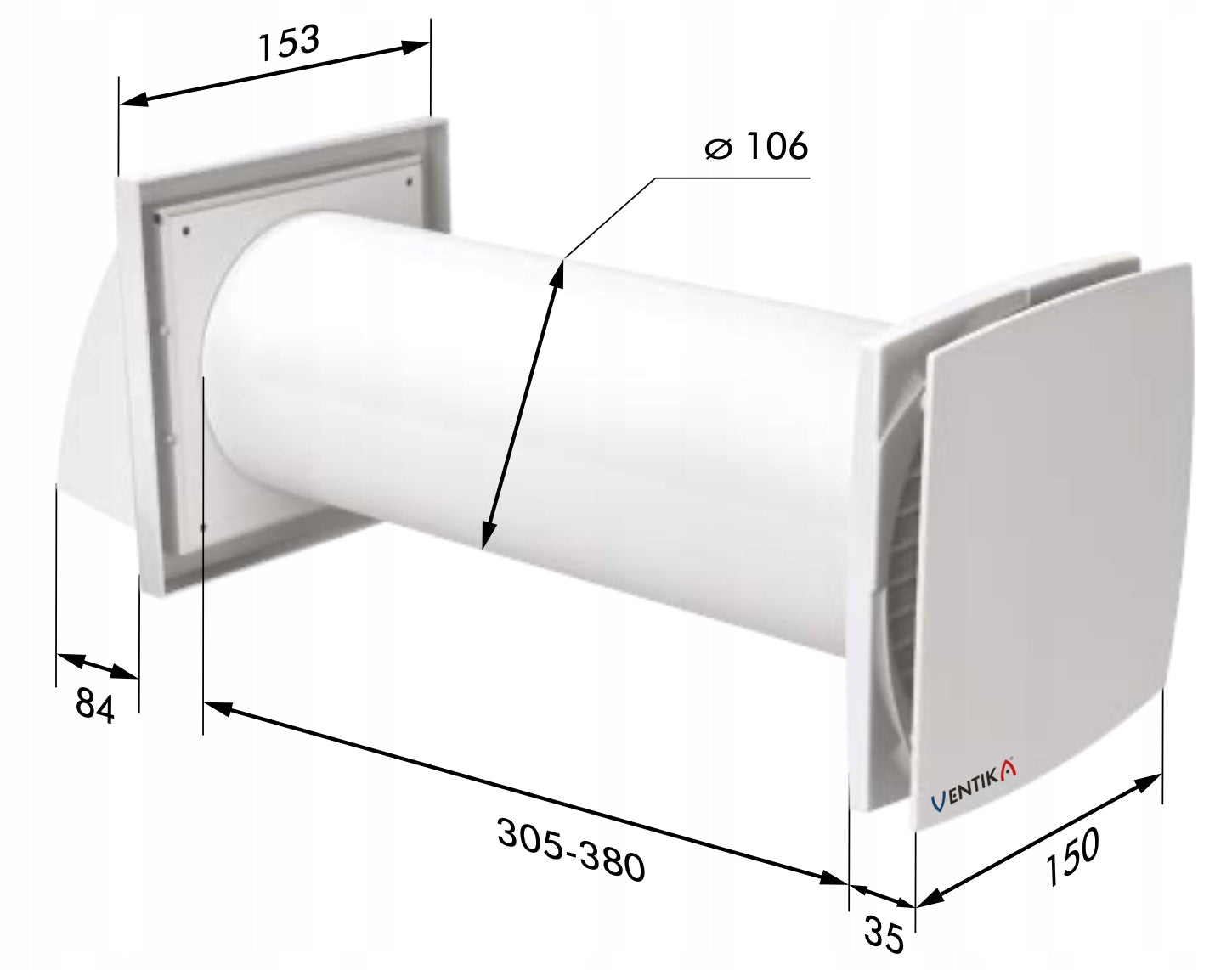

DIMENSIONS [mm]

ASSEMBLY

• The device is designed to be installed in the internal wall, through a pre-prepared hole in the external wall of the building.

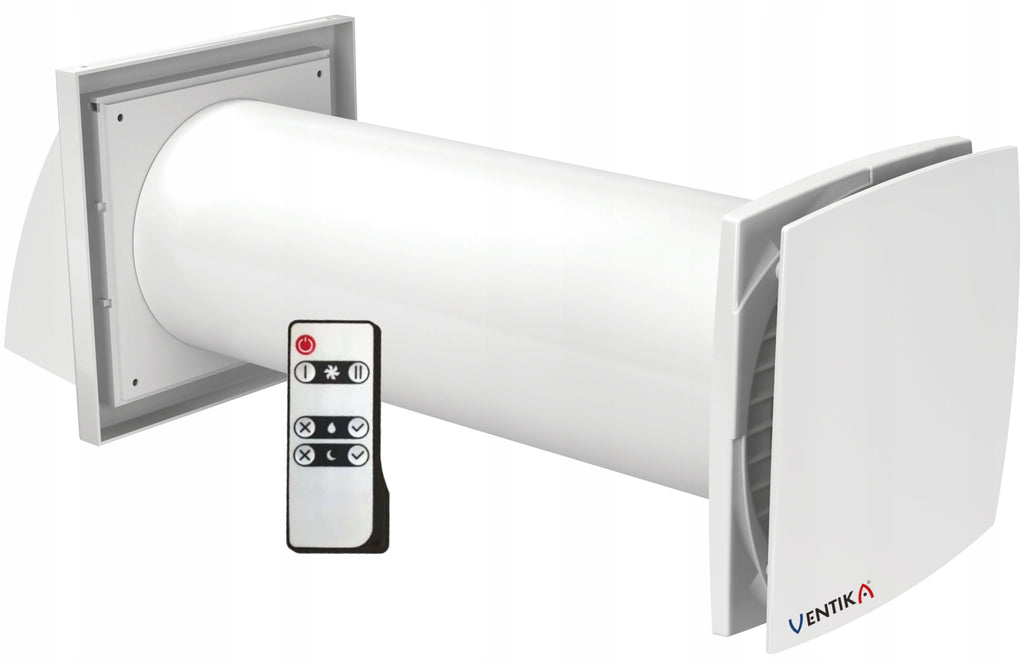

The set includes:

• Internal block of the device with ventilation duct - 1 set.
• External ventilation outlet - 1 pc.
• Remote control - 1 pc.
• Mounting plate - 1 pc.
• Styrofoam wedges - 1 set.
• Mini Plastic Screwdriver - 1 pc.
• Spare polyurethane foam - 4 pcs.
• User Manual - 1 pc.
• Packaging - 1 pc.

FILTERS

Filters should be cleaned once every 3 months or more often depending on the state of their contamination:

• Wash and dry the filters. Dry filters install on the original place and assemble the device, performing the steps in reverse order.
• Filters can be cleaned with a vacuum cleaner.
• The service life of the filter is 3 years.

Even during regular maintenance of filters, dust can settle on the heat exchanger and fan.

• In order to maintain high heat transfer efficiency, the heat exchanger should be cleaned regularly.
• The heat exchanger should be cleaned with a vacuum cleaner at least once a year.
