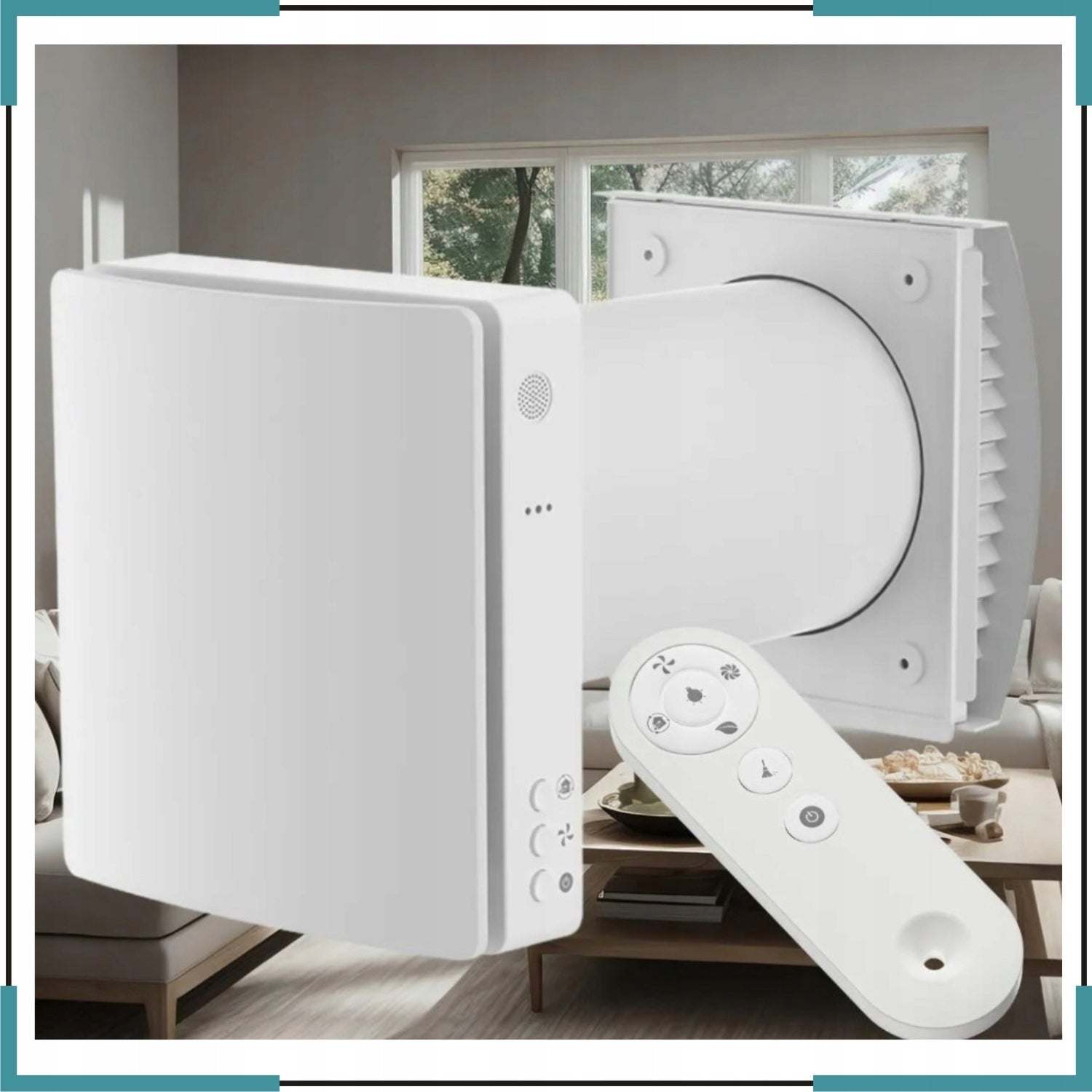

Sieninis rekuperatorius VIHER 80 m³/h su WiFi, F7 filtru, CO₂ jutikliu, juodu priekiu

Trumpai apie prekę

Prekė: Sieninis rekuperatorius VIHER 80 m³/h su WiFi, F7 filtru, CO₂ jutikliu, juodu priekiu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: TQD
• Modelis: 021132

CREATED TO MAINTAIN A BALANCED TEMPERATURE WHILE ENSURING PROPER INDOOR AIR EXCHANGE AND QUALITY

APPLICATION:

The device is perfect for places where there is little air exchange, moisture or mold.

• In rooms with increased humidity, a device with a humidity sensor will work better, which changes the operating mode of the device after exceeding the set parameters of moisture in the air.
• In rooms where we work / learn / sleep or spend a large amount of time, a device with an additional CO2 sensor will work, which changes the mode of operation of the device after exceeding the set CO2 parameters in the air.

EFFECTIVE AIR EXCHANGE REDUCES THE FEELING OF SHORTNESS OF BREATH, DROWSINESS, IMPROVES CONCENTRATION, AS WELL AS THE OVERALL FUNCTIONING OF OUR BODY.

On this auction you will buy a device with a black front panel, with an F7 filter and a CO2 sensor, without a moisture sensor

PARAMETERS:

• AIR FLOW EFFICIENCY

1. 80 m3/h without F7 filter, boost mode
2. 70 m3/h without F7 filter, 3 gear
3. 60 m3/h with F7 filter, boost mode
4. 50 m3/h with F7 filter, 3 gear

• HEAT RECOVERY: up to 97% (heat recovery efficiency 78% according to Ecodesign)
• WORKING TEMPERATURE: -20°C TO 50°C
• DEGREE OF PROTECTION: IPX4
• DIAMETER: 158mm
• CONTROL: using the buttons on the housing, remote control or application.
• RECUPERATOR TYPE: reverse

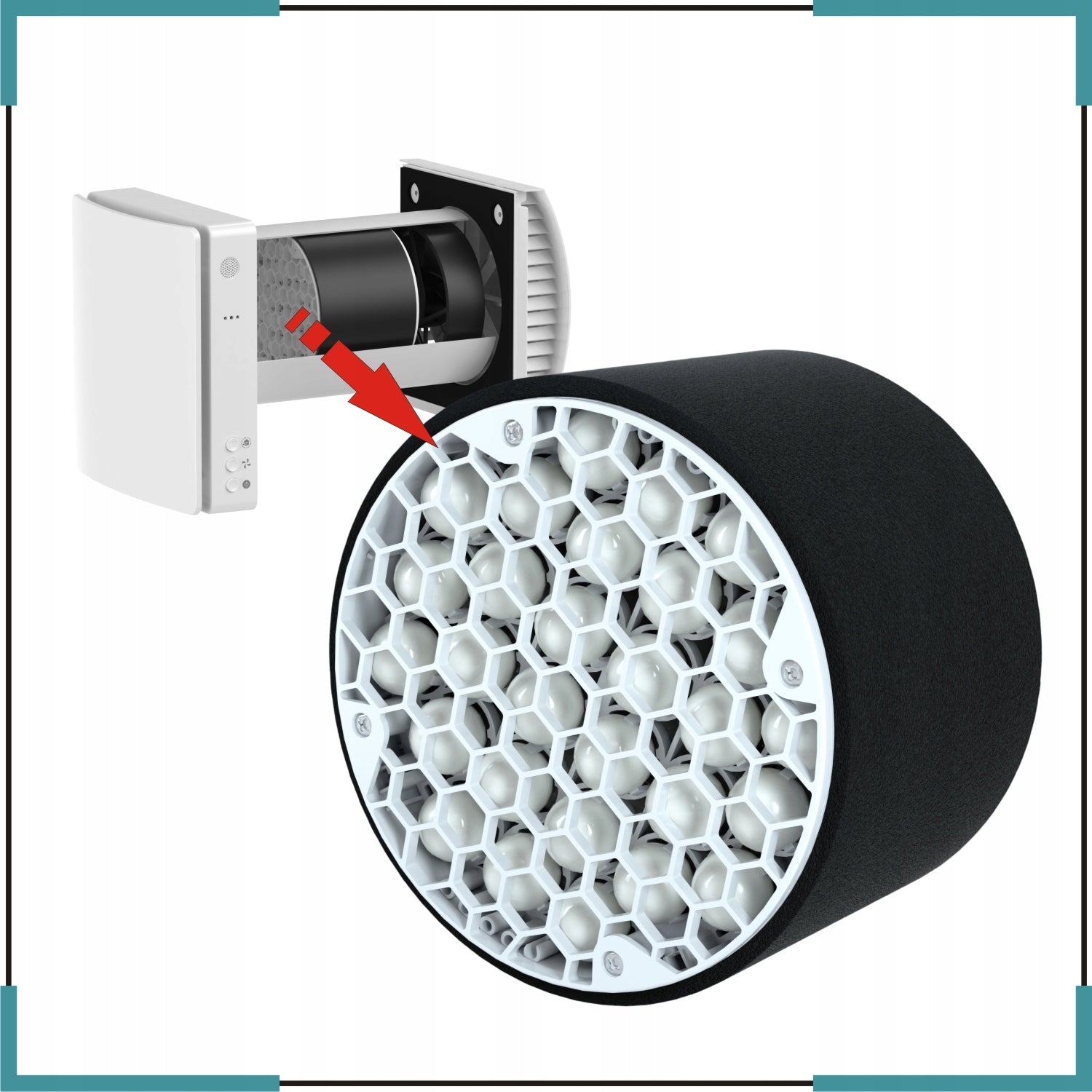

NEW HEAT EXCHANGER

The durable new generation ceramic ball exchanger installed in VIHER devices has a higher average annual heat recovery efficiency compared to traditional ceramic exchangers (honeycomb type), and by the way is easier to clean

The heat recovery efficiency of this exchanger reaches 97%, and heat recovery efficiency 78% according to Ecodesign

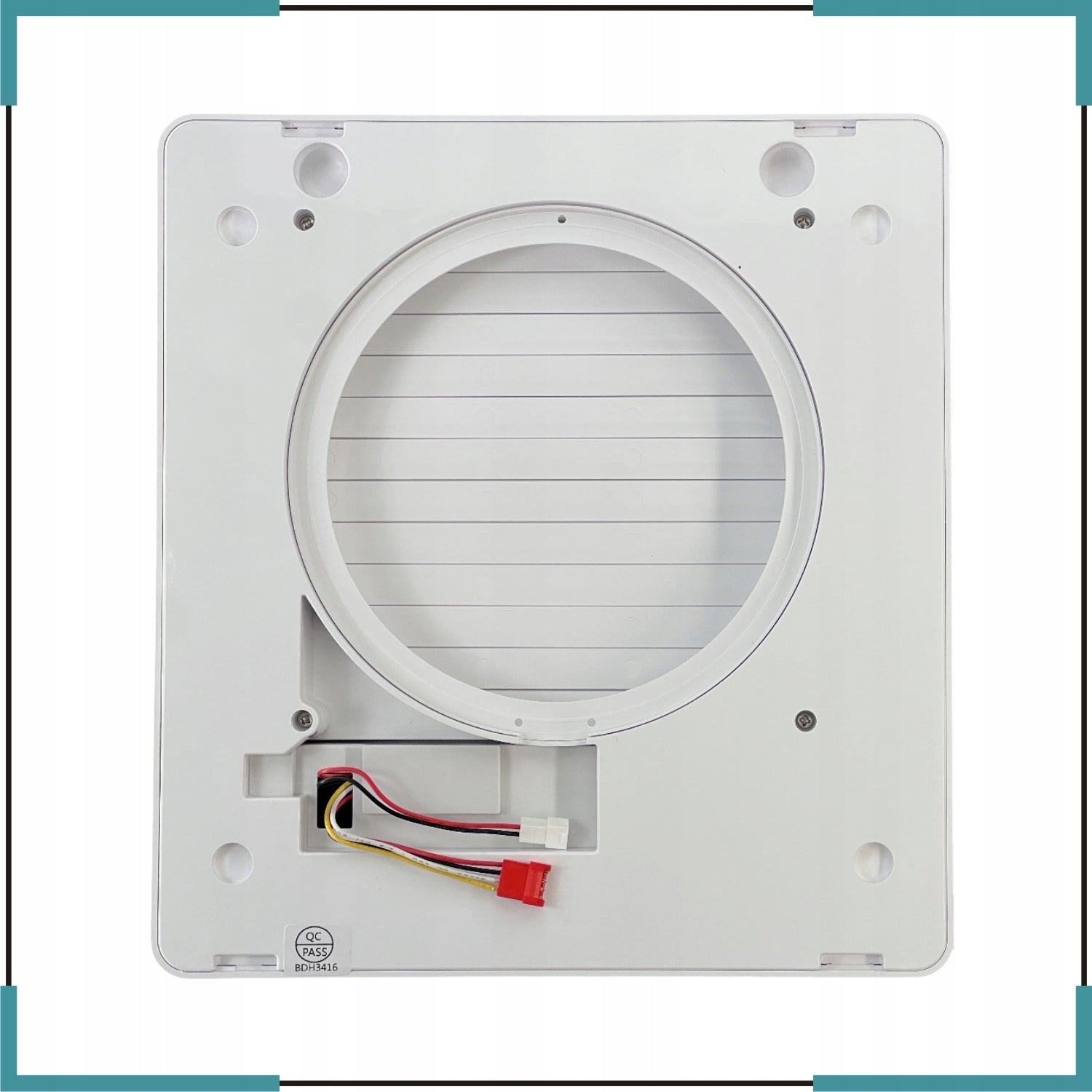

AUTOMATIC SHUTTER

When the device is stationary, the automatic shutter closes, almost completely limiting unwanted air exchange

OPERATING MODES:

• Recuperation
• Air supply
• Exhaust

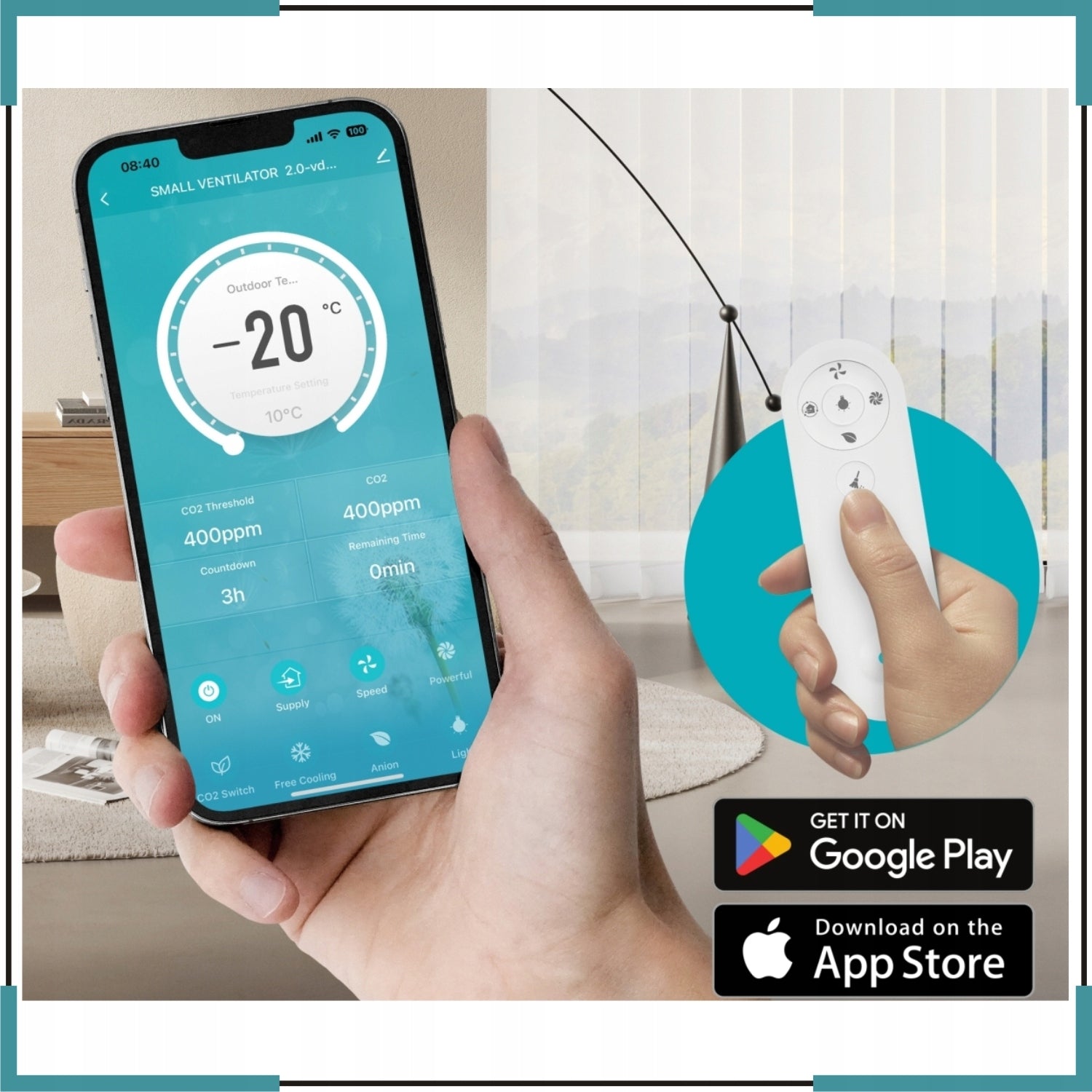

SMARTHOME - TUYA, SMARTLIFE

The device supports Tuya and Smartlife apps. The application not only allows you to easily operate the device with your smartphone, but also offers features that are not available when controlling from the remote control.

One such feature is scene control, giving you capabilities such as:

• Change of job depending on weather forecast
• One-button predefined settings
• Turn the device on and off at certain times
• and much, much more

FUNCTIONS:

• WiFi: devices can be controlled and combined into groups.
• PAIRING: max. two devices (WiFi unnecessary)
• GROUPING: connecting more devices via WiFi
• TIMER: allows you to turn off the device after a set amount of time
• SCENE CONTROL: function described above.
• FREE COOLING: - the device will go into airflow mode if it causes approximation to the set temperature.
• BOOST: -increase fan performance above third gear
• ALARM: - about the need to replace the filter

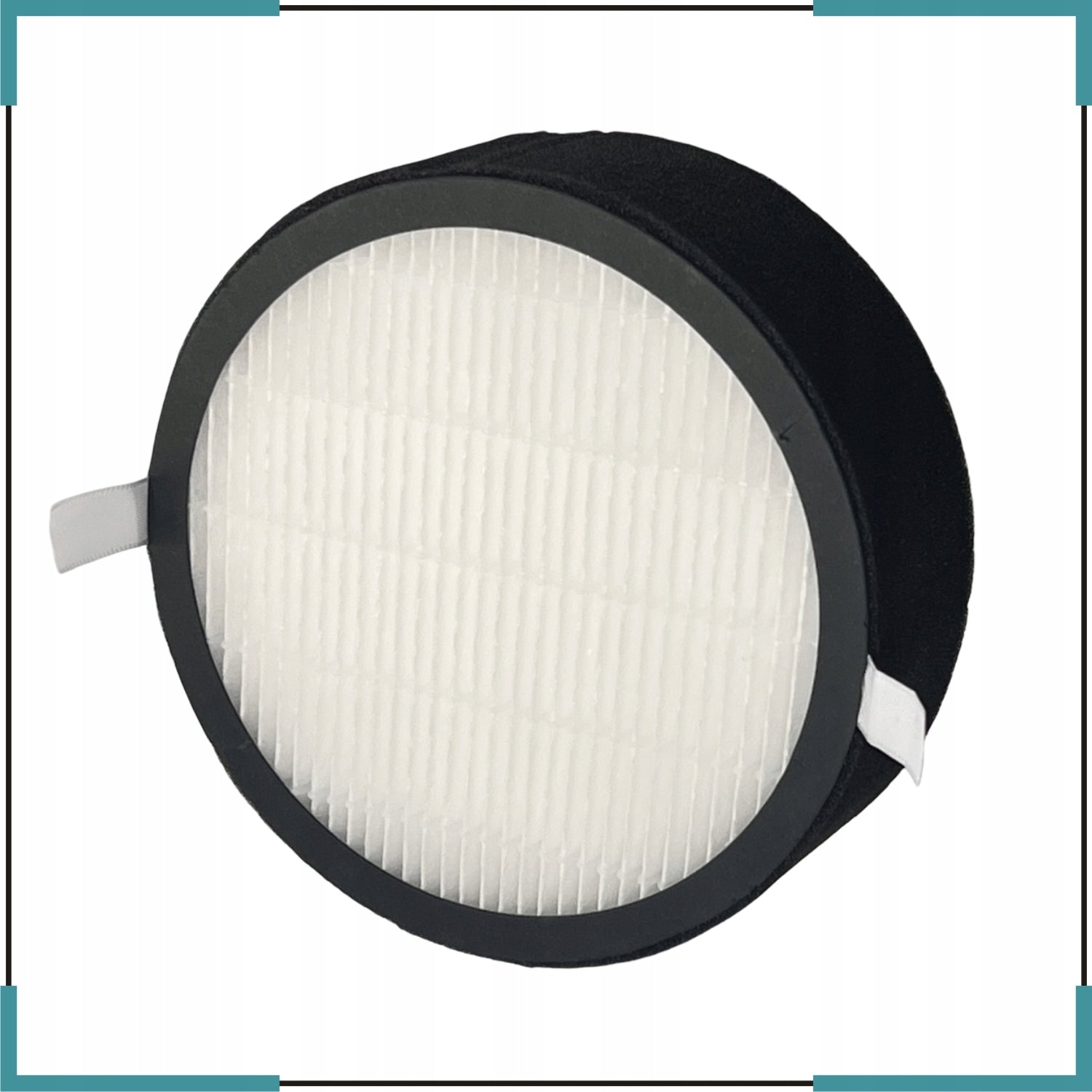

FILTER F7

It effectively eliminates pollutants such as plant pollen, fungal spores and some smog particles from the supply air.

Perfect option for allergy sufferers

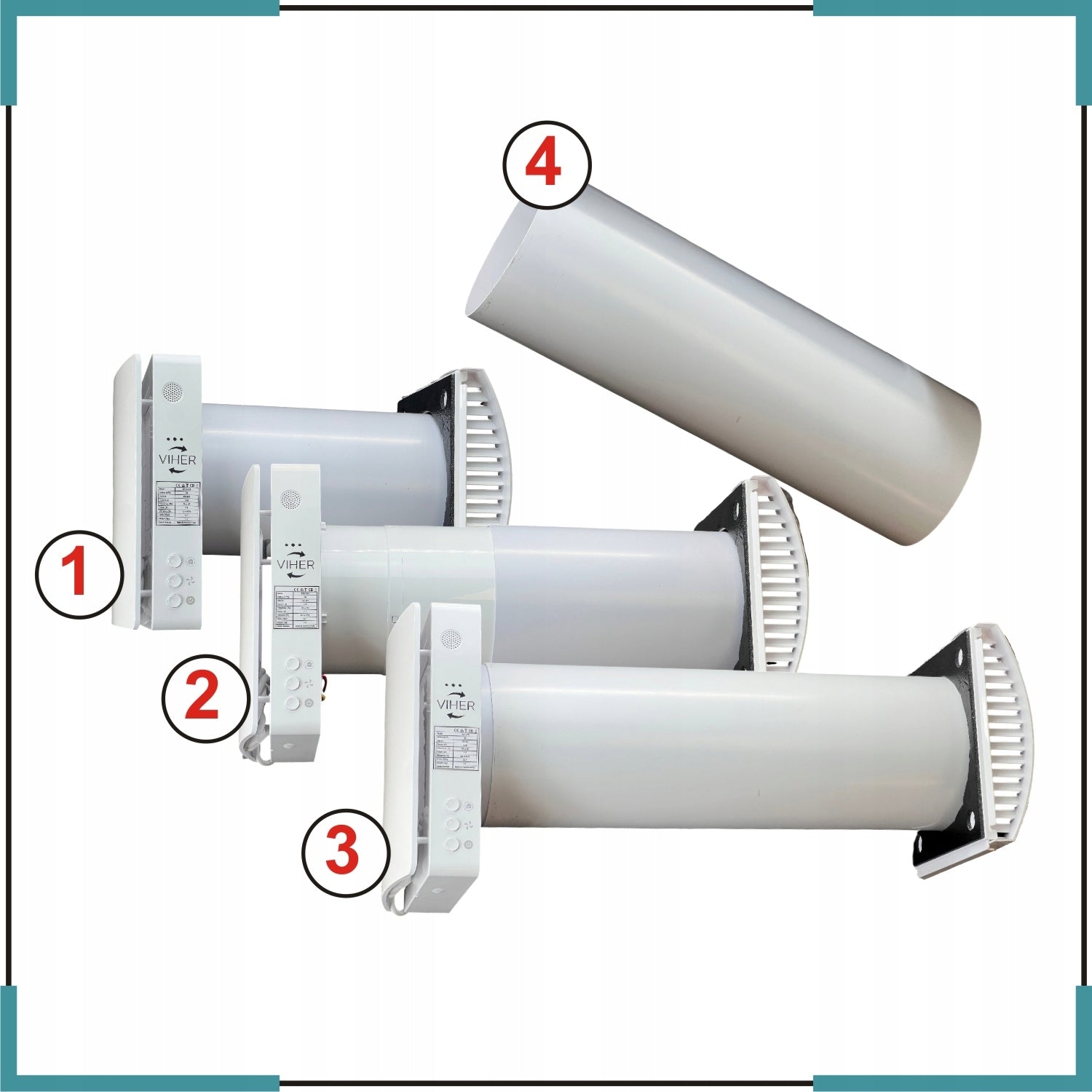

WALL THICKNESS:

1. 28 cm - minimum wall thickness in which we can mount the device
2. 28 cm - ~ 47 cm - for such wall thickness we can use the device in the basic version, but we recommend using an optional curtain pipe (4). This solution allows you to safely perform insulation between the pipe and the wall.
3. recuperator with a casing pipe, ensuring safe isolation of the device from the wall
4. pipe (available at our other auctions) with a length of 0,5 or 1 meter, used as a replacement for the original casing pipe. The pipe is a separate element and its diameter differs from the original by about 1mm

OPTIONAL INTAKE / LAUNCHER

Optional steel intake / launcher powder coated with structural paint of external use in graphite color fastened with "KILK" available at our other auctions

OPTIONAL AIR IONIZER

Available at our other auctions

• Cleans the air by eliminating viruses, bacteria, fungi.
• Neutralizes positive ions - eliminates viruses and microorganisms.
• Attracts floating dust particles and allergens.
• It greatly improves air quality.
• Recommended for allergies, asthma, or other lung diseases.
• and many others...

THIS LISTING IS FOR THE DEVICE:

with black front, with F7 filter and CO2 sensor, without moisture sensor

--------------------------------------------------------------------

CONNECTION TO POWER SUPPLY:

factory cable is output from the left side of the front panel. However, it is possible to lead the cable out of the back of the device and hide it in the wall

CO-FINANCING:

Viher is included in the list of UTIs, which is a condition for obtaining funding from the clean air program

ID: WE-001205

https://lista-zum.ios.edu.pl

CONSTRUCTION OF VIHER RECUPERATOR

1. Internal panel with automatic shutter and control
2. Filter F7
3. High Efficiency ceramic ball exchanger
4. Reverse fan
5. Pre-filter
6. Intake / launcher

Specifications
