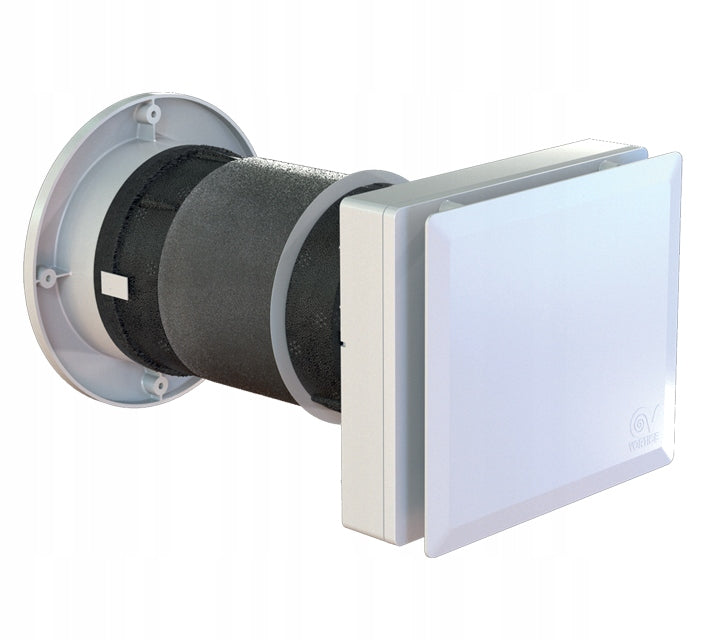

Sieninis rekuperatorius VORTICE 160, 60 m³/val., WiFi, drėgmės jutiklis

Trumpai apie prekę

Prekė: Sieninis rekuperatorius VORTICE 160, 60 m³/val., WiFi, drėgmės jutiklis. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Vortice
• Modelis: 12432

Place of manufacture: Italy

Unbeatably quiet in its class.

Want to know the application of a wall-mounted recuperator? It's simple: it ensures exceptional air quality in your environment.

A wall-mounted recuperator, in this case a product from the renowned Italian brand Vortice, is more than just a device. It's the key to fresh, clean, and dry air in your home, office, or any other space. Thanks to its advanced design and technology, the recuperator eliminates pollutants and removes moisture, helping to prevent problems with mold and condensation.

The application of a wall-mounted recuperator is versatile – it can be installed in various types of buildings, ensuring comfort and health for you and your loved ones. It's also a way to save energy by recovering heat, which can lower heating bills.

If you care about air quality and comfort, the Vortice wall-mounted recuperator is the ideal solution. Let us take care of your comfort and health – take advantage of its application today.

VORT HRW 60 MONO EVO HCS Wi-Fi

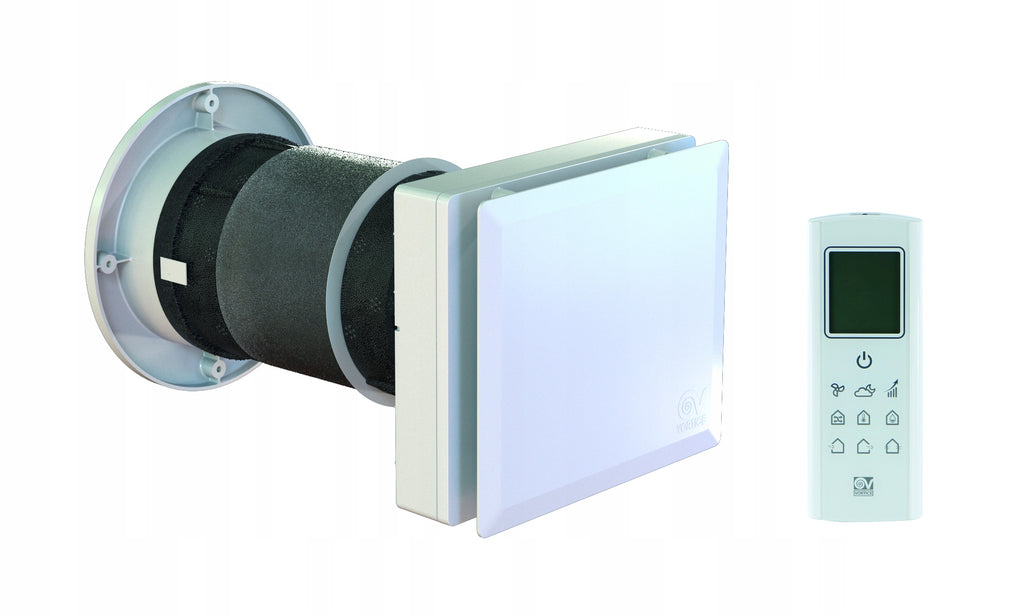

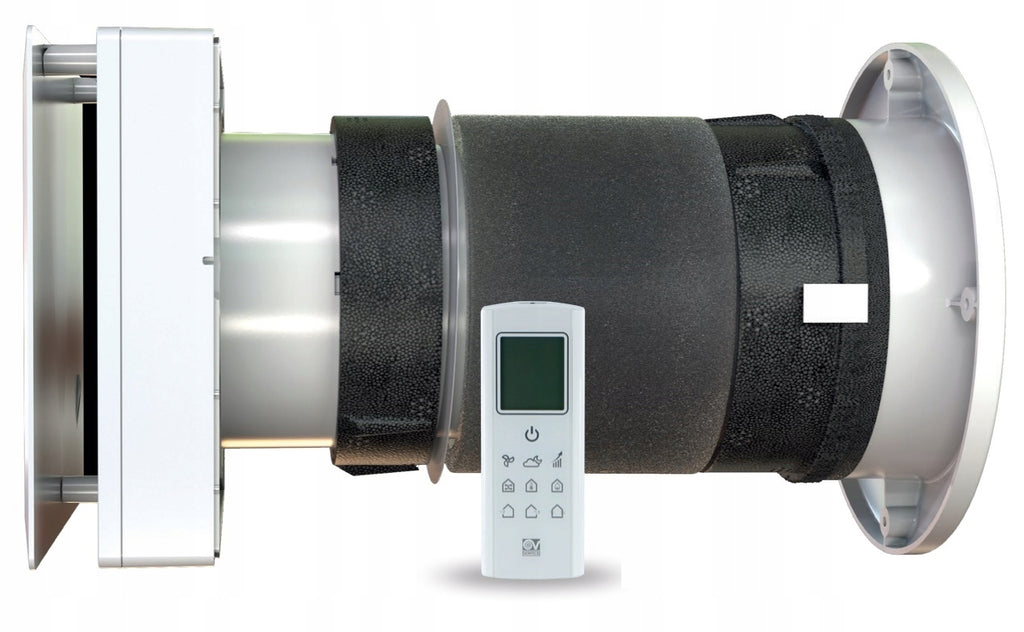

With remote control and relative humidity, temperature and light sensors

• Energy consumption class: A+
• Air flow max: 60 m3/h
• Power max. 7 IN
• Sound pressure: from 12,7 dB(A)/3mb
• Mounting hole diameter: 160mm
• Voltage: 220-240 V
• Frequency: 50-60 Hz
• Airflow: 10/25/35/45/60 m3/h
• Maximum thermal efficiency: 90%
• Weight: 3,3 kg
• Place of manufacture: Italy
• Producer: VORTICE

BENEFITS FOR THE USER:

• Clean air in all rooms economically and intelligently.
• Easy connection of devices thanks to the Wi-Fi module, which operates on the basis of the MESH network, eliminating the need for a router or a contract with an Internet provider.
• Introduction of fresh and filtered air from the outside and removal of mustiness from the inside.
• Energy recovery from exhaust air thanks to a high-efficiency heat exchanger, which translates into savings.
• Elegant and harmonious design that blends beautifully with any interior.
• High efficiency, achieving 90% heat transfer efficiency with minimal noise.
• Silent operation, comparable to a whisper at a distance of 1 meter.
• Low energy consumption of less than 7 W at maximum flow rate.

BENEFITS FOR THE INSTALLER

Easy installation

Low weight: 3.10 kg - 3.30 kg.

Universal connection diameters fi 160 mm.

Can be mounted on perimeter walls with thickness from 260 mm to 700 mm.

No need for condensate drainage.

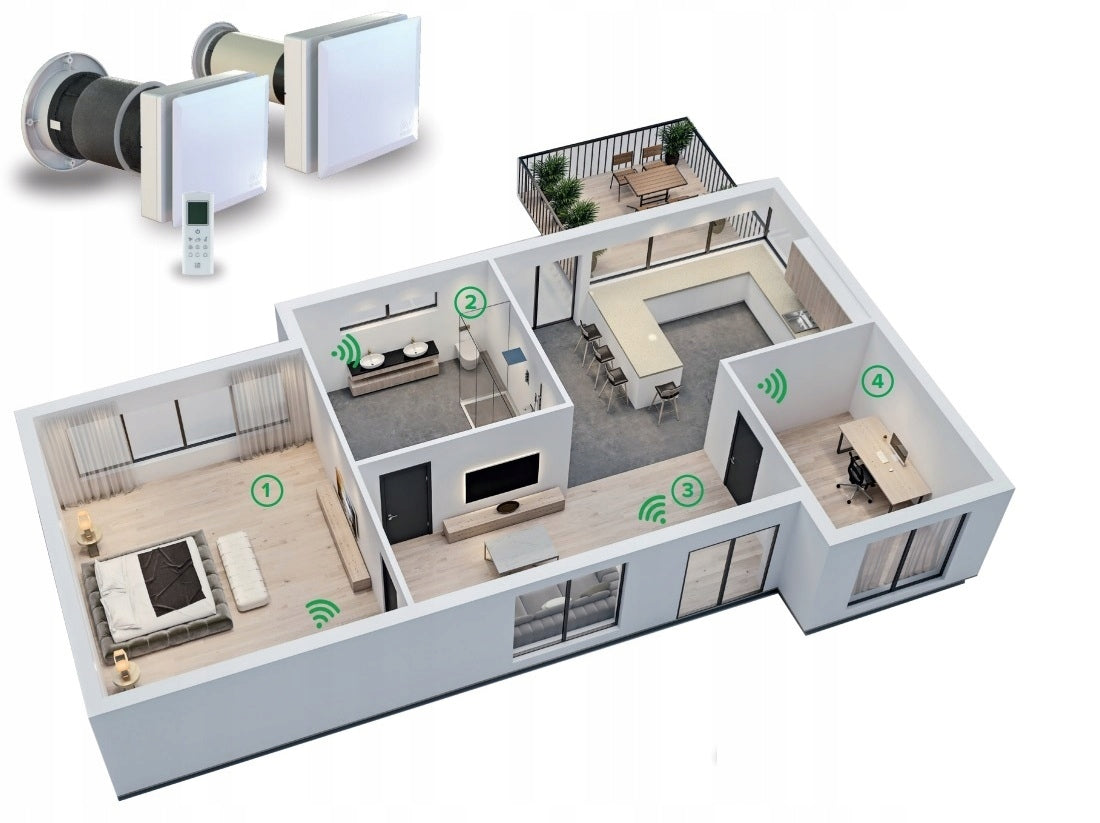

No wired connection for multiple devices installation.

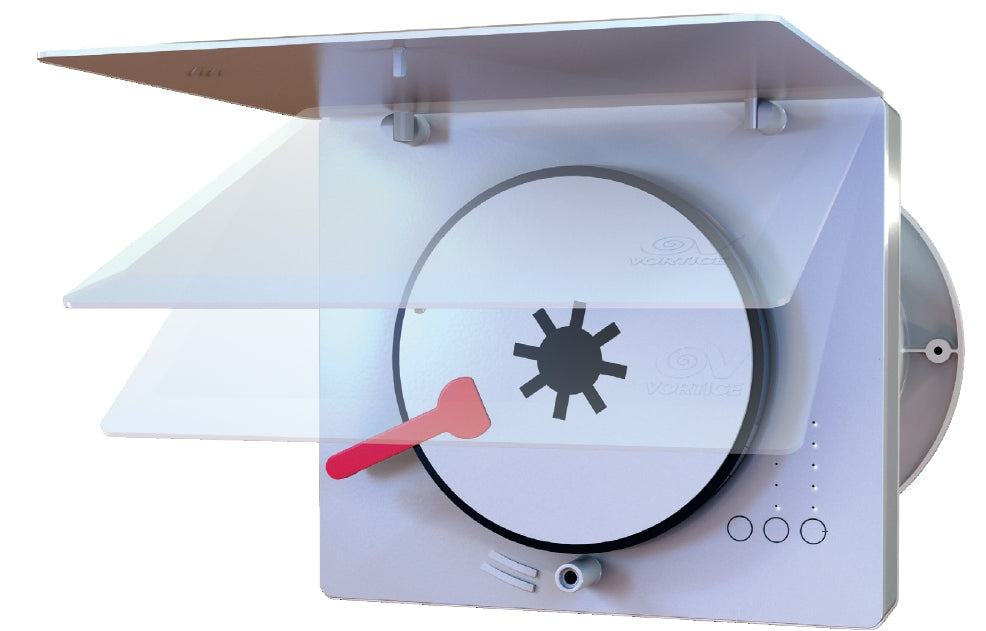

Easy-to-use manual locking system with machine closing indicator (red lever).

Easy maintenance

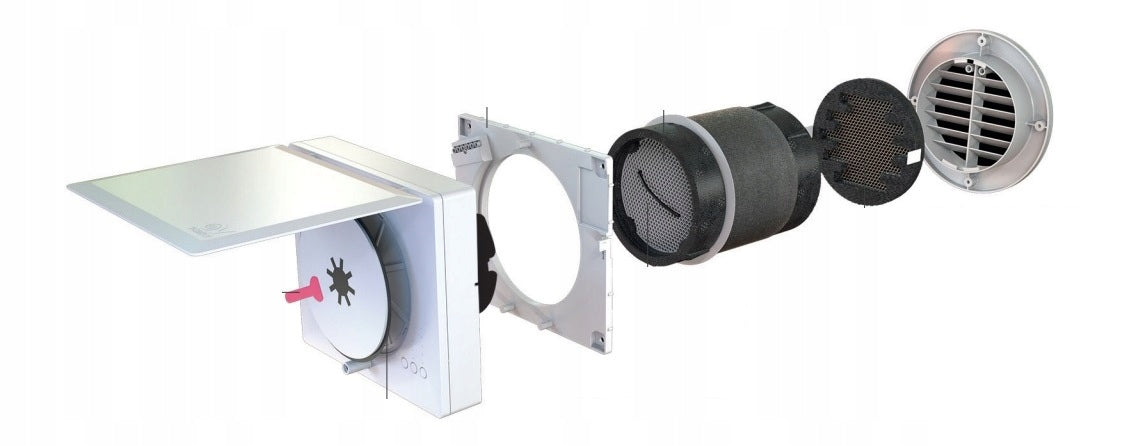

Simple access to internal components.

We provide full support in the selection of a recuperator for your room.

HCS models are equipped with a control panel with LCD display.

By default, recovery functions and auto-comfort, auto HR% and auto-night modes are active. The humidity threshold is set to the maximum value (90%), and the fan is set to the maximum speed for maximum flow. The remote control panel sends its default state to the product and updates the state of the device accordingly. If the state of the device does not sync with the status of the remote, point the remote at the device and press the button on the remote to activate synchronization

AUTO NIGHT

The ambient light sensor detects the presence or absence of light in the environment. Therefore, if it is night and daylight is not detected, the product will run at a minimum speed and will not be able to exceed the minimum speed. After detecting the presence of daylight again, the product returns to work at the previously set speed, and switching to higher speeds is possible using a remote control panel or HR% sensor.

AUTO HR%

In the case of humidity above the alarm threshold (60%, 75% or 90% - the default value is 75%), the extraction mode is automatically selected at maximum speed.

AUTO COMFORT

In heat recovery mode, the time that determines the reverse direction of rotation of the fans is determined depending on the temperature of the air released into the environment: if the temperature is too low, the cycle time is shortened.

A - VENTILATION SPEED

B - RECOVERY

C - AIR SUPPLY

D - EXHAUST

E - NATURAL VENTILATION

F - AUTO COMFORT

G - AUTO HR

H - TIMED BOOST

I - AUTO NIGHT

DEVICE COMPATIBLE WITH THE "CLEAN AIR" PROGRAMME

Thanks to this technology, we optimize the energy efficiency of the buildings in which we live and reduce heating and air conditioning costs, but above all we guarantee well-being and comfort of living. In addition, through proper ventilation and air exchange, we significantly reduce the risk of airborne infections, protecting our health

Specifications
