Sienų skeneris BOSCH D-TECT 200 C (korpusas)

Trumpai apie prekę

Prekė: Sienų skeneris BOSCH D-TECT 200 C (korpusas). Kategorija: Detektoriai.

• Gamintojas: Bosch
• Modelis: 0601081608

The equipment of the offered detector includes:

• USB-C cable
• wrist band
• battery adapter
• set of 4 R6 batteries
• bag made of durable and damage-resistant fabric
• shoulder belt

technical parameters:

• Power supply 12 V battery (Li-Ion) or 4 batteries 1.5 V LR6 (AA)
• Maximum measuring depth 200 mm
• Measuring accuracy +/- 5 mm
• Measuring accuracy of drilling depth +/- 5 mm
• Measuring accuracy distance measurement +/- 10 mm/m
• The minimum distance between two objects is 4 cm
• Meter auto shut-off after 1, 2, 5 or 10 minutes
• Backlight auto-off from 10 to 240 seconds
• Working mode No. 1 object detection
• Operating mode no. 2 leak detection
• Working mode No. 3 distance measurement
• Continuous operation time 9 hours (powered by 12V 3.0Ah battery)
• Continuous operation time 6 hours (powered by a 12V 2.0Ah battery)
• Continuous operation time 2 hours (powered by 4 batteries 1.5V LR6)
• Device weight 0.70 kg (with battery)
• Device weight 0.64 kg (with batteries)
• Device dimensions 231 x 106 x 112 mm

The digital universal detector Wallscanner D-TECT 200 C from BOSCH is the most accurate device of this type on the market, it is designed for locating objects in walls, ceilings and floors, detecting pipe leaks and measuring distances.

Depending on the type and condition of the substrate, it locates:

• any metal objects (ferrous and non-ferrous)
• beams and various wooden elements
• pipes and other plastic elements
• electrical wires and cables
• floor and wall heating pipes (metal and plastic)

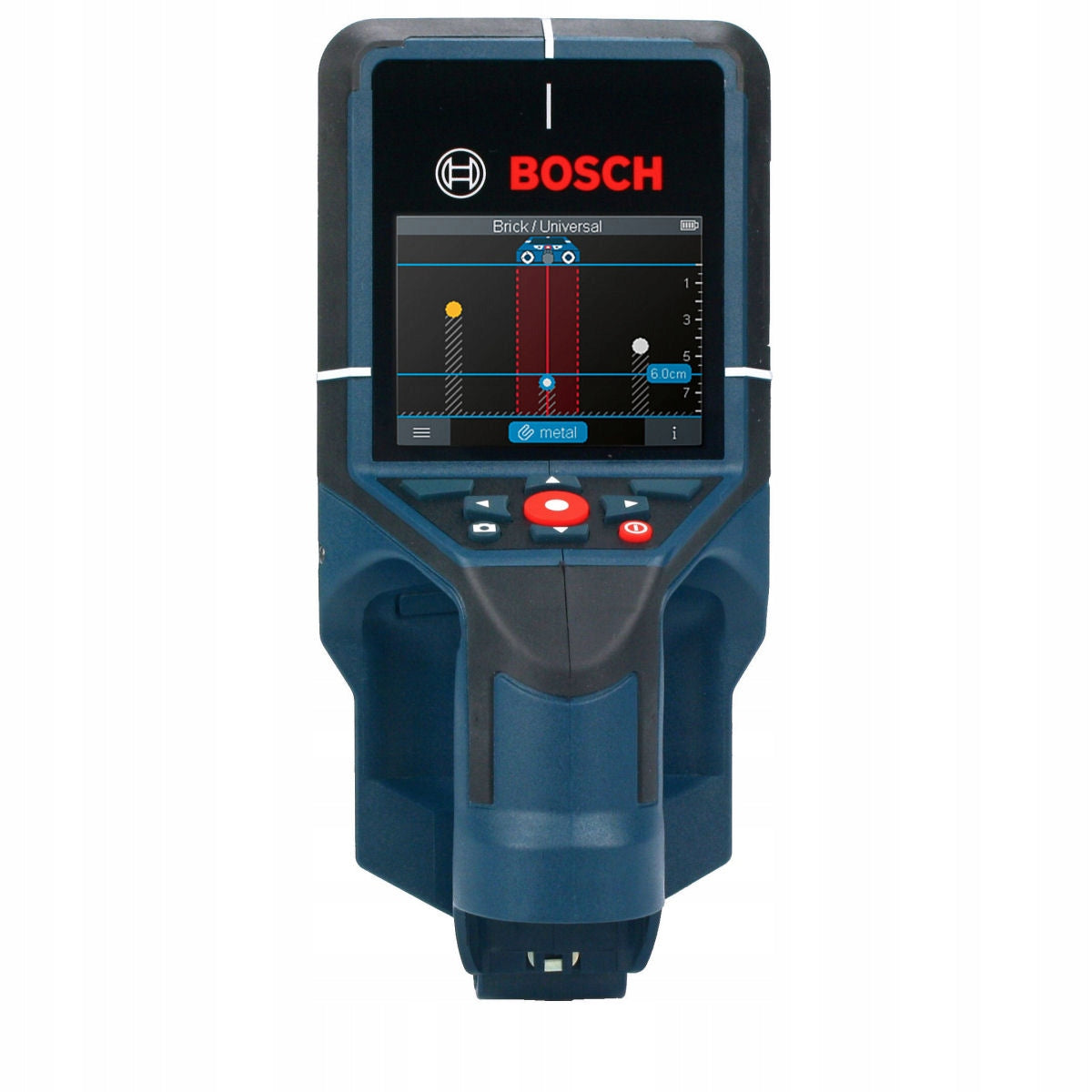

During the measurements, the image of the performed detection is displayed on the large LCD display, the permissible drilling depth and the type of the located object are also given.

D-TECT 200 C by BOSCH is the first detector of this type in the world, which is equipped with modern radar and inductive sensors that allow you to locate objects at a depth of up to 20 cm, and thanks to a large liquid crystal display on which all messages and instructions are displayed during operation (also in Polish) is incredibly easy and simple to use.

In addition, the D-TECT 200 C detector is equipped with a microSD card slot and a Screenshot button for quick saving of screenshots. The taken photos of the measurements can also be downloaded to a computer using the USB-C cable included in the device's equipment.

Built-in BOSCH radar and inductive sensors - allow for quick and very accurate (up to 5mm) localization of a foreign element in walls, ceilings and floors, thus minimizing the risk of damage caused by drilling in the wrong place.

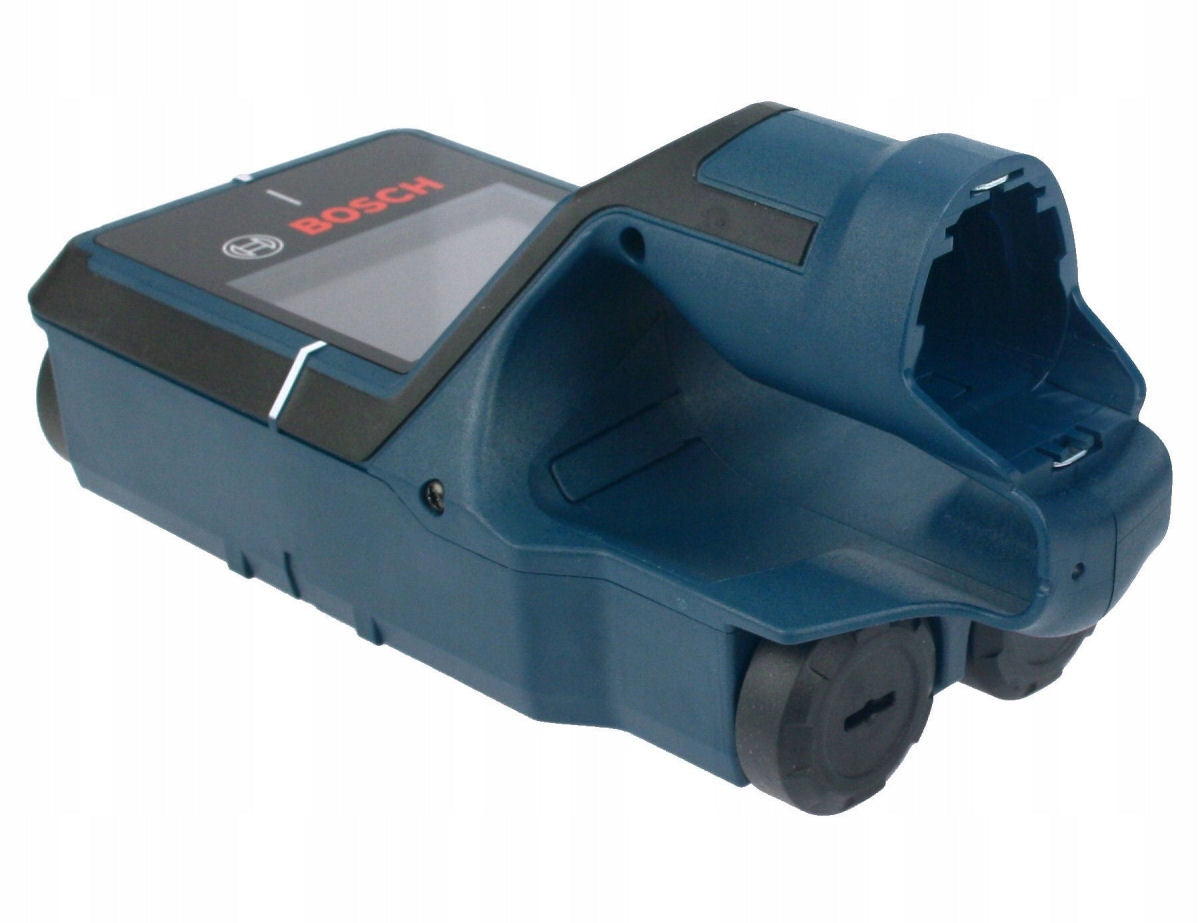

Four large guide wheels - significantly facilitate the operation of the meter and allow for very precise control of the meter's movement on the tested surface

Built-in meter feed control system - informs the user about an incorrectly made measurement, e.g. moving too fast on the wall or raised wheel during the measurement

Two-color LED diode (red and green) - clearly indicates whether it is possible to drill (green) or not (red), and at the same time increases work safety and facilitates operation

Large, high-resolution liquid crystal display - displays the image of the performed detection with the location of the searched objects, additionally, the display shows practically all possible functions of the detector, such as:

• permissible drilling depth with an accuracy of 5mm
• location of the located object with an accuracy of 5mm
• type of item located
• the current state of charge of the battery
• sound signal on and off
• detection of non-metallic materials, e.g. wooden beams
• detection of magnetic materials, e.g. reinforcing bars
• detection of non-magnetic materials, e.g. copper pipes
• detection of live wires
• wrong measurement indicator
• temperature control indicator
• radio interference indicator
• a warning function that informs about the failure of the meter

Sound signal switched on and off - makes it easier to locate the material you are looking for in difficult working conditions (eg. with high dustiness)

Temperature control function - a built-in temperature sensor that informs the user that the meter has been subjected to large temperature fluctuations and before measuring, wait until the temperature inside the meter stabilizes

Meter failure warning function – indicates that the meter has been damaged and should be sent for service

Built-in SETUP function - allows the user to configure their own meter settings such as:

• language of messages on the display (including Polish)
• meter auto-off time
• display backlight time
• sound signal
• operating mode selection

The D-TECT 200 C detector is equipped with 3 operating modes - object detection mode, leak detection mode and distance measurement mode.

Object detection mode - the entire substrate within the sensor's operating range is controlled. All objects that are made of a material other than a wall will be detected. If there are several objects in the wall at different depths, the display will show the one closest to the surface.

In this mode, you can locate objects such as:

• plastic pipes
• plastic water and sewage pipes, e.g. for underfloor heating, wall heating, etc. with a diameter of min. 10 mm, empty pipes with a diameter of min. 20 mm in solid material
• live and de-energized electric wires
• three-phase power cables
• low voltage wires
• pipes, rods and metal profiles of all kinds (steel, copper, aluminum)
• reinforcing steel
• wooden beams
• empty spaces

In addition, in this mode, you can select the type of wall in which the measurement will be carried out:

• universal masonry - suitable for most applications in solid masonry
• concrete - suitable for dry concrete applications
• precast - suitable for detecting wooden beams, profiles, metal as well as electrical and other wires in prefabricated walls
• surface heating - suitable for locating metal pipes, metallic compound pipes, water-filled plastic pipes and electrical wires
• checkered brick - the device will locate metal pipes, pipes made of metallic compounds, water-filled plastic pipes and electrical wires in checkered brick
• hollow brick - the device will locate flat metal objects, electric wires and other wires, as well as water-filled plastic pipes up to max. detection depth of 5 cm
• fresh concrete - is suitable for applications in concrete that has not yet fully hardened or dried. The device detects metal objects up to max. detection depth of 6 cm. Plastic pipes and cables are not traceable. It is not possible to distinguish live and non-live wires.

Leak detection mode - in this measurement mode, the relative humidity of the surface material is indicated. Therefore, this mode is suitable for indicating places with maximum humidity and locating a possible leak.

Distance measurement mode - in this mode you can measure distances on the wall. Measurement is only possible in a straight line, in the direction of the wheels.

Protective bag with shoulder strap - made of durable and damage-resistant material, allows for safe transport and storage of the device with additional accessories.

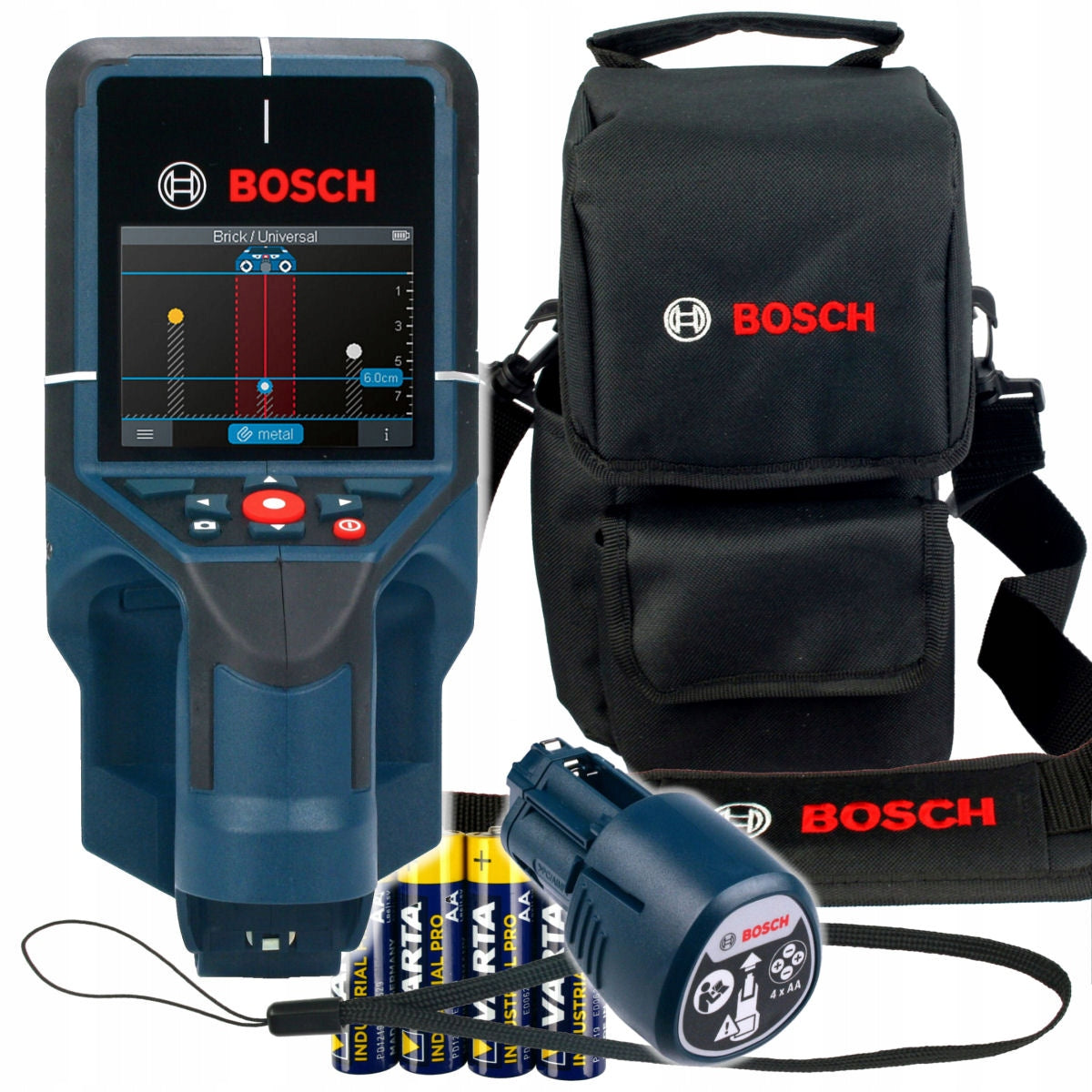

Delivery includes:

• BOSCH digital detector
• USB-C cable
• Wrist band
• Battery adapter
• Set of 4 R6 batteries
• Durable fabric protective bag
• shoulder strap
• User manual in Polish
• warranty card

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Bosch
Parametry	Power supply	batteries
Parametry	Maximum depth of measurement for iron and steel	200 mm
Parametry	Maximum depth of measurement for copper and non-ferrous metals	80 mm
Parametry	Maximum measurement depth for wood	38 mm
Parametry	Maximum measurement depth for live wires	200 mm
Parametry	Manufacturer code	0601081608
Parametry	EAN (GTIN)	3165140988148
Parametry	Product weight with unit packaging	0.7 kg
Parametry	Kind	voltage detector,wood detector,metal detector,profile detector,wire detector
