Signalizacijos komplektas SATEL PERFECTA 64 M 2G/4G LTE, 10 vnt.

Trumpai apie prekę

Prekė: Signalizacijos komplektas SATEL PERFECTA 64 M 2G/4G LTE, 10 vnt.. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: PERFECTA 64 M

The auction concerns:

Complete [10] :

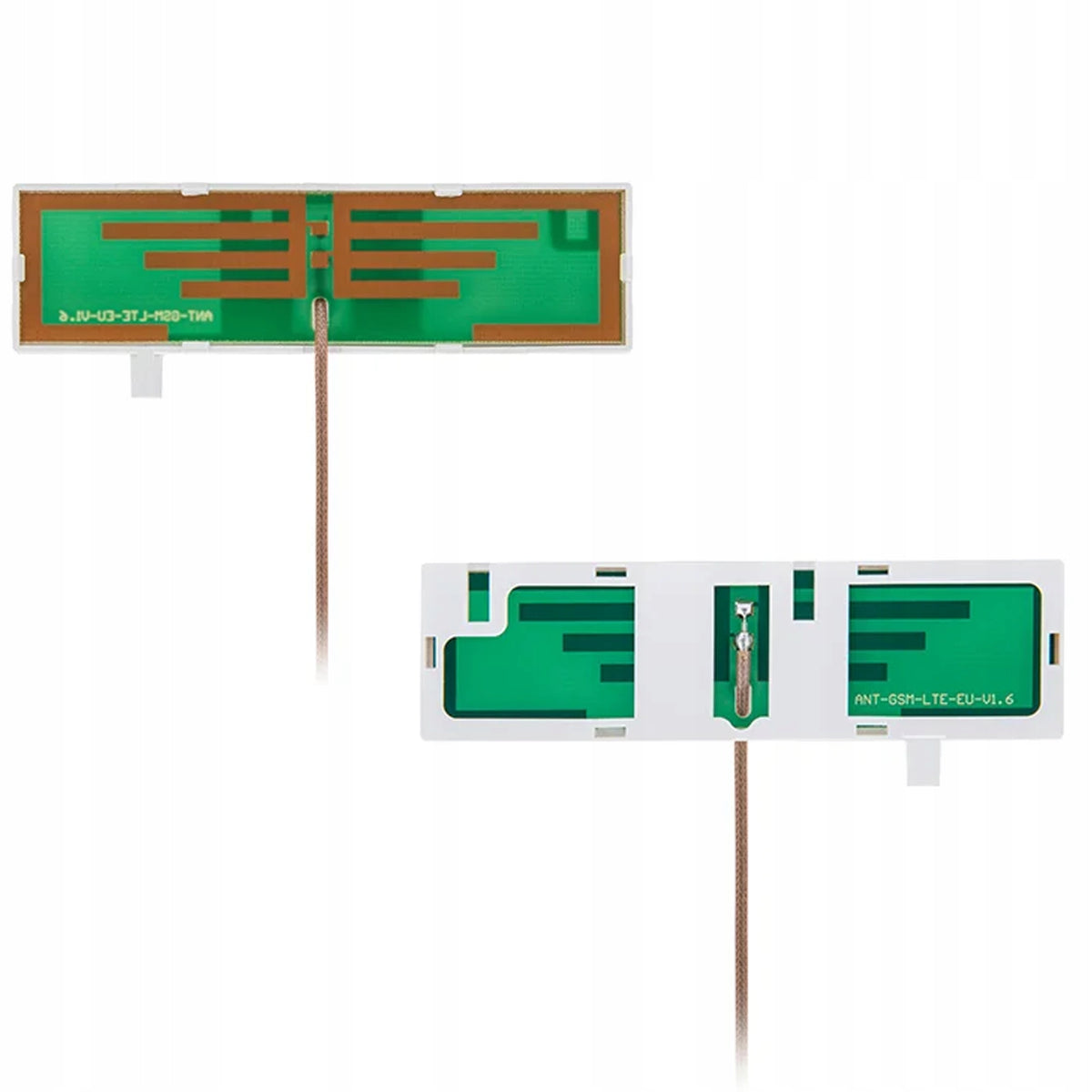

Perfecta 64 M control panel + antenna ANT-LTE-I

This is important information...

** NOTE - ONLY ONE of the following devices can be connected:

controller ACU-220 / ACU-280 (ABAX system - 868 MHz)

or PERFECTA-RF module ( MICRA system - 434 MHz)

or the INT-RX-S pilot expander.

CANNOT be used in the system SIMULTANEOUSLY wireless devices ABAX 2 and MICRA

PERFECTA 64 M alarm control panel is designed to protect objects such as apartments, single-family houses, segments in terraced houses, offices, etc. Provides protection in accordance with the requirements of Grade 2 EN 50131. The control panel is characterized by simple configuration and easy and intuitive operation using manipulators, including models with touch screens. The alarm system functions can also be controlled remotely using the PERFECTA CONTROL mobile app and remote controls.

The PERFECTA 64 M control panel allows you to create a wired or wireless installation - you can connect one of the controllers of the ABAX 2 system (ACU-220 or ACU-280 operating in the 868 MHz frequency band) or PERFECTA-RF, i.e. MICRA wireless system module (433 MHz frequency band). Alternatively, the INT-RX-S remote control module can be connected to the control panel.

The PERFECTA 64 M control panel uses an LTE module operating in 2G and 4G LTE mobile networks.

It enables cooperation with a mobile application with PUSH message support, remote system configuration using PERFECTA Soft, event monitoring (e.g. to the monitoring station of the security agency), voice notification, SMS control and audio verification (listening to sounds from the protected facility). It supports two nano-SIM cards, which ensures continuity of communication: in the absence of connectivity to the network of the first operator, the second card is automatically selected.

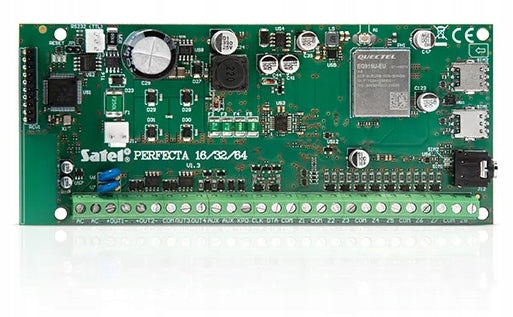

The control panel electronics board is equipped with 8 inputs and 4 wired outputs. Their number can be increased by connecting expansion modules: INT-E input expanders and INT-O or INT-ORS outputs. This allows you to expand the system by attaching more detectors, beacons and even actuators (to control the garage door, blinds, garden sprinklers). The INT-CR zone control module can also be connected to the control panel. Thanks to it, proximity cards and keychains can be used to control selected functions of the system.

The system based on the PERFECTA 64 M control panel can be divided into four zones, with a choice of three standby modes (day, night, full). Zones can be independent of each other or contain common parts (indicated entrances).

Configuration of the system can be done in two ways: from a computer with PERFECTA Soft installed (locally - connection via RS-232 port (TTL), remotely - via data transmission in the mobile network*) and using a keypad.

• Compliance with EN 50131 Grade 2

Division of the system into 4 zones - 3 surveillance modes in each zone

• possibility of assigning entry to 1~4 zones
• control by the user or by timers
• 8 wired programmable inputs on the control panel:

  - configuration selection: NO, NC, EOL, 2EOL/NO, 2EOL/NC

  - possibility of operating roller shutter and shock detectors

• up to 64 programmable inputs
• 4 programmable wired outputs on the control panel:

  - 2 high current outputs (power supply) 1000mA

  - 2 low current outputs type OC - max. 25mA

• KPD output - max. 500mA
• AUX output - max. 500mA
• maximum 64 programmable outputs (including 4 outputs dedicated to MICRA system beacons)

Embedded modules:

- 2G/4G LTE mobile communicator with 2 nano-SIM sockets (SMS, monitoring to the station, mobile application, PUSH notifications)

- voice (playing voice messages for telephone notification) acoustic alarm verification (listening to sounds)

Communication bus for connection:

• INT-TSH2, INT-TSG2, INT-KSG2R, PRF-LCD
• INT-E, INT-O, INT-ORS expansion modules
• ABAX 2 wireless controllers: ACU-220 or ACU-280**
• INT-RX-S remote control expander**
• INT-CR zone control modules
• communication connector for connection - MICRA PERFECTA-RF** wireless system module

Maximum number of wireless devices supported:

- ABAX 2: system for up to 4 keypads / up to 48 detectors, beacons or other devices

- MICRA system: up to 4 manipulators / up to 64 detectors / up to 4 beacons

Cooperation with wireless manipulators:

PRF-LCD-A2 - in ABAX 2 system

PRF-LCD-WRL - in MICRA system

Control the system with:

• manipulators
• PERFECTA CONTROL mobile application
• remote controls
• proximity cards and keychains

Passwords: 62 user passwords and 1 service password

• editing of names (users, zones, inputs, outputs and modules) facilitating system control and supervision
• 8 timers with the ability to set exceptions
• 8 thermostats
• memory of 3584 events
• automatic diagnostics of basic system components
• built-in switching power supply:

  - overload protection

  - protection against complete battery discharge

  - battery charging current adjustment

  Programming of control panel settings:

  - locally - manipulator or computer with PERFECTA Soft installed,connected to RS 232 (TTL) port of the control panel

  - remotely -computer with PERFECTA Soft installed,connecting to the headquarters using data transmission in the mobile network*

* support for data transmission in LTE/EDGE/GPRS technology - depending on the capabilities of the mobile network

Ability to update software (firmware) locally or remotely

ALL models of control panels and products of the SATEL brand are in adjacent auctions.
