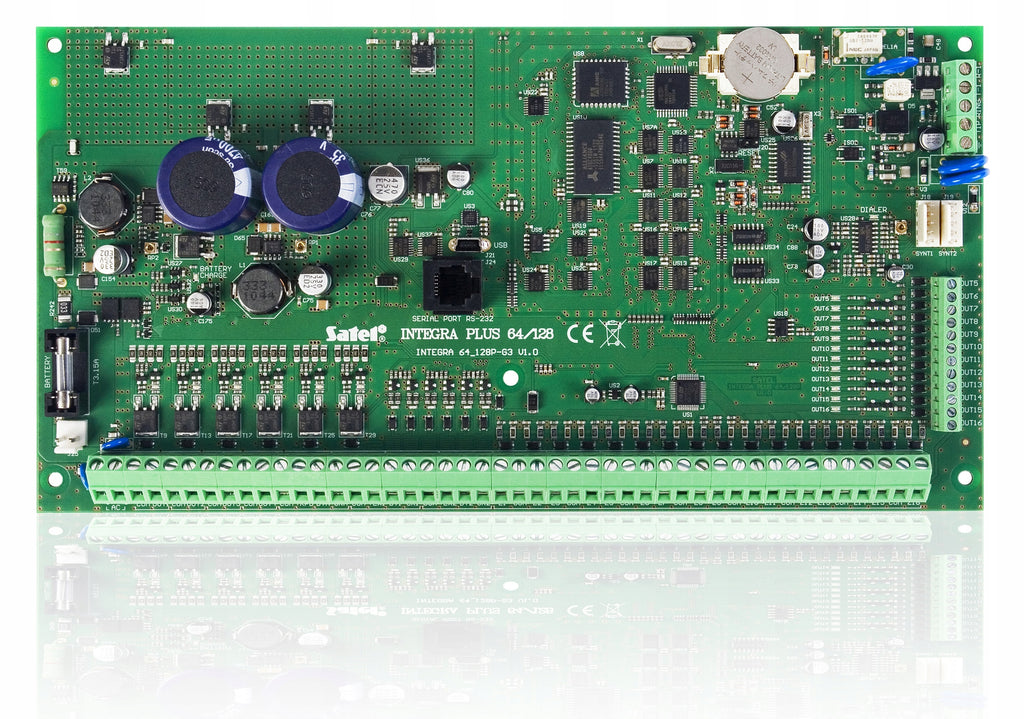

Signalizacijos pultas SATEL Integra 64 PLUS Grade 3 pagrindinė plokštė

Trumpai apie prekę

Prekė: Signalizacijos pultas SATEL Integra 64 PLUS Grade 3 pagrindinė plokštė. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: INTEGRA 64 Plus

INTEGRA 64 PLUS

The main board of the control panel from 16 to 64 inputs and outputs,

meeting the requirements of the GRADE-3 standard

+ all necessary accessories for mounting the motherboard, i.a.:

connection cable control panel - battery ; resistors ; pins ; instructions .

Thanks to full compliance with the requirements of EN50131 Grade 3, the INTEGRA Plus series control panels

they are perfect for the implementation of advanced security systems in facilities with a particularly high risk of burglary,

e.g. banks, jewelry stores or public buildings.

These control panels are characterized by extensive functionality, which allows them to be used for the implementation of access control systems

or even smart building systems.

• full compliance with EN50131 series standards for Grade 3 (Grade 3) devices
• built-in advanced 2 A+1,5 A power supply with extensive diagnostics
• support for up to 64 inputs with the possibility of programming parametric resistance and support for 3EOL lines (mainboard inputs only)
• USB port for programming with PC
• possibility of dividing the system into 32 zones and 8 partitions
• Expansion of up to 64 programmable outputs
• Communication buses for connecting manipulators and expansion modules
• built-in telephone communicator with monitoring, voice notification and remote control
• operation of the system using LCD keypads, zone keyboards and optionally using remote controls, proximity cards, remotely using a computer or mobile phone
• 64 independent timers for automatic control
• Access control and home automation functions
• memory of 5631 events with print function
• Support up to 192+8+1 users
• possibility of updating the software using a computer
• option not to report possible problems with connection to the SATEL server as a failure

Technical data:

Installer-defined text messages 64

Expanders up to 64

Environmental class according to EN50130-5 II

Voice Communications 16

Communication buses 1+2

Maximum number of programmable inputs 64

Maximum number of programmable outputs 64

Maximum humidity 93±3%

Maximum current consumption from the 200 mA battery

Maximum current consumption from the mains 230 V 400 mA

Maximum charging current of the battery 1500 mA

Manipulators up to 8

Weight 320 g

Battery cut-off voltage (±10%) 10,5 V

Output voltage of the power supply 10,5...14 V DC

Supply voltage (±15%) 20 V AC, 50-60 Hz

Battery failure report voltage (±10%) 11 V

Phone numbers for notification (voice/PAGER + SMS) 16+16

Output capacity +EX1 and +EX2 (±10%) 3000 mA

Load capacity of low current programmable outputs 50 mA

Load capacity of high current programmable outputs (±10%) 3000 mA

Output load capacity +KPD (±10%) 3000 mA

Event memory 5631

Partitions 8

Standby current consumption from the mains 230 V 135 mA

Current consumption from the battery – standby 130 mA

Degree of protection according to EN 50131

Grade 3

Zone 32

Timers 64

Users + Administrators 192 + 8

Programmable Wired Inputs 16

Power supply current capacity (powering devices + charging battery) 2000 + 1500 mA

Programmable Wired Outputs 16

Power Outputs 3

Dimensions of electronics board 264 x 134 mm

Operating temperature range -10...+55 °C

Recommended transformer type 75 VA
