Signalizacijos rinkinys SATEL Integra 64, INT-TSI-B, INT-GSM LTE, ACU-220, 18Ah

Trumpai apie prekę

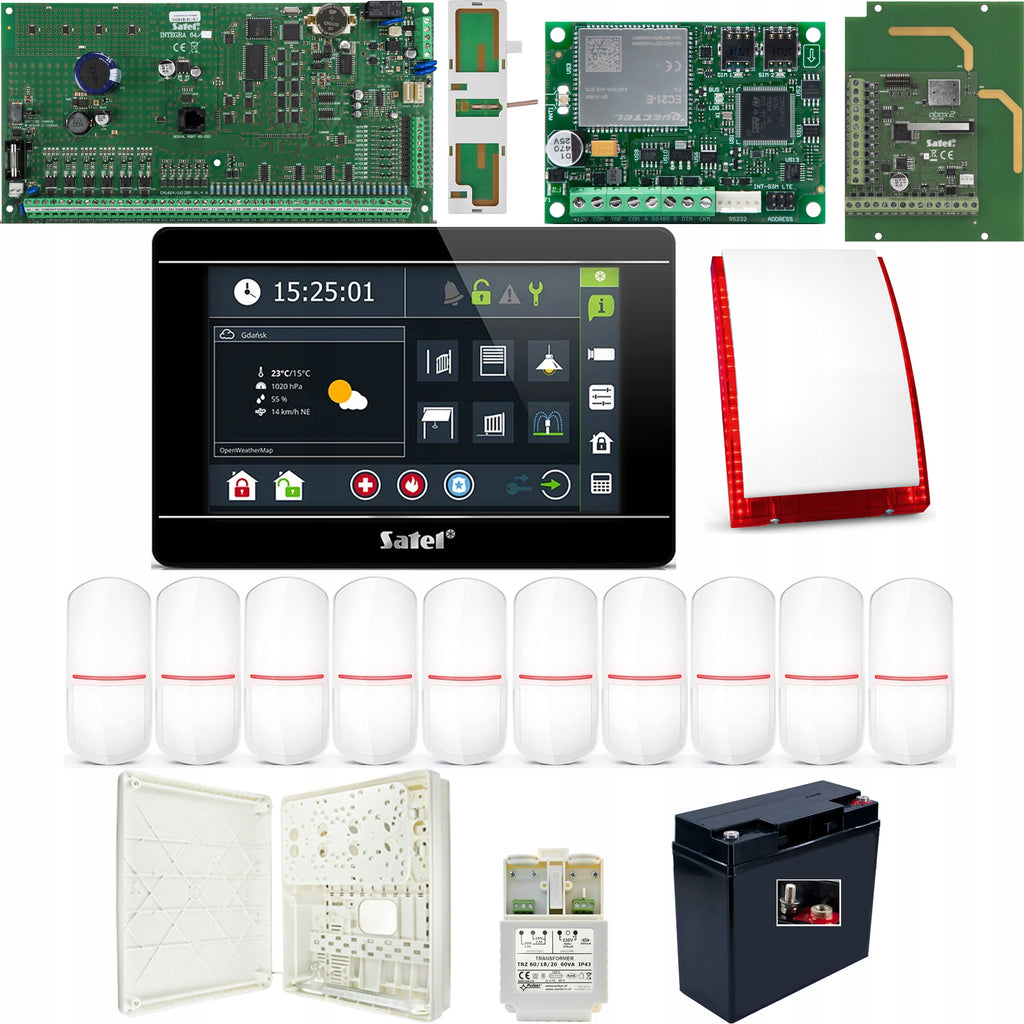

Prekė: Signalizacijos rinkinys SATEL Integra 64, INT-TSI-B, INT-GSM LTE, ACU-220, 18Ah. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: Integra 64

The auction concerns:

Complete [ 79b10 ] :

- Integra 64 control panel SATEL

- INT-TSI-B manipulator

- INT-GSM LTE module

- ACU-220 controller

- APD-200-Pet detector - x 10 pcs.

- SP-4003 R beacon

- OPU-3 P housing

- AWT682 transformer

- Battery 12V / 18Ah

In the description when issuing FV will be the above notation.

The set is intended for possible further expansion.

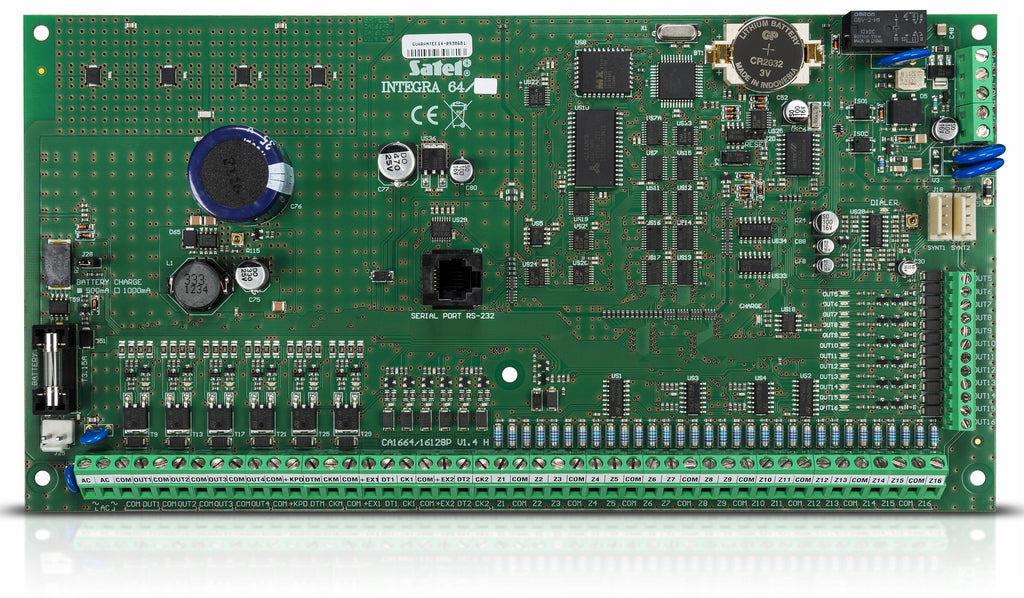

1. INTEGRA 64 - control panel motherboard from 16 to 64 inputs / outputs

Advanced control panels offering, in addition to alarm functions, also the possibility of implementing home automation systems and access control. Thanks to a wide range of expansion modules, their capabilities can be adapted to current needs – from small systems to extensive installations. A big advantage of INTEGRA control panels are their communication capabilities in combination with additional modules – GSM and TCP/IP.

• support from 16 to 64 inputs
• possibility of dividing the system into 32 zones, 8 partitions
• Support 16 to 64 programmable outputs
• Communication buses for connecting manipulators and expansion modules
• built-in telephone communicator with monitoring, voice notification and remote control
• operation of the system using LCD keypads, zone keyboards, remote controls and proximity cards and remotely using a computer or mobile phone
• 64 independent timers for automatic control
• Access control and home automation functions
• memory of 5887 events with print function
• Support up to 192+8+1 users
• RS-232 port - RJ socket
• possibility of updating the software using a computer
• built-in switching power supply with a capacity of 3 A with functions: battery charging and diagnostics
• option not to report possible problems with connection to the SATEL server as a failure

Technical data:

• Environmental Class: II
• Protection Class: S
• Maximum Battery Capacity: 24 Ah
• Control panel power supply voltage (±10%): 13,8 V DC
• Load capacity of low current programmable outputs: 50 mA
• Load capacity of high current programmable outputs (±10%): 3000 mA
• Power Supply Current Capacity: 3 A
• Electronics Board Dimensions: 264 x 134 mm
• Operating temperature range: -10...+55 °C
• Motherboard supply voltage (±15%): 20 V AC, 50-60 Hz - from the recommended 60VA transformer
• Standby Current Consumption: 149 mA
• Maximum current consumption: 337 mA

2. INT-TSI-B - keypad - touch screen 7" - housing color BLACK.

Characteristic:

• The INT-TSI manipulator is a real control center for an intelligent alarm system. Thanks to the possibility of adjusting the interface individually for each user, it is an excellent solution both for people who expect simple operation as well as advanced users using the extensive functionality of the system.
• Capacitive glass touch screen with 7" display
• graphical, intuitive user interface with the possibility of individual personalization for each user
• the ability to choose from several graphic designs
• MACRO functionality that allows you to perform sequences of actions with a single key
• the ability to view images from IP cameras (MJPG after HTTP and in v1.04: MPEG-4, H.264 after RTSP)
• An additional keypad can be connected to each keypad connected to the bus via Ethernet – which gives the possibility of doubling the number of keypads in the system
• A wide range of dedicated widgets with various functions, i.a. weather widget
• Scaling widget size
• ability to present the state of the system when a screensaver is displayed
• photo frame function
• the ability to save user interface configuration directly from TSI Builder to the keypad over Ethernet
• available in white (INT-TSI-W) and black (INT-TSI-B)

Technical data:

• Supply voltage (±15%): 12 V DC
• Operating temperature range: -10°C...+55°C
• Standby Current Consumption: 500 mA
• Maximum current consumption: 620 mA
• Weight: 430 g
• Maximum humidity: 93±3%
• Environmental class according to EN50130-5: II
• Supported memory cards: microSD, micro SDHC
• Housing dimensions (width x height x thickness): 196 x 129 x 22 mm

Technical data:

• Supply voltage (±15%)12 V DC
• Operating temperature range -10°C...+55°C
• Current consumption in standby 350mA
• Maximum current consumption 450mA
• Maximum humidity 93±3%
• Environmental class according to EN50130-5II
• Degree of protection according to EN 50131Grade 3
• Supported microSD, micro SDHC memory cards
• Housing dimensions (width x height x thickness)196 x 129 x 22 mm
• Weight400 g

3. INT-GSM LTE communication module.

INT-GSM LTE is an LTE communication module that enables INTEGRA and INTEGRA Plus series control panels to communicate over a 2G, 3G or 4G cellular network. The device works on the bus of the control panel manipulators. Supports two SIM cards. All cellular data transmissions are encrypted in AES-192 standard.

INT-GSM LTE monitors events to two monitoring stations (e.g. security agencies) over a mobile network. For this purpose, it uses the transmission of cellular data and SMS messages, with the possibility of prioritizing each of the listed transmission paths.

Event notifications are created automatically based on the recording of alarm control panel events from memory. The module transmits information in the form of SMS messages or using the CLIP service (up to 16 numbers), and in the case of cooperation with the INTEGRA Plus control panel also by e-mail messages (up to 16 addresses). After installing the INTEGRA CONTROL mobile application, e.g. on your smartphone, PUSH notifications are available.

Cooperation between INT-GSM LTE and INTEGRA Plus control panels opens access to remote control of the system by:

• INTEGRA CONTROL app
• SMS messages
• no cost CLIP service
• GUARDX program.

A big advantage of the INT-GSM LTE module is the possibility of cooperation with the ETHM-1 Plus Ethernet module (RS-485 connection). This duo allows for two-track monitoring (Dual Path Reporting), compliant with EN 50136, as well as determining the priority of event monitoring tracks (Ethernet, cellular data and SMS). By default, a cellular network is a backup communication channel for Ethernet.

Communication over a mobile network allows wireless connection of the control panel and computer with the installed DLOADX program, and thus to the system configuration even from a distant location. The connection between the module and the computer can be realized through the SATEL connection compilation service.

The module software is updated via RS-232 port or remotely, using UpServ software (cellular data transmission).

Properties:

• cooperation with INTEGRA and INTEGRA Plus control panels (version 1.19 or higher)
• support for two SIM cards
• ability to check the status of a pre-paid account
• synchronization of time from an NTP server or mobile network
• notification: SMS, CLIP, PUSH, e-mail (INTEGRA Plus)
• remote control: SMS, CLIP, mobile application
• monitoring: cellular data (TCP/UDP), SMS messages
• possibility of cooperation with ETHM-1 Plus Ethernet module (version 2.07 or higher):

  Dual Path Reporting, compliant with EN 50136

  spare communication path

• possibility of using the SATEL call compilation service
• system support from the INTEGRA CONTROL

  Android mobile application (version 4.2.7 or higher)

  iOS (version 5.0 or higher)

• programming of control panels using DLOADX (version 1.19.004 or higher) - remote connection
• control of the alarm system using GUARDX - remote connection
• cooperation with the INTEGRUM system (integration of many alarm systems based on INTEGRA and INTEGRA Plus control panels)
• Remote update of module software by UpServ

Technical data:

• Supply voltage (±15%): 12 V DC
• Electronics Board Dimensions: 80 x 57 mm
• Operating temperature range: -10...+55°C
• Standby Current Consumption: 110 mA
• Maximum current consumption: 450 mA
• Weight: 44 g
• Maximum humidity: 93±3%
• Environmental class according to EN50130-5: II

4. ACU-220 ABAX controller.

ACU-220 uses a 868 MHz radio band in which 4 channels are separated. Communication between elements of the ABAX 2 system is encrypted (AES standard) and bidirectional - all transmissions are confirmed. The controller cooperates with control panels from the INTEGRA, INTEGRA Plus and VERSA families (connection via the communication bus), enabling the expansion of the alarm system with wireless devices. It is also possible to work with other alarm control panels, automation controllers (using the Modbus RTU communication protocol or programmable module inputs and outputs) or autonomously.

ACU-220 meets the high requirements of Grade 2 of EN 50131.

The advantage of the controller is an excellent transmission range, which can be up to 2000 m in open area - depending on the device cooperating with the controller and their operating conditions. Such good communication parameters were obtained thanks to the use of a modern radio system and antenna diversification. Depending on the level of the received radio signal, the ACU-220 automatically selects the optimal antenna to be used to receive the transmission.

Configuring system settings takes place in the ABAX 2 Soft program installed on the computer, which also has extensive diagnostic capabilities. When working with INTEGRA, INTEGRA Plus and VERSA control panels – configuration takes place in the DLOADX program or with the help of a manipulator. Changing the settings, as well as updating the software of logged-in wireless devices is carried out by radio, without the need to disassemble them.

• compliance with the requirements of EN 50131 Grade 2
• Two-way radio communication in the 868 MHz band – 4 channels
• range up to 2000 m in open area
• Support for up to 48 wireless devices
• support for wireless keypads: INT-KWRL2 – up to 4, VERSA-KWRL2 – up to 6
• Support for up to 256 APT-200 wireless remote controls
• cooperation with control panels from the INTEGRA, INTEGRA Plus and VERSA families – connection to the communication bus
• option of autonomous operation or with any control panel / controller

  - 8 programmable outputs

  - 4 programmable inputs

• integration e.g. with automation or data acquisition systems using the Modbus RTU communication protocol – connection via RS-485 bus
• 4 outputs to indicate the status of the controller and connected wireless devices
• antenna diversification – automatic selection of the antenna that will be used to receive the transmission, depending on the level of the signal received
• programming of controller settings via:

  - control panel service menu or DLOADX software - in cooperation with control panels from the INTEGRA, INTEGRA Plus or VERSA

  families - ABAX 2 Soft program - when the controller works as a universal module of wireless devices (autonomously or with any control panel / controller)

• Updating controller software without having to disassemble it
• remote configuration and update of devices registered to the controller
• sabotage protection

Technical data:

• Supply voltage (±15%): 12 V DC
• Standby Current Consumption: 75 mA
• Maximum current consumption: 100 mA
• OC Type Outputs: 50 mA / 12 V DC
• Operating frequency band: 868,0 ÷ 868,6 MHz
• Radio communication range (in open area): up to 2000 m
• Environmental class according to EN50130-5: II
• Compliant with: EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-3, EN 50131-5-3
• Degree of protection according to EN50131-3: Grade 2
• Operating temperature range: -10°C...+55°C
• Maximum humidity: 93±3%
• Housing dimensions: 126 x 158 x 32 mm
• Electronics Board Dimensions: 103 x 139 mm
• Weight: 222 g

5. APD-200 Pet up to kg - WITHOUT handle Bracket D

Wireless PIR Pet motion detector, resistant to movement of animals weighing up to 20 kg.

The APD-200 Pet detector is designed to work as part of the ABAX 2/ABAX two-way wireless system. It is certified according to the requirements of EN 50131 Grade 2.

It is equipped with a quadruple pyroelement, advanced detection algorithm and dynamic temperature compensation, which ensures effective motion detection. APD-200 Pet supervises the motion detection system – in case it malfunctions, the detector will report an alarm. The device performs the PET function, thanks to which the movement of pets (up to 20 kg) does not trigger the alarm.

Configuration and software updates of detectors are carried out remotely. Radio communication in the ABAX 2 system is secured by AES encryption.

The LED indicator signals violations in test mode, thus facilitating the process of testing the detector.

The detector is powered by a CR123A 3 V battery, the condition of which is monitored on an ongoing basis. The device is characterized by low energy consumption, and the ECO function (only in ABAX 2) additionally allows you to extend the operating time of the device – up to four times.

The device has tamper protection against opening and detachment from the ground.

• certified according to the requirements of EN 50131 Grade 2
• quadruple pyroelement (passive infrared detector)
• modern wide-angle lens
• detection area: 14 m x 16 m, angle 83°
• advanced digital signal processing
• dynamic compensation of temperature changes in the protected room
• cooperation with:

  ABAX 2 system controllers ( ACU-220 and ACU-280 ) and ARU-200 retransmitter

  ABAX system controllers ( ACU-120 , ACU-270 , ACU-250 and ACU-100 (in version min. 4.04)), INTEGRA 128-WRL control panel and ARU-100 retransmitter - the required device software version should be checked in its description on the website

• radio communication range in open space:

  - in ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with ACU-280)

  - in ABAX: up to 500 m

• remote configuration and software update
• built-in temperature sensor (temperature measurement from -10°C to +55°C)
• LED indicator indicating violations in test mode
• pet resistance function (up to 20 kg)
• low power consumption and battery status control
• "ECO" option to extend the battery life of the device (only in ABAX 2)
• power supply: CR123A 3 V battery - included
• tamper protection against opening the housing and against detachment from the ground
• Environmental class according to EN50130-5II
• Detection area14 m x 16 m, 83°
• Temperature measurement in the range of-10°C...+55°C
• Radio communication range (in open area) for ACU-280 to 1600 m
• Radio communication range (in open area) for ACU-220 to 2000 m
• Radio communication range (in open area) for ACU-270 to 500 m
• Radio communication range (in open area) for ACU-120 to 500 m
• Degree of protection according to EN50131-2-2Grade 2
• Start-up time35 s
• Temperature measurement accuracy±1°C
• Compliant with EN50131-1, EN50130-4, EN50130-5
• Expected battery life (in years) up to 2
• Dimensions62 x 137 x 42 mm
• Standby power consumption70 µA
• BatteryCR123A 3V - included
• Operating frequency band868,0÷ 868,6 MHz
• Maximum humidity93±3%
• Weight107 g
• Maximum current consumption12 mA
• Recommended mounting height2,4 m
• Operating temperature range -10°C...+55°C
• Detectable movement speed0,3...3 m/s

6. SP-4003 R - external acoustic-optical beacon.

SP-4003 R is an optical-acoustic beacon designed for outdoor installation, equipped with super-bright LEDs and a piezoelectric transducer. Two optical sets located on the sides of the case make them increase the visibility of the glowing device, even from a considerable distance, also in daylight. One of three types of modulated sound signalling with an intensity of 120 dB is available to choose from. The housing of the beacon is made of polycarbonate, which ensures high mechanical strength and aesthetic appearance of the device, which remains unchanged despite the passage of years. The simple yet attractive design of the housing is ideal even on a modern facade. The device is equipped with tamper protection against opening the housing or detaching from the wall, and the internal galvanized sheet cover provides additional protection of the electronics board and the transducer against mechanical damage. Thanks to proper impregnation, the electronics system is also resistant to harsh environmental conditions.

• acoustic signalling: piezoelectric transducer
• optical signaling: super bright LED 2x 24 pcs. Vertical
• inner metal cover
• Tamper protection against detachment from the ground / opening of the housing

Technical data:

• Environmental Class: III
• Housing dimensions: 148 x 254 x 64 mm
• Operating temperature range: -35...+55 °C
• Rated supply voltage (±15%): 12 V DC
• Maximum current consumption: 520 mA
• Weight: 894 g
• Sound Intensity: 120 dB

7. OPU-3 P plastic housing - surface mounted.

Note! - the base (rear) of the housing can also be flush-mounted.

OPU-3 P is a durable surface mounted housing, made of polystyrene in white. Thanks to its aesthetic appearance, it is possible to use it in utility rooms, in plain sight. The base of the housing can be embedded into the wall, so that the housing itself will take up less space. The universal nature and extensive dimensions of the housing allow the installation of alarm control panels, expansion modules, communication modules, controllers and many other devices inside it. The use of special dismantled mounting panels further facilitates the installation and maintenance of system components. OPU-3 P is equipped with double tamper protection: against opening the lid and detachment from the wall.

The housing has a place for mounting 40 or 60 VA mains transformers and a 12V battery with a maximum capacity of 18Ah.

It does not block or weaken the radio signal, so wireless devices with antennas can be placed inside it.

Data:

• Tamper protection against opening and detachment from the ground
• dismantled two mounting plates for easy installation and maintenance of the system
• possibility of installing wireless devices with antennas inside the housing
• space for transformer: 40 or 60 VA and battery max. 18Ah
• possibility of mounting the APS-412 power supply in place of the transformer
• dimensions: 324 x 382 x 108 mm
• weight 1850 g
• included are all mounting accessories: pegs, screws, tamper switches, etc.

The presented photo of the case with accessories is illustrative.

The picture shows a profiled battery support sheet that has been replaced with a strong plastic base.

8. AWT682 transformer 230/18/20VAC - 60VA

9. 12V / 18Ah battery

Attention!!! - The most frequently proposed batteries are brands: MW Power; IPS with appropriate technical parameters,

Therefore, the photo deliberately does not mention its brand. The reason for the above is the high rotation of batteries, dot. their current production and new supplies.

ALL products of the SATEL brand are in adjacent auctions.

Specifications
