Signalizacijos sistema RTX su 7" LCD, belaidžiai jutikliai, GSM ir 4G pranešimai, TUYA WiFi

Trumpai apie prekę

Prekė: Signalizacijos sistema RTX su 7" LCD, belaidžiai jutikliai, GSM ir 4G pranešimai, TUYA WiFi. Kategorija: Rinkiniai.

• Gamintojas: RTX
• Modelis: WAS3

WiFi and GSM notification, compatible with Tuya and Smart Life

• Readable 7" IPS LCD touchscreen display
• Remote operation via Tuya Smart app and remote control
• Support for 4G SIM cards (card not included)
• Notification in the app, SMS or call
• GSM/GPRS and WiFi communication
• Built-in sounder
• Wired siren set
• 50 channels for wireless sensors
• Defined I/O delay times
• Possibility of assigning sensors to the round-the-clock or user-armed zone
• Cooperation with wireless siren, detectors (e.g. movement, input, gas, smoke) , remote controls
• Built-in back-up cell 500 mAh
• Voice messages in 10 languages, Polish

To operate the devices, it is necessary to have a 2,4GHz Wi-Fi router with Internet access.

Touch panel with easy-to-read LCD screen

• Responsive touch panel with IPS 7" matrix
• Current state and current weather for the system installation site
• Support and configuration of all functions from the panel or from the application
• Built-in beacon of voice messages (Polish)
• Disarming with a PIN code, remote control or from the app
• Optional automatic screen blanking
• Multicolored status indicator
• The USB-C power connector, optional SIM card and wired siren are placed on the back recessed part allows wall mounting without visible wires

Two weapon modes, disarmament and SOS call for help

• Arming - activation of all sensors assigned to the "after-home" zone
• Arming at home - the ability to leave active safety sensors such as smoke or gas, or sensors in rooms protected non-stop.
• Disarmament - deactivation of all sensors
• SOS - immediate alerting with sending a notification in the application and to saved SMS recipients and calling.

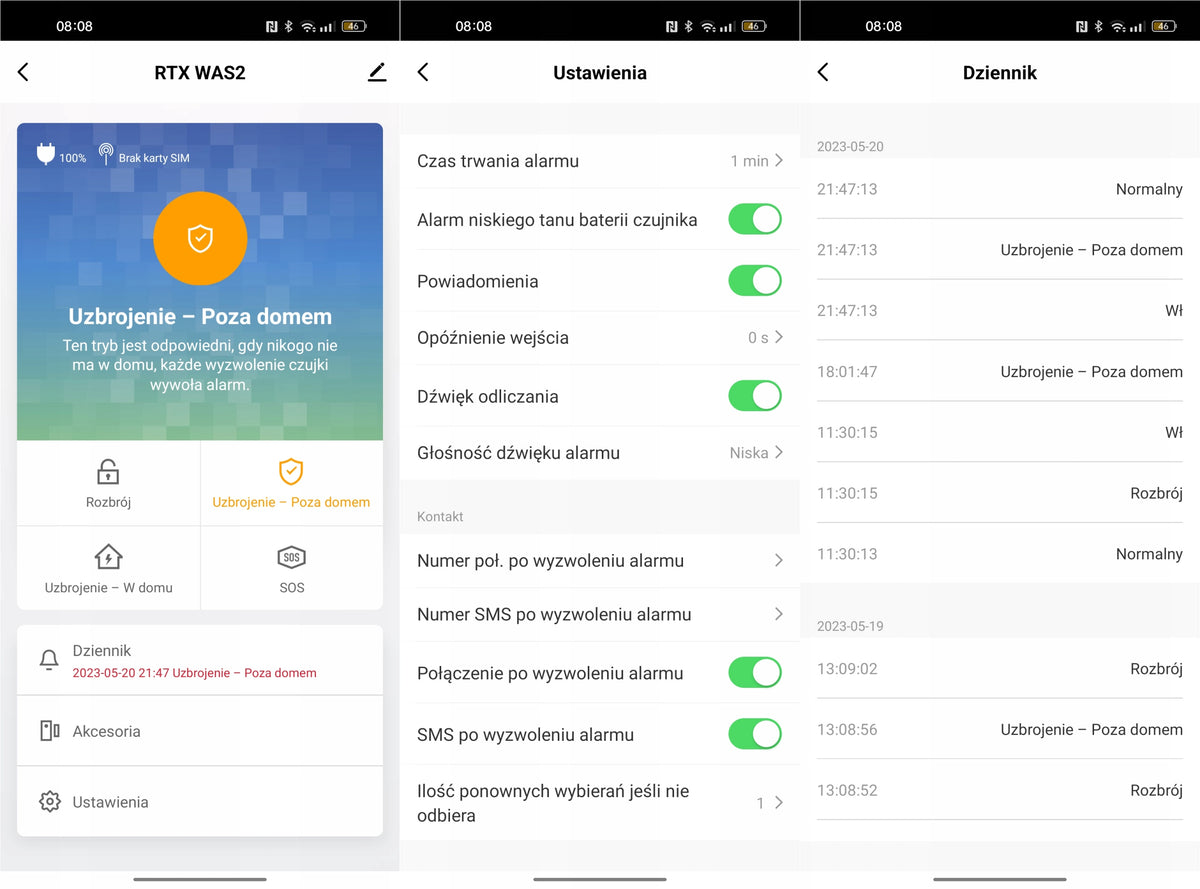

All system functions can be configured in the app

• Setting the time for input/output and alarming
• Configuration of notifications and numbers application/SMS/ringing
• Setting the number of re-calls with a call
• Setting the type of system elements and assigning their role

Each action is stored in the application log.

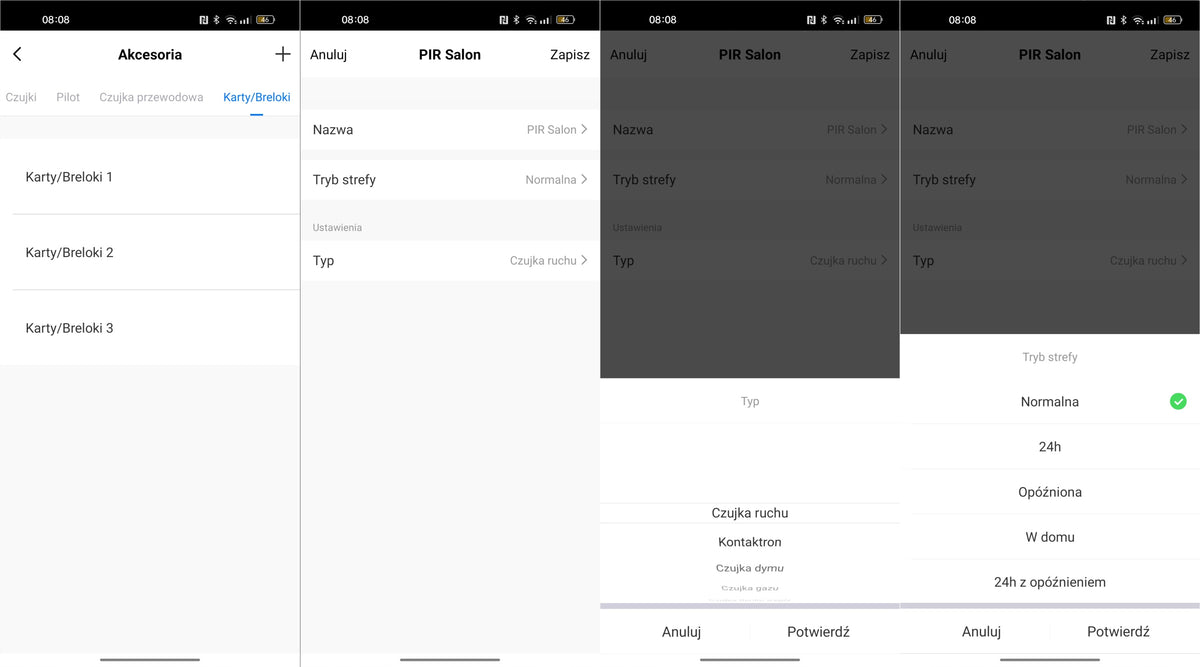

The system accessory settings panel allows you to assign a type for each element and set its operating mode

All system functions can also be configured using the touch panel

Panel - control panel of the alarm system

• Accessories support: up to 50 RF 433Mhz sensors for 10 remote controls, 1 wired siren,1 wireless siren
• Wi-Fi connectivity: IEEE802.11b/g/n
• GSM connectivity: 850/900/1800/1900 MHz (4G)
• Radio communication (RF): 433MHz FSK
• Display: 7" IPS touch
• Assembly: wall (handle included) or desk (stand)
• Power Supply: Micro USB 5V (110/230V AC power supply included)
• Emergency power supply: 3,7 V lithium-ion cell, 5000 mAh
• Power consumption: < 150mA/standby , 500mA/alarming
• Working temperature: -10~55°C

Door/Window Contact Sensor

• Power supply: DC 3 V (lithium battery CR2032 x1)
• Power consumption:< 8uA/standby , < 15mA/alarming
• Transmission range: < 50m (open space/no interference)
• Radio frequency (RF): 433MHz
• Working temperature: -10~55°C

PIR motion sensor

• Power Supply: Battery 1,5 V AA x3
• Power consumption:< 15uA/standby , < 15mA/alarming
• Detection range: < 12 meters
• Detection sector:110°
• Transmission range:< 50 m (open space and no interference)
• Radio frequency (RF): 433MHz
• Working temperature: -10~55°C

Remote control (2pcs. included in the set)

• Power Supply: CR2025 battery
• Power consumption:< 5uA/StandBy , < 15mA/transmission
• Transmission range:< 50 m (open space and no interference)
• Radio frequency (RF): 433MHz
• Working temperature: -10~55°C

Wired siren - RFID tag

• Sound strength: 118dB
• Cable length: 150cm
• Working temperature: -10~55°C

The RTX WAS2 alarm system can be extended with additional, optional wireless accessories - up to 50 sensors, up to 10 remote controls and up to 10 identifiers. You can also equip the system with a wireless external alarm siren.

In our offer you will find:

• vibration sensor
• contacttrons - magnetic input sensors
• PIR motion sensors
• smoke detectors
• gas sensors
• pilots
• wireless siren

If you want to buy additional accessories matching the RTX system, type "433 for RTX"

Tuya Smart Life is the most popular smart home management app.

• integration of more than 11000 different devices
• 30 categories (control, air conditioning, monitoring, etc.)
• 10000 manufacturers of smart devices
• develops new features and supported devices every day
• available for free for Android and iOS

Dedicated Tuya Smart Life app - easy installation and hassle-free operation.

Wherever you are, you can control the safety of your property!

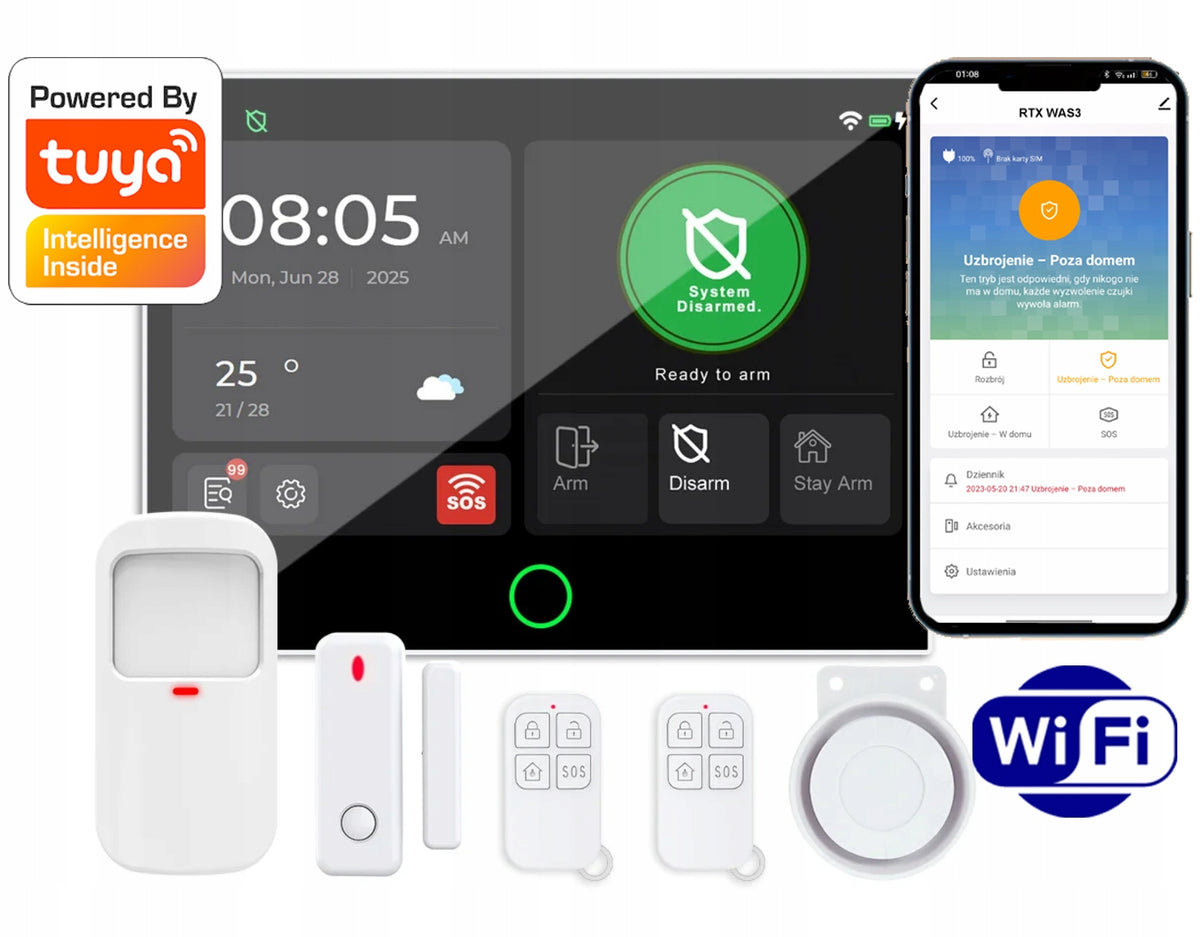

• LCD panel -control panel
• Pir sensor
• Reed sensor
• Pilot (2pcs)
• Wired siren 118dB
• Plug-in power supply 230V/5V 1000mA
• Operating instructions

Specifications
