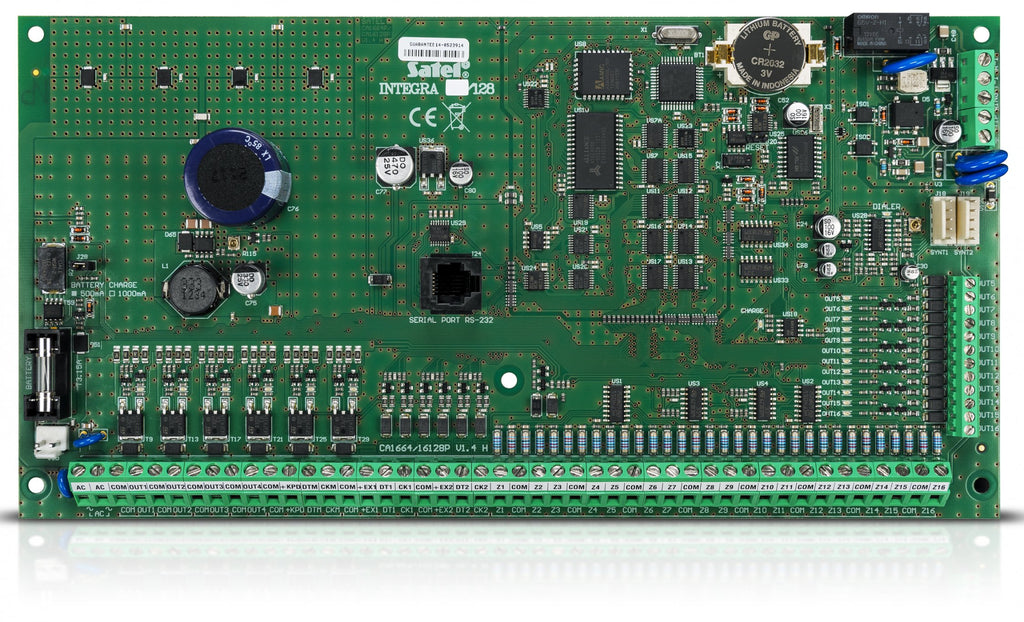

Signalizacijos valdymo pultas Integra 128 pagrindinė plokštė SATEL

Trumpai apie prekę

Prekė: Signalizacijos valdymo pultas Integra 128 pagrindinė plokštė SATEL. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: INTEGRA 128

INTEGRA 128

The main board of the control panel from 16 to 128 inputs

+ all necessary accessories for mounting the motherboard, i.a.:

connection cable control panel - battery ; resistors ; pins ; instructions .

Advanced control panels offering in addition to alarm functions,

also the possibility of implementing home automation systems and access control.

With a wide range of expansion modules, their capabilities can be tailored to your current needs

– from small systems to extensive installations.

A big advantage of INTEGRA control panels are their communication capabilities in combination with additional modules – GSM and TCP/IP.

• 16 to 128 inputs support
• possibility of dividing the system into 32 zones, 8 partitions
• Support 16 to 128 programmable outputs
• Communication buses for connecting manipulators and expansion modules
• built-in telephone communicator with monitoring, voice notification and remote control
• operation of the system using LCD keypads, zone keyboards and optionally using remote controls, proximity cards, remotely using a computer or mobile phone
• 64 independent timers for automatic control
• Access control and home automation functions
• memory of 22 527 events with print function
• Support up to 240+8+1 users
• RS-232 port - RJ socket
• possibility of updating the software using a computer
• Built-in 3 A switching power supply with battery charging and diagnostic functions
• option not to report possible problems with connection to the SATEL server as a failure

Technical data:

Environmental class II

Control panel power supply voltage (±10%) 13,8 V DC

Load capacity of low current programmable outputs 50 mA

Load capacity of high current programmable outputs (±10%) 3000 mA

Power supply current capacity 3 A

Dimensions of electronics board 264 x 134 mm

Operating temperature range -10...+55 °C

Mainboard supply voltage (±15%) 20 V AC, 50-60 Hz

Current consumption at standby 149 mA

Maximum current consumption 337 mA

ALL models of control panels and products of the SATEL brand are in adjacent auctions.
