Signalizacijos valdymo pultas SATEL Integra 128 PLUS Grade 3

Trumpai apie prekę

Prekė: Signalizacijos valdymo pultas SATEL Integra 128 PLUS Grade 3. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: Integra 128 Plus

INTEGRA 128 PLUS

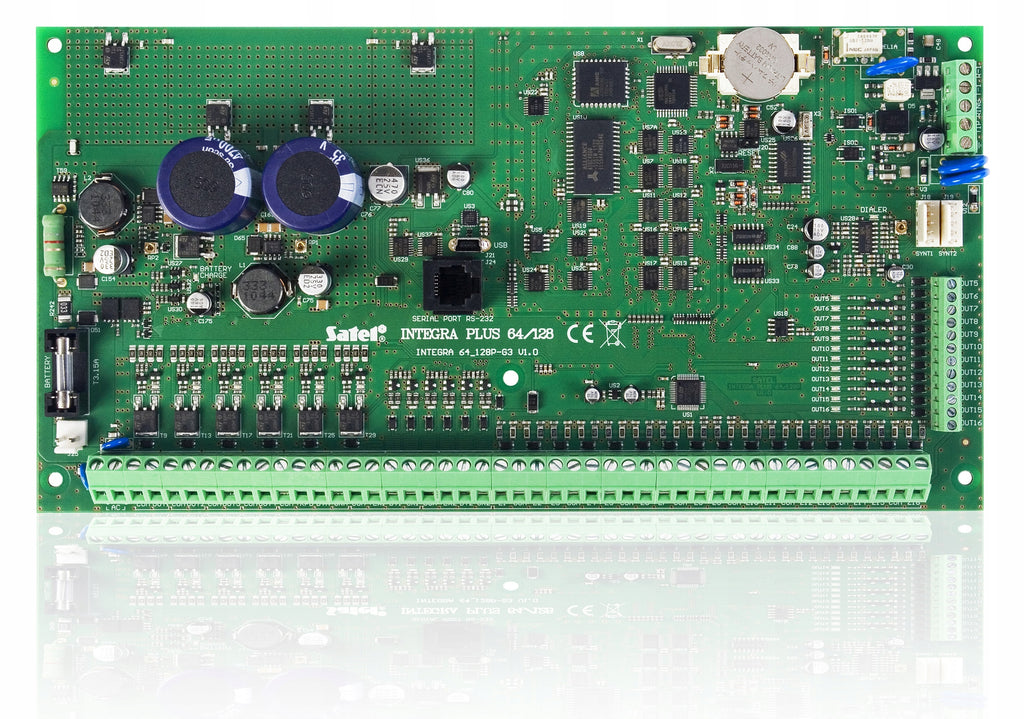

The main board of the control panel from 16 to 128 inputs and outputs,

meeting the requirements of the GRADE-3 standard

+ all necessary accessories for mounting the motherboard, i.a.:

connection cable control panel - battery ; resistors ; pins ; instructions .

With full compliance with the requirements of EN50131 Grade 3,

INTEGRA Plus series control panels are perfect for the implementation of advanced security systems in facilities

with a particularly high risk of burglary – e.g. banks, jewellery stores or public buildings.

These control panels are characterized by extensive functionality, which allows them to be used for implementation

access control systems or even smart building systems.

• full compliance with EN50131 series standards for Grade 3 (Grade 3) devices
• built-in advanced 2A+1,5A power supply with extensive diagnostics
• support for up to 128 inputs with the possibility of programming parametric resistance and support for 3EOL lines (mainboard inputs only)
• USB port for programming with PC
• possibility of dividing the system into 32 zones and 8 partitions
• Expansion to 128 programmable outputs
• Communication buses for connecting manipulators and expansion modules
• built-in telephone communicator with monitoring, voice notification and remote control
• operation of the system using LCD keypads, zone keyboards and optionally using remote controls, proximity cards, remotely using a computer or mobile phone
• 64 independent timers for automatic control
• Access control and home automation functions
• memory of 22 527 events with print function
• Support up to 240+8+1 users
• possibility of updating the software using a computer
• option not to report possible problems with connection to the SATEL server as a failure

Technical data:

Voice Communications 32

Load capacity of low current programmable outputs 50 mA

Load capacity of high current programmable outputs (±10%) 3000 mA

Event memory 22527

Partitions 8

Zone 32

Timers 64

Dimensions of electronics board 264 x 134 mm

Operating temperature range -10...+55 °C

Supply voltage (±15%) 20 V AC, 50-60 Hz

Weight 320 g

Maximum humidity 93±3%

Current consumption from the battery – standby 130 mA

Recommended transformer type 75 VA

Battery failure report voltage (±10%) 11 V

Battery cut-off voltage (±10%) 10,5 V

Environmental class according to EN50130-5 II

Standby current consumption from the mains 230 V 135 mA

Maximum current consumption from the mains 230 V 400 mA

Users + Administrators 240 + 8

Maximum current consumption from the 200 mA battery

Maximum charging current of the battery 1500 mA

Power supply current capacity (powering devices + charging battery) 2000 + 1500 mA

Output voltage of the power supply 10,5...14 V DC

Output load capacity +KPD (±10%) 3000 mA

Output capacity +EX1 and +EX2 (±10%) 3000 mA

Programmable Wired Inputs 16

Maximum number of programmable inputs 128

Programmable Wired Outputs 16

Maximum number of programmable outputs 128

Power Outputs 3

Communication buses 1 + 2

Manipulators up to 8

Expanders up to 64

Phone numbers for notification (voice/PAGER + SMS) 16 + 16

Installer-defined text messages 64

Degree of protection according to EN 50131

Grade 3
