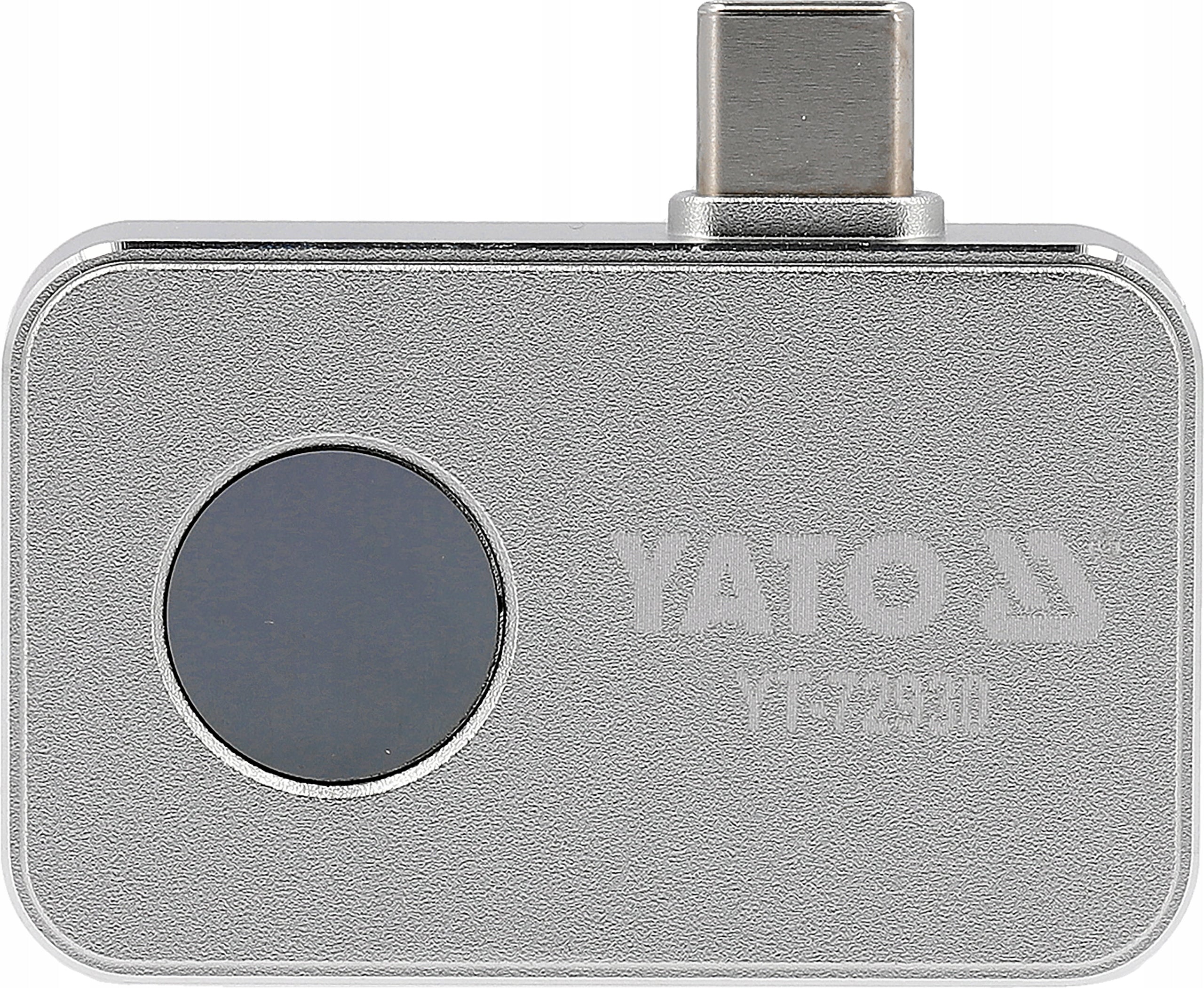

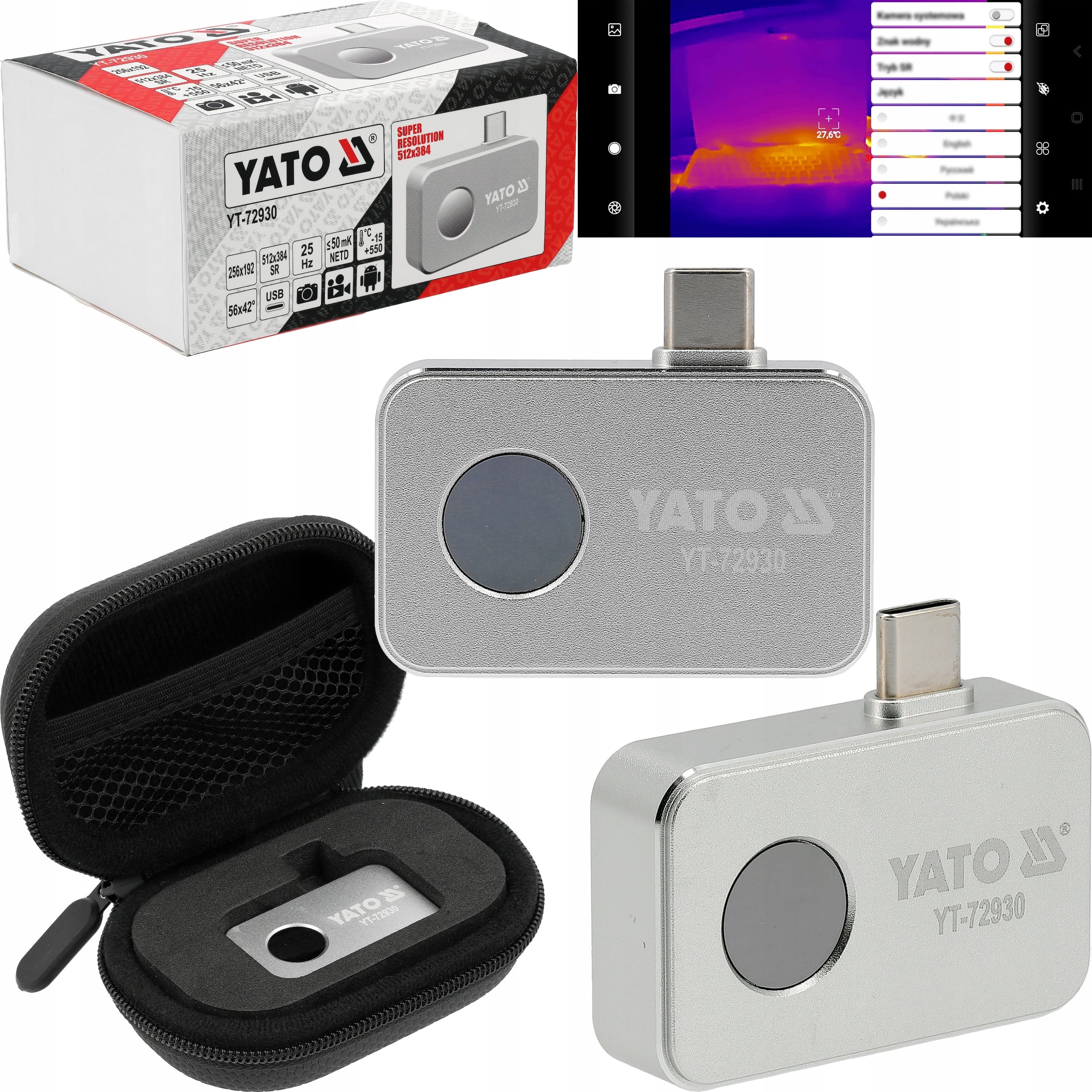

Šiluminė kamera YATO USB-C Android, -15–550°C, 25 Hz, 256x192, SUPERRES

Trumpai apie prekę

Prekė: Šiluminė kamera YATO USB-C Android, -15–550°C, 25 Hz, 256x192, SUPERRES. Kategorija: Detektoriai.

• Gamintojas: Yato
• Modelis: yt-72930

⭐The YATO YT-72930 thermal imaging camera is an advanced, miniature accessory that turns your Android smartphone into a professional diagnostic tool.

⭐ Thanks to the USB-C connector and a dedicated application, the device enables immediate detection of thermal bridges, faults in electrical installations or heat leaks, offering the precision required in the work of a service technician and engineer.

⭐The most important features and benefits:

✅ Super Resolution ➡ The algorithm boosts the resolution to 512x384 px, which guarantees 4 times more detailed images than standard cameras of this class.

✅ 25 Hz ➡ refresh rate Provides smooth jam-free video, making it easier to observe moving objects and quickly inspect large areas.

✅ Wide measuring range (-15°C to +550°C) ➡ Allows diagnosis of both refrigeration systems and highly heating engine components or industrial installations.

✅ High thermal sensitivity (NETD ≤50 mK) ➡ It allows you to detect even minimal temperature differences, which is crucial when locating moisture or weak contacts.

✅ Power supply from smartphone ➡ No need to charge additional batteries means that the device is always ready to work when connected.

✅ Compact design ➡ Low weight (approx. 18 g) and miniature dimensions allow you to always have the camera with you in your pocket or toolbox.

🔎 Precise optics and image quality

The heart of the device is a modern VOx microbolometer (vanadium oxide) with a native sensor resolution of 256 x 192 px. However, thanks to the implemented Super Resolution function, the camera programmatically increases the effective resolution to 512 x 384 pixels.

For the user, this means:

• Sharp contours of the studied objects.
• Possibility to see small elements of SMD electronics.
• Easier identification of the problem on the generated reports.

The 56°x42° lens makes the camera versatile – it works both in tight spaces and when observing objects from a distance of up to 5 meters.

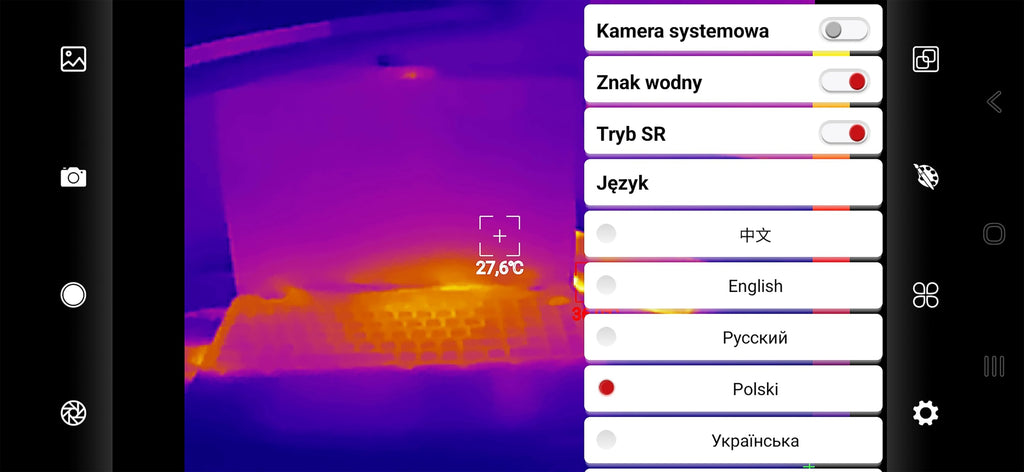

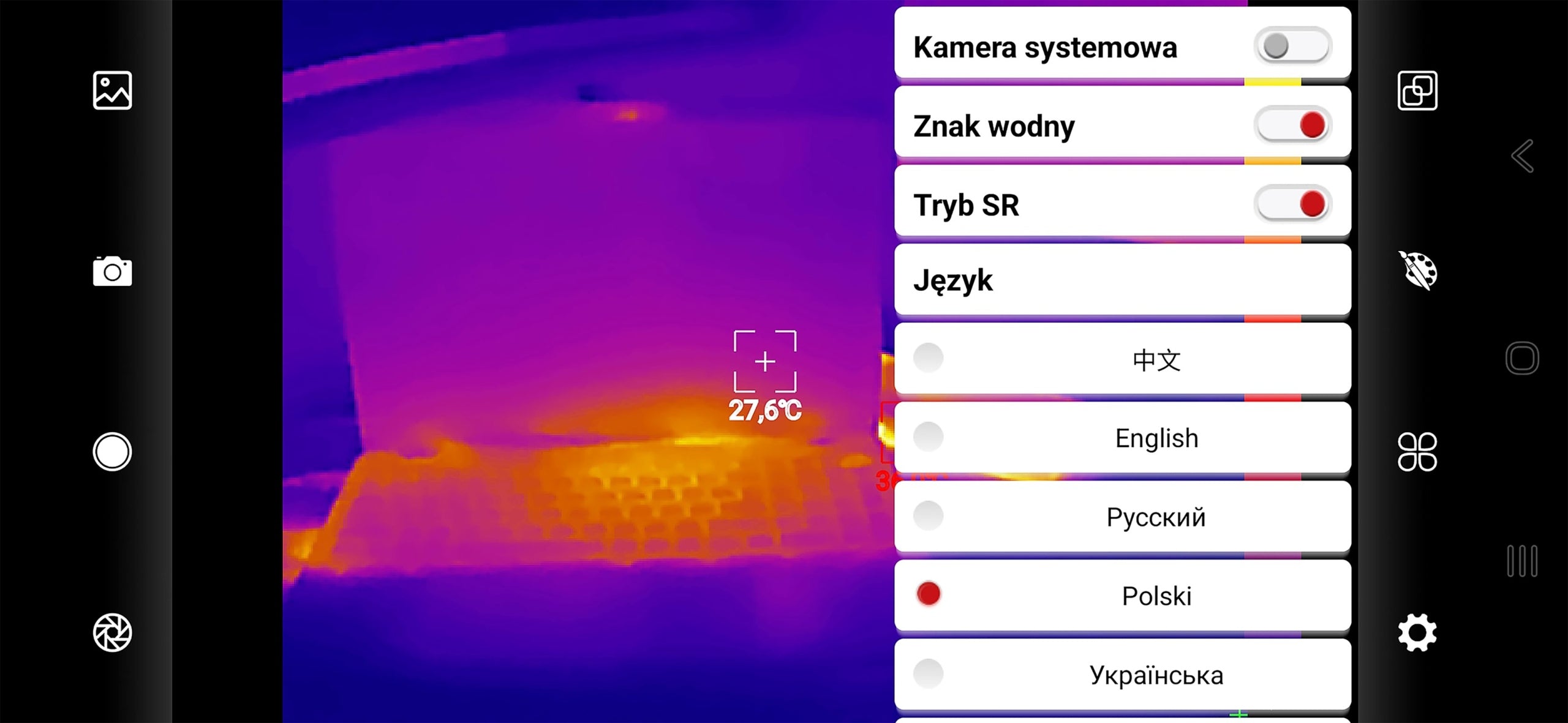

📱 Dedicated application and data analysis

The full functionality of the YATO YT-72930 camera is released by a free Android application (downloadable from the Google Play store) and https://toya.pl/en/yato-thermal-app.

The interface is designed to simplify the diagnostic process as much as possible.

Key features of the software:

• Measurement modes: Point (central), linear and area (region measurement) with automatic indication of the warmest and coldest point.
• 10 color palettes: Including the popular modes "Rainbow", "Iron Red" or "White Hot", allowing you to adjust the contrast of the image to the specifics of the object under study.
• Media recording: Saving photos (JPG) and video recording (MP4) directly in the phone's memory, making it easy to create documentation for the customer.

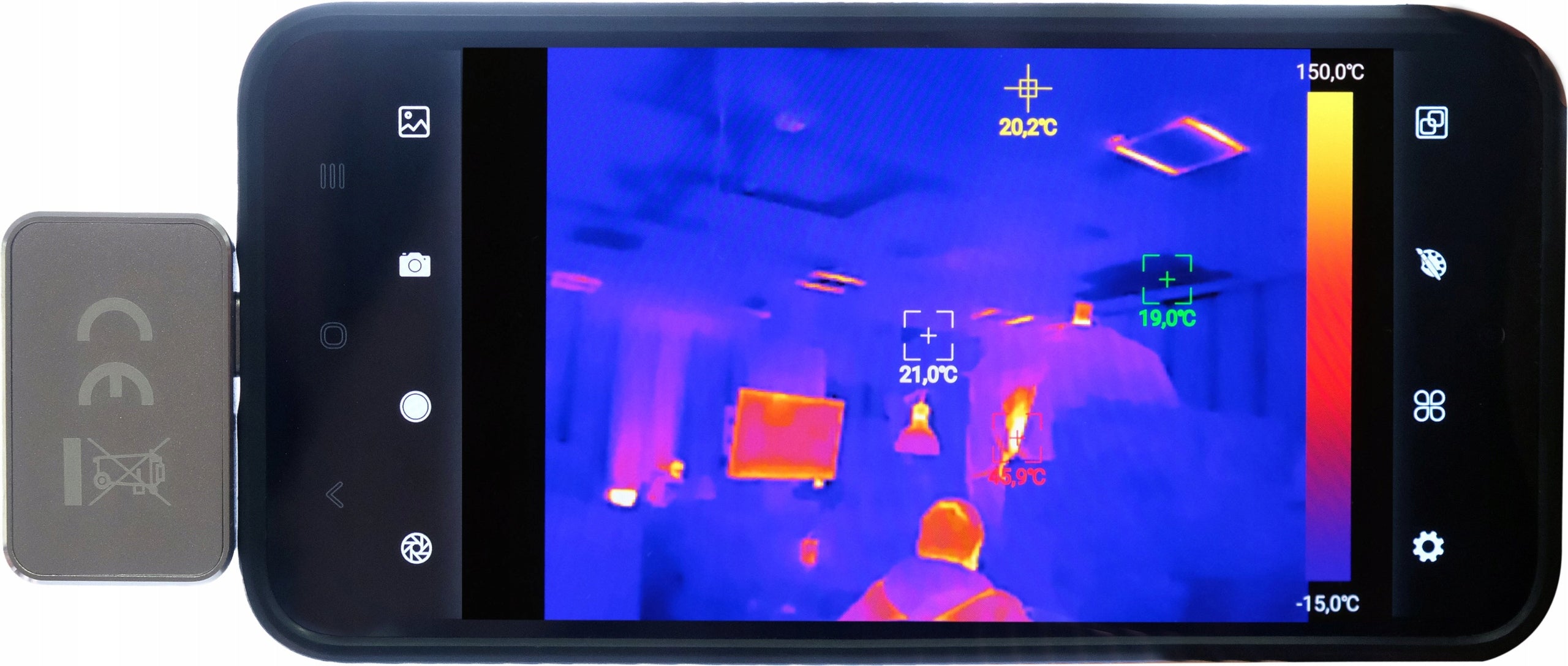

⚙ Ease of use and compatibility

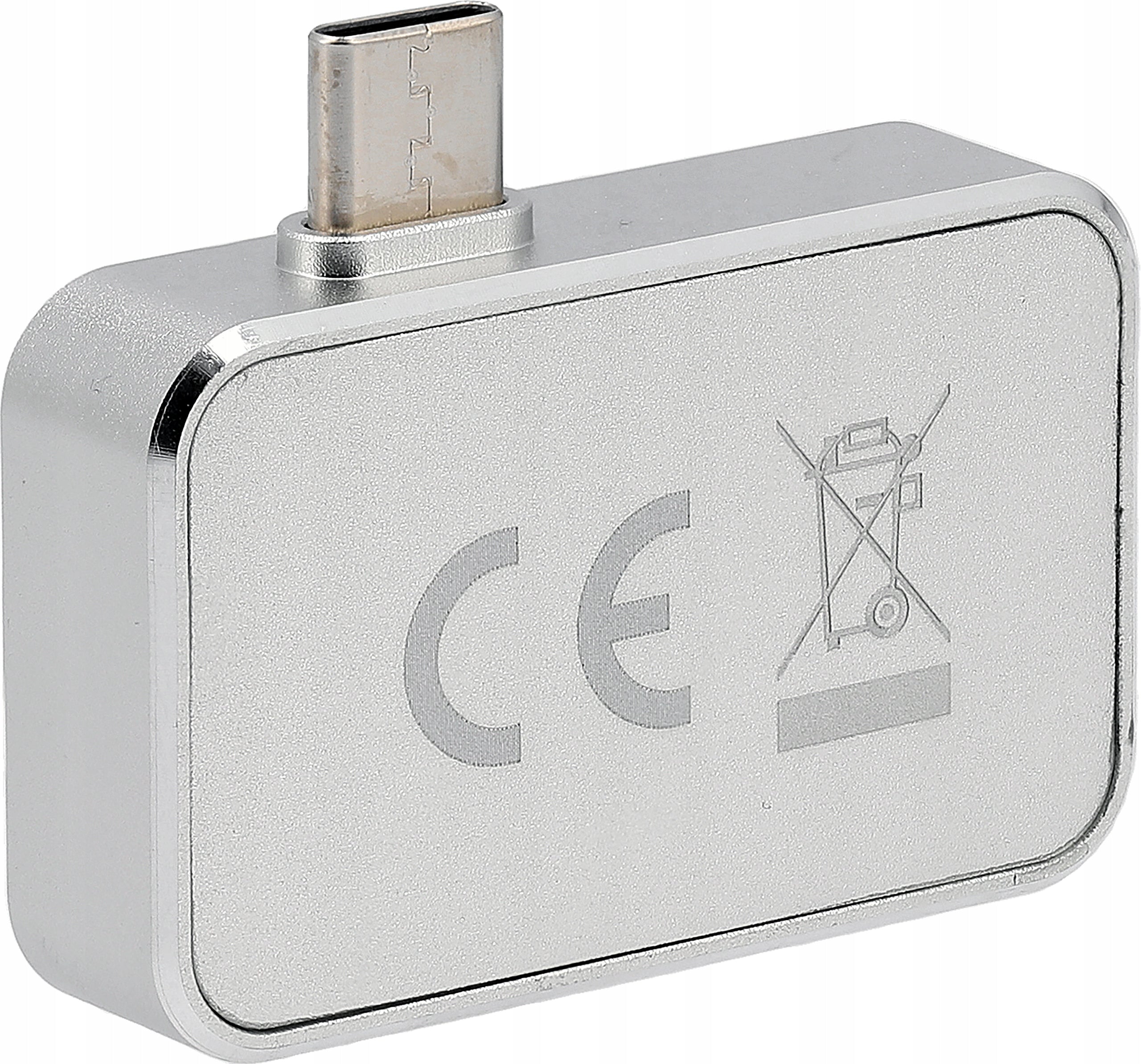

The camera works on the principle of Plug & Play. It is equipped with a standard USB type C connector, which fits most modern smartphones and tablets. The device draws a minimum amount of energy (≤0.35 W) from the phone's battery, so you do not have to worry about additional chargers or power cables.

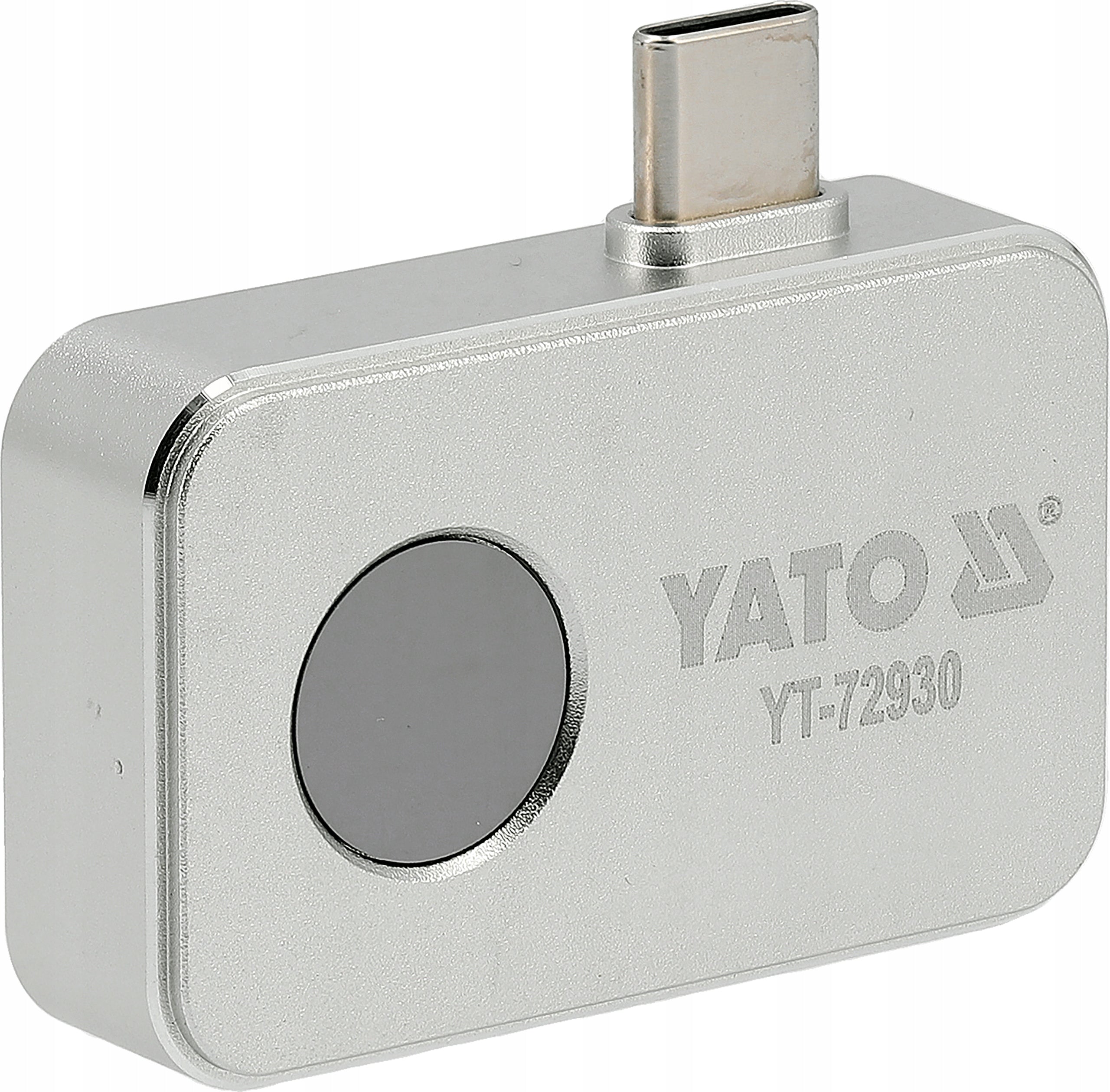

The robust aluminum housing protects delicate electronics from mechanical damage, while effectively dissipates heat, ensuring stable sensor operation.

🎒 Mobility and contents of the set

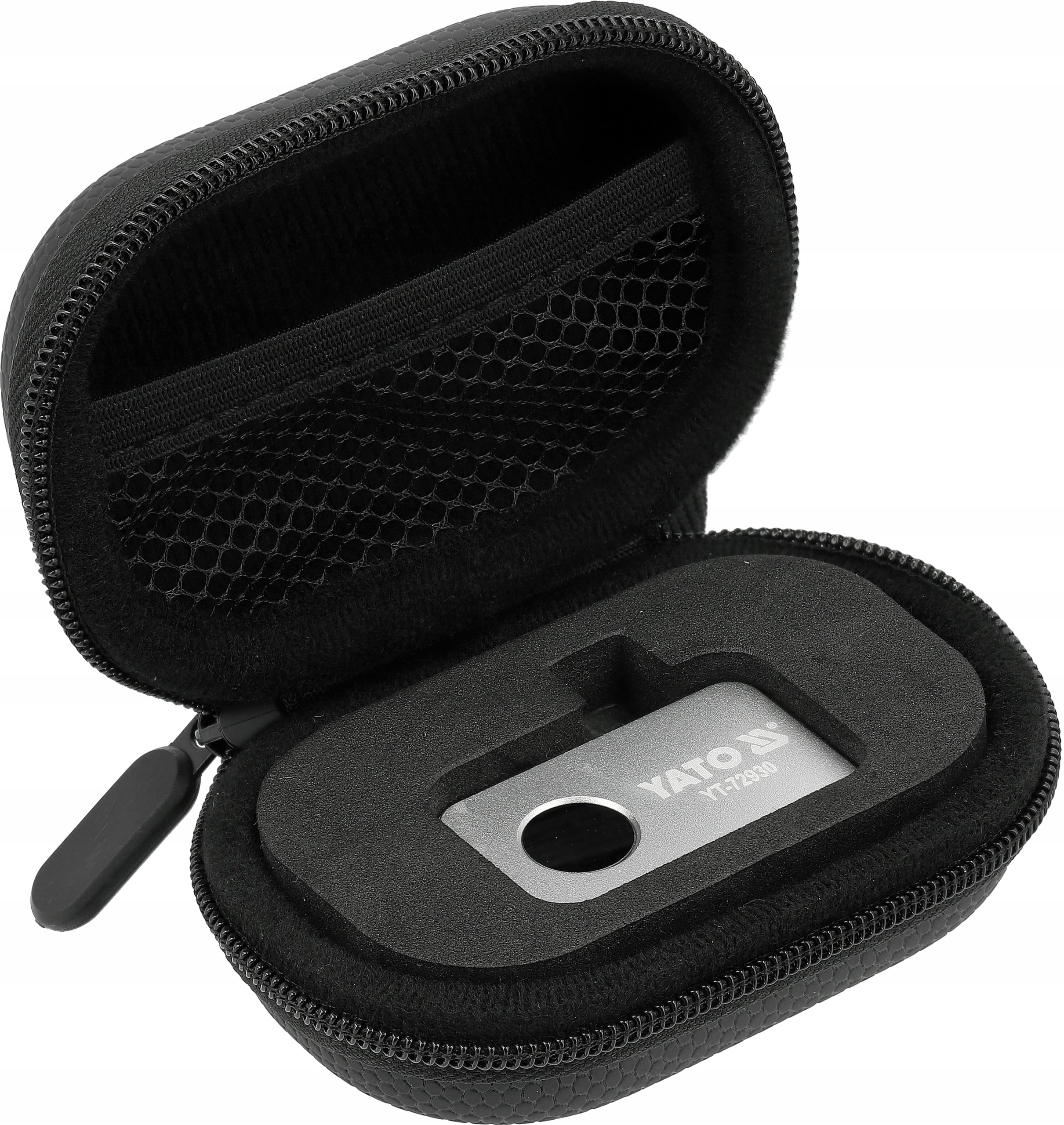

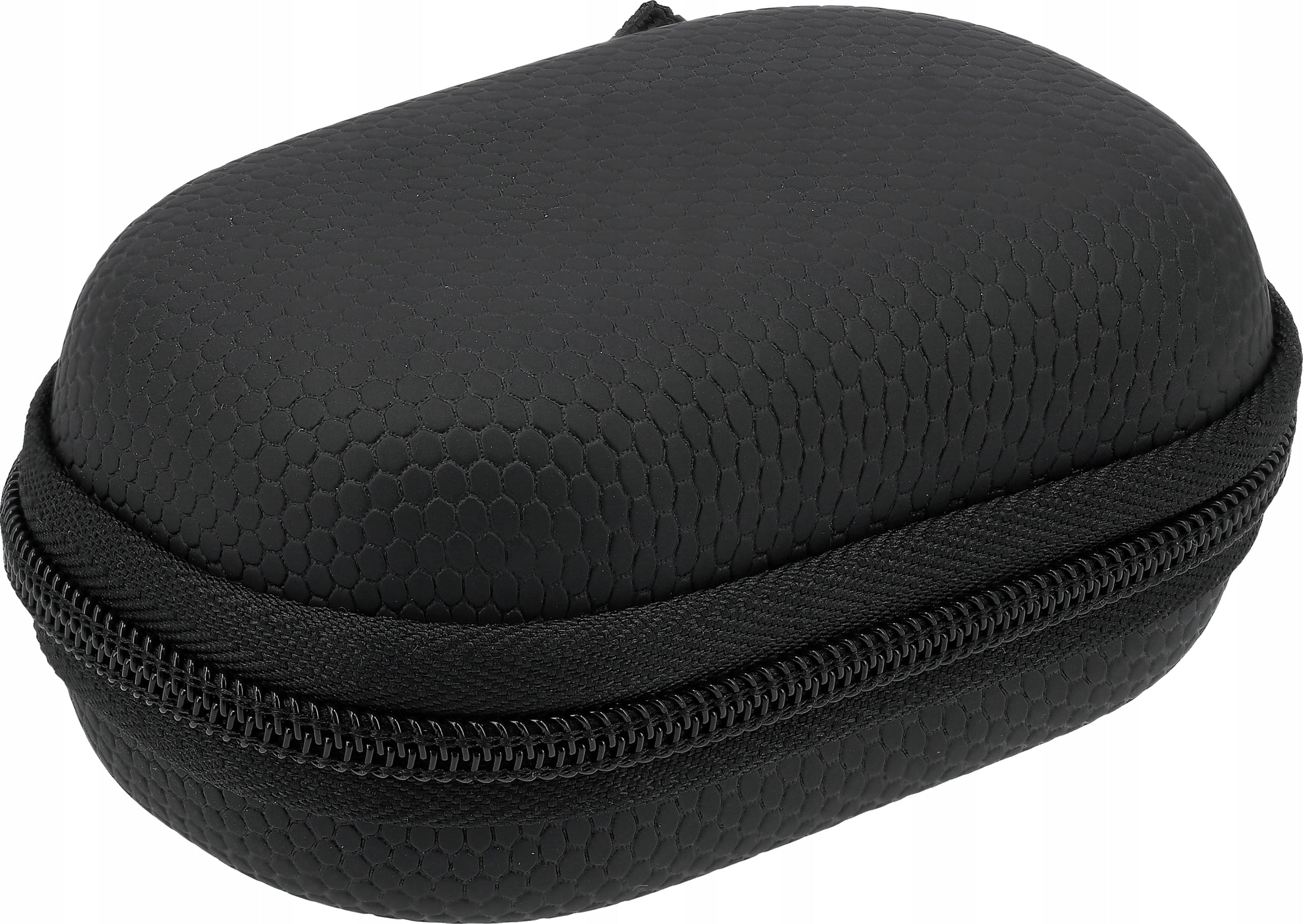

Despite professional parameters, the camera retains a pocket size (45x36.7x11.5 mm). The manufacturer took care of the safety of transport by attaching a dedicated, hardened case to the set. It protects the lens and USB connector from dust and scratches in difficult workshop conditions.

Application in practice:

• Construction: Location of thermal bridges, dampness, heat loss through windows/doors.
• Electrics: Detection of overheating fuses, contacts and wires.
• HVAC: Checking the patency of underfloor heating pipes and air conditioning tightness.
• Automotive: Diagnostics of cooling system, brakes and heated seats.
• Electronics: Detection of short circuits on PCBs.

Parameters

• Power: ≤0.35 W
• Working range: 0.25-5 m
• Temperature measurement range: -15 ~ +150 / -5 ~ +302, 150-550 / 302-1022 ˚C/˚F
• Relative operating humidity Rh: 10-85 %
• NETD (thermal sensitivity): ≤50 @ 25°C mK
• Temperature measurement accuracy: ±3°C (−15 ~ −10°C), ±2°C or ±2% (−10 ~ 550°C)
• Functions: support via dedicated Android application
• Measurement modes: point, linear, regional
• Type of charger: USB Type-C
• Dimensions: 45x36.7x11.5 mm
• Angle of view: 56x42 ˚
• IFOV: 3.75 mrad
• Write format: JPG (images), MP4 (video)
• Type of sensor: VOx microbolometer (vanadium oxide)
• Color modes: 10 (e.g. rainbow, red iron, red warm, white warm, black warm)
• Effective resolution: 512x384 px
• Sensor resolution: 256x192 px
• Screen refresh rate: ≤25 Hz
• Menu languages: Polish, English, Ukrainian, Russian
• Data export: USB Type-C (computer connection)
• Input voltage: 5 V d.c.
• Mass: 18 g
• Application: electrical inspections and detection of overheated connections, detection of thermal bridges and heat losses in buildings, servicing of HVAC equipment, industrial and preventive inspections, automotive diagnostics and thermal tests of electronics

AR9GWEYT-72930MK3S
