Šiluminė oro užuolaida su vandens šilumokaičiu Reventon HUMMER 150W-1P

Trumpai apie prekę

Prekė: Šiluminė oro užuolaida su vandens šilumokaičiu Reventon HUMMER 150W-1P. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: ACH150W-2001
• Galia: 27.9 W

Producer: Reventon

Condition: new

Packaging: original

Origin: official distribution

Warranty: manufacturer

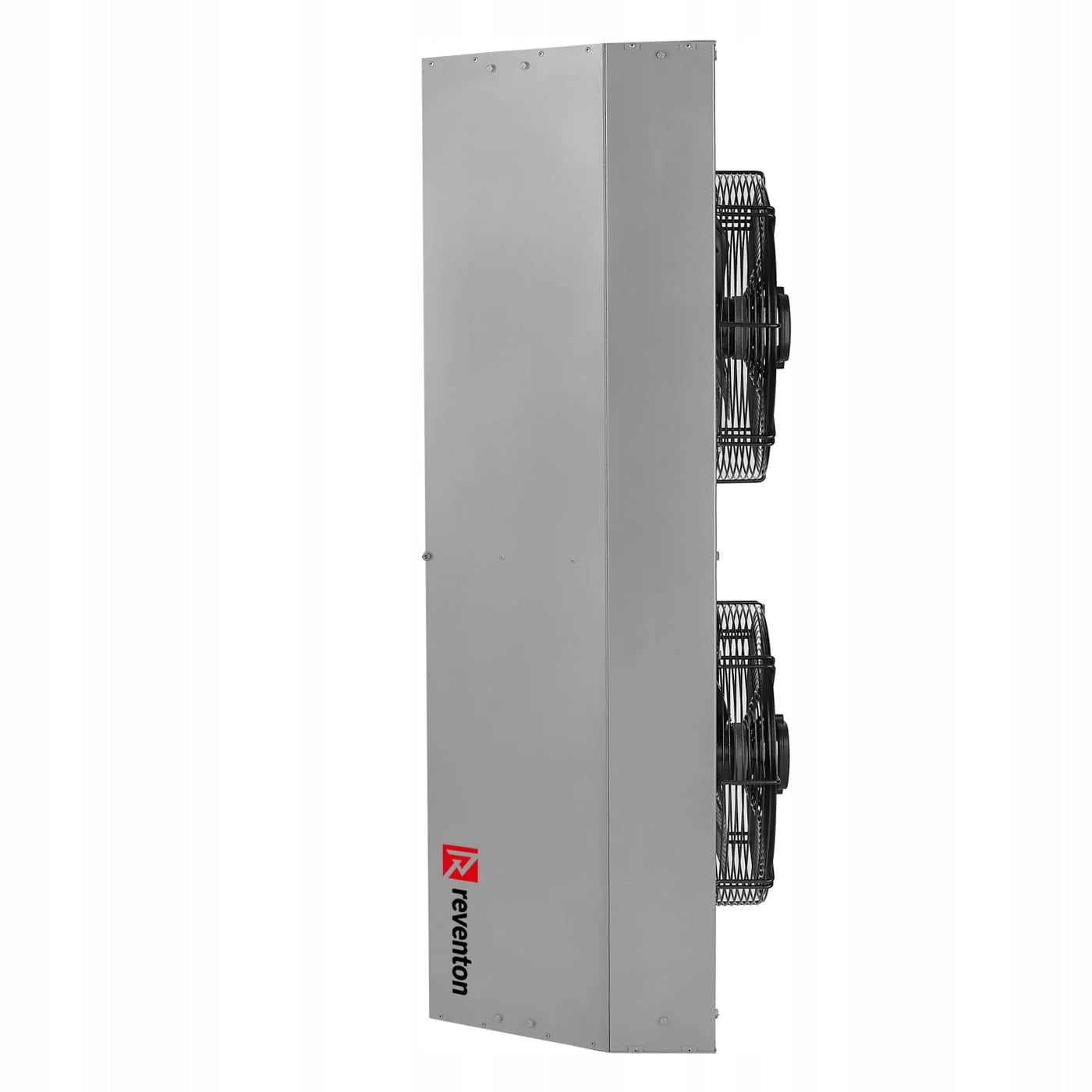

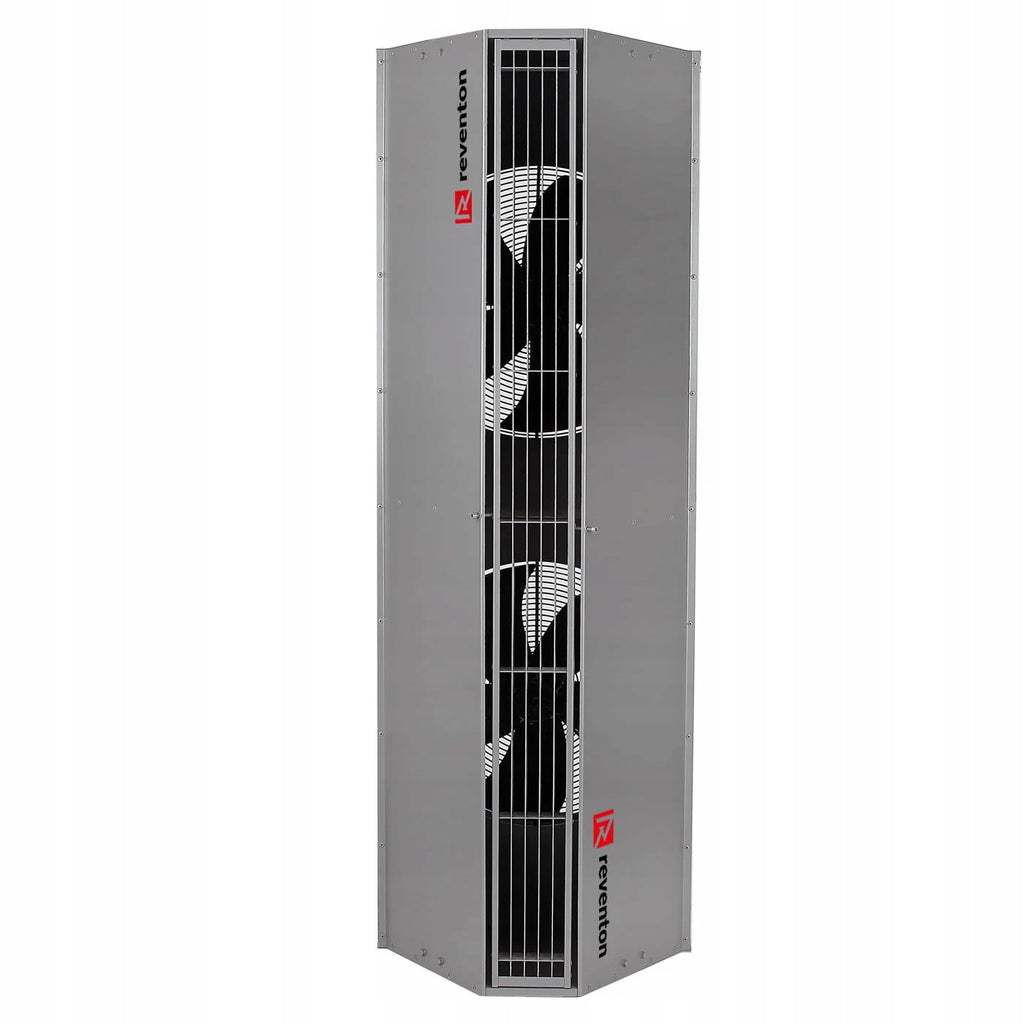

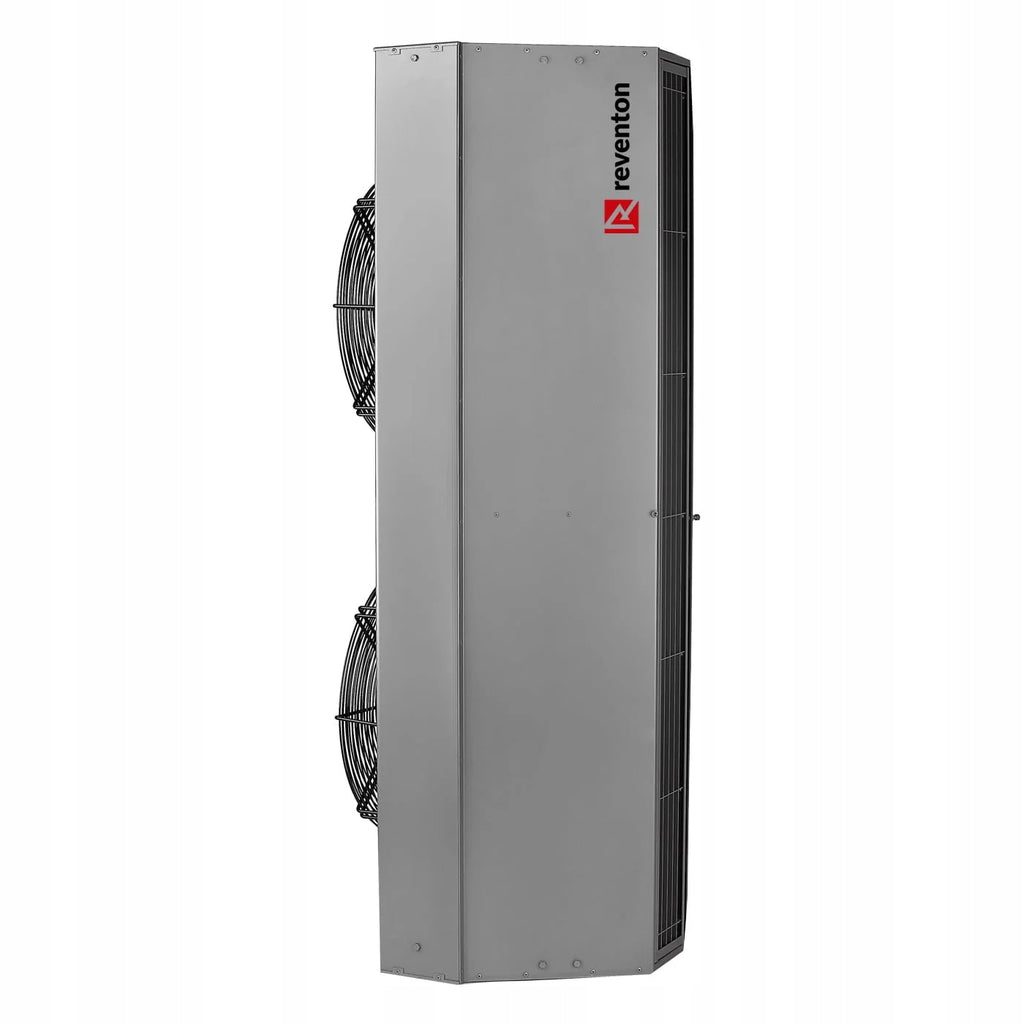

Door curtain with water heater Reventon HUMMER 150W-1P

HUMMER series door air curtain with heat exchanger. The water air curtain has a single-row or double-row heat exchanger that heats the air flowing through it. Air curtains are perfect for loading and unloading areas, creating a kind of air barrier when the entrance gate is opened. The main function of a gate curtain is to protect the facility against the escape/inflow of air at undesirable temperatures.

Application

Reventon HUMMER 150W-1P gate curtain with water heater is designed for installation at industrial gates in places such as:

• warehouses,
• logistics centers,
• garages,
• car workshops.

Parameters

Power range: 30.8 - 89.9 kW

Range: up to 7.5 m

Weight: 51 - 78 kg

Housing: powder-coated galvanized steel

Additional information:

• Water curtains have a 1-row or 2-row heat exchanger,
• Fans are devices with a protection class of IP 54 and meet the requirements of the European Directive 2009/125/EC (ErP 2015).

Control

HUMMER series air curtains have dedicated accessories to automate the operation of the device. The use of appropriate automation allows the curtain to be programmed to adapt its operation to specific needs.

Advantages

• mounting elements included,
• effective protection against heat loss,
• durable housing,
• two coatings protecting the device against corrosion,
• easy assembly,
• modern design of the device.

Technical data

HUMMER

150W-1P

HUMMER

200W-1P

HUMMER

150W-1P 2R

HUMMER

200W-1P 2R

HUMMER

150W-EC

HUMMER

200W-EC

HUMMER 150W-EC 2R HUMMER 200W-EC 2R Product code ACH150W-2001 ACH200W-2002 ACH150W2R-2304 ACH200W2R-2305 ACH150W-EC-2355 ACH200W-EC-2356 ACH150W-EC2R-2357 ACH200W-EC2R-2358 Nominal heating power

3rd gear*/2nd gear/1st gear [kW]

30.8 / 26.0 / 22.8 37.6 / 31.4 / 28.4 74.0 / 67.8 / 57.1 89.1 / 80.3 / 70.7 35.1 42.8 77.4 89.9 Heating power range [kW]*** 3.9 - 40.5 4.2 - 52.4 8.9 - 97.6 11.5 - 117.4 4.04 - 46.3 5.42 - 56.3 8.3 - 102.2 10.1 - 118.5 Maximum air flow [m³/h]

3rd gear*/2nd gear/1st gear

6500 / 5500 / 4000 8500 / 7000 / 5500 8700 / 7350 / 5350 11000 / 9000 / 7100 9500 12400 8900 11200 Maximum range [m]

3rd gear*/2nd gear/1st gear

6.5 / 6.0 / 5.5 7.0 / 6.5 / 6.0 7.0 / 6.5 / 6.0 7.5 / 7.0 / 6.5 7.0 7.5 7.0 7.5 Number of heater rows [pcs. ] 1 1 2 2 1 1 2 2 Water capacity [dm³] 2.31 3.02 4.35 5.75 2.31 3.02 4.35 5.75 Maximum temperature of the heating medium [°C] 120 120 120 120 120 120 120 120 Maximum working pressure of the heating medium [MPa] 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 Diameter of connectors [inch] 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 Supply voltage/frequency [V/Hz] 230/50 230/50 230/50 230/50 230/50 230/50 230/50 230/50 Nominal motor current [A]

3rd gear*/2nd gear/1st gear

2.16 / 1.72 / 1.40 3.24 / 2.58 / 2.10 4.10 / 3.30 / 2.80 6.15 / 4.95 / 4.20 5.90 8.85 5.90 8.85 Nominal speed

engine [rpm]

3rd gear*/2nd gear/1st gear

1360 / 1050 / 750 1360 / 1050 / 750 1380 / 1200 / 900 1380 / 1200 / 900 1400 1400 1400 1400 Nominal motor power [W]

3rd gear*/2nd gear/1st gear

480 / 380 / 320 720 / 570 / 480 910 / 600 / 560 1365 / 1050 / 840 860 1290 860 1290 Motor IP protection class [-] 54 54 54 54 44 44 54 54 Net weight [kg] 51 70 54 73 52 71 55 74 Noise level [dB]**** 66 69 65 68 66 69 65 68

* - in the case of fans with an EC motor, the highest efficiency is measured

** - for parameters 90/70°C and 0°C air inlet temperature

*** - for AC motor max. 120/90°C, 0°C inlet air temperature, stage III // min. 40/30°C, 20°C inlet air temperature, stage I; for EC motor min. power 40/30°C, 20°C inlet, 50% air flow // max. power 120/90°C, 0°C inlet, 100% air flow

**** - measurement at a distance of 5m

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Reventon
Parametry	Kind	with water heater
Parametry	Power	27.9 W
Parametry	Manufacturer code	ACH150W-2001
