Šilumos siurblys baseinui, 10,95 kW, iki 60 m³

Trumpai apie prekę

Prekė: Šilumos siurblys baseinui, 10,95 kW, iki 60 m³. Kategorija: Siurbliai ir filtrai.

• Gamintojas: no brand
• Modelis: SPEEDY-090

The subject of the auction is:

HEAT PUMP Model SPEEDY-090 with heating power 10,95 kW

AUTOMATIC DEFROST

FOR POOLS UP TO 60 m3 with cover

Anti-vibration pads and winter cover included.

Other models of heat pumps at other auctions.

Characteristics of the offered heat pump:

Heating power 10,95 kW A26/W26

AUTOMATIC DEFROST

COP 5,73

Power consumption 1,91 Kw

Heating power 8,56 kW A15/W26

COP 4,7

Cooling agent R32

Optimal flow rate 5,0 m3/h

Toshiba compressor

Power supply 230/50 V/Hz

Noise level 56 dB (A)

Water connection 50mm

control on LCD

flow sensor

quiet operation

Titanium exchanger resistant to chlorine and salt used in the electrolysis process ( up to 4% )

Heating functions

Net dimensions 816 x 307 x 553 mm

Net weight 45 kg

The heat pump must be installed outside.

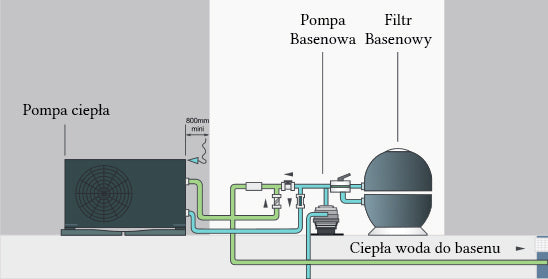

Principle of operation of the heat pump

Pumpsheats use free ambient heat energy.

This energy is transferred to the pool water.

The pool pump directs water through the pump exchanger

warm and warms the pool.

The heat pump includes a fan that draws in air from the outside and directs it above the surface of the energy collector.

The refrigerant absorbs heat from the air, which is subsequently evaporated. Warm gas flows through the compressor,

where it is compressed until a very hot gas is formed,

which then passes through the heat exchanger.

Here heat exchange takes place - warm gas gives away

warmth of cooler water in the pool flowing through the exchanger.

The pool water gets warmer and the hot gas gets

cooling, flows through the capacitor exchanger, returns to the liquid state and after passing the expansion valve,

The whole activity starts again.

Specifications
