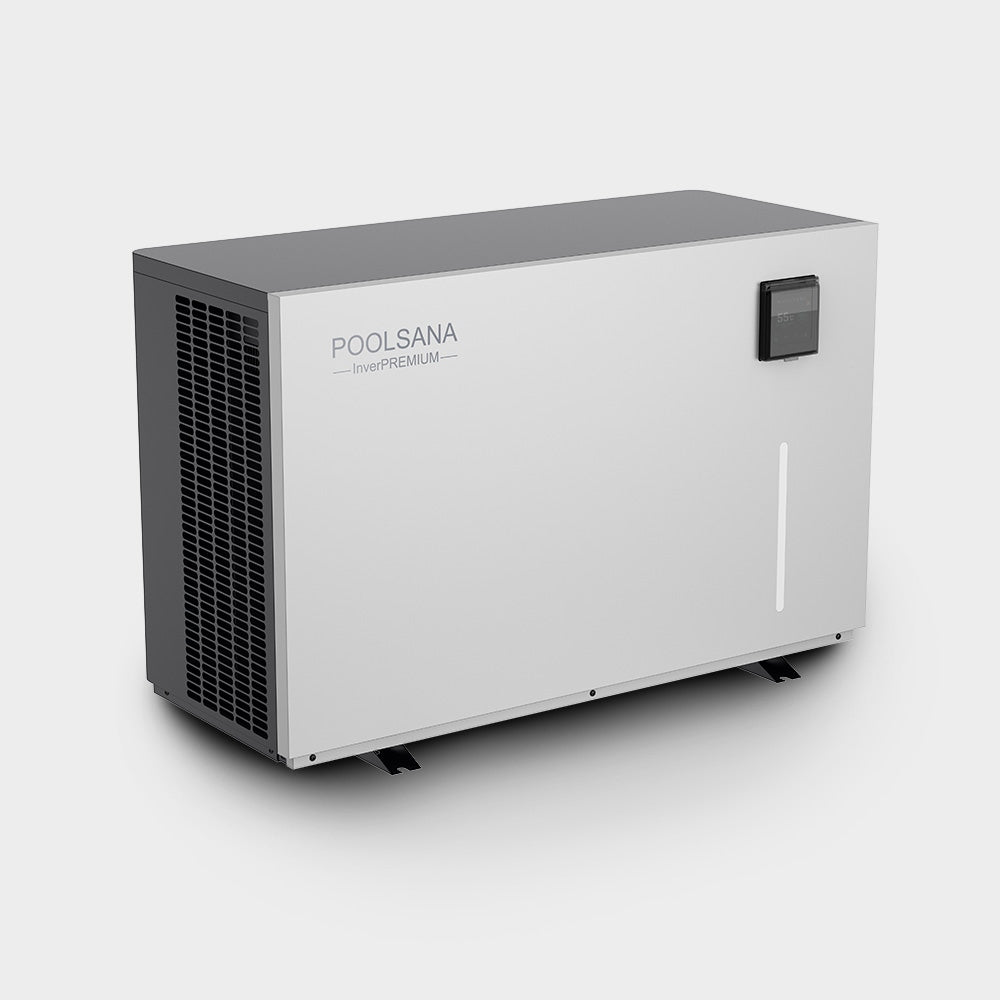

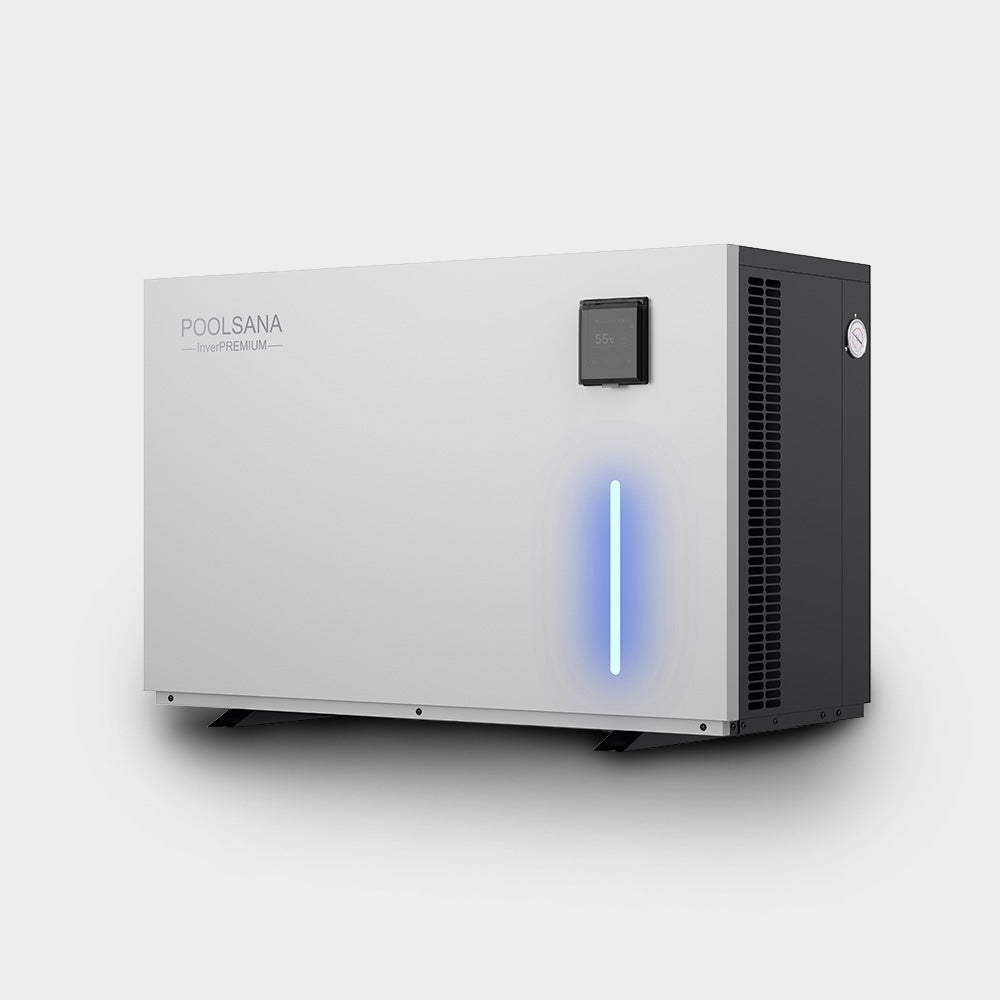

Šilumos siurblys InverPREMIUM 7 kW

Trumpai apie prekę

Prekė: Šilumos siurblys InverPREMIUM 7 kW. Kategorija: Siurbliai ir filtrai.

• Gamintojas: no brand
• Modelis: 240678

(Recommended for pools up to 27 m³)

German “High-End” level pool heating technology

From extraordinary performance to exceptional comfort, the POOLSANA InverPREMIUM series pool heat pumps set new standards at every level of water heating. At the heart of the device is Mitsubishi’s high-end compressor, and with an impressive COP of up to 18, it emphasizes its reliability and unique energy efficiency based on Full-Inverter technology:

• A new dimension of user comfort: With an extensive, colorful display, device control takes it to a whole new level.

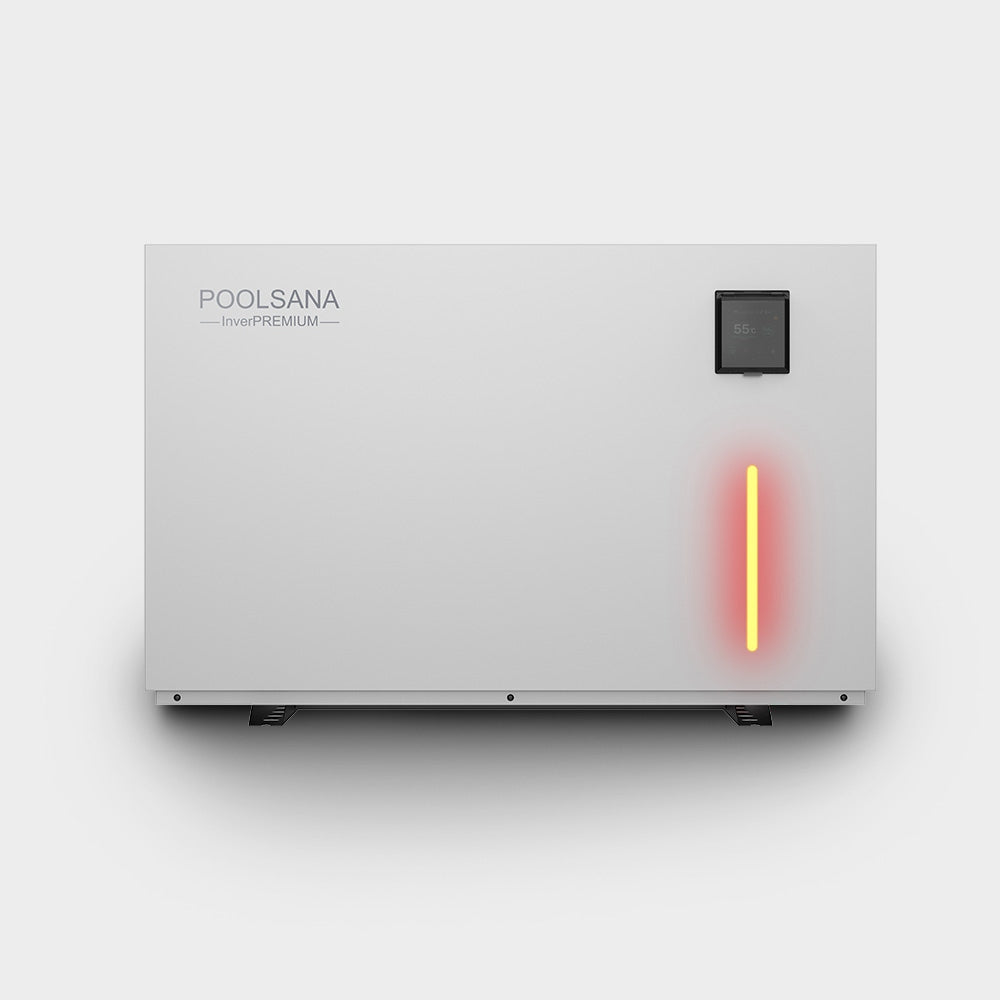

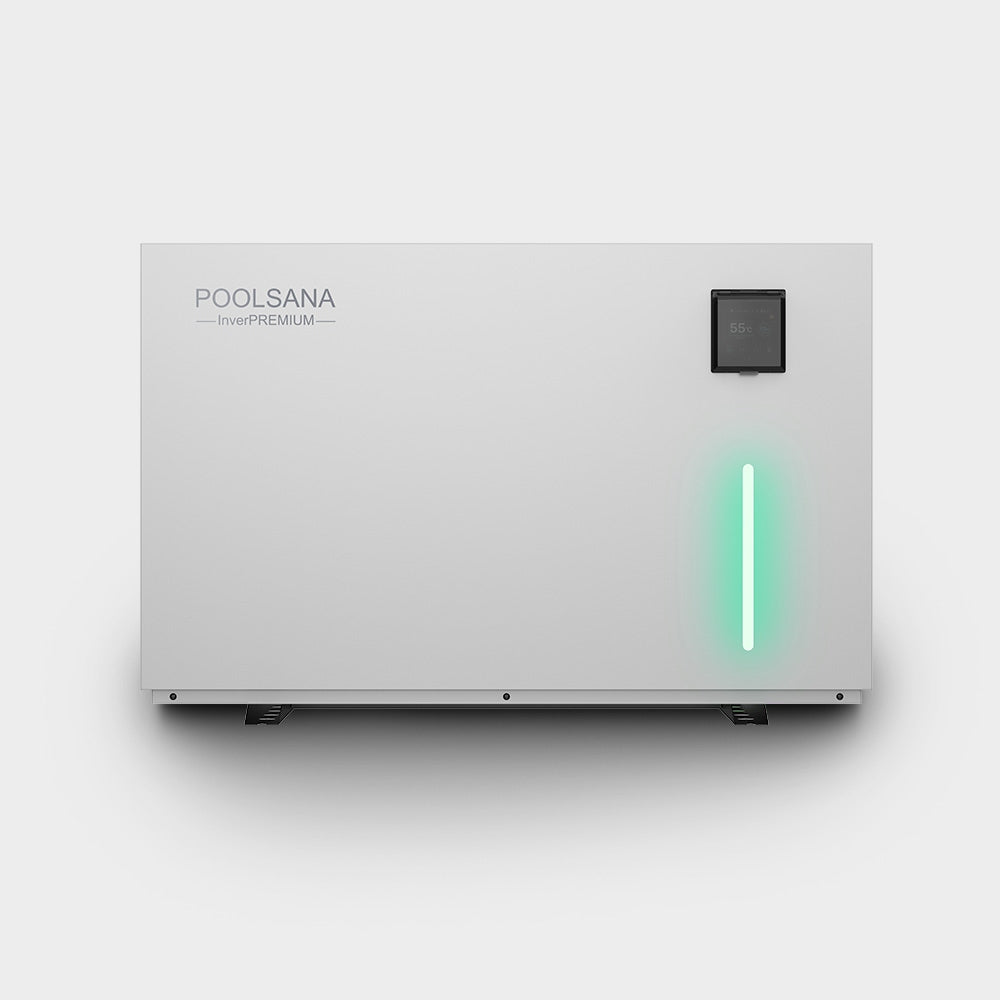

• Convenient status preview: The integrated LED strip allows you to easily check the current operating mode of the device at any time.

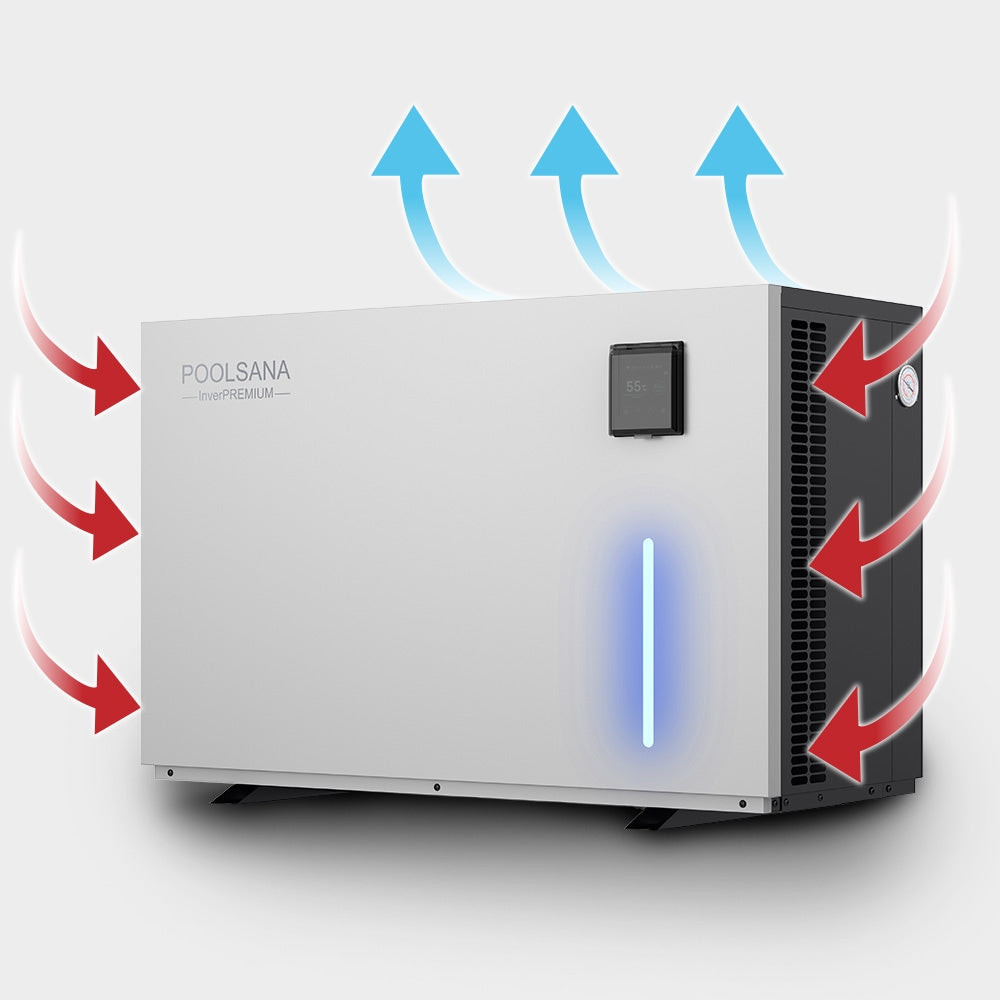

• Innovative technology: Thanks to the innovative air guidance system on the back of the unit, these pumps use state-of-the-art technological solutions. This guarantees extremely quiet and trouble-free water heating in your pool.

Intelligent and extremely energy-efficient Full-Inverter technology used in InverPREMIUM heat pumps provides an extremely high COP of up to 18. COP (coefficient of performance) is a key indicator of the energy efficiency of a heat pump, which determines the ratio of power consumption – colloquially power consumption – to the heating efficiency generated by the device. Simply put: a heat pump with a COP of e.g. 10, can produce up to ten times more heating energy than the amount of electricity it draws from the outlet.

All devices are equipped with a number of protections, such as high and low pressure switches, a flow sensor and numerous sensors that monitor the operating status on an ongoing basis.

The standard set includes – in addition to vibro-insulating mounting feet and a hose for condensate drainage – also a winter cover.

The housing of the InverPREMIUM series is made of lacquered metal. To emphasize the unique, fanless appearance, the design is designed to reduce the number of visible screws to a minimum.

Color display with a huge variety of functions

The absolute hit of our InverPREMIUM heat pumps is the integrated color touch display. It provides a unique and unprecedented comfort of use. You can easily switch between many detail-rich interfaces that conveniently present a wide range of parameters. Thanks to this, you get extremely intuitive control and the ability to precisely control the water temperature.

Functions:

• 3 operating modes: Heating, Cooling, Automatic mode (automatic switching between heating and cooling if necessary to maintain the target temperature).
• 3 performance modes: BOOST (fastest possible heating), SILENCE (minimum operating volume), SMART (automatic power adjustment to current operating conditions and parameters).
• Real-time clock and timer.
• Display the target and actual temperature and the current operating mode and performance.
• Temperature history: Preview of values (water inlet, water outlet and ambient temperature) from the last 7 days.

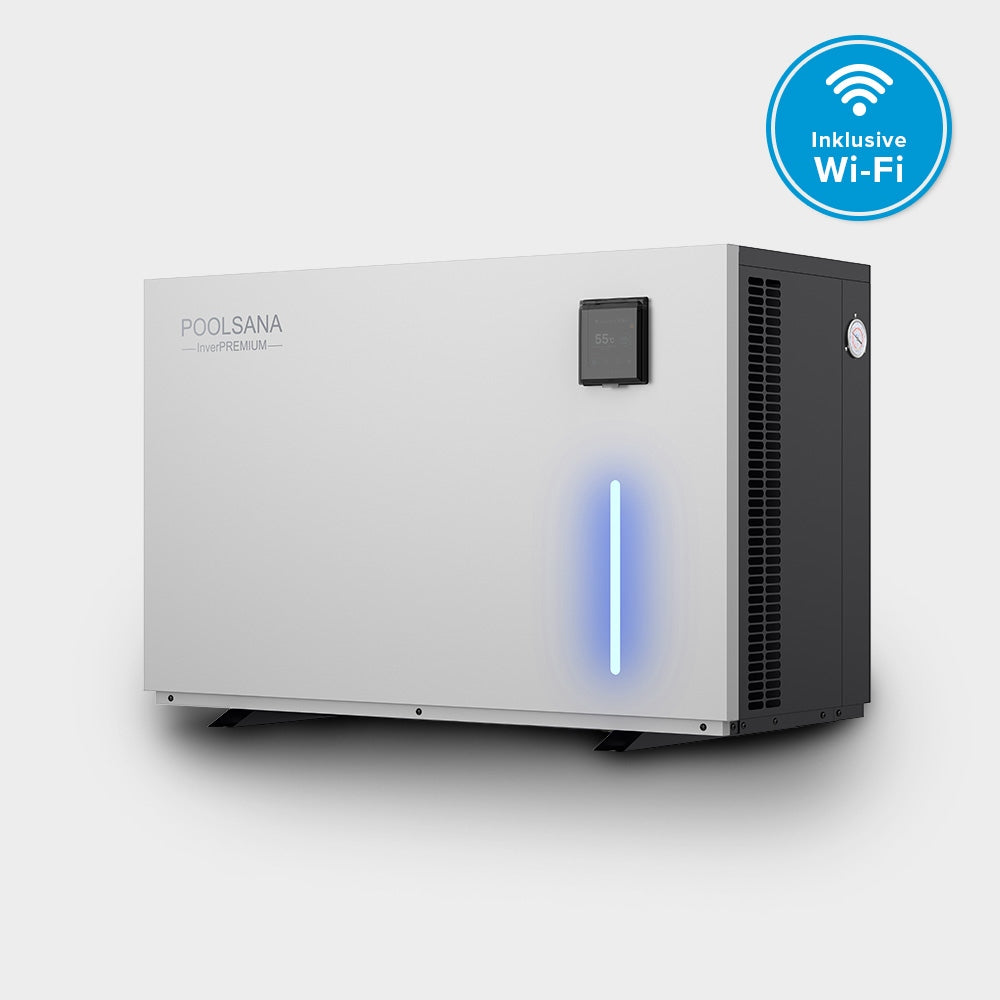

• Wi-Fi remote control: Operate with a free app for smartphones and tablets.

Connection

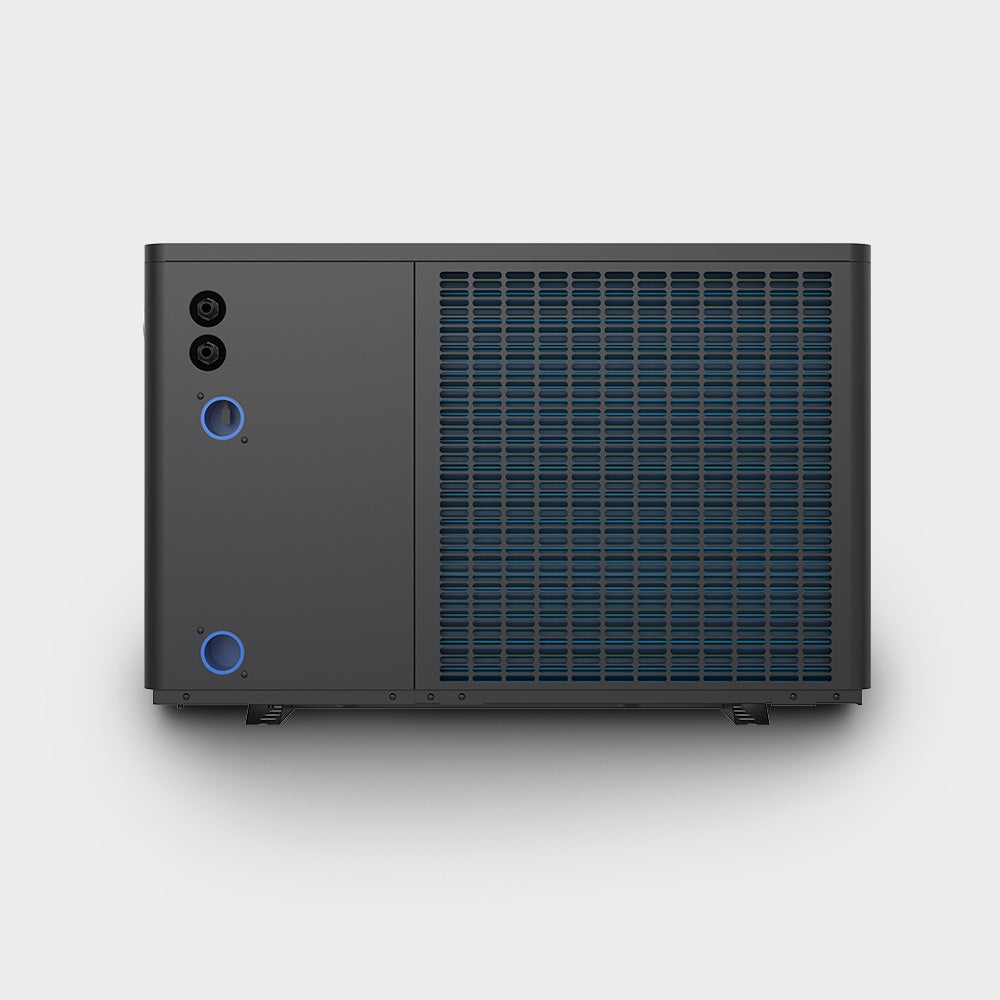

The heat pump is connected to the filter circuit by means of a valve (bypass) on the discharge line (behind the filter). The outputs have an internal thread of 1 1/2". The set includes 2 fittings with an external thread of 1 1/2" by 50 mm, which allows easy connection to standard pool pipes.

Required performance of pool pump

Ensure that the performance of the pool pump corresponds at least to the “Minimum Water Flow” value specified for the heat pump (see “Technical Data” for details). Too poor flow can lead to a decrease in the efficiency of the device and weaker heating effects. Optimally, the efficiency of the pool pump should be approx. 1-2 m³/h higher than the required minimum flow rate.

Electrical connection

The factory heat pump is equipped with a 3-wire power cable with a length of approx. 1,5 m with plug. Only a free outlet protected by a 16 A fuse and a residual current circuit breaker (FI/RCD) is required for connection.

Tip on sizing

The given maximum volume of the pool is only an indicative recommendation and has been adopted quite conservatively. If the volume of your pool is close to the recommended limit, it is worth considering choosing a model with a higher degree. This will preserve the power reserve and ensure efficient heating even on days when the air temperature is much lower than the optimal 25-27°C (at which the pump reaches maximum efficiency).

Technical data:

• Heating power

Up to 6,85 kW (at temp. water 25°C / air 27°C / wilg. 80%)

Up to 4,93 kW (at temp. water 26°C / air 15°C / wilg. 70%)

• Power consumption

0,12 to 1,05 kW (optimal conditions: 27/25/80%)

0,16 to 1,07 kW (cooler conditions: 15/26/70%)

• COP

6,52 to 18,00 (optimal conditions)

4,58 to 8,10 (cooler conditions)

• Electrical connection: 1 N / 230 V
• Max. current: 8,7 A
• Max. power consumption: 1,9 kW
• Security: 16 A
• Refrigerant: R32
• Number / type / brand of compressor: 1 / rotary / Mitsubishi
• Volume (1 m distance): 37 to 48 dB (A)
• Dimensions: 100x 43,6x 65,6 cm
• Control: Digital with touch buttons
• Scope of operation: -10 °C to +43 °C
• Water connection: 50 mm
• Required minimum water flow: 3,1 m³/h
• Housing: Lacquered metal (silver-black)

The auction applies to the offer included in the description.

To connect the pump you need an additional: valve for the heat pump. reductions, snakes.

At our other auctions we have swimming pools with accessories as well as additional equipment such as solar films, solar panel, cover tarpaulin and many other accessories, e.g. lighting, canopies, countercurrent chemistry, etc.

We have all spare parts for the offered pools.
