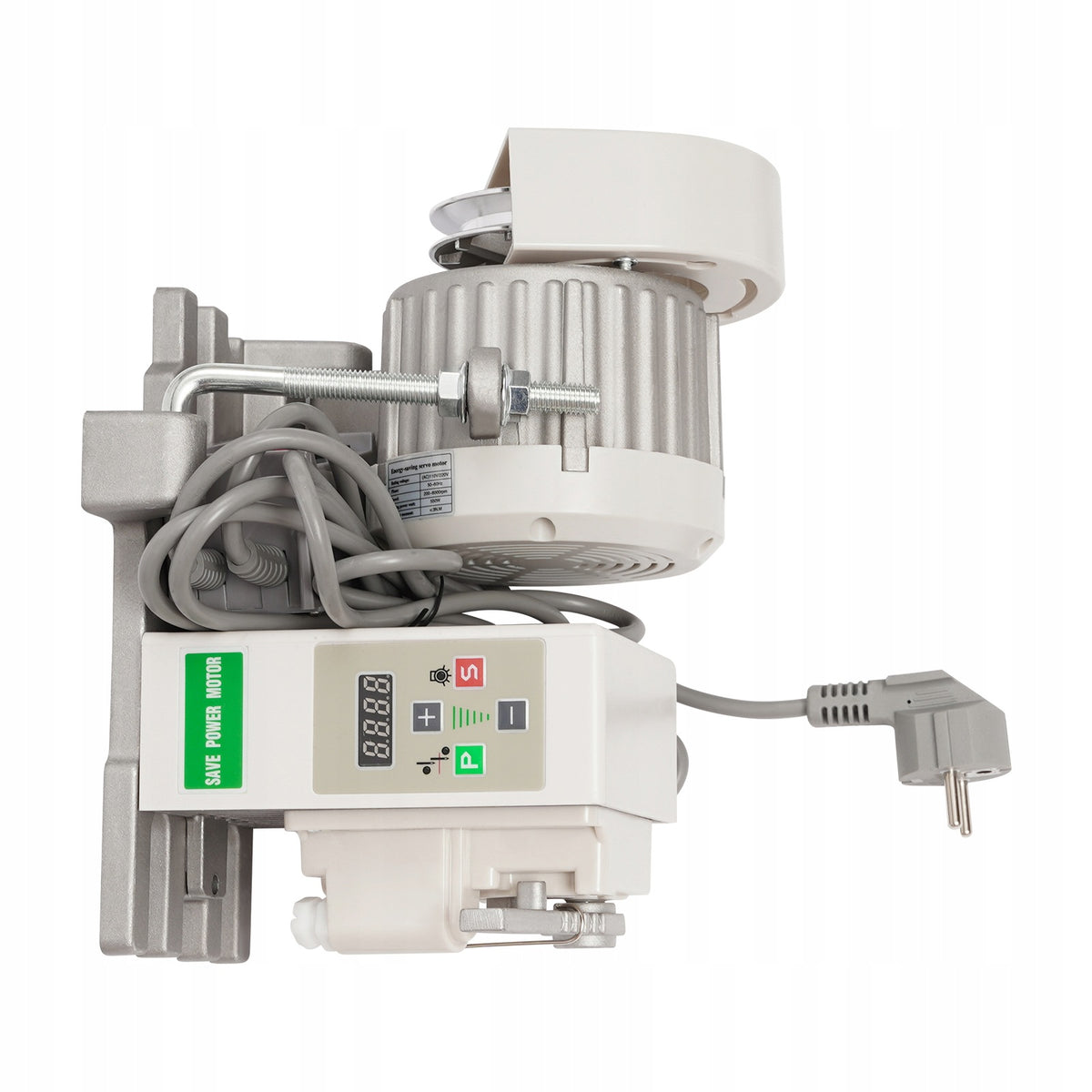

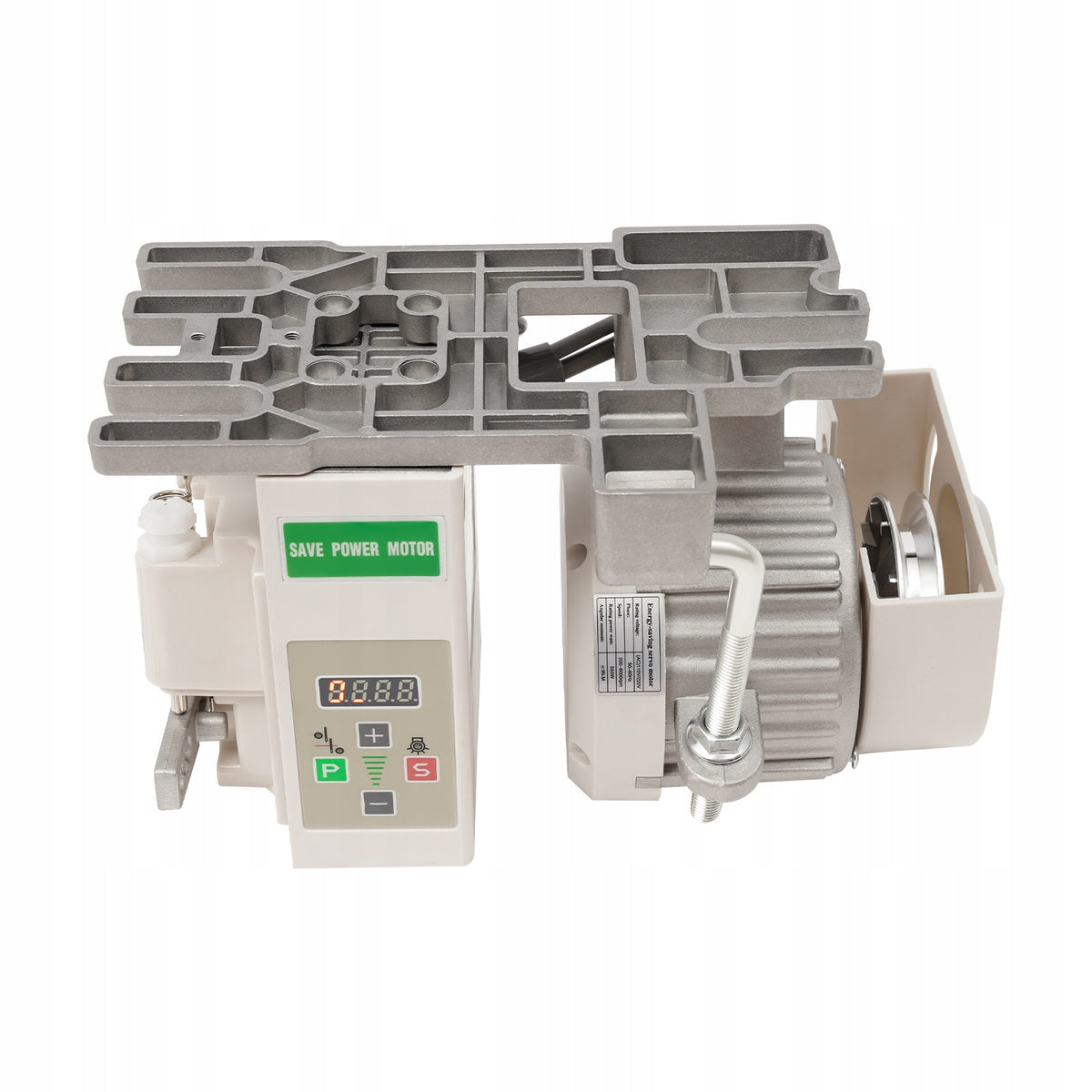

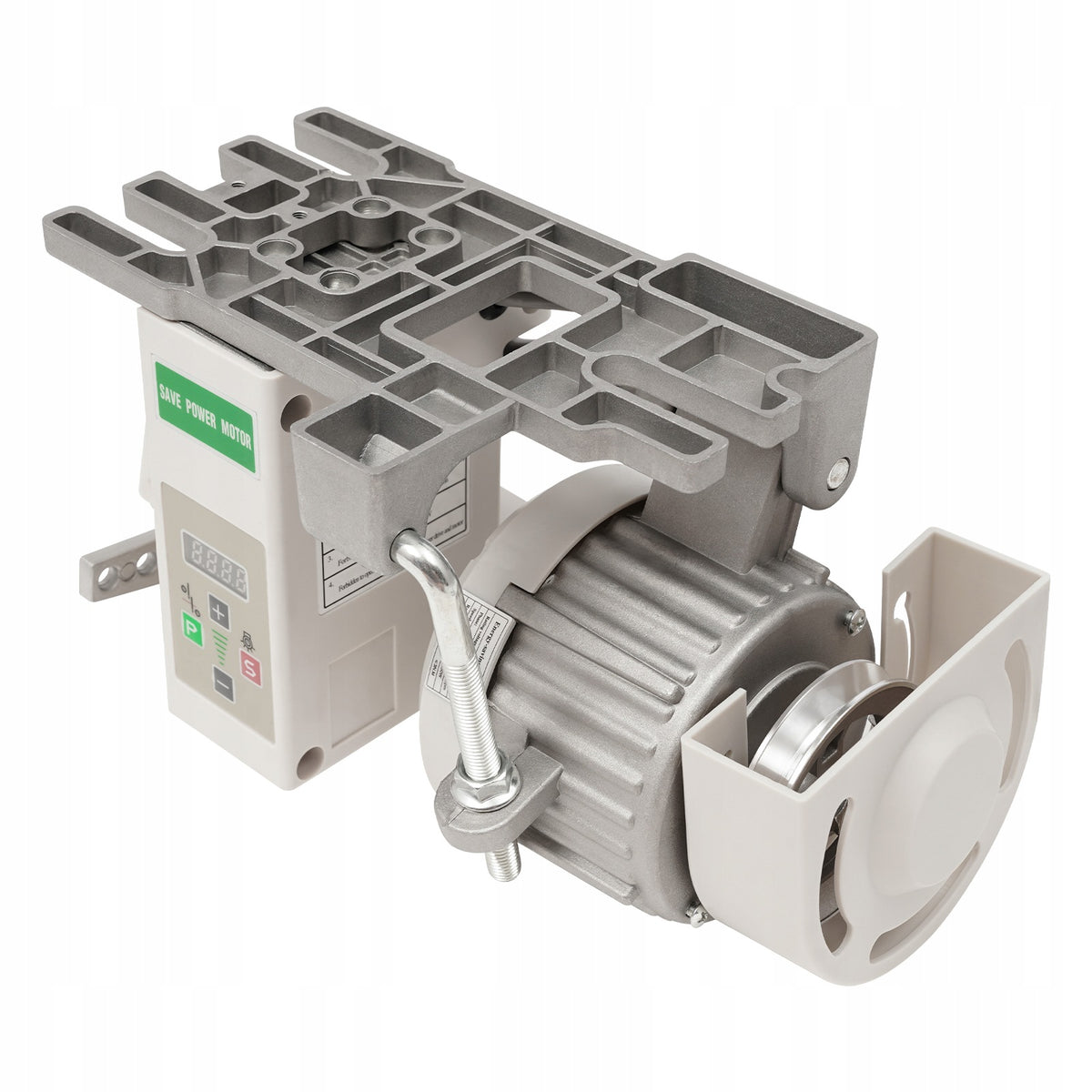

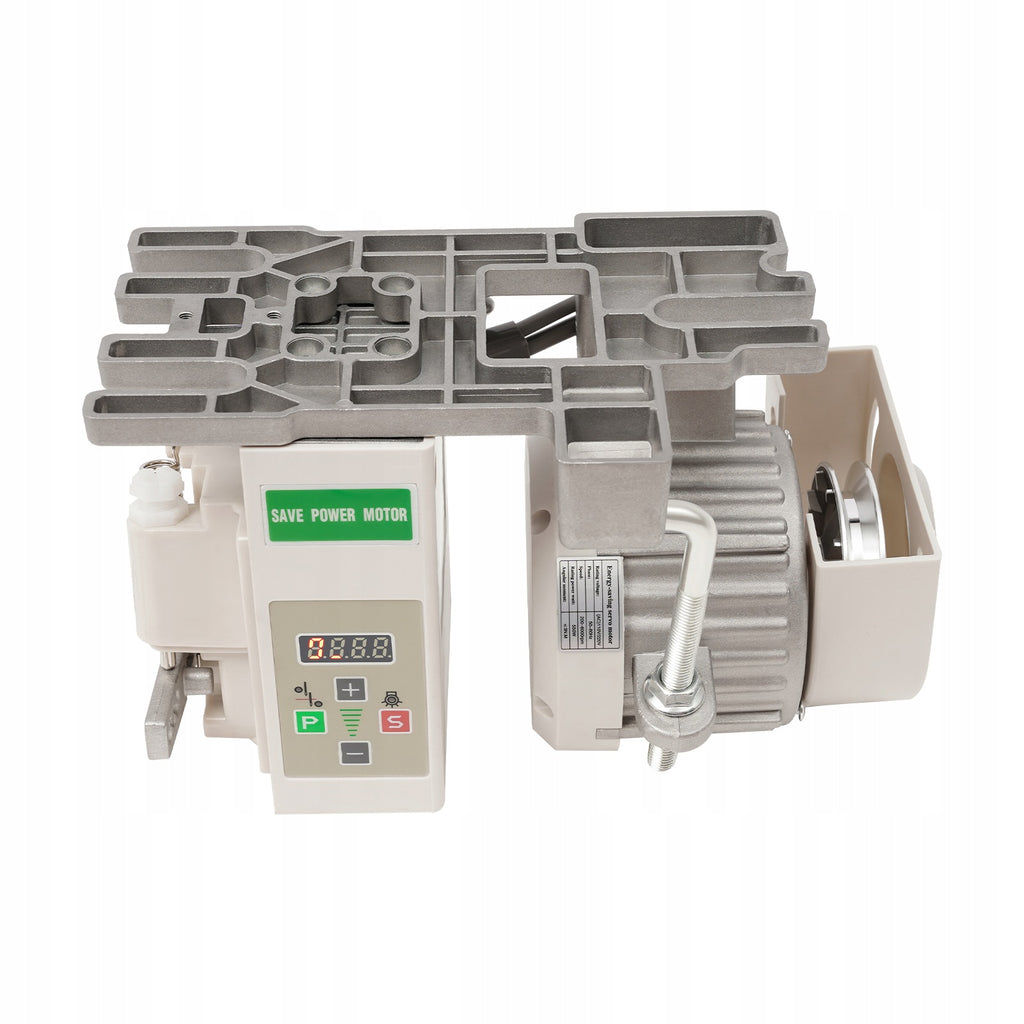

Siuvimo mašinos servo variklis, 550 W pramoninis bešepetėlinis

Trumpai apie prekę

Prekė: Siuvimo mašinos servo variklis, 550 W pramoninis bešepetėlinis. Kategorija: Siuvimo mašinos.

• Gamintojas: no brand
• Modelis: ENERGY-SAVING SERVO MOTOR 550W
• Medžiaga: synthetic material

This sewing machine motor is specially designed for sewing scenarios. It is compatible with various equipment. With an energy conservation advantage, it is equipped with a stable power output structure, featuring low noise during operation. It helps sewing operations run efficiently, stably, and energy-saving, providing reliable power support for sewing processing enterprises and workshops.

Premium Material: It is mainly made of high-class aluminum, plastic, and copper, which is impact-resistant, heat-resistant, and scratch-resistant, with high durability and reliability, ensuring long-term use.

High Efficiency: With an output of up to 550W and a speed of up to 6000 rpm, this product will run efficiently on most sewing machines.

Adjustable Speed: The high-sensitivity governor and the buttons allow you to adjust the speed from 200-6000rpm to meet your different sewing needs.

Security Protection: It has overcurrent, overload, overvoltage, undervoltage, locked rotor protection, and short-circuit protection, ensuring stability and safety under long-time operation.

Energy-saving: By optimizing the design of the copper coil, the product has achieved a significant improvement in energy efficiency. Compared with similar mechanical motors, its energy consumption has been greatly reduced, achieving a higher energy utilization efficiency.

Color: White

Material: Plastic, Aluminum, Copper

Motor Type: Brushless Servo Copper Motor

Style: Modern

Power Source: Corded Electric

Plug Type: EU Standard

Voltage: AC 220V

Rating Power: 550W

Frequency: 50-60HZ

Motor Speed: 200-6000rpm

Motor Torque: ≤3 N.M

Horsepower: 3/5HP

Insulation Class: F

Control Mode: Foot Pedal Speed Regulation, Adjustment Keys

Power Cable Length: About ＜3m/9.84ft

Product Size: 27*11*15.5 cm/10.63*4.33*6.1 in

Package Size: 28.5*19.5*16 cm/11.22*7.68*6.3 in

Gross Weight: 3.8 kg/8.38 lbs

Net Weight: 3.61 kg/7.96 lbs

Package Included

1*Sewing Machine Motor

1*Belt Cover

1* English Manual

All Accessories for Assembly

Notes

1.Please carefully read the English instruction before use, and pay particular attention to the safety precautions therein.

2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
