Skaitmeninė DVB-T2 TV antena VAYOX, kombinuota, visakryptė, VHF/UHF, 4K, LTE

Trumpai apie prekę

Prekė: Skaitmeninė DVB-T2 TV antena VAYOX, kombinuota, visakryptė, VHF/UHF, 4K, LTE. Kategorija: Antenos.

• Gamintojas: Vayox
• Modelis: Digital720combo
• Spalva: white

The only omnidirectional antenna that receives vertical and horizontal polarization

Antenna adapted to receive the latest H.265/HEVC DVB-T2 encoding

Film presenting the antenna and its installation available at the link: https://youtu.be/QmZBtAhNaHs

POLISH BRAND VAYOX

Model: VA0066

• Suitable for digital terrestrial TV reception - DVB-T/DVB-T2, Full HD,4K
• One antenna = MUX1, MUX2, MUX3 and MUX8 (vertical and horizontal polarization)
• Receives VHF and UHF frequencies
• Maximum output signal level: 100dbuv
• Built-in Antenna AMPLIFIER
• Diameter 30cm
• Antenna gain: 28dB
• LTE filter for suppressing interference signals LTE, GSM and DECT
• Noise level < 3 dB
• Possibility of rotation of the antenna in the range of 360 degrees
• High resistance to adverse weather conditions (Waterproof ABS housing with UV coating)
• Installation without tools
• The signal reception radius is approx. 140 km (reception depends on the signal strength in a given area)
• Adjustable handle in two planes

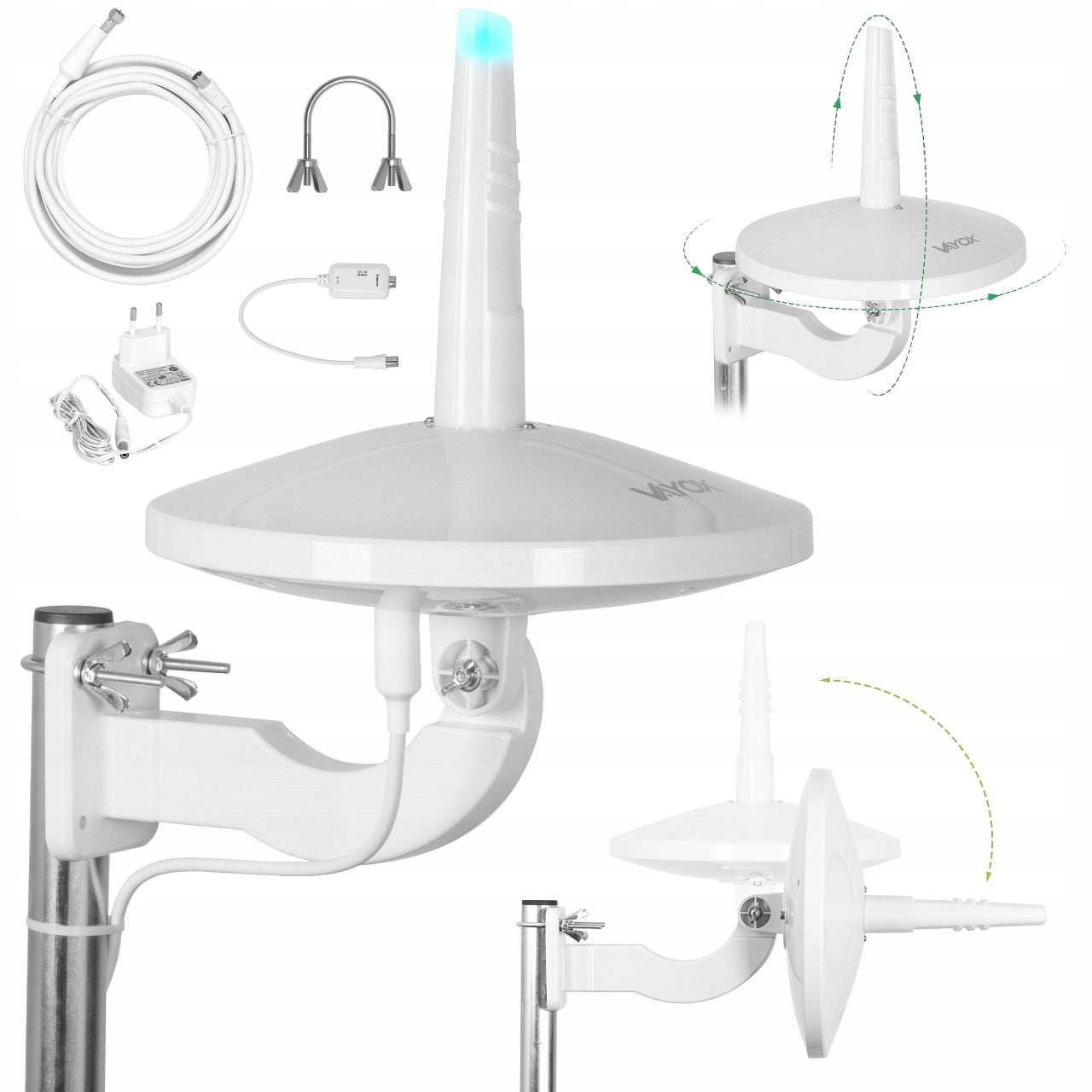

Included with the antenna are all the accessories necessary to connect the antenna.

• Digital720combo Vayox antenna
• 12V Antenna Power Supply
• Power adapter
• Antenna cable (f plug - antenna plug) 10m
• Digital amplifier (built into antenna)
• Mounting cybant
• Wall Mount
• Rubber plug covers to protect against moisture
• Original packaging
• Instructions for assembly antenna (PL)

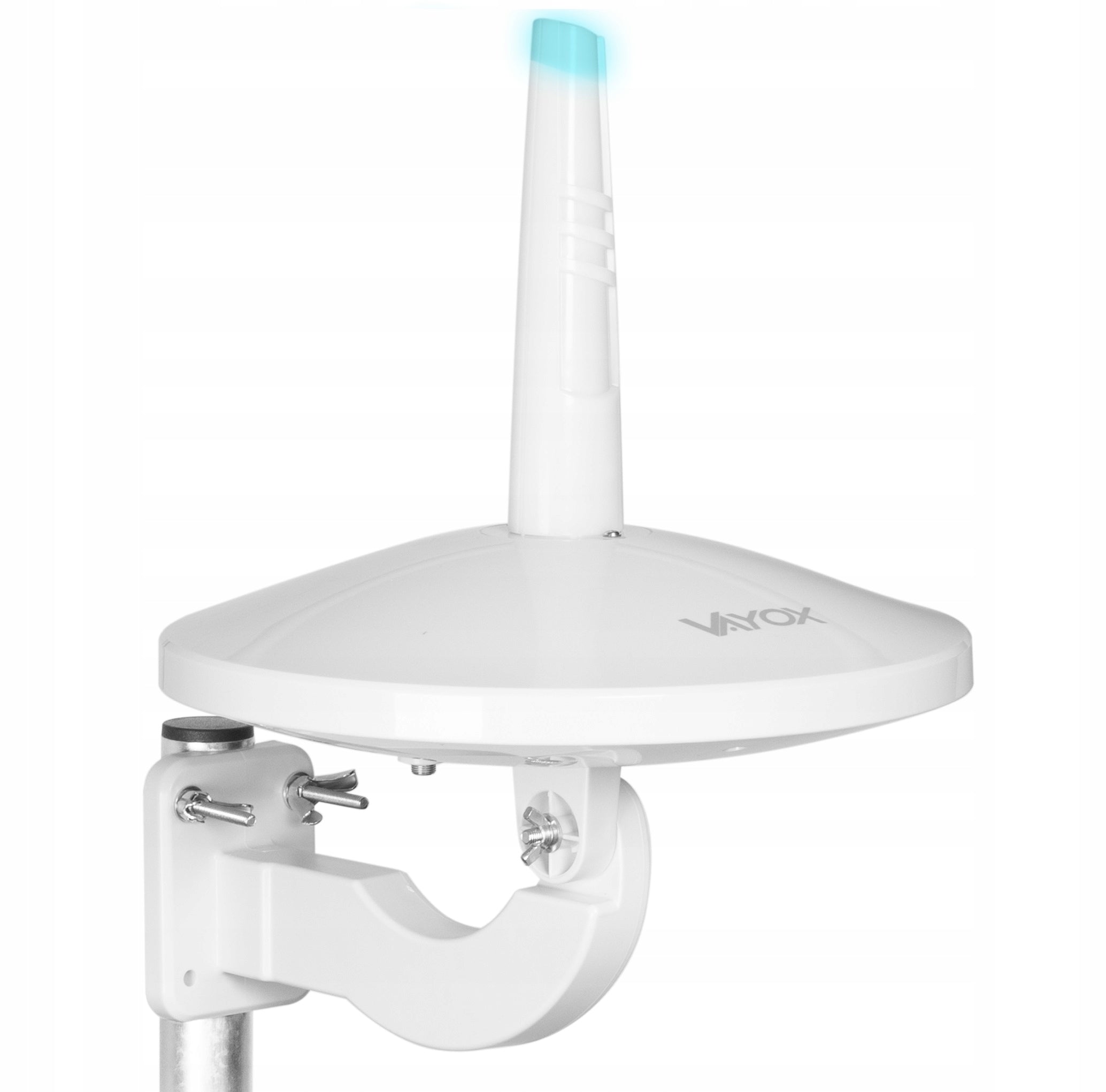

The Digital720combo outdoor antenna is used to receive second generation digital terrestrial television signal DVB-T2 including MUX8 in vertical and horizontal polarization.

Its special structure (additional vertical dipole) is responsible for the correct reception of MUX8 regardless of polarity (vertical/horizontal)

Thanks to it, you can watch programs in 4K resolution.

Since it is an omnidirectional model, it collects signal from all directions, in addition, it has a built-in antenna amplifier.

Digital720combo has a built-in digital amplifier with a power of 28db, what distinguishes it from the competition is automatic selection of the gain level depending on the need.

• Maximum output signal level: 100dbuv
• Antenna gain: 28dB

The VA0066 is very well suited for use in our country. Proper positioning of the antenna is not a problem, it can be rotated in the range of 360 degrees.

The antenna has a built-in anti-interference LTE filter. This allows to eliminate problems with the DVB-T2 signal (it should be remembered that LTE wireless Internet frequencies are also frequencies used by the digital terrestrial television signal).

The filter ensures that there is no disruption generated by 4G networks or mobile phones.

Due to its compact dimensions and weight, antenna is used not only in professional home installation, but also at the campsite.

The antenna is resistant to adverse external factors, including rain and UV radiation.

Includes F plug protection against water

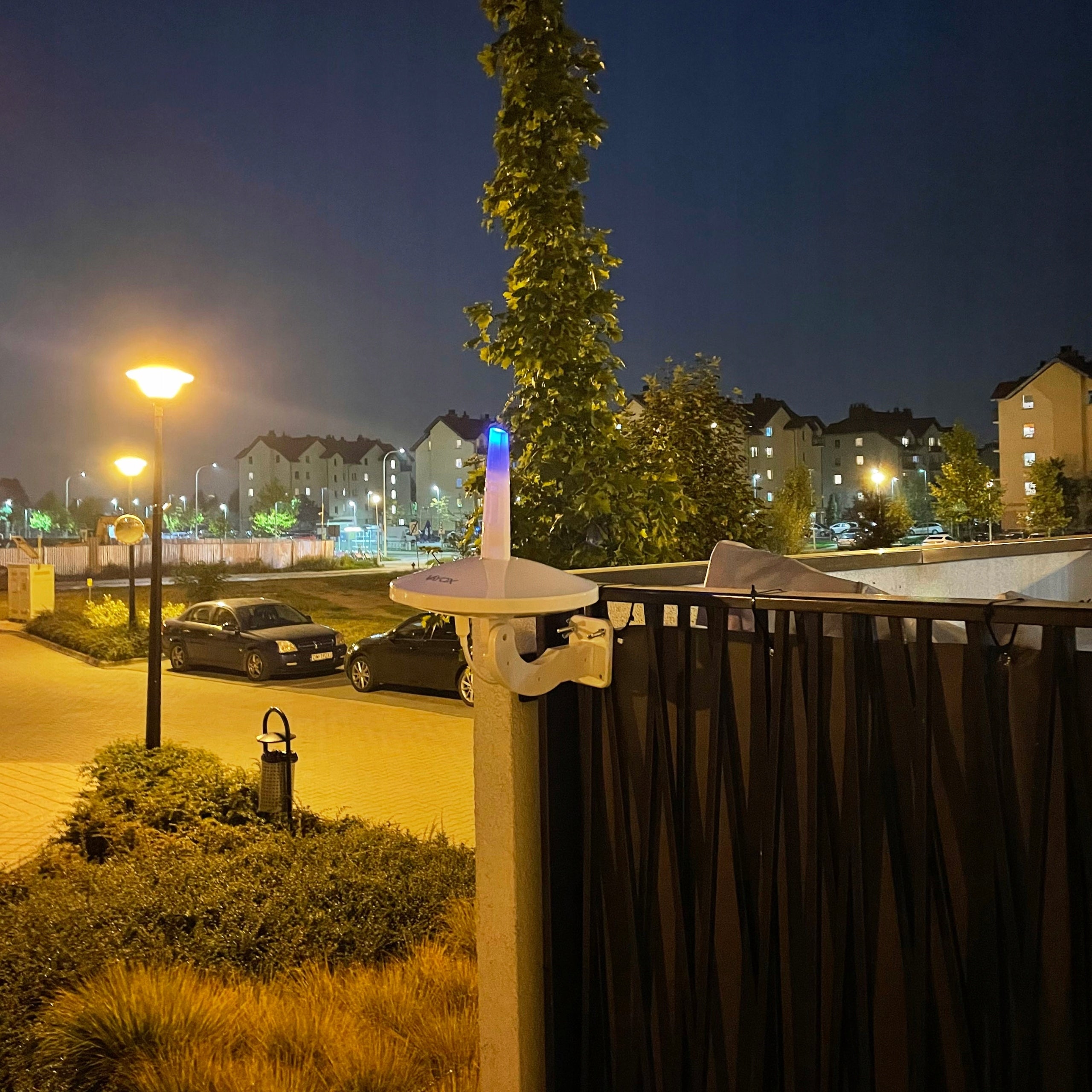

Thanks to the included bracket (adjustable in two planes), you can mount the antenna directly to your building's facade. The included U-bolt allows you to attach the antenna directly to an antenna mast or balcony railing.

You can position the antenna according to your needs; you can rotate it 180 degrees.

• The horizontal design allows you to receive signals from any direction without the need to calibrate the antenna.
• Integrated circuit made in SMD technology, affecting better properties at high frequencies.
• Compatible with all UHF and VHF bands. Compatible with HDTV digital terrestrial television signal.
• Digital amplifier automatically selecting the signal level

Film presenting the antenna and its installation available at the link: https://youtu.be/QmZBtAhNaHs

• Digital720combo Vayox antenna
• 12V Antenna Power Supply
• Power adapter
• Antenna cable (f plug - antenna plug) 10m
• Digital amplifier (built into antenna)
• Mounting cybant
• Wall Mount
• Instructions for assembly antenna

Specifications
