Skaitmeninės televizijos signalo matuoklis BLOW TVF10

Trumpai apie prekę

Prekė: Skaitmeninės televizijos signalo matuoklis BLOW TVF10. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: Blow
• Modelis: Miernik DVB-T FINDER SAT SIGNAL FINDER

DVB-T signal meter is a convenient and knowledge-free device for setting the level of signal received by the antenna. The meter has a tilting signal level indicator and a built-in sounder with variable sound intensity, which greatly facilitates very accurate positioning of the antenna.

✅ DVB-T TVF10 meter

✅ Designed to set the level of signal received by the antenna

✅ Tilting signal level indicator

✅ Built-in sounder

✅ VHF frequency range: 174 - 230 MHz

✅ UHF frequency range: 470 - 860 MHz

⏺ Universal application

The meter is designed to work with any type of satellite TV antennas. Connection to the cable meter is carried out using a connector type F. The meter is powered by ten AA batteries (not included), which allows it to be used without the need to connect to the decoder – you can also use a 12-24VDC power supply with an antenna plug F (wind-up).

⏺ Simple and handy

The small size of the meter means that the device can be taken virtually anywhere . It is extremely convenient and easy to use to set the optimal level of signal received by the satellite dish. The meter is equipped with a deflection indicator of the signal level and a sound signaling , which means that the exact positioning of the antenna will be quick and accurate.

Specification:

• VHF frequency range: 174MHz - 230MHz
• UHF frequency range: 470MHz - 860MHz
• Input signal level: 65.0dBuV ~ 95.0dBuV
• Impedance: 75Ohm
• Admissible temperature: 0st C ~ +40st C
• Type of connector: type F
• Working range (LNB gain): 52dB ~ 6dB
• Power Supply: 10 AA batteries (not included)

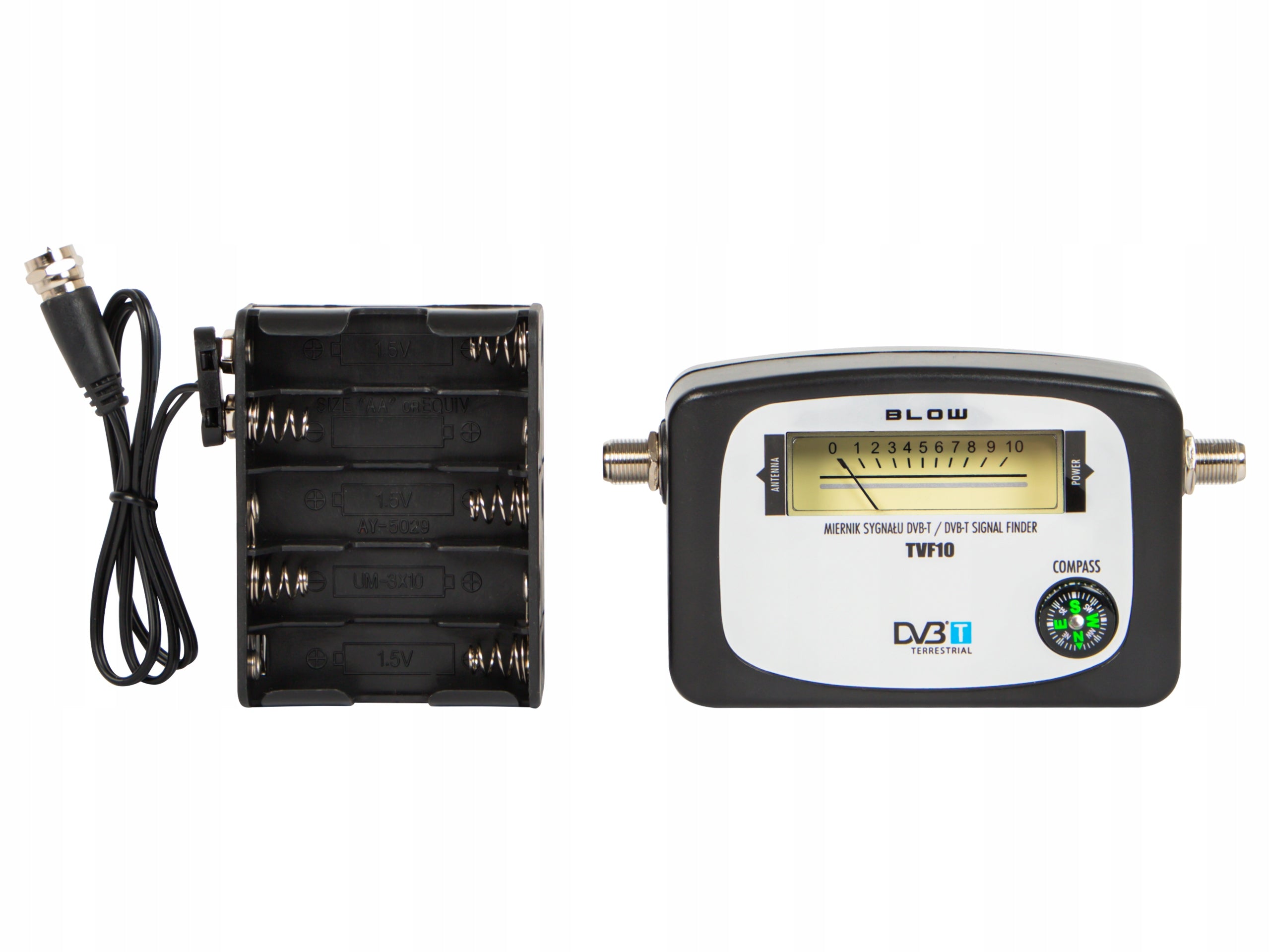

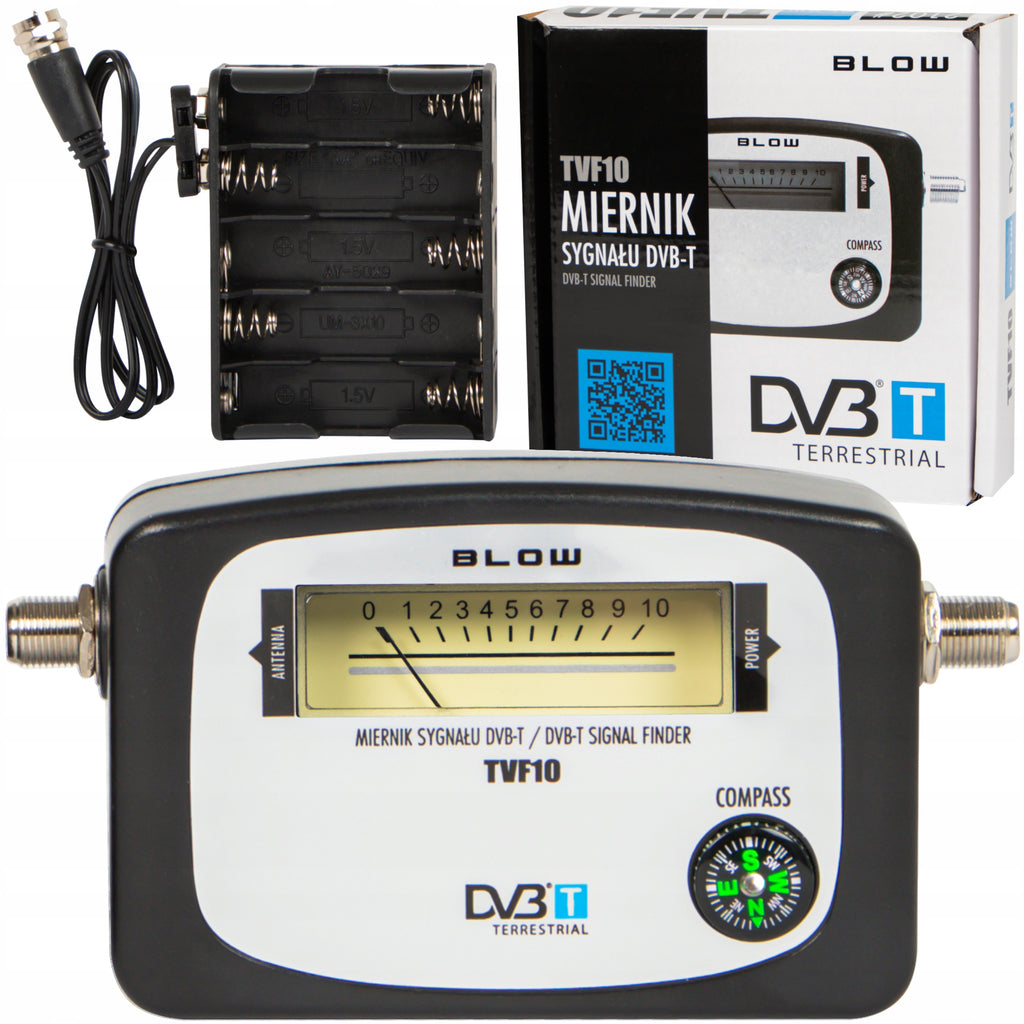

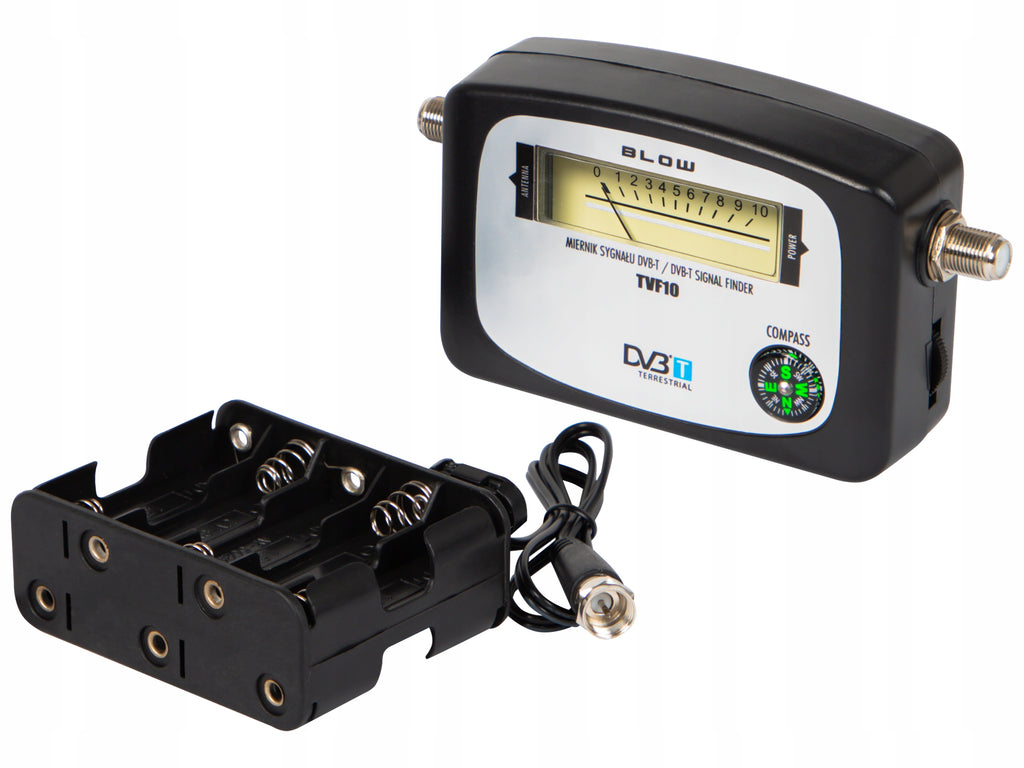

The set includes:

• DVB-T signal meter | TVF10
• Operating instructions
• Basket for AA batteries
• Power cord
