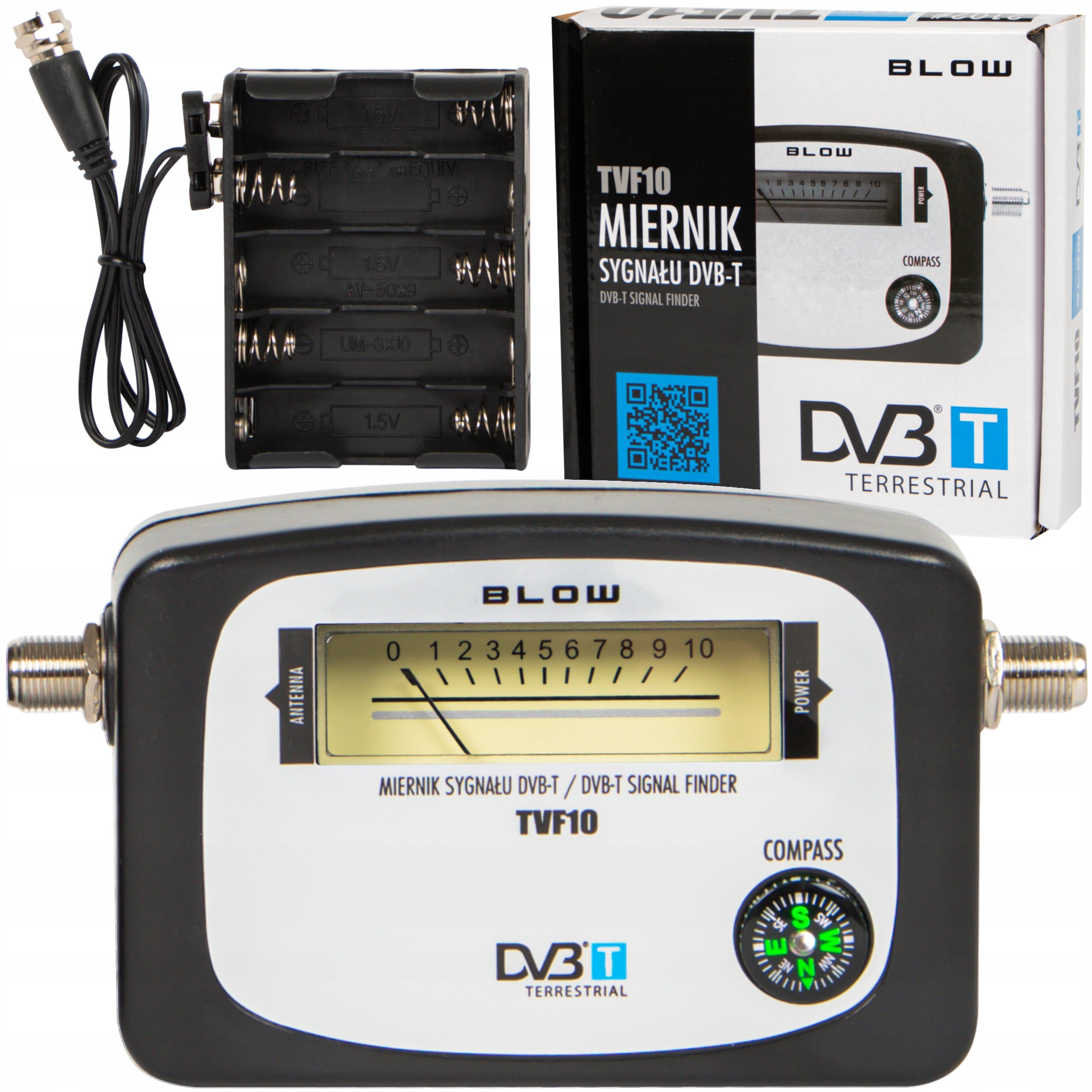

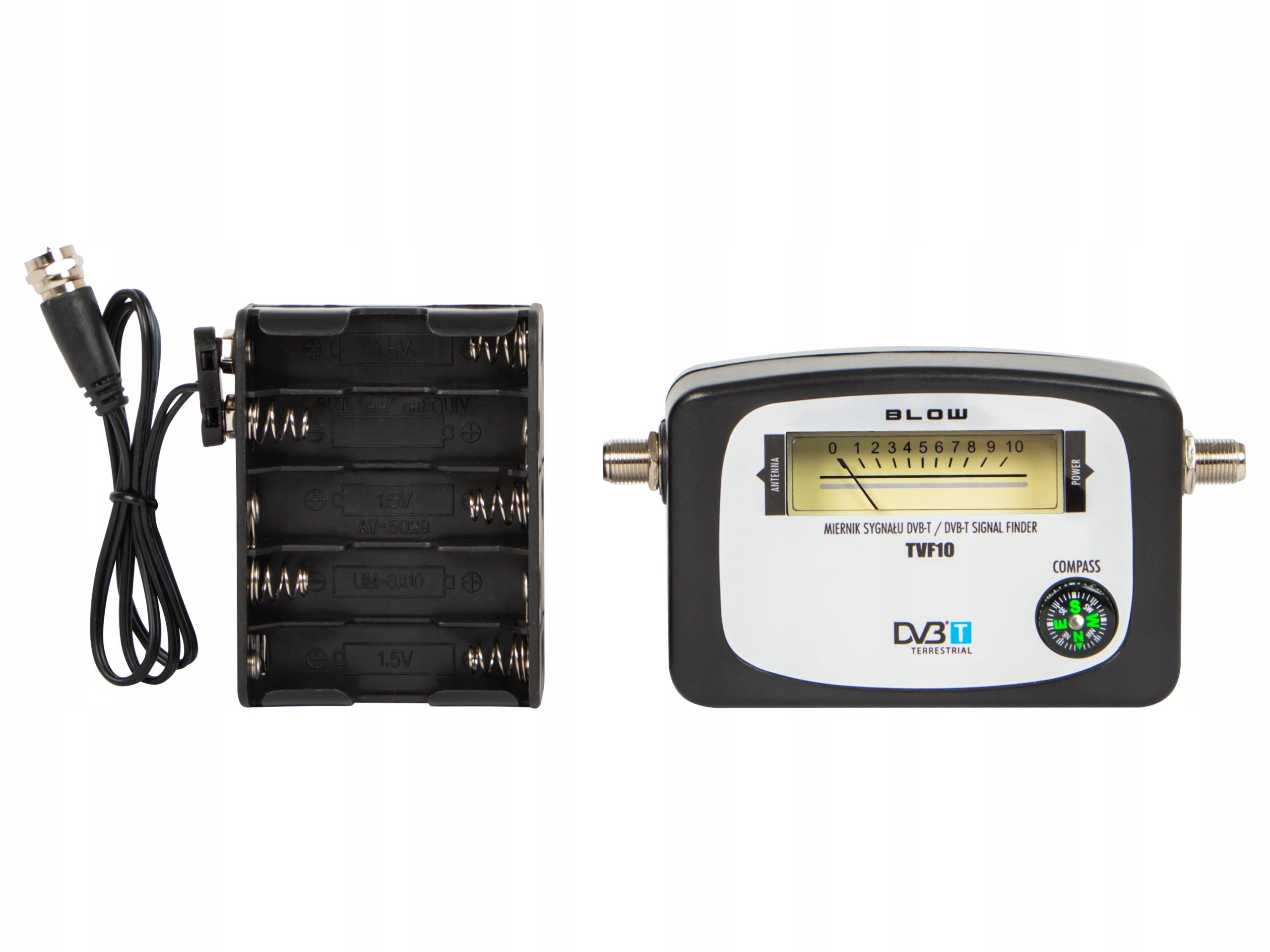

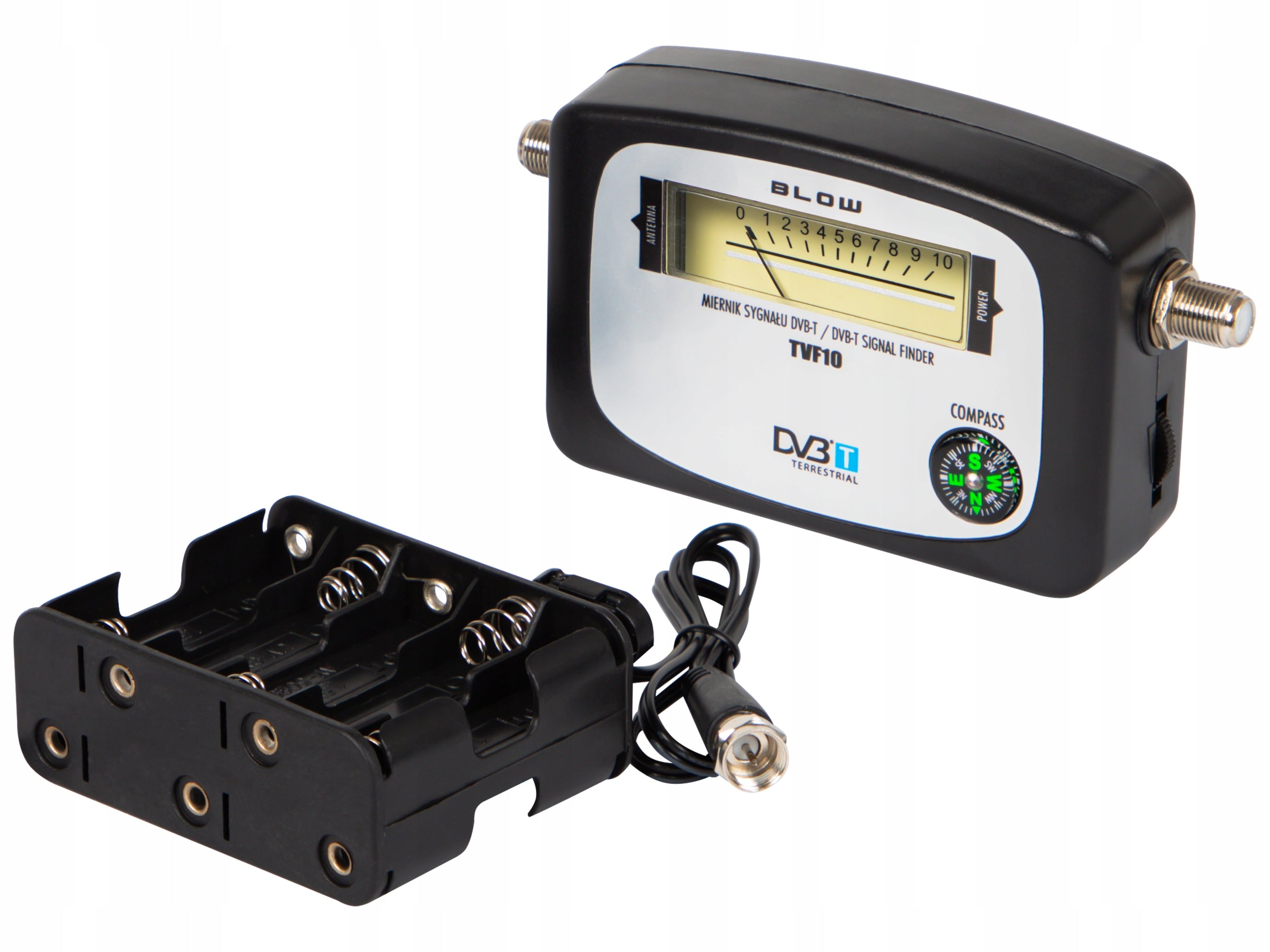

Skaitmeninės TV signalo matuoklis BLOW TVF10, DVB-T

Trumpai apie prekę

Prekė: Skaitmeninės TV signalo matuoklis BLOW TVF10, DVB-T. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: Blow
• Modelis: TVF10

DVB-T signal meter is a convenient and knowledge-free device for setting the level of signal received by the antenna. The meter has a tilting signal level indicator and a built-in sounder with variable sound intensity, which greatly facilitates very accurate positioning of the antenna.

✅ DVB-T TVF10 meter

✅ Designed to set the level of signal received by the antenna

✅ Tilting signal level indicator

✅ Built-in sounder

✅ VHF frequency range: 174 - 230 MHz

✅ UHF frequency range: 470 - 860 MHz

⏺ Universal Application

This meter is designed to work with any type of satellite TV antenna. Connection to the meter is via an F-type connector. The meter is powered by ten AA batteries (not included), allowing it to be used without needing to be connected to a receiver. You can also use a 12-24VDC power adapter with an F antenna connector (screw-on).

⏺ Simple and Portable

The small size of the meter makes it easy to take the device virtually anywhere. It is exceptionally convenient and easy to use for setting the optimal signal level received by the satellite antenna. The meter is equipped with a needle indicator for signal level and an audible signal, which means accurate antenna alignment will be quick and precise.

• VHF frequency range: 174MHz - 230MHz
• UHF frequency range: 470MHz - 860MHz
• Input signal level: 65.0dBuV ~ 95.0dBuV
• Impedance: 75Ohm
• Admissible temperature: 0st C ~ +40st C
• Type of connector: type F
• Working range (LNB gain): 52dB ~ 6dB
• Power Supply: 10 AA batteries (not included)

• DVB-T signal meter | TVF10
• Operating instructions
• Basket for AA batteries
• Power cord

Specifications
