Skaitmeninis akumuliatoriaus testeris 12V/24V, LCD ekranas, tinkamas STD, EFB, AGM, GEL

Trumpai apie prekę

Prekė: Skaitmeninis akumuliatoriaus testeris 12V/24V, LCD ekranas, tinkamas STD, EFB, AGM, GEL. Kategorija: Baterijų testeriai.

• Gamintojas: Habotest
• Modelis: HT3500E

⭐⭐⭐⭐⭐

Are you looking for a reliable, extremely precise and safe tool that will allow you to immediately determine the technical condition of each starter battery?

Habotest HT3500E is an advanced, professional diagnostic tester designed for demanding mechanics, automotive electricians and demanding private users. The device supports 12V and 24V installations, offering full support for a wide range of lead-acid batteries used in automotive and emergency power systems. Forget about guesswork - bet on professional diagnostics based on modern measurement technology.

⭐⭐⭐⭐⭐

The Habotest HT3500E device is characterized by full flexibility of operation, enabling the diagnosis of both standard 12V passenger car installations and demanding 24V systems used in trucks, construction and agricultural machines. Whether you are working on a city car, motorcycle or powerful delivery van, this tester will automatically adjust the measurement parameters, guaranteeing full compatibility with the vehicle's electrical system and protecting it from any voltage errors.

⭐⭐⭐⭐⭐

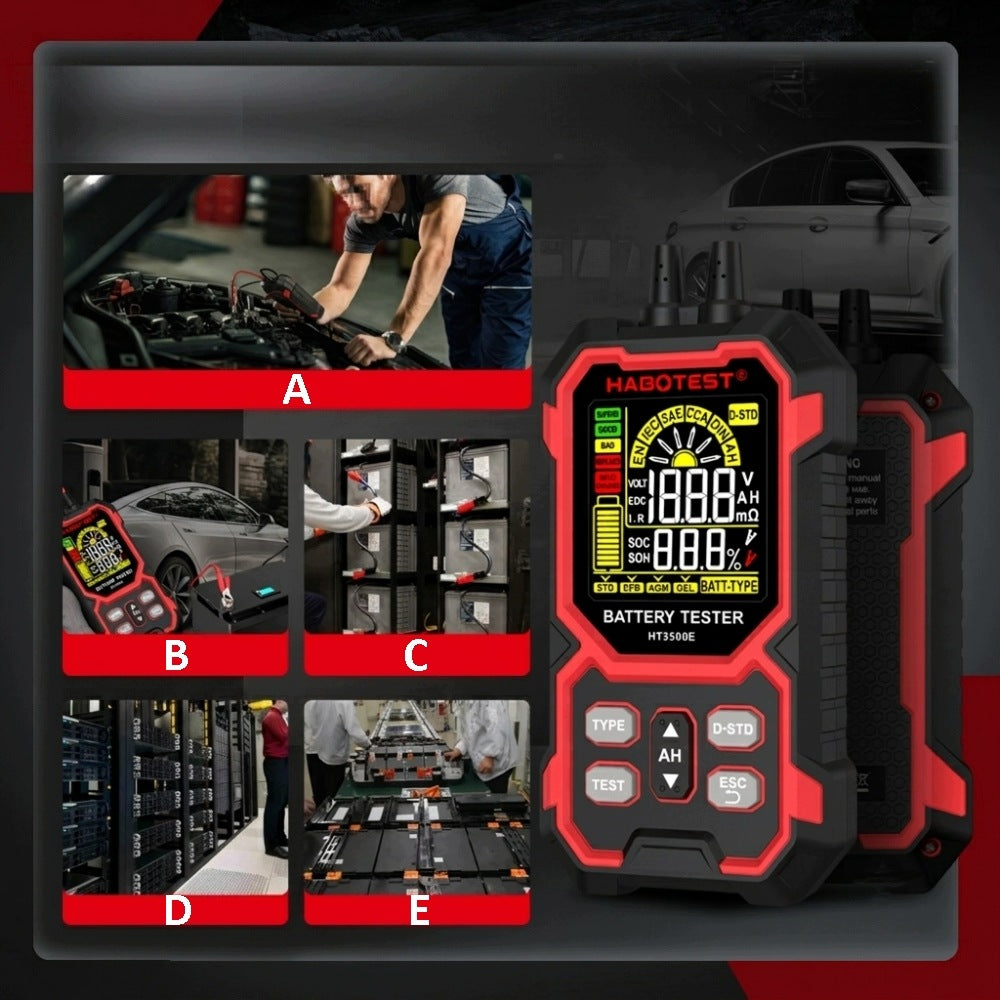

Due to its versatility, reliability and accuracy, the HT3500E tester is ideal for areas such as:

• A: Car maintenance and repair: Basic equipment for every mechanical and electromechanical workshop.
• B: Electric and hybrid vehicles: Assessment and continuous monitoring of auxiliary batteries.
• C: Backup power systems: Testing batteries in power banks that support power, m.in . in offices or hospitals.
• D: Energy storage systems: Cell diagnostics in photovoltaic (PV) and solar installations.
• E: Research, development and laboratory testing: Professional quality control of new battery batches.

⭐⭐⭐⭐⭐

The tester has been designed for precise testing of various technologies of making lead-acid cells. With the dedicated TYPE button, you can instantly switch between the following diagnostic modes:

• STD (Standard lead-Acid Battery): Classic, traditional lead-acid batteries.
• EFB (Enhanced Flooded Battery): Improved batteries with increased lifespan, commonly used in vehicles with Start-Stop systems.
• AGM (Absorbent Glass Mat Battery): Technologically advanced batteries with electrolyte absorbing glass mat, ideal for modern cars with high energy demand.
• GEL (Gel Cell Battery): Gel batteries in which the electrolyte is in the form of a gel, often used in motorcycles, scooters and emergency power systems.

⭐⭐⭐⭐⭐

The device guarantees full diagnostic compliance with global standards. It allows you to choose the standard for measuring inrush current (using the D-STD button), which makes it easier to work with any battery name label:

• EN: European standard – the most popular standard on our market.
• SAE: American Standard developed by the Association of Automotive Engineers (USA).
• IEC: Guidelines of the International Electrotechnical Commission.
• DIN: German industrial standard.

In addition, the device supports testing in two key parameters of current and capacity detection: CCA (Cold Cranking Amps – cold start current) and AH (Amperohours – nominal battery capacity).

⭐⭐⭐⭐⭐

Internal resistance is the most important and objective determinant of the actual consumption of each battery. Habotest HT3500E performs an instantaneous internal resistance test administered in millioms (mΩ). The lower the resistance value, the better the service life and the more efficient the battery. If the cell has been sulphurized or naturally aged, its resistance will increase, which the tester will immediately register and display on the screen. This allows you to detect an impending failure before the battery completely refuses to obey during frosts.

⭐⭐⭐⭐⭐

The device has an intelligent algorithm that analyzes the collected parameters (voltage, inrush current, internal resistance) and converts them into a percentage of the life of SOH (State of Health). To simplify the interpretation of the result as much as possible, the tester assigns the battery to one of the clear categories of health status:

• SUPERB (Excellent): Percentage score above 80% – the battery is in great condition, does not require any action.
• GOOD: Result between 60% and 79% – correct condition, battery fully functional.
• BAD: Result between 45% and 59% – weak condition, battery shows signs of strong wear, special vigilance should be exercised.
• REPLACEMENT: Result below 45% – the tester explicitly recommends replacing the battery with a new one due to loss of starting capacity.

⭐⭐⭐⭐⭐

This function determines the current energy charge level stored in the battery, expressed as a percentage of SOC (State of Charge). Additionally, a graphical battery icon divided into segments is displayed on the clear LCD screen, visually representing the cell's fill level. In case of deep discharge, the device activates a CHARGE NEED alert, informing you of the necessity to immediately connect the battery to a charger before proceeding with further diagnostic steps.

⭐⭐⭐⭐⭐

Habotest HT3500E also serves as an ultra-precise digital voltmeter operating in a safe measurement range from 8V to 30V with an accuracy of ±0.18V . This allows for ongoing monitoring of the resting voltage at the battery terminals, which is a key element in the initial verification of the condition of the vehicle's electrical system.

⭐⭐⭐⭐⭐

The heart of the device is an advanced diagnostic processor that ensures incredibly fast response times (results are obtained in just 2 seconds after pressing the TEST button). Importantly, the tester adopts the professional four-wire Kelvin measurement method. By eliminating the resistance of the test leads and contacts themselves, the obtained data is characterized by the highest laboratory precision and result repeatability, preventing measurement falsification due to external interference.

⭐⭐⭐⭐⭐

Working with electricity and car batteries requires special care. Habotest HT3500E is equipped with reinforced internal protection, which consists of:

• Reverse Connection Prevention: If you mistakenly reverse the polarity and connect the red terminal to the negative and the black terminal to the positive, the device will not be damaged or cause a short circuit.
• Overload and Overvoltage Protection: The electronics withstand overload voltages up to 36V , protecting sensitive components from burning out when testing systems that generate sudden voltage spikes.

⭐⭐⭐⭐⭐

The device ensures that the testing process is error-free. If the contact between the alligator clips (tester clamps) and the battery terminals is too weak (e.g., due to dirt, corrosion, or a loose connection), the tester will automatically detect it. The clamp icon on the display will start to flash rapidly, and the built-in buzzer will emit a characteristic sound signal "beep~ beep~". This informs the user that the clamps need to be adjusted before proceeding with the actual test, preventing inaccurate results.

⭐⭐⭐⭐⭐

Designers have focused on maximum ergonomics and ease of use. The tester weighs only 200g, and its compact dimensions mean it easily fits in your hand or toolbox. An additional advantage is the lack of an internal battery – the device draws power directly from the battery being tested after the clamps are properly connected. This means the tester is always ready to work, won't discharge in storage, and doesn't require tedious charging or battery replacement.

⭐⭐⭐⭐⭐

Working in a workshop environment, under the hood of a car or outdoors in difficult terrain involves the risk of dropping equipment. The design of Habotest HT3500E has been fully adapted to harsh environmental conditions. The case is made of combined premium materials: ABS + TPE . The use of flexible, non-slip technical rubber on the sides and edges of the device ensures a secure grip even in oily hands, perfectly absorbs falls, protecting the screen and electronics from cracking or damage. Additionally, the panel is equipped with a responsive, soft rubber keyboard, resistant to intensive use.

⭐⭐⭐⭐⭐

• Brand: Habotest
• Model: HT3500E
• Voltage measurement range: 8 - 30V
• Power/Battery Charge Range (SOC): 1% ~ 100%
• Battery Life Range (SOH): 1% ~ 100%
• Voltage measurement accuracy: ±0.18V
• Internal resistance measurement accuracy: ±0.18mΩ
• Display Type: High-resolution digital backlit LCD display
• Operating temperature: -10°C to 50°C
• Overload protection voltage: 36V
• Measurable Content: VOLT, SOC, SOH, IR (Internal Resistance), CCA
• Device dimensions: 149 x 81.6 x 34.5 mm
• Length of cables with clamps: 680 mm (wide range for easier work)
• Device weight: 200g

⭐⭐⭐⭐⭐

1. Display Screen
2. Parameter Adjustment Buttons
3. Battery Type Selection
4. Test Button
5. Test Standard Selection Button
6. Return Button

⭐⭐⭐⭐⭐

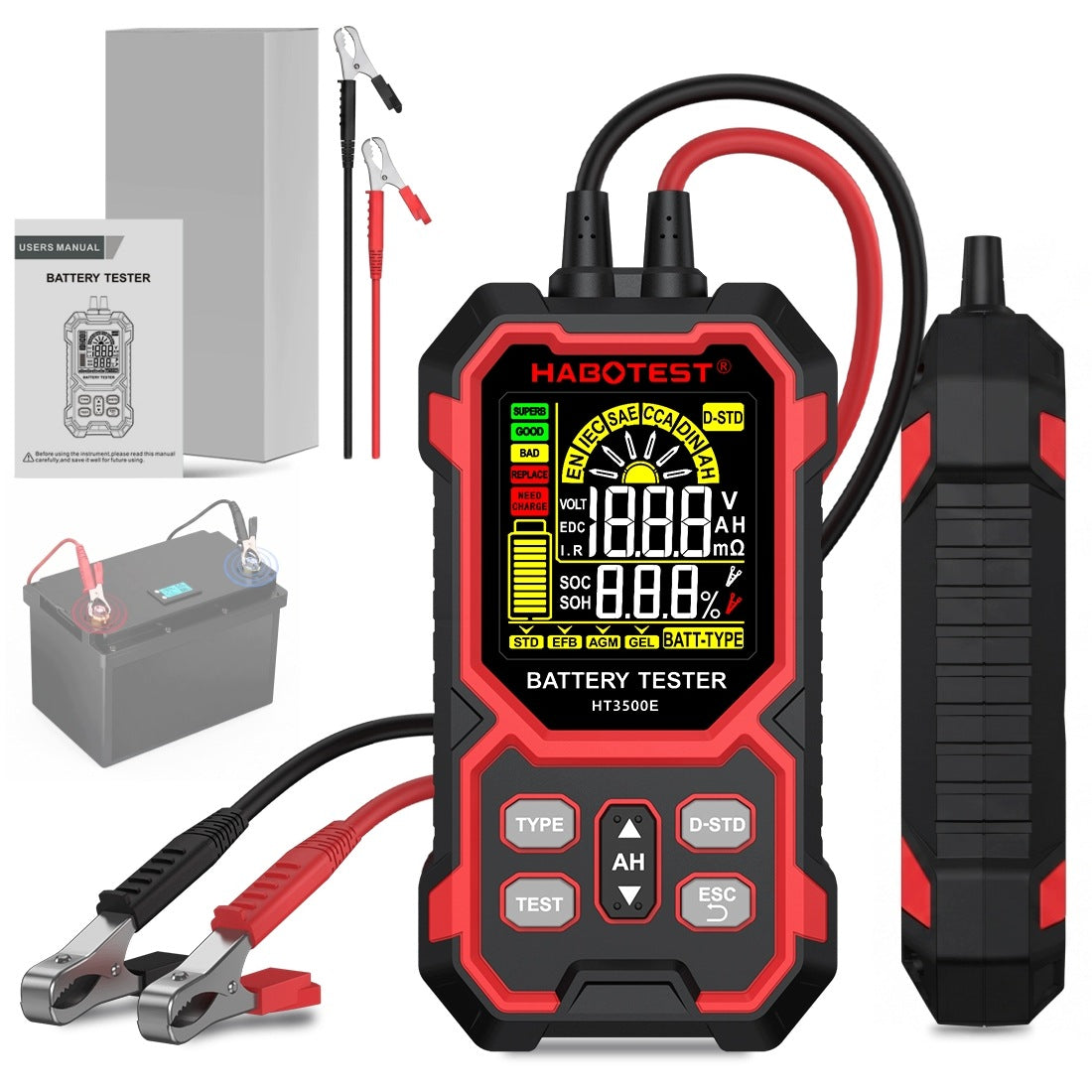

• 1 x Habotest HT3500E Battery Tester with integrated test cables and alligator clips
• 1 x User manual in Polish and English!
• 1x Original manufacturer's packaging.
