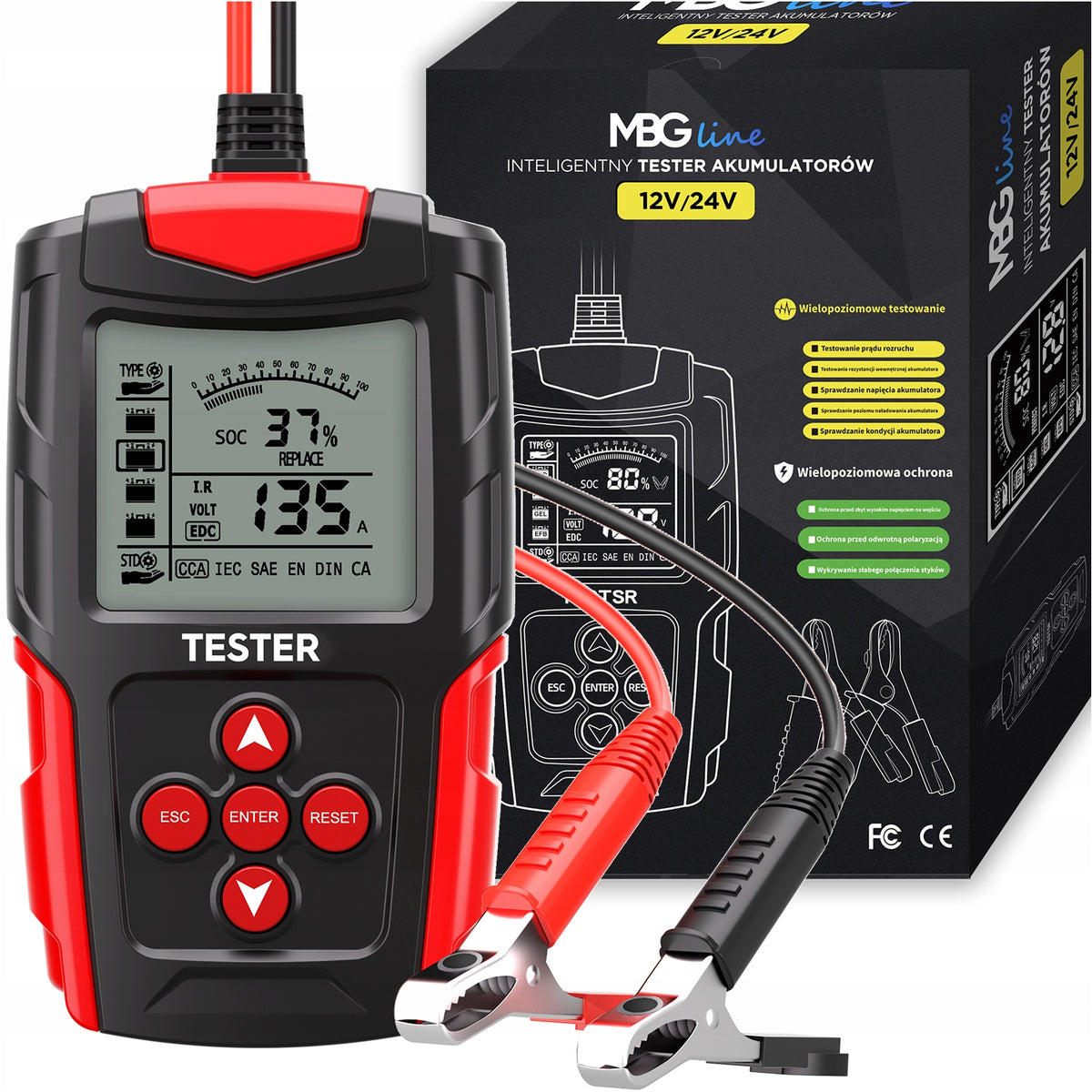

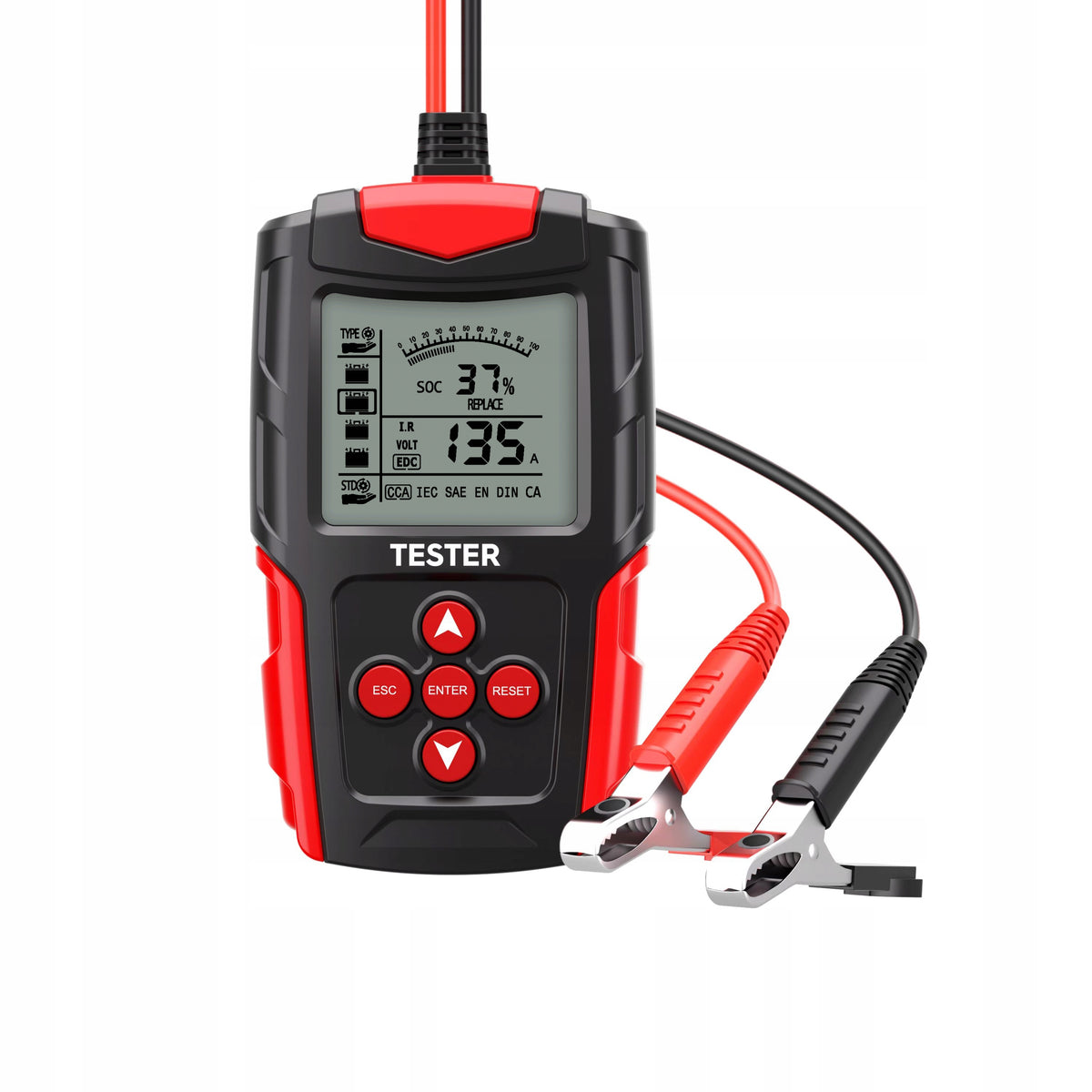

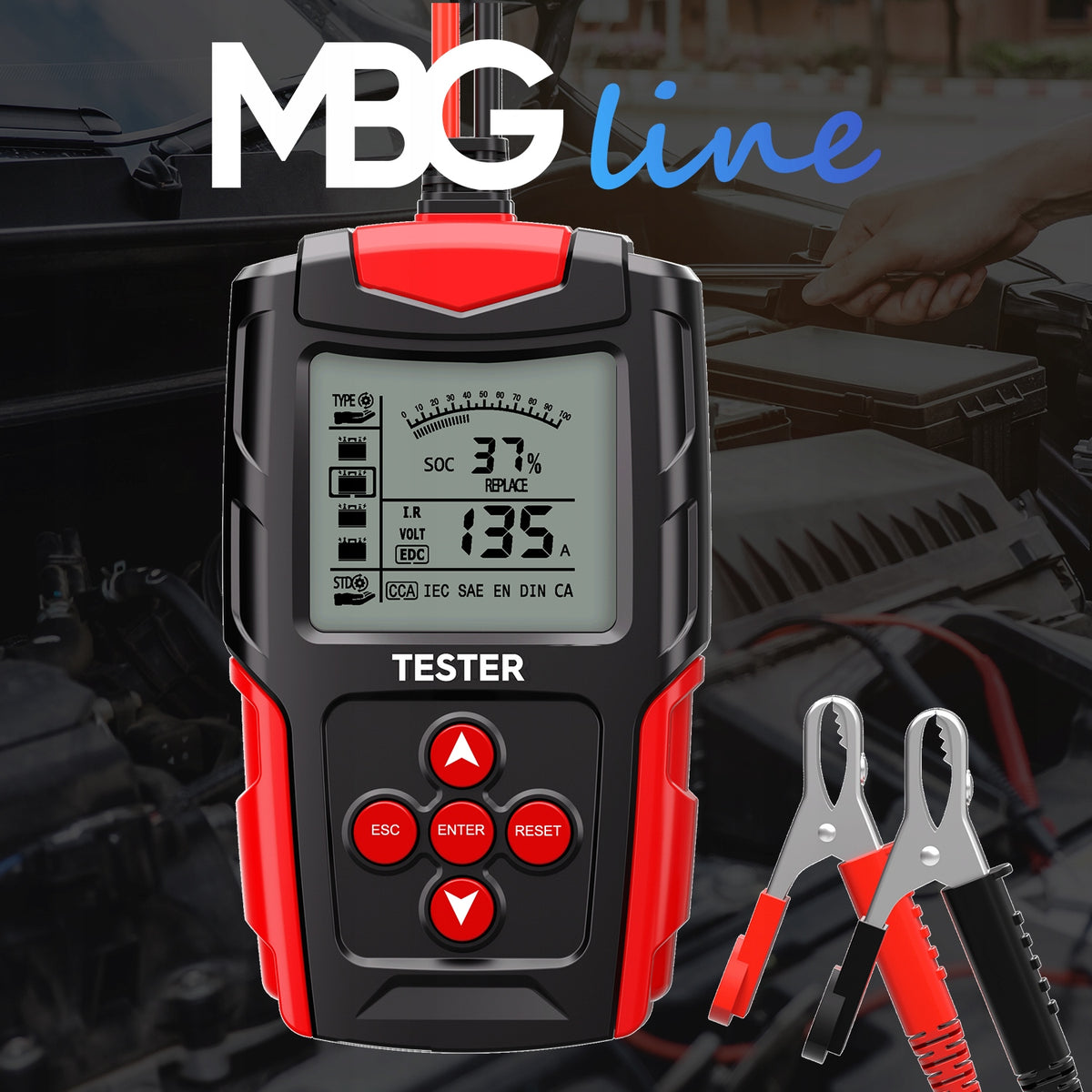

Skaitmeninis akumuliatoriaus testeris 12V/24V su LCD ekranu

Trumpai apie prekę

Prekė: Skaitmeninis akumuliatoriaus testeris 12V/24V su LCD ekranu. Kategorija: Baterijų testeriai.

• Gamintojas: MBG Line
• Modelis: FBT200 PRO

⚠ Professional device ⚠ High safety of use ⚠ Large backlit LCD display ⚠ SIMPLE OPERATION ⚠ COMPACT DESIGN

✔ WORKS WITH VRLA / GEL / AGM / EFB / STD BATTERIES

✔ SUITABLE FOR ALL 12V and 24V BATTERIES from 3Ah to 200Ah

✔ LATEST VERSION OF DIGITAL SMART BATTERY TESTER

⭕ MBG line FBT200 PRO

• Advanced technology for testing and diagnosing batteries with their condition and efficiency
• Suitable for testing 12V and 24V batteries
• Compatible with VRLA / GEL / AGM / EFB / STD batteries
• Large and easy to read LCD display with backlight
• Advanced microprocessor control
• Security systems: before bad polarity (wrong connection), too weak connection of terminals, too high voltage at the input
• Spark-free clamps for added security
• Compact size, easy to transport
• Battery support from 3 to 200Ah
• Performing tests as standard: CCA, IEC, SAE, EN, DIN, CA
• Precise and reliable data

• Battery voltage
• Estimated discharge current
• Battery condition
• Internal resistance
• Charge state

In area 1 we read:

• SOH: Battery condition
• SOC: State of charge

In area 2 we read:

• I.R: Internal resistance of the battery
• VOLT: Battery voltage
• EDC/CCA: Estimated discharge current

In area 3 we set the testing standard:

• CCA: Cold start current, determined by SAE and BCI, the most commonly used value for battery start at(-18'C)
• IEC: Internal Electrotechnical Commission standard
• SAE: Automotive Engineers Association Standard
• EN: European Automobile Industry Association standard
• DIN: Standard of the German Automotive Industry Committee
• CA: Inrush current Standard, effective inrush current value at 0°C

Precise and reliable reading

The clear LCD display is one of the many advantages of this device. All the necessary parameters in one place. With the MBG line Battery Tester, analyzing battery health has never been easier.

You can check the battery voltage, measure the value of the inrush current CCA, assess the condition and life of the battery, measure its internal resistance and locate faults in a short time.

• Input Voltage: 12-24V
• Supported battery types: VRLA / GEL / AGM / EFB / STD
• Battery capacity range: 3Ah - 200Ah
• Built-in LCD display: YES 2.7"
• Supported testing standards: CCA, IEC, SAE, EN, DIN, CA
• Microprocessor: YES- advanced control system for testing
• Protections: against bad polarity (wrong connection), too weak connection of terminals, too high voltage at the input
• Clamps: Spark-free, safe to use
• Dimensions: 150 x 90 x 35 mm
• Weight: 334g
• Operating conditions: -20°C to +60°C
• Cable length with clamps:~ 65cm
• Safety Certificates and Standards: CE, RoHS

• Motorcycles
• Scooters
• Quads
• Motorboats
• Boats
• Passenger cars
• Buses
• Commercial vehicles
• Trucks
• Motorhomes
• Tractors
• Agricultural machinery
• Forklifts
• Off-road vehicles (ATV)
• Lawn tractors
• Snowmobiles
• Construction vehicles (e.g. excavators)
• Military vehicles
• Buses
• Golf cards
• Vintage cars
• Fishing boats
• Jet Ski (water scooters)
• Electric vehicles with 12V or 24V batteries

1. Connect the clamps according to the designation (red to plus, black to mass)
2. Choose the right type of battery
3. Set a testing standard
4. Enable test

⭕ MBG line FBT200 PRO

1. Automatic digital tester MBG line FBT200 PRO
2. Full polish manual in the form of a booklet
3. Elegant box - perfect for a gift

P: Is this battery tester powered by internal batteries?

A: No, the device is powered only by the battery being tested.

P: Can the tester charge the battery?

A: No, the tester does not charge the batteries, but can test them.

P: Does the tester evaluate battery life?

A: Yes, it will show battery health and charge percentage

P: What batteries can I use the tester on?

A: 12V and 24V.

P: Why is the tester test result inaccurate?

A: It is possible that the set parameter is incorrect. Enter the correct data from the battery label.

Q: Why is nothing displayed?

A: Make sure the battery voltage is over 8V and that the positive and negative terminal are connected correctly.

Specifications
