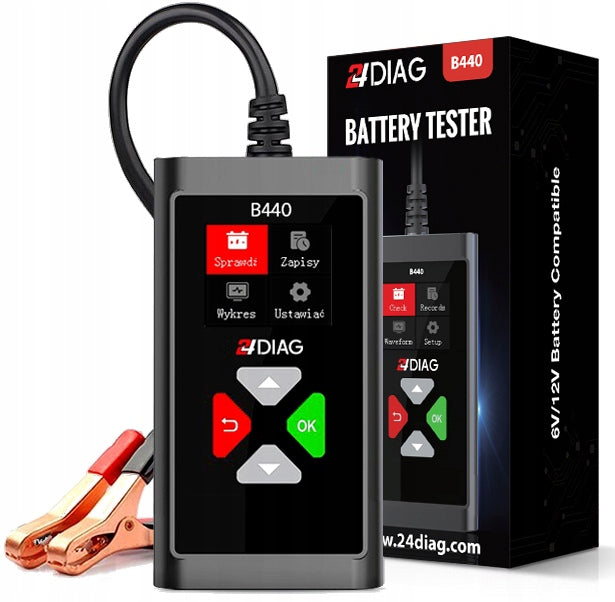

Skaitmeninis akumuliatorių testeris 6V/12V 2–220Ah

Trumpai apie prekę

Prekė: Skaitmeninis akumuliatorių testeris 6V/12V 2–220Ah. Kategorija: Baterijų testeriai.

• Gamintojas: 24Diag
• Modelis: B440

The tester is compatible with batteries:

• Acid/Lead (regular/regular batteries)
• AGM flat/plate
• AGM spiral
• Gel
• EFB

6V and 12V battery testing and wide measuring range from 2AH to 220AH

11 languages available including Polish (English, Spanish, German, French, Italian, Russian, Portuguese, Japanese, Chinese, Korean).

The battery tester 24DIAG B440 allows you to measure:

• voltage and % battery charge / battery test
• start current / start-up test
• Alternator operation / charging test
• resistance/internal resistance of the battery

• CCA 100-2000
• JIS 26A17--245H52
• DIN 100-1000
• IEC 100-1000
• EN 100-2000
• SAE 100-2000
• BCI 100-2000
• MCA 100-2000
• CA 100-2000
• GB 2-220AH

Additional functionalities of 24DIAG B440:

• Quick battery test, option not available anywhere else.
• Preview and save the tests performed
• Preview of parameters in the form of a graphic chart
• One of the most interesting features is to take a screenshot (PrintScreen) by pressing two up and down buttons simultaneously for 3 seconds. We can take 5 screenshots and then connect the device with a USB cable to the laptop and print from the SNAPSHOT folder e.g. saved measurement, chart or other parameter whose screenshot we took.

Testing batteries in:

• cars
• Motorcycles
• Scooters
• Scooters
• Emergency control panels
• Emergency UPS power supply
• Cordless tools
• and many others.

Specification:

1. Working environment Temperature: 0*C to 50*C
2. Storage temperature: -20*C to 70*C
3. Housing material: acid-resistant ABS plastic
4. Battery capacity measurement range: 2Ah-220Ah
5. Voltage/Application: 6V and 12V
6. Input voltage: 5V~20V

Results of battery status measurement in %:

• SOC - battery charge status
• SOH - degree of battery consumption

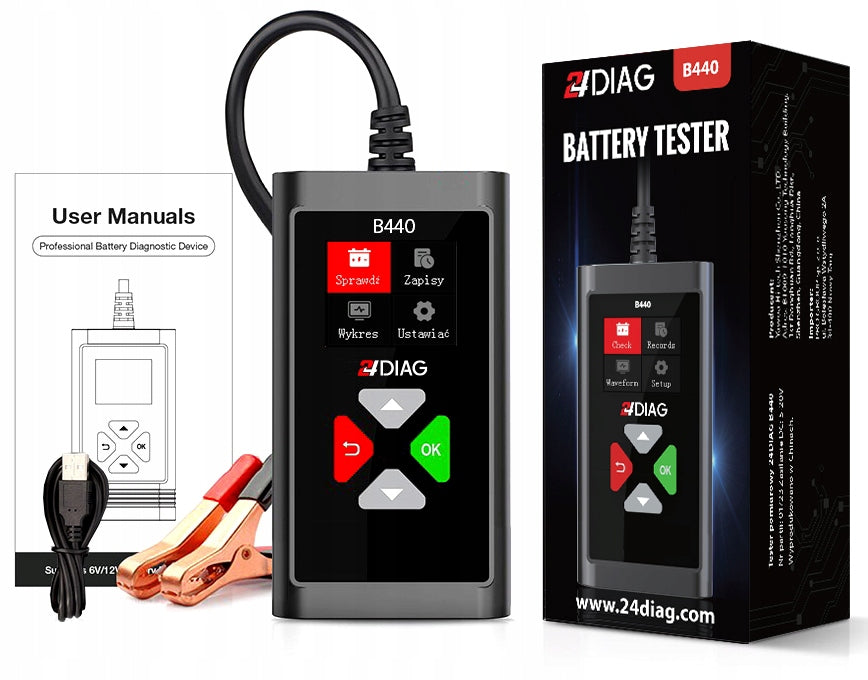

The set includes:

1. 24DIAG B440 tester
2. USB Printing Cable
3. User manual in Polish language (electronic version)
4. Paper instruction (j.ang)
5. Original carton packaging

No additional batteries and accumulators are needed to power the device, as it draws power directly from the tested car battery.

Cable connection:

• red (+)
• black (-)

This device, thanks to advanced electronics, has capabilities comparable to expensive professional workshop testers, and even better.

1. The device works immediately after connecting to the tested power source.
2. Detects bad batteries.
3. Protection against poor pole connection. Poor connection will not break the tester/battery/car.
4. Direct battery test with charging drops. There is no need to fully charge the battery before testing.
5. The battery test is mainly aimed at analyzing the service life when calculating its current capacity and degree of wear. This will help you assess whether the battery needs to be replaced.
6. Thanks to the test, you will assess whether the battery powers the car with the right current at start-up and engine operation.
7. The charging test enables the analysis of the charging system in the vehicle to check whether the voltage in the electrical system is correct.

1. Simple and easy to use
2. Test the battery inside and outside the vehicle (selectable in the menu)

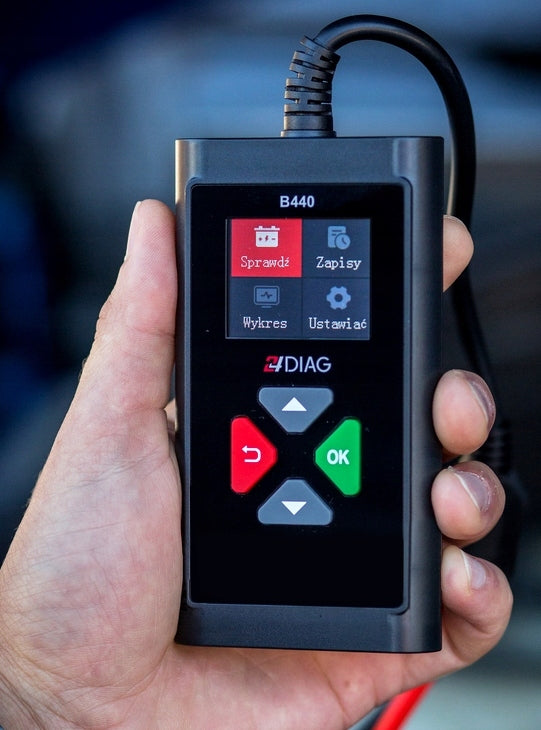

3. Large easy-to-read color LCD display
4. Test results based on CCA, CA, JIS, EN, DIN, SAE, IEC, BCI, MCA, GB standards.
5. Vehicle start-up system testing: start-up time, voltage and condition
6. Vehicle charging system test: load voltage, unloaded voltage
7. Range AH: 2-220AH

• Height: 12cm
• Width: 6,5cm
• thickness: 2cm
• length of measuring cables: 70cm

Quick battery test:

Battery test in the vehicle:

Charging/Waving Test:

Start-up/load test:

Preview in the form of a chart:

Last measurement and settings:

• CERTAIN GUARANTEE
• TECHNICAL SUPPORT
• GOODS OF ADEQUATE QUALITY
• POST-WARRANTY SERVICE in Poland

Specifications
