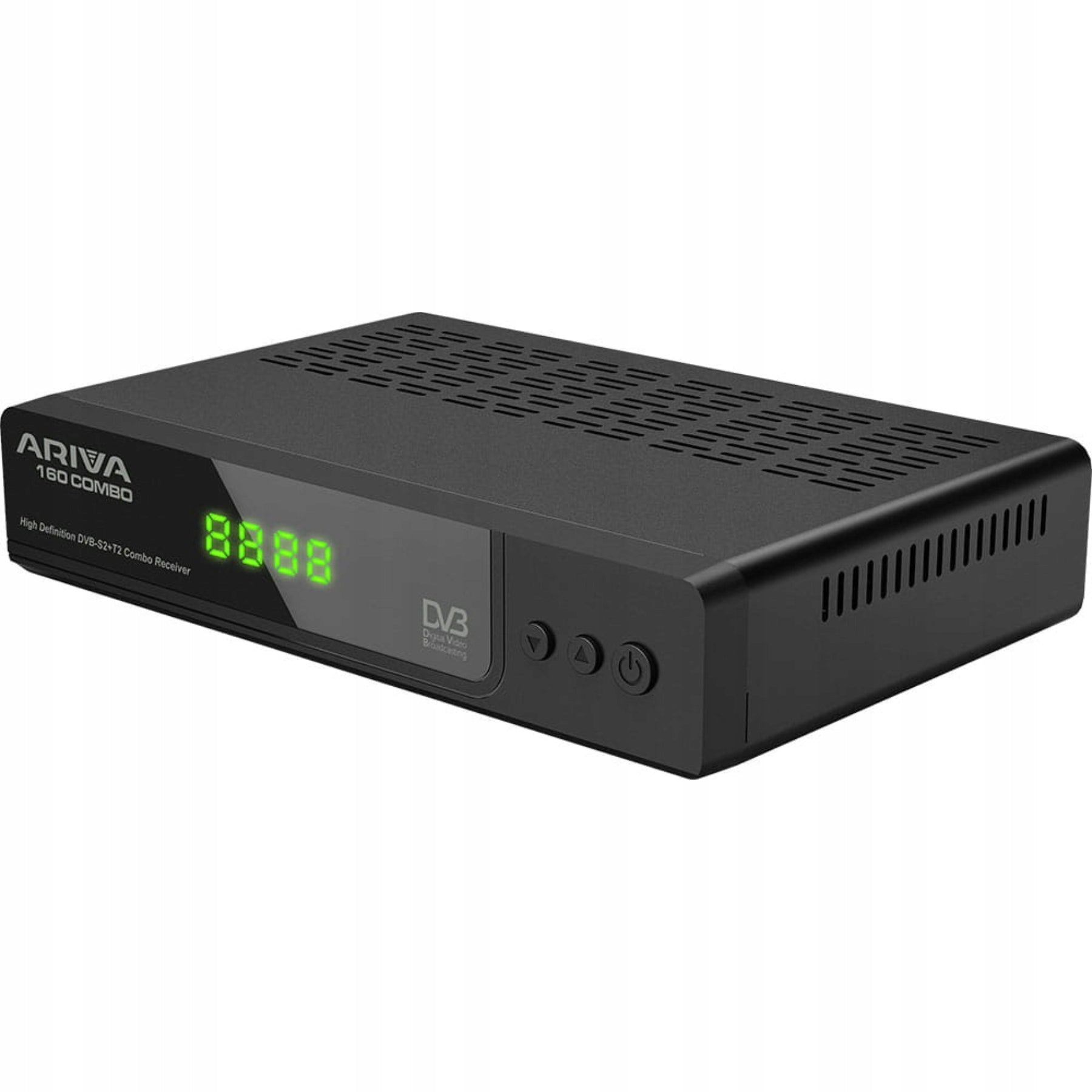

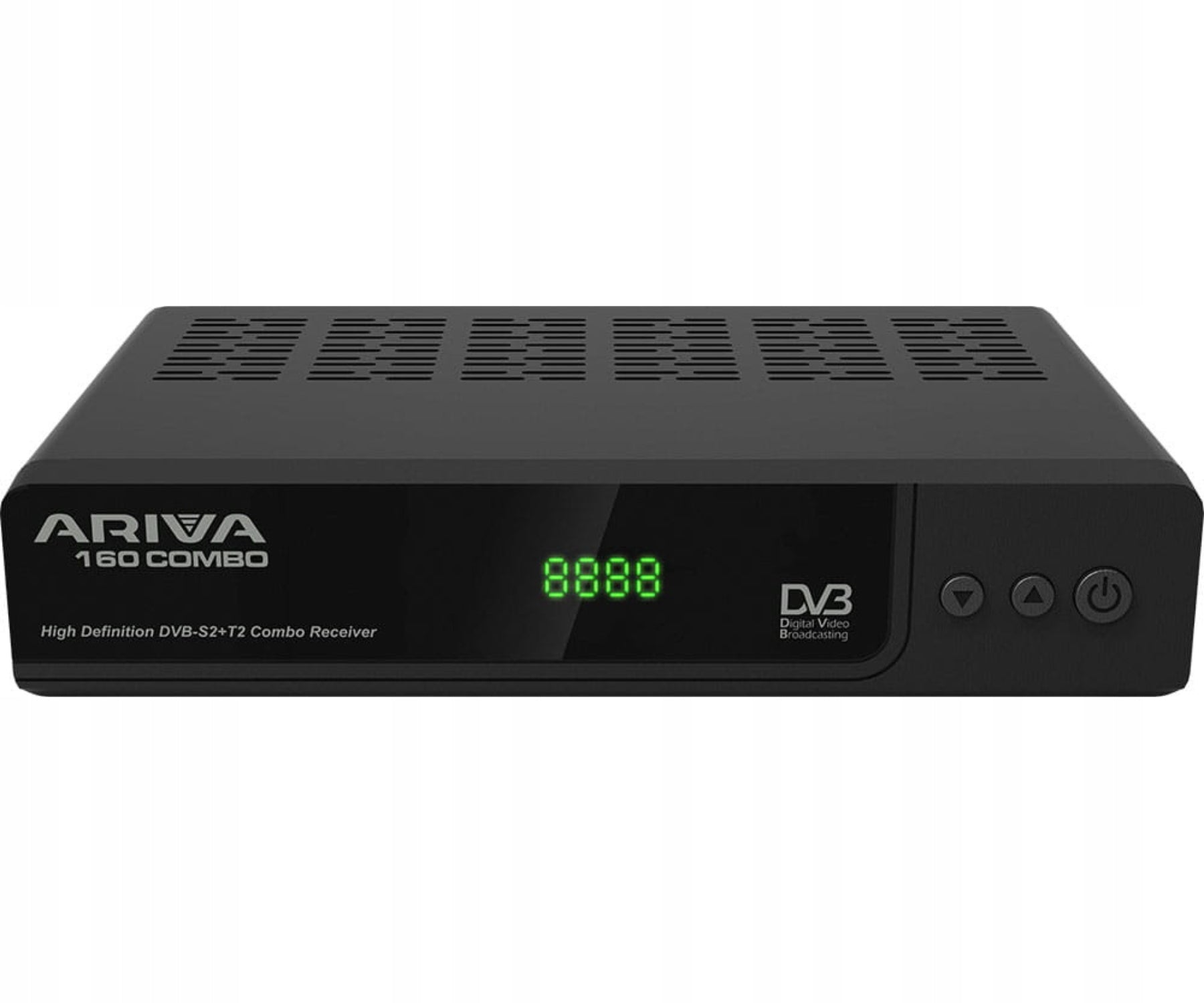

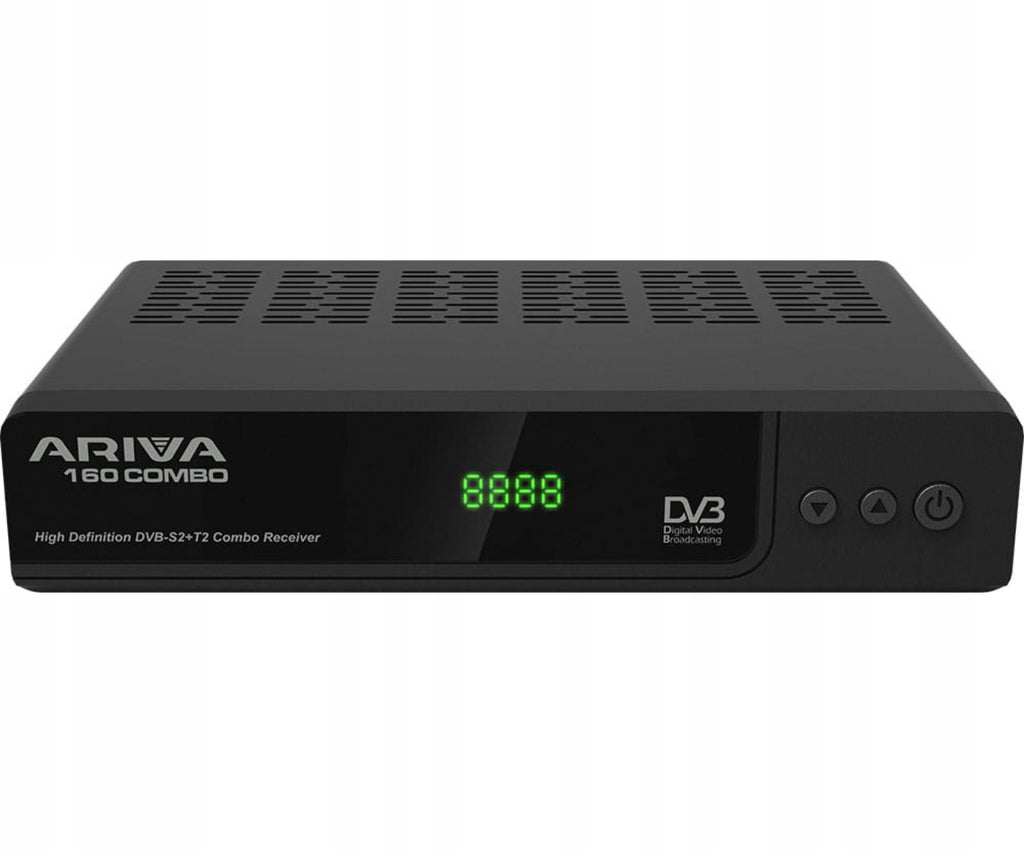

Skaitmeninis imtuvas FERG-ARIVA-160-COMBO, HD, DVB-T/T2, DVB-S/S2, H.265

Trumpai apie prekę

Prekė: Skaitmeninis imtuvas FERG-ARIVA-160-COMBO, HD, DVB-T/T2, DVB-S/S2, H.265. Kategorija: Tiuneriai.

• Gamintojas: Ferguson
• Modelis: Ariva 160 Combo

FERG-ARIVA-160-COMBO is a universal receiver offering access to both satellite TV in the DVB-S/S2 standard and digital terrestrial television broadcast in the DVB-T/T2 standard. The decoder is compatible with DVB-T2 and DVB-S2 standards encoded with the H.265/HEVC 10bit codec – currently applicable standards for terrestrial and satellite television transmission. The analogue EURO/SCART connector enables cooperation with TVs without a digital input, e.g. Cinescopic televisions. Using the HDMI connector, you can provide an HD quality signal to the TV. The SPDIF TOSLINK digital audio optical output allows you to connect your tuner to your home theater system and listen to Dolby Digital Plus E-AC-3 multi-channel audio. The device plays photos, music and videos - both in SD resolution and in high HD resolution. A wide range of supported formats and codecs will ensure seamless playback of most media files. The USB port allows you to record video (PVR) on external storage media, such as USB hard drives or flash drives, and the Timeshift function allows you to scroll through them while watching. In addition, the device offers access to the Internet, WebAPPs, DLNA and Internet radio, providing much more than just classic TV.

• Input frequency: 177.5 ... 227.5 MHz (VHF), 474 ... 858 MHz (UHF) @ DVB-T/T2, 950 ... 2150 MHz @ DVB-S/S2
• Input Impedance: 75 Ω
• Standard: DVB-T / DVB-T2 / DVB-S / DVB-S2
• Supported resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
• Audio sampling: 32 kHz, 44.1 kHz, 48 kHz
• Demodulation: QPSK(SCPC, MCPC), 8PSK, 16APSK, 32APSK,16-QAM,32-QAM,64-QAM,128-QAM,256-QAM
• FEC: 1/2, 2/3, 3/4, 5/6, 7/8 for DVB-S1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 for DVB-S2
• Image Format: 4:3, 16:9, Pan&Scan, Letterbox
• Audio decoder: MPEG-1 layer I, II, PCM downmix, IEC958 SPDIF
• Video decoder: MPEG2 ISO/IEC 13818-2 MP@ML,H.264(MPEG4-10) MP/HP@L4.1/MPEG2 MP@HL, HEVC - H.265 - 10 bit
• Video formats: Support for multiple formats and codecs
• Supported audio formats: Support for multiple formats and codecs
• Photo formats: JPEG, BMP
• HDCP: Yes
• Connectors: HDMI 1.4, EURO (CVBS, RGB), IEC socket, "F" socket - LNB - 13 / 18 V max. 300 mA, SPDIF TOSLINK, USB 2.0, RJ-45 socket, DC 2.1/5.5mm socket - 12 V
• Power supply: 12 VDC/ 1 A (power supply included)
• Power consumption: max. 12 W (operation)< 0.5 W (standby mode)
• Color: Black
• Operating temperature: -5 °C ... 45 °C
• Weight: 0.28 kg
• Dimensions: 170 x 122 x 40 mm
• Supported languages: Polish, English, and others
• Manufacturer / Brand: FERGUSON

Selected features:

• Compatible with DVB-T2 HEVC H.265
• 10-bit color depth signal support - 10-bit depth of color tones
• Full HD1080p
• Scaling PAL signal to 720p or 1080p resolution
• TOSLINK optical output: Dolby Digital (AC-3), Dolby Digital Plus (EAC-3)
• DiSEqC 1.0, 1.1, 1.2, USALS support
• Support MPEG-2, MPEG-4, MPEG-4 AVC/H.264, HEVC/H.265 10bit standards
• SD and HD quality channels, Automatic recognition, 2000 Channels
• Separate lists of favorite, TV and radio channels - 8
• Fast channel switching
• Editing the channel list
• Automatic or manual search for available TV channels and radio
• Support for teletext and screen captioning
• Electronic Program Guide - EPG - 7 days
• Teletext
• Media Player
• Timer - recording planning
• TimeShift function
• RJ-45 port : Internet access WebAPPs, DLNA, Internet radio
• Software update via USB port
• Parental control
• LED Display - Green
• Automatic shutdown
• Memory of the last channel
• Support external USB hard drives with self-powered (basic partition required in NTSF (recommended) or FAT32).
• Instructions and menu OSD in Polish

Full name of the product:

DIGITAL TUNER HD COMBO DVB-T/DVB-T2/DVB-S/DVB-S2 FERG-ARIVA-160-COMBO H.265/HEVC FERGUSON
