Skaitmeninis osciliografas-multimetras ZOYI ZT-702S

Trumpai apie prekę

Prekė: Skaitmeninis osciliografas-multimetras ZOYI ZT-702S. Kategorija: Vonios svarstyklės.

• Gamintojas: no brand
• Modelis: ZD355340-ZT-702S

Description

Multimeter meter with oscilloscope 2in1 ZOYI pisZT-702S 2,8'' IPS

The ZT-702S combines 2 main functions:

1. Digital oscilloscope
2. Digital multimeter

It has additional functions such as: continuity test, diode test, temperature measurement, limitation and frequency.

The ZT-702S has a built-in rechargeable lithium function that provides users with efficient operation, thus working well in functionality.

The device is great for household testing electrical instruments, motor and electric vehicles, as well as universal multimeters for measuring and sockets, appliances, lamps and electrical circuits.

Normal oscilloscope mode:

• Automatic measurement of one of them
• Time-based calibration
• Data storage
• Export data
• Language selection
• setting the time off
• Adjustable backlighting
• Data transfer/loading port
• 3V-1kHz Square Wave Output

Main features of the product:

• 2-in-1 device: connection of a digital oscilloscope with a multimeter
• 2,8" IPS display - control controller and convenient test results
• Automatic measurement of one of them
• Power supply for 18650 3,7V treatment assistance
• Charging via USB-C cable
• Compliant with CTA III 1000V safety system, CTA II 600V oscilloscope mode
• Double Ceramic Fuse 200mA 10A
• Widely used in working with electronics

Specification:

• Number of ingredients: 1
• Closed mode: AC/DC
• Real-time sampling rate: 48 MSa/s
• Permanent current: 0,001A ~ 9,999A
• Alternating current: 0,001A ~ 9,999A
• Direct current voltage: 0,1 mV ~ 999,9 V
• AC voltage: 0,1 mV ~ 750,0 V
• Working mode: Automatic + manual
• Capacity measurement range: 0,001 nF ~ 99,99 mF
• Resistance measurement range: 0,01Ω~99,99MΩ
• Frequency range: 0,01 Hz~999,9 kHz
• Display: 2,8" color IPS
• Material: ABS+TPE
• Dimensions: 17,7 x 8,9 x 4 (cm)
• Weight: approx. 650g

Normal oscilloscope mode:

• Automatic measurement of one of them
• Time-based calibration
• Data storage
• Export data
• Language selection
• setting the time off
• Adjustable backlighting
• Data transfer/loading port
• 3V-1kHz Square Wave Output

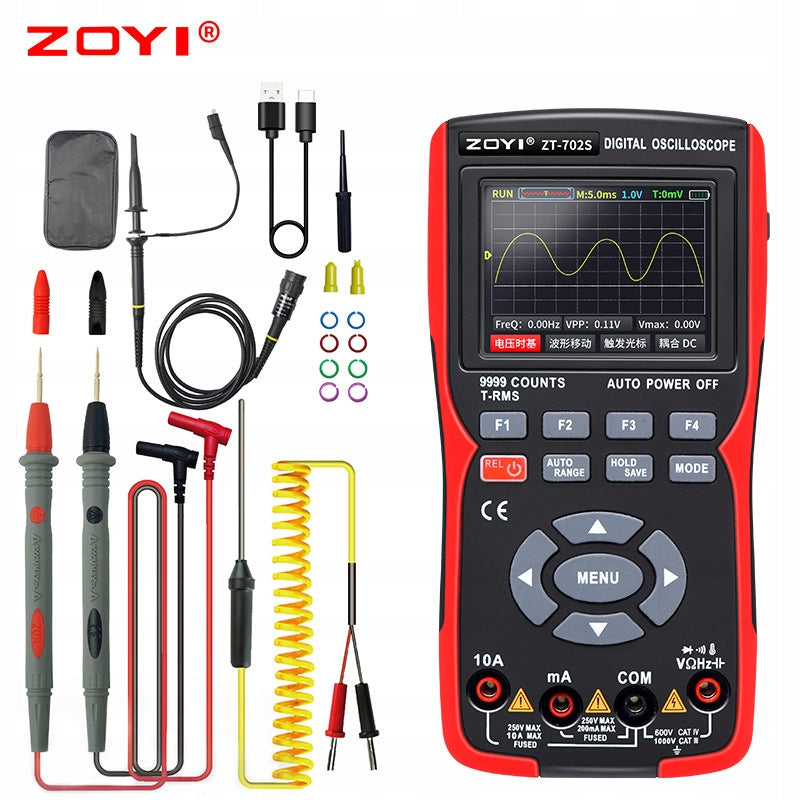

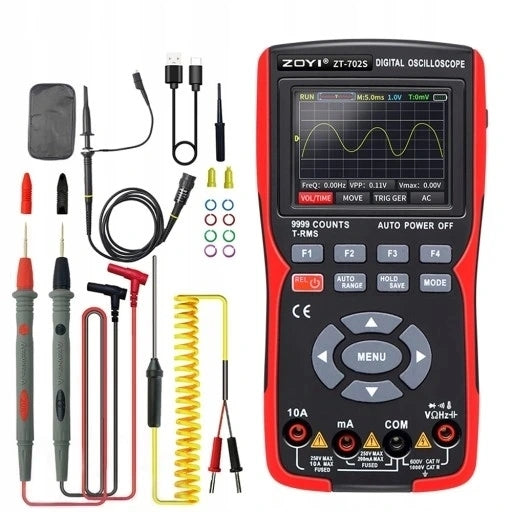

• The set includes:

  1x measuring device ZT-702S

  1x Set of measuring wires

  1x Oscilloscope probe

  1x Thermocouple

  1x Screwdriver for adjustment

  1x USB cable

  1x Rechargeable 18650 3,7v

  1x Case
