Skardos remonto aparatas Badek TECNO SPOTTER 5800 MAX DIGITAL

Trumpai apie prekę

Prekė: Skardos remonto aparatas Badek TECNO SPOTTER 5800 MAX DIGITAL. Kategorija: Sandarikliai.

• Gamintojas: IDEAL
• Modelis: TSPOT5MAXP
• Įtampa: 400 V

TECNO SPOTTER 5800 MAX is a microprocessor controlled device for pulling, one-sided welding and heating with a carbon electrode of sheets. Designed especially for car body repairs.

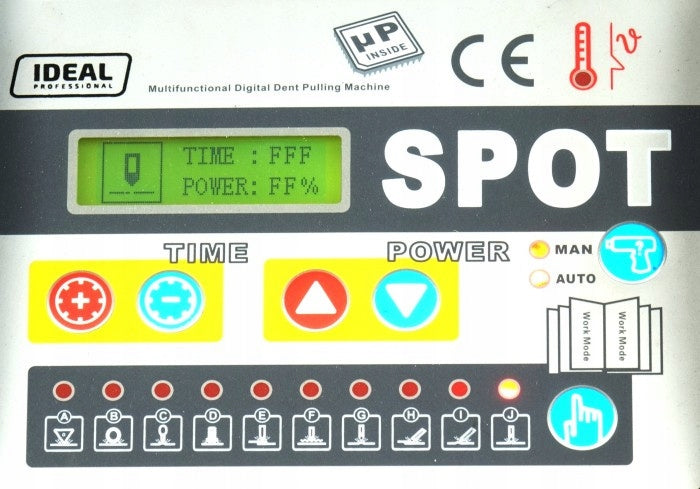

All welding machine settings are available from the control panel. After selecting the type of tool, the device will adjust the welding current and optimal work cycles. It is also possible to manually set the time and current for welding.

Possibility to choose the operating mode:

automatic (automatic start of work on contact with the material)

manual (start work after pressing the button in the gun)

Fan cooling increases the efficiency of the device.

TECNO SPOTTER 5800 MAX is equipped with overload protection, as well as over and undervoltage protection. The device is not equipped with a power plug.

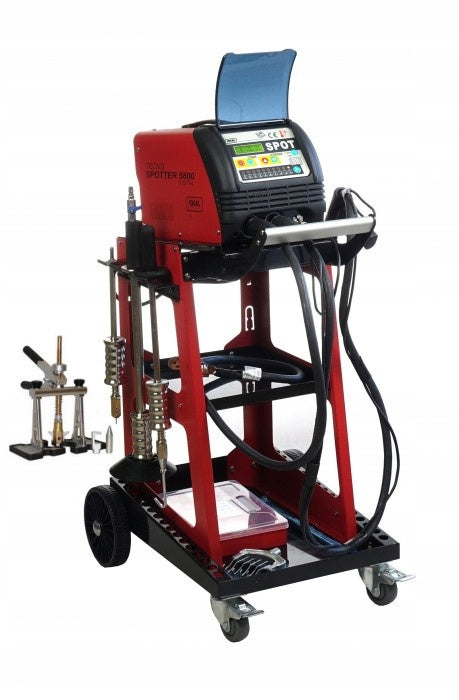

The price of the device includes: trolley, working cable with gun,mass cable with mounting bracket, box with accessories (M10/M12 pads,triangular pads, bubble electrodes, electrodes for OT pads,corrugated wire), M8-M12 washer hook, punch with handle for triangular washers,punch with hook for M10/M12 washers, punch with pneumatic suction cup,Rubber suction cup for shallow dents, handle for corrugated wire and QuickPuller.

Parameters:

Securing the power supply network

C25/C32

Rated supply voltage

400 V; 50Hz

Power

10 kW

Overall dimensions L x W x H

350x220x250 mm

Package Dimensions L x W x H

540x640x830 mm

Maximum thickness of sheets when welding one-sided

0,8 + 0,8 mm

Maximum welding current

3800 A

Input current

32 A

Welding current

3000 A

Regulation of welding time

0 - 99 ms

Degrees of welding current regulation

Stepless
